Yahboom ROS2 AI Camera Robot Car Kit Python Programming Engineering Project AI Vision Mapping Navigation 360°Movement for Mechanical Engineers（Sup ver with Pi 5 8GB）

Yahboom ROS2 AI Camera Robot Car Kit Python Programming Engineering Project AI Vision Mapping Navigation 360°Movement for Mechanical Engineers（Sup ver with Pi 5 8GB）

Bán tại: Mỹ

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

30,656,567đ

Color

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu YAHBOOM là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm YAHBOOM ROS2 AI CAMERA ROBOT CAR KIT PYTHON PROGRAMMING ENGINEERING PROJECT AI VISION MAPPING NAVIGATION 360°MOVEMENT FOR MECHANICAL ENGINEERS（SUP VER WITH PI 5 8GB） là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Country of Origin	China
ASIN	B0B1JBZ66V
Batteries	1 12V batteries required. (included)
Best Sellers Rank	#15,826 in Single Board Computers (Computers & Accessories)
Customer Reviews	3.1 out of 5 stars 6Reviews
Manufacturer	Yahboom
CPU Manufacturer	Qualcomm or Broadcom
Wireless Communication Standard	IrDA
Compatible Devices	Jetson NANO, Orin NX, Orin NANO, Raspberry Pi 4B

Tính năng sản phẩm

Sản phẩm Yahboom ROS2 AI Camera Robot Car Kit Python Programming Engineering Project AI Vision Mapping Navigation 360°Movement for Mechanical Engineers（Sup ver with Pi 5 8GB） của thương hiệu Yahboom với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

Note: Upgraded to compatible with raspberry pi5

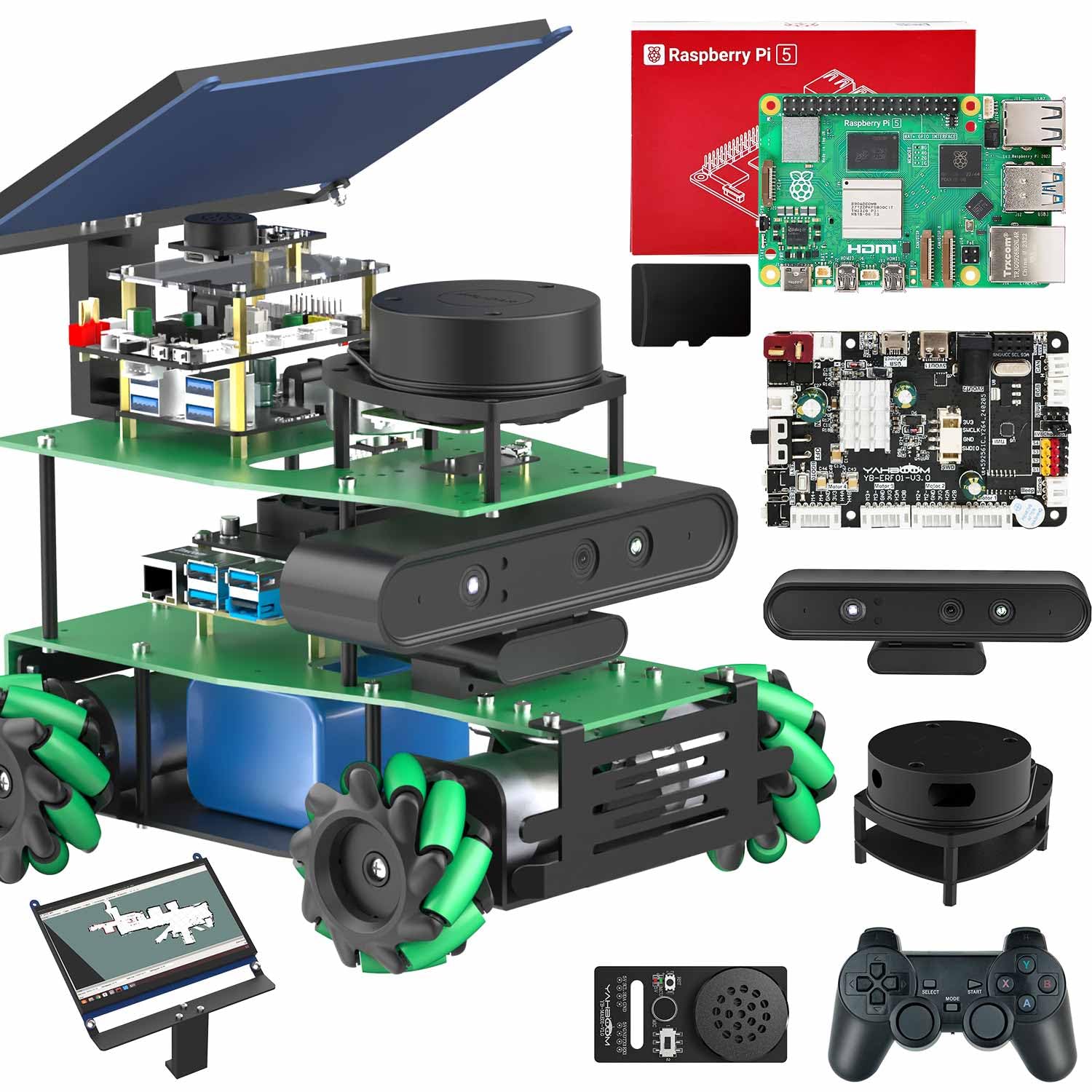

ROSMASTER X3 is fully upgraded to ROS2 and compatible with Raspberry Pi5

ROSMASTERX3 is a educational robot developed based on ROS1 ROS2 robot operating system. It uses Jetson series board or Pi as the main controller, and is equipped with lidar and depth camera, which can realize mapping and navigation, human body feature recognition and other functions.

Interesting Features and Gameplay

Function 1

Voice control multi-point navigation-The voice recognition module recognizes commands and controls ROSMASTER to navigate autonomously to specify coordinate points.
Multi-robot synchronization control：One handle controls multiple robots in real time, completes neat and uniform movements.
Multi-robot queue-Multiple robots maintain three formations in real time.
KCF target tracking-Based image correlation KCF algorithm can select any object in the image and follow the target in real time.

Function 2

Autopilot：Supports custom color selection, and the robot can automatically identify the color area to follow the line.
Color Recognition/Tracking：Select a specific color area in the screen and let the robot track this color in real time.
Lidar mapping and navigation avoiding：It can realize gmapping, hector, karto, cartographer mapping algorithms, support path planning, dynamic obstacle avoidance, single-point and multi-point navigation.

AR tag recognition and reality augmentation

Function 3

ORBSLAM2+Octomap mapping：ORB-SLAM2 is an open source SLAM framework that supports monocular, binocular, and RGB-D cameras. It can calculate the pose of the camera in real time and reconstruct the surrounding environment sparsely in 3D at the same time. In RGB-D mode, the real scale information can be obtained.
Depth image data / point cloud image：The depth map, color map, and point cloud map of the camera can be obtained through the corresponding nodes.

ORBSLAM2 mapping

Function 4

Visual image beautification：The video image is transformed by OpenCV, and the corresponding algorithm is used to achieve the effect of image beautification.
MediaPipe development：Through the MediaPipe development framework, the functions of hand detection, posture detection, overall detection, face detection, 3D detection and recognition are completed.

MediaPipe development

Function 5

RRT explores and builds maps independently：Set the exploration area, and use the RRT algorithm to realize autonomous exploration and mapping, map saving, and return to the origin point.
Aluminum alloy material, Mecanum wheels 360掳omnidirectional movement.
Professional hardware configuration, lidar, depth camera, voice interaction module, etc.

What You Can Learn, ROS2 Foxy, Docker

NOTE

Robot kit is temporarily NOT compatible with raspberry Pi 5

Introduction of Difference Accessories

A1M8 lidar

A1M8 lidar adopts the measurement method of triangular ranging, the measurement radius is 0.15m~12m, sampling frequency is 8K. Combined with the ROS robot system, indoor mapping and navigation functions can be easily realized.

S2 lidar

S2 lidar adopts TOF ranging method, supports indoor and outdoor mapping and navigation, measurement radius supports 0.05m~30m, sampling frequency is 32K, scanning frequency is 8HZ~15HZ, and supports 1M communication rate.

depth camera

The depth camera platform supports left and right rotation and up and down manual adjustment, which can not only realize all the Al visual functions, but also realize advanced functions such as image data processing and 3D mapping navigation.

7 inch screen

Any configuration can be equipped with a this touch screen.The LCD screen is a convenient configuration, which is convenient for users to debug ROS robots.

voice module

Unique voice interaction module allows ROSMASTER to recognize voice and broadcast, and users can control the car through voice.

Version, Size, Parameters

Mô tả

Thông tin chi tiết sản phẩm:

ROS robotic learning kit for multiple versions: Yahboom provides 4 development board versions of ROSMASRER X3, you can freely choose jetson series development board or Raspberry Pi 5, based on the different performance issues of these development boards, The smoothness of operation is worth considering. Fully compatible with Jetson Orin SUPER Kit.
In-depth exploration of AI algorithms and intelligent robots: ROSMASRER X3 is equipped with a depth camera, lidar, and voice interaction module, which can realize ROS operating system, RTAB 3D mapping navigation, PCL 3D point cloud, SLAM mapping navigation, Machine vision applications, Voice interactive control, Python programming, STM32 development, MediaPipe development, YOLO model training, TensorRT acceleration (Note: Different features depend on the version you choose)
Rich course materials and professional after-sales support team: We provides 103 dual-language video courses, and online technical assistance (China time). The course content includes: ROSMASTER X3 assembly, Linux operating system, ROS and openCV series courses, depth camera and lidar mapping and navigation explanation, from simple to in-depth learning of mapping and navigation, this is an in-depth learning process, but we recommend that there are Programming basic users to use this robot kit
Multi-platform linkage: rosmaster X3 supports a variety of remote control methods such as mobile phone APP, handle, ROS system, computer keyboard, etc. It can control your robot car at any time, import your code, and is an artificial intelligence robot that listens to your instructions. Note: The Map Navigation APP only supports Android phones
Application field: rosmaster X3 provides an exploration model for professionals, can learn algorithms, obtain terrain in an unknown field, can deeply learn AI visual recognition, research autonomous driving, explore 3D object recognition, etc.Fully upgraded the ROS2 course.

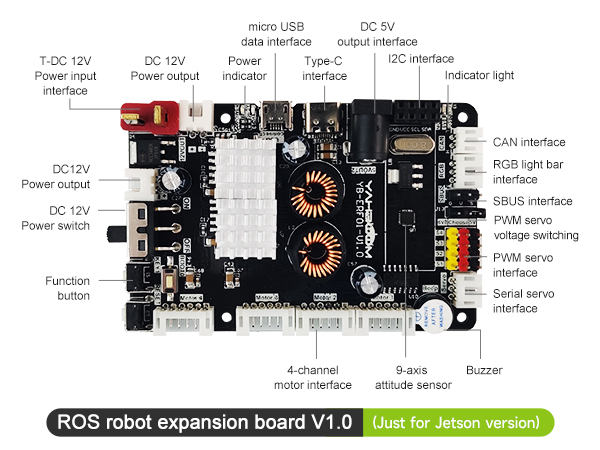

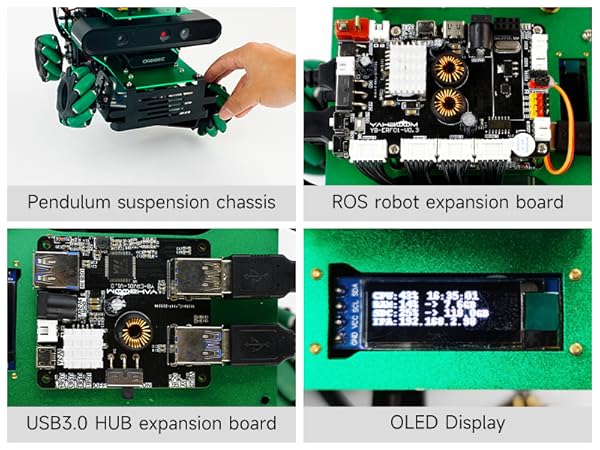

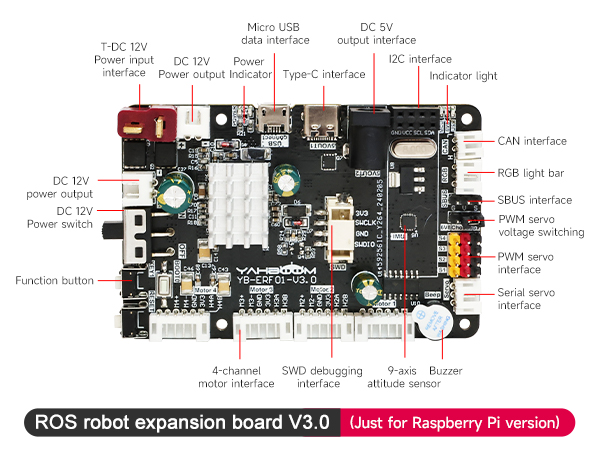

Excellent hardware configuration: aluminum alloy body, 360° omnidirectional Mecanum wheels, optional lidar, high-quality depth camera, optional voice interaction module, professionally designed expansion board. This is a professional ROS robot that supports more development. Users can develop and learn again in the existing courses. Note: Yahboom only provides technical assistance for existing courses. All in-depth development needs to be completed by customers themselves.
