ESP8266 Weather Station and Weather Instrument Kit,NodeMCU ESP8266 Integrated 0.96'' OLED Board DHT-11 Temperature Humidity BMP-180 Atmospheric Pressure BH1750 Light Sensor for Arduino IoT Starter

Thương hiệu: ideaspark

ESP8266 Weather Station and Weather Instrument Kit,NodeMCU ESP8266 Integrated 0.96'' OLED Board DHT-11 Temperature Humidity BMP-180 Atmospheric Pressure BH1750 Light Sensor for Arduino IoT Starter

Bán tại: Mỹ

3.9

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

823,221đ

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu IDEASPARK là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm ESP8266 WEATHER STATION AND WEATHER INSTRUMENT KIT,NODEMCU ESP8266 INTEGRATED 0.96'' OLED BOARD DHT-11 TEMPERATURE HUMIDITY BMP-180 ATMOSPHERIC PRESSURE BH1750 LIGHT SENSOR FOR ARDUINO IOT STARTER là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Standing screen display size	0.96 Inches
Color	Weather Station Kits
Included Components	Cable, Instruction Manual
Temperature Accuracy	+- 1 degree Celsius
Are Batteries Included	No
Sensor Technology	DHT-11: Capacitive humidity sensor and thermistor; BMP-180: Piezoresistive pressure sensor; BH1750: Photodiode with integrated signal processing circuit
Manufacturer	Generic
Shape	Rectangular
Display Type	LCD
UPC	714453670504 781520959756
Item model number	8541612567
Operating System	Windows
Item Weight	3.52 ounces
Product Dimensions	5.7 x 3.34 x 1.37 inches
Item Dimensions LxWxH	5.7 x 3.34 x 1.37 inches
Processor Brand	VIA
ASIN	B07GPBBY7F
Is Discontinued By Manufacturer	No
Date First Available	August 21, 2018

Tính năng sản phẩm

Sản phẩm ESP8266 Weather Station and Weather Instrument Kit,NodeMCU ESP8266 Integrated 0.96'' OLED Board DHT-11 Temperature Humidity BMP-180 Atmospheric Pressure BH1750 Light Sensor for Arduino IoT Starter của thương hiệu ideaspark với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

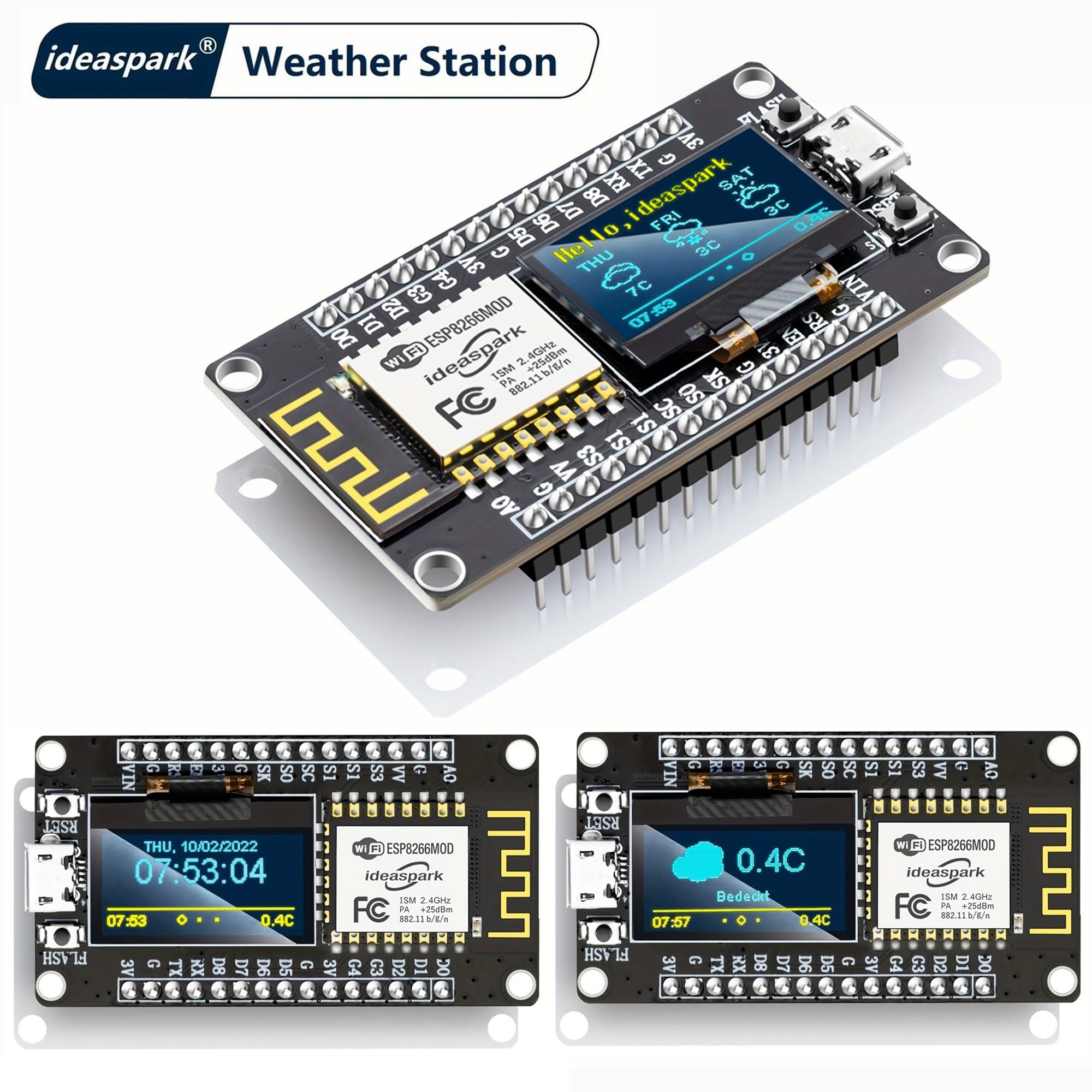

Weather Station & Weather Instrument

Synchronize network time.Get weather data from OpenWeathermap at regular intervals, showing the weather of today and weather forecast in any city in the world
Read the current temperature, humidity data indoor at regular intervals
Regular reading of atmospheric pressure, light intensity data

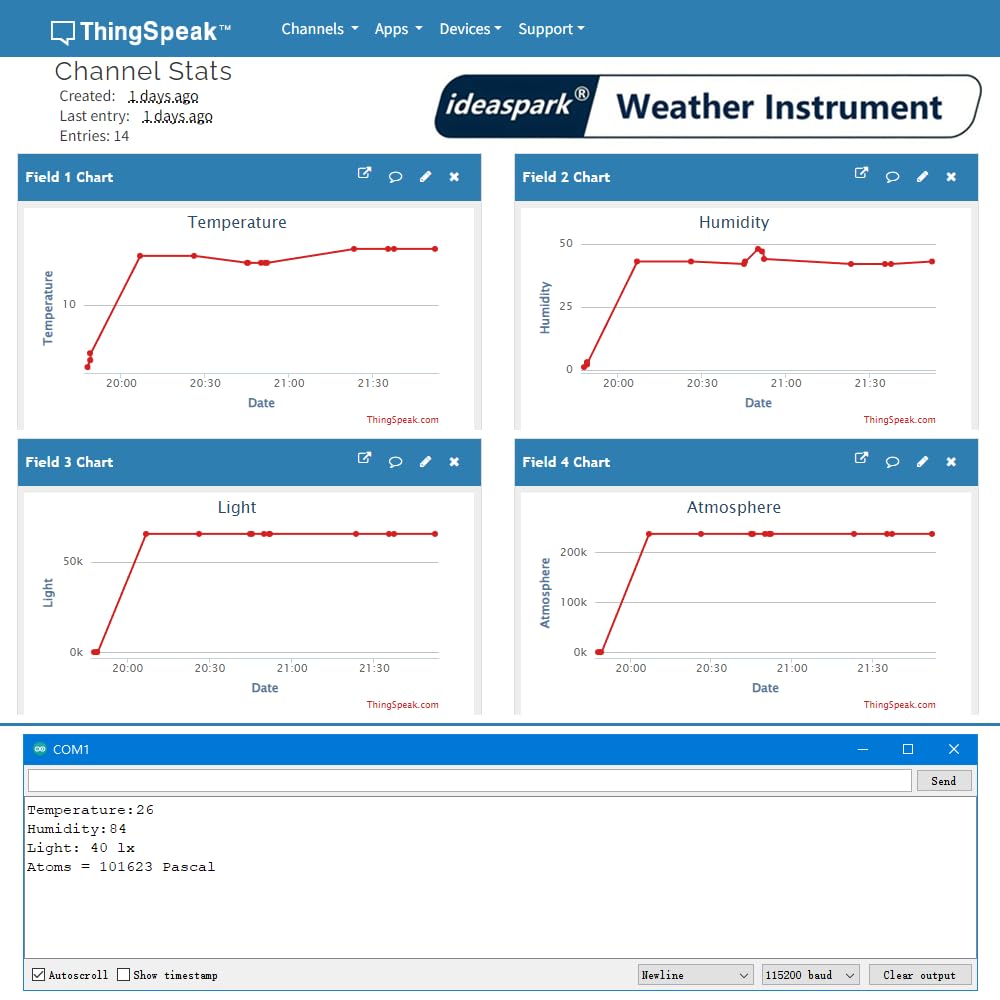

Upload temperature,humidity,atmospheric pressure and intensity of illumination data to thingspeak.com at regular intervals
View weather forecast on OLED display and view environmental monitoring chart on thingspeak.com using your phone or computer

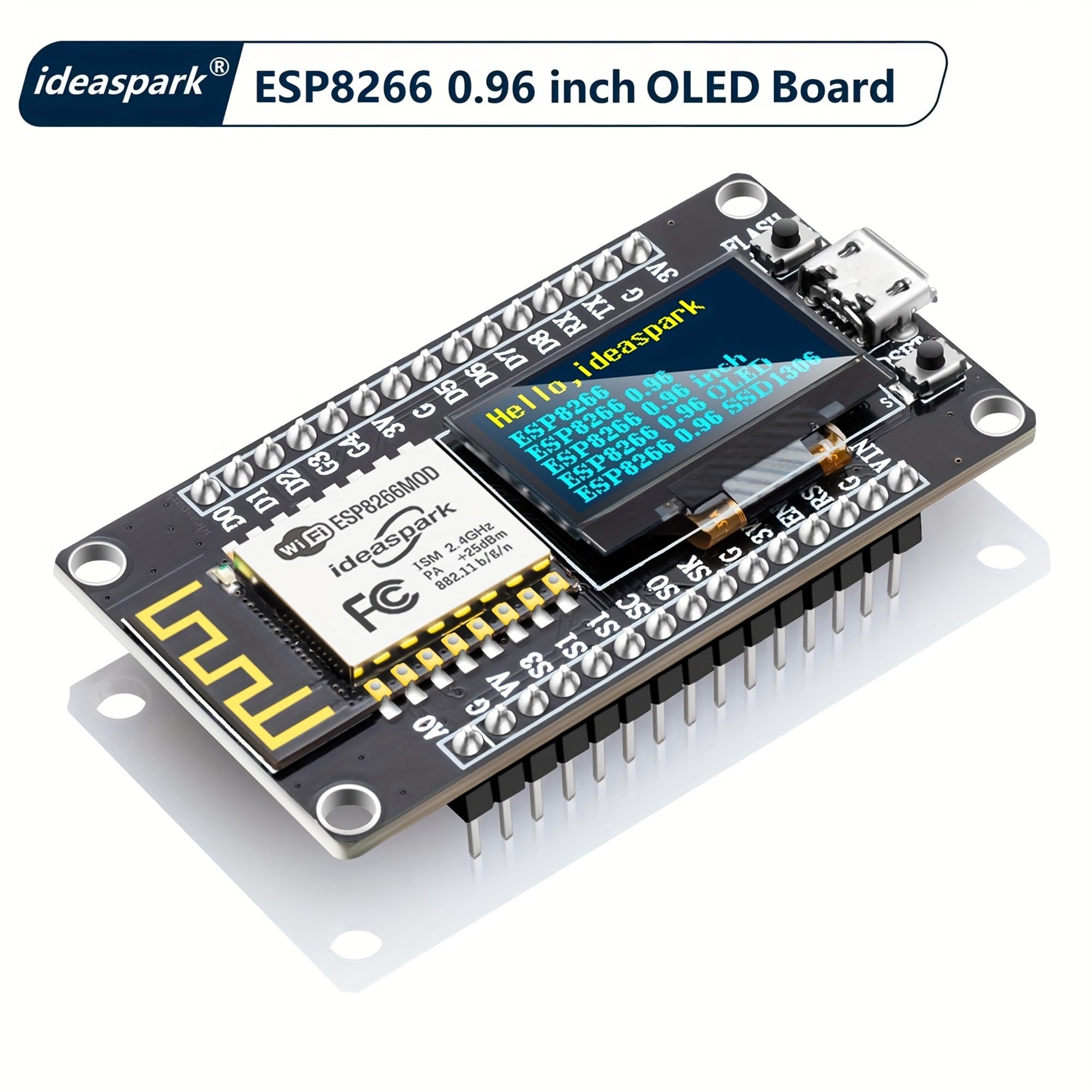

ESP8266 0.96 Inch OLED Board

This circuit board integrates the ESP8266 NodeMCU and a 0.96-inch OLED screen, providing all the functionality of the traditional ESP8266 module, with the same size and peripheral ports, as well as high-performance development tools and high-definition data display. It supports multiple programming modes, including Arduino IDE, MicroPython, and Lua scripts, and features the ESP8266 chip with a 80MHz main frequency and 4MB flash memory, enabling it to easily handle various tasks and applications, with a complete network protocol stack and security mechanism. It is low power consumption and high performance, suitable for beginners and professionals to develop and apply Internet of Things projects. The pins are soldered. Plug and play.

NodeMCU ESP8266:

Microcontroller:Tensilica 32-bit RISC CPU Xtensa LX106
Driver:CH340G
Operating Voltage:3.3V
Input Voltage:7-12V
Digital I/O Pins (DIO):16
Analog Input Pins(ADC):1
UARTs:1 SPIs:1 12Cs:1
Flash Memory: 4 MB SRAM:64 KB Clock Speed: 80 MHZ
802.11 b/g/n,Integrated TCP/IP protocol,2.4 GHz Wi-Fi that supports WPA/WPA2
USB-TTL based on CH340 is included onboard,Enabling Plug n Play

0.96 Inch SSD-1306 OLED:

OLED self-luminous, no backlight
Size: 0.96 inch
Color: Yellow Blue
Driver IC: SSD-1306
Voltage: 3.3V-5V DC
Working Temperature: -30°C~70°C
Module Size: 27mmx 27mm x 4mm
Viewing angle: > 160°,High resolution: 128 x 64
Screen material: glass, need good protection

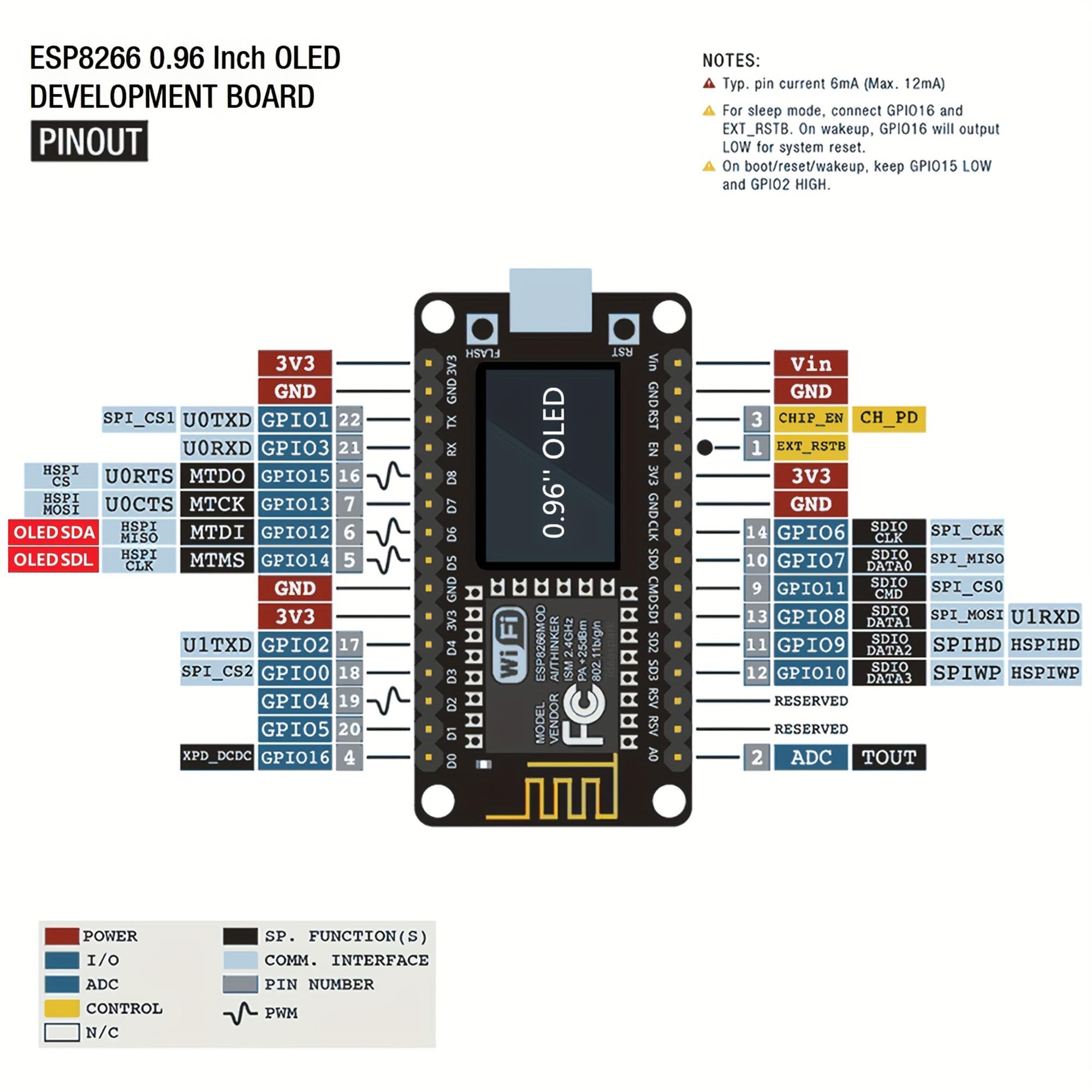

ESP8266 and OLED Port Mapping:

ESP8266---------- 0.96'' OLED

VCC(3.3V) ---------- VCC

GND ---------------- GND

D6(GPIO12) -------- SDA

D5(GPIO14) -------- SCL

Sensors

BMP-180 Barometric Pressure Sensor

BMP180 is a high-precision, small size, ultra-low power pressure sensor that can be used in mobile devices, to measure temperature, pressure, and altitude.
Its performance excellence, the absolute accuracy of the lowest can reach 0.03hPa, and low power consumption, only 3μA.
BMP180 uses a powerful 8-pin leadless ceramic chip can be directly connected with a variety of microprocessor via I2C.
Pressure range: 300 ~ 1100hPa (+9000m to -500m)
Low power consumption: 5μA in standard mode.

BH1750 Light Intensity Sensor

Dimensions: 13.9mm X 18.5mm,Power Supply :3-5v
Data range 0-65535,Sensor built 16bitAD converter
Direct digital output, omitting complex calculations, calibration is omitted.Does not distinguish between ambient light.Brightness can be a wide range of high-precision measurement lux
Offers flexibility with both High-Resolution and Low-Resolution modes. allowing to choose level of detail in their light intensity readings
Perfect for Raspberry Pi, for Arduino, and various microcontrollers

DHT-11 Temperature Humidity Sensor

DHT-11 digital temperature and humidity sensor is a digital signal output with a calibrated temperature and humidity combined sensor.
Sensor consists of resistive element and sense of wet NTC temperature measurement devices,and with a high-performance 8-bit microcontroller connected
Power supply voltage: 3.3~5.5V DC.Output: the single bus digital signal
Measuring range:20-90%RH humidity,temperature 0~50°.The measurement accuracy of +-5%RH:humidity,temperature +-2°
Resolution:1%RH humidity,temperature 1°.Long term stability: <±1%RH.Size: 28*12*7.2mm

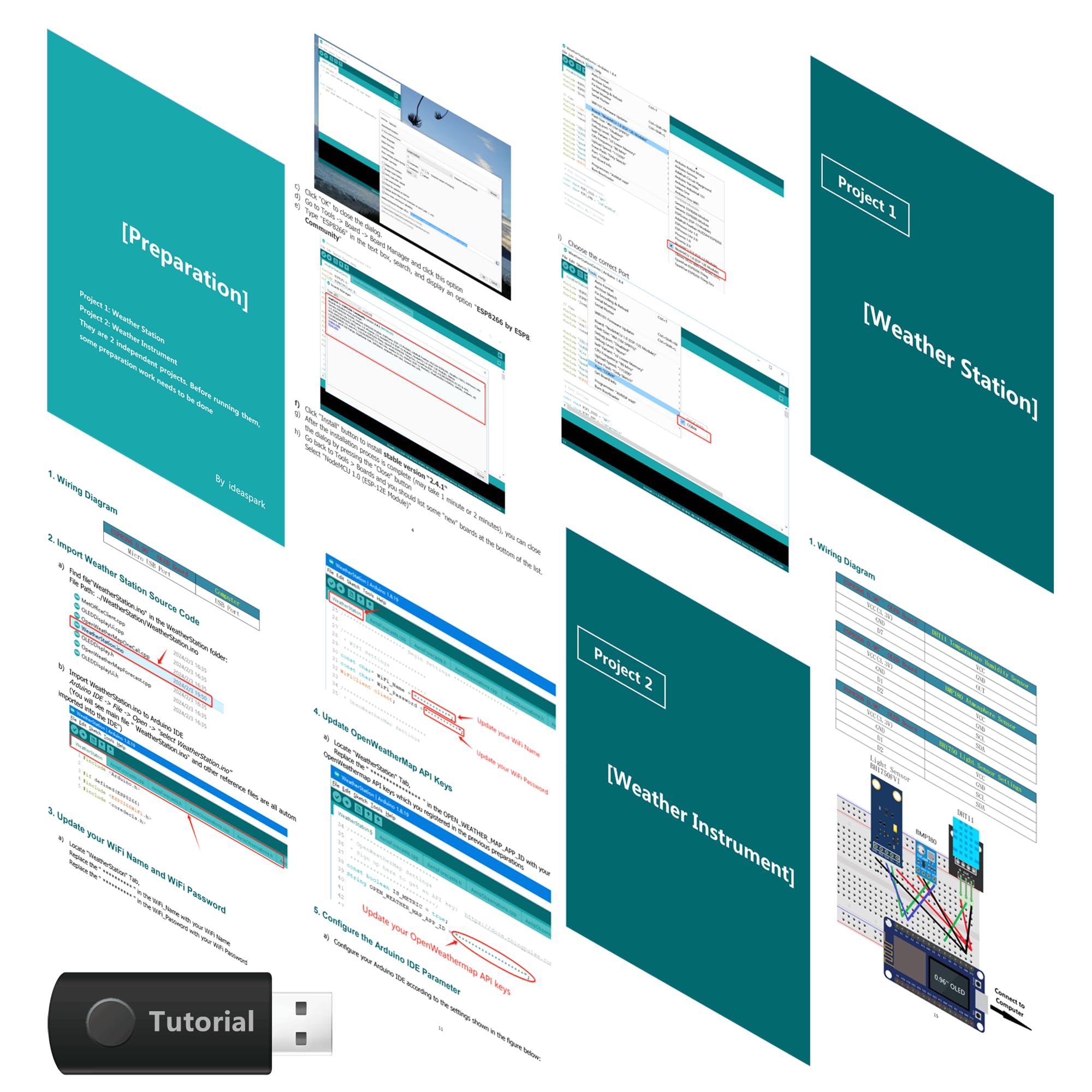

PDF Tutorial

Detailed sample code and image instructions
Great starter kit,even who has little or no electronics and programming experience

Package List :

1 x ESP8266 0.96 inch OLED Board(Pin header is soldered)
1 x DHT-11(Pin header isn't soldered)
1 x BMP-180(Pin header isn't soldered)
1 x BH1750(Pin header isn't soldered)
1 x Micro USB Cable
2 x breadboard
20 x dupont cable
1 x Tutorial USB Flash Disk(Random Color)

Mô tả

Thông tin chi tiết sản phẩm:

In this Latest IoT project,You will make an IoT Based Online Weather Station and Weather Instrument using NodeMCU board
Locate your city in the source code,The NodeMCU pulls city's weather forecast data like temperature, humidity, pressure, wind speed,wind directional degree and more from weather website called openweathermap.org and display it on 0.96 inch screen
The ESP8266 0.96'' OLED Board reads data from DHT-11 (temperature and humidity), BMP-180 (barometric pressure), and BH1750 (light intensity) sensors,then uploads data to ThingSpeak, allowing real-time monitoring and analysis of environmental conditions. This feature is ideal for home automation, weather Instruments, and energy-efficient control systems etc
The ESP8266 0.96'' OLED has all features of traditional ESP8266 module,with same exact size and peripheral ports,offers seamless integration with a 0.96-inch OLED display, eliminating the need for frustrating wires and breadboards.Display features a high-resolution 128x64 with SSD1306 driver and is compatible with I2C,SPI interfaces. Plus,It uses Micro usb cable to connect. Say goodbye to messy setups and hello to hassle-free electronics with it
This project is a wonderful project for IoT beginners who want to learn about retrieving data from an Online Internet server to NodeMCU board,get and upload local environment data to Internet server.Tutorials are very clear and easy to follow. Each step is described in detail with text and pictures
