Note: Please do not touch the parts on this Laser Sensor when it is powered on, it is easy to cause damage to the launch tube.

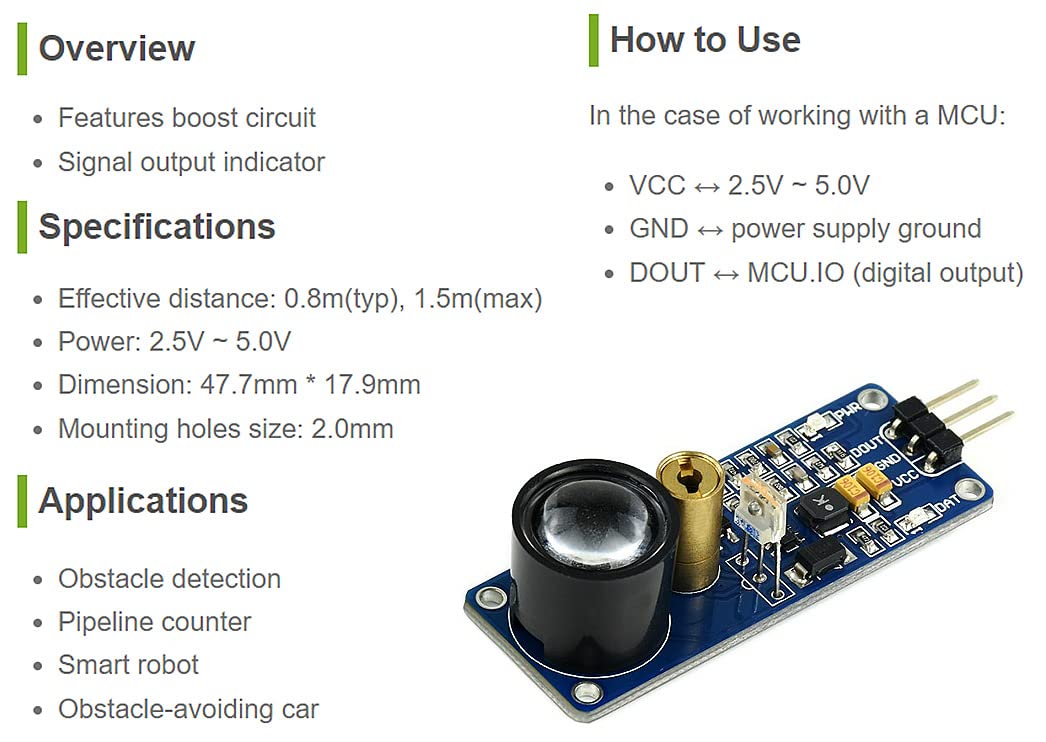

Overview:
- Features boost circuit
- Signal output indicator
Specifications:
- Effective distance: 0.8m(typ), 1.5m(max)
- Power: 2.5V ~ 5.0V
- Dimension: 47.7mm * 17.9mm
- Mounting holes size: 2.0mm
Applications:
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car

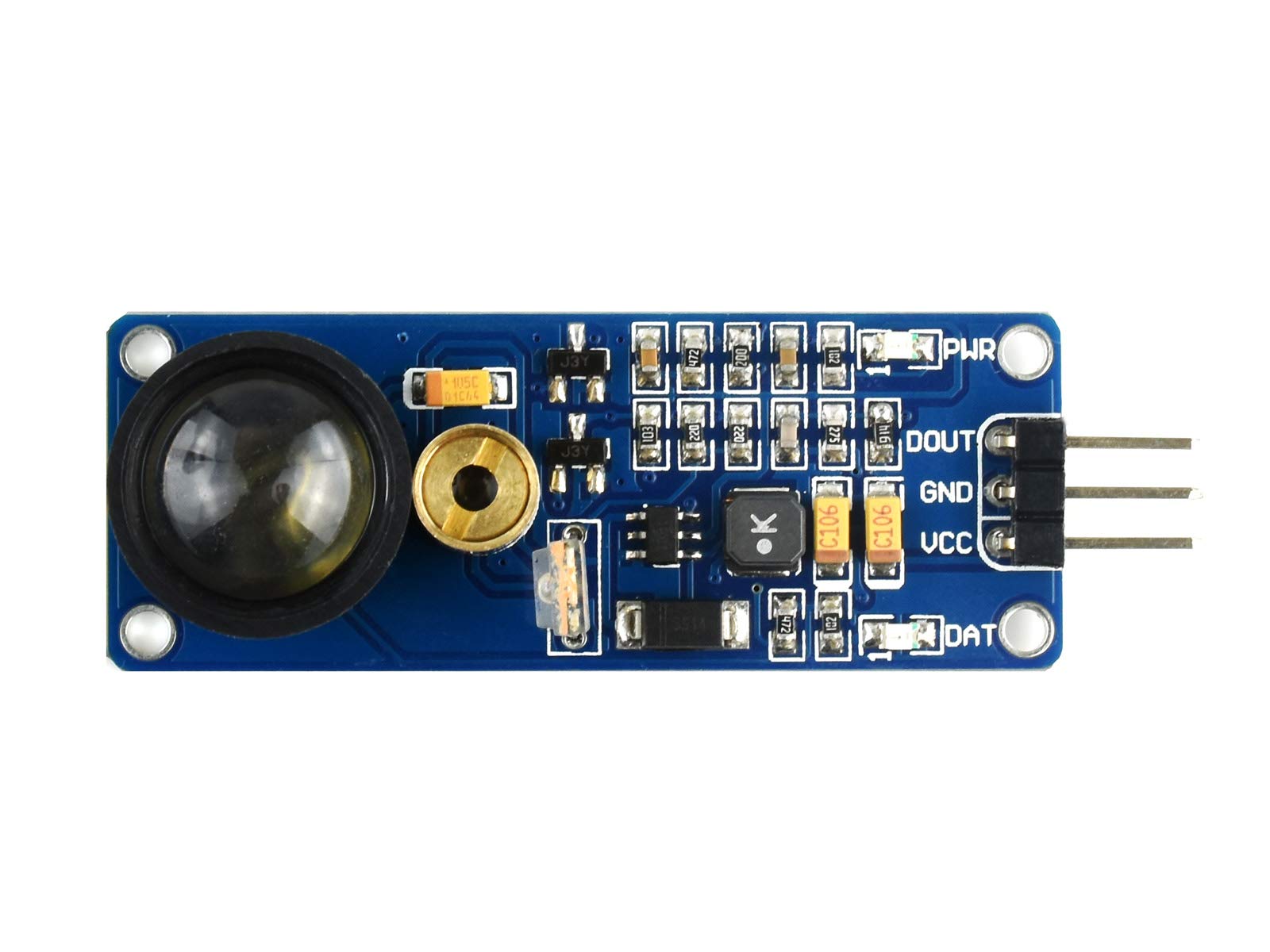

How to Use:
In the case of working with a MCU:
- VCC — 2.5V ~ 5.0V
- GND — power supply ground
- DOUT — MCU.IO (digital output)
Development resources:
- demo codes, schematic, datasheets, etc.
- Wiki: waveshare.com/wiki/Laser_Sensor?Amazon
