| Brand | Wonrabai |
| Item Weight | 0.64 ounces |
| Package Dimensions | 0.9 x 0.9 x 0.07 inches |
| Manufacturer | Wonrabai |
| ASIN | B0CX1KTFBK |
| Country of Origin | China |
| Date First Available | March 4, 2024 |

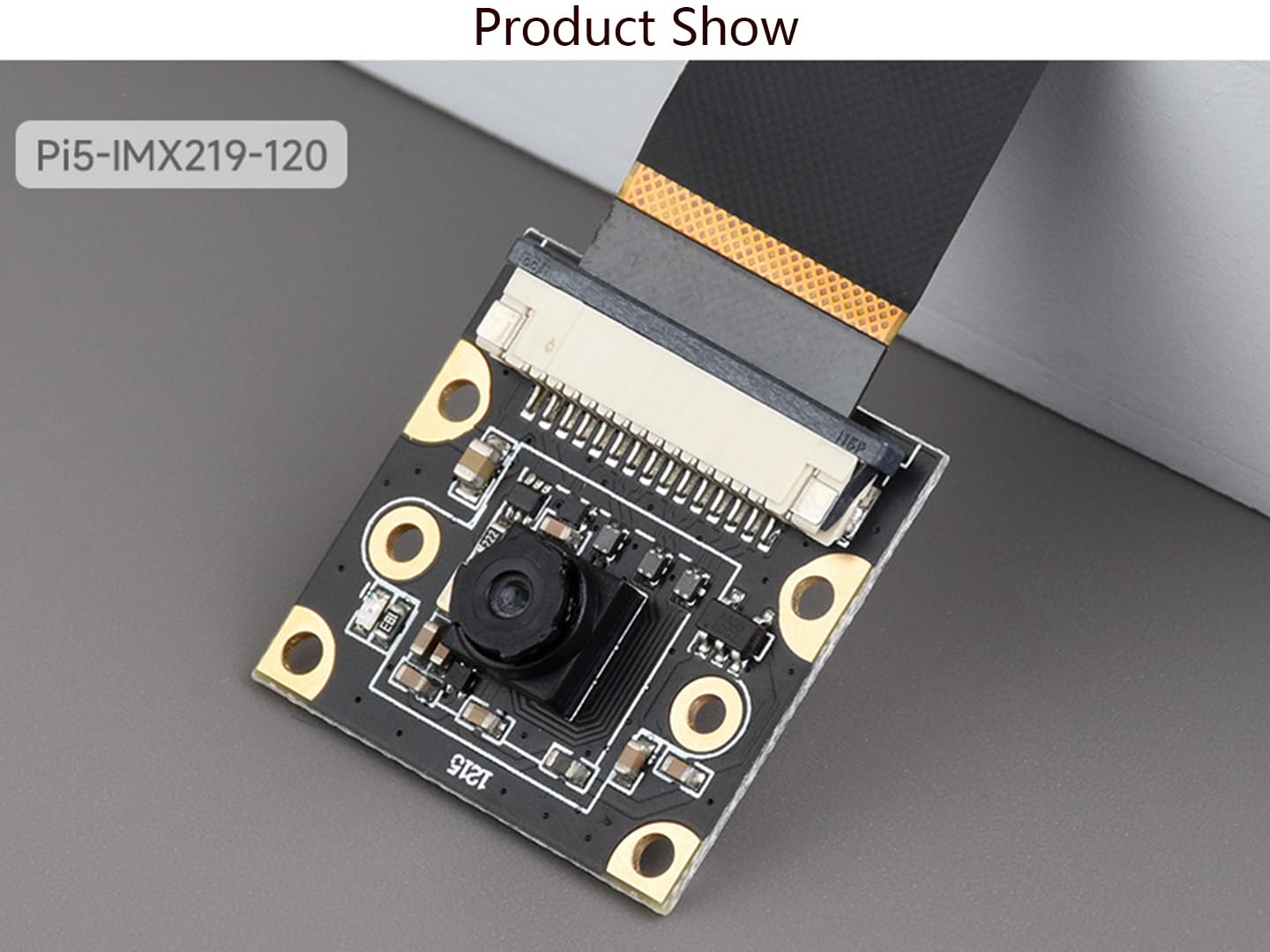

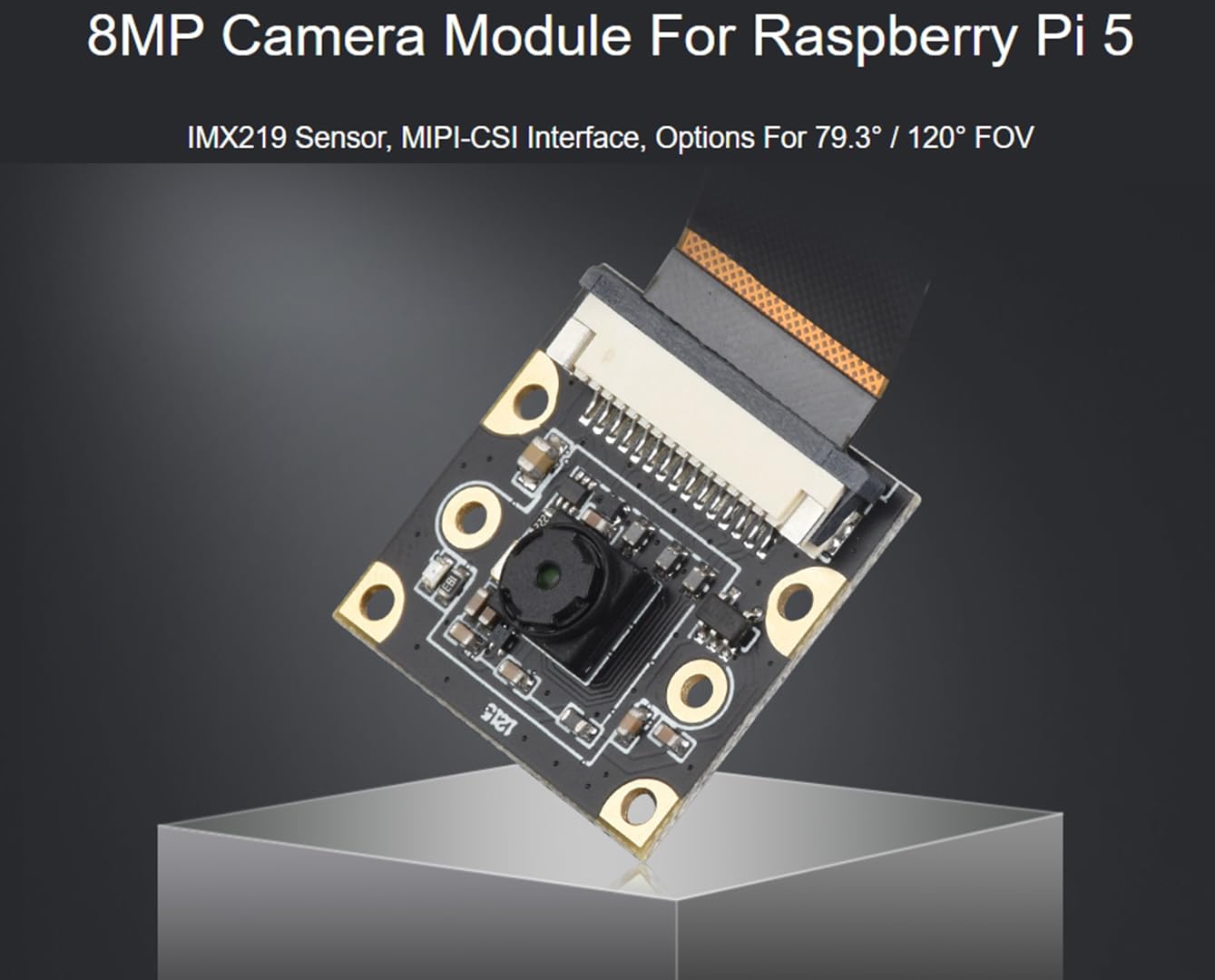

IMX219 Camera Module for Raspberry Pi 5, 8MP, MIPI-CSI Interface, 120°FOV (Field of view)
Specifications
PIXELS: 8MP
Sensor : IMX219
resolution: 3280 x 2464
CMOS size : 1/4 inch
Aperture (F) : 2.0
Focal length: 2.85mm

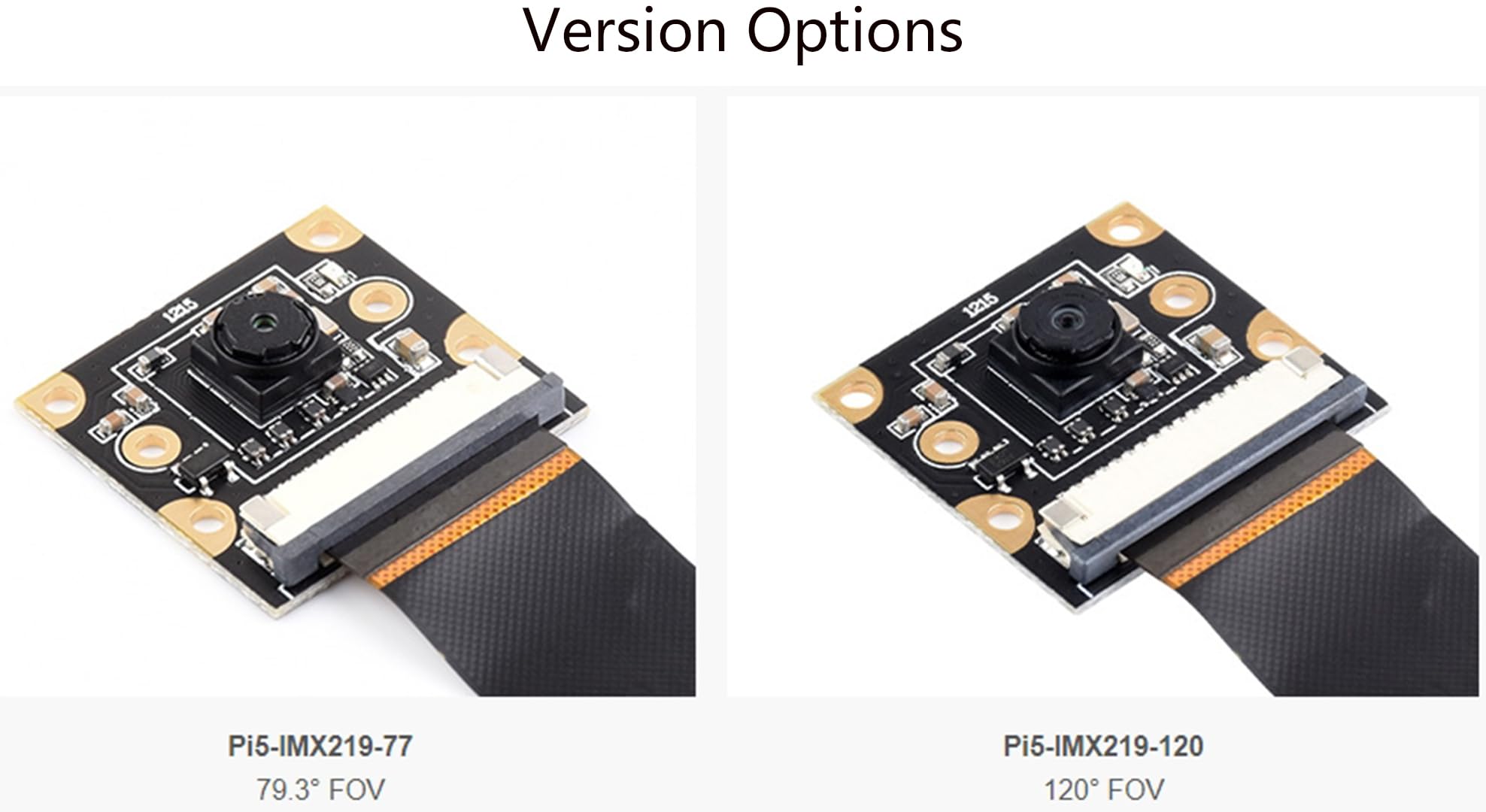

Field of view: 120°
DISTORTION : <1%
Lens Dimensions: 6.5x6.5mm

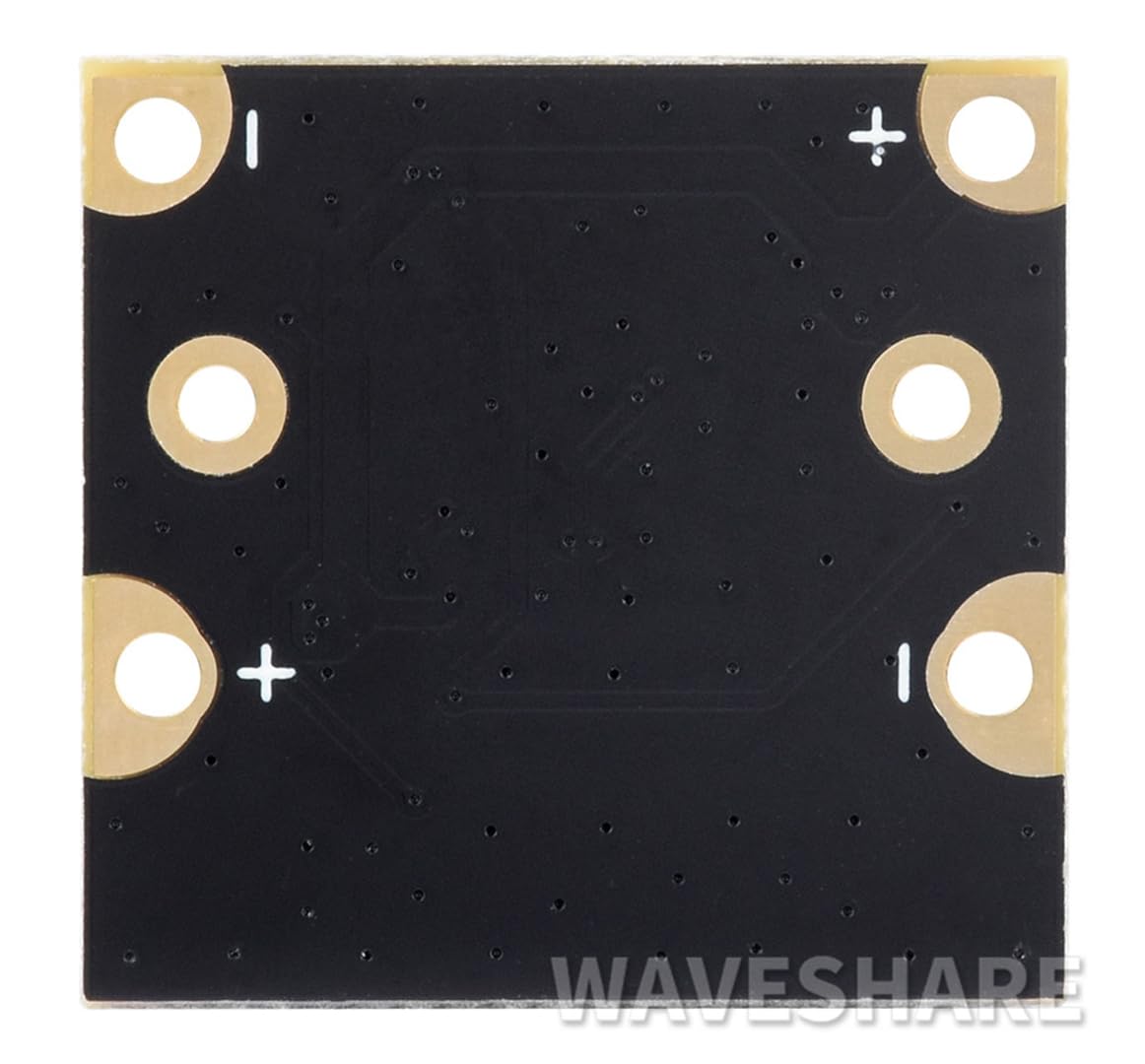

Screw holes: 4 x screw holes, used for attachment, provides 3.3V power output
Dimension: 25x24mm
Comes with Online Tutorial and Online Development Resource: n9.cl/up454m
Package Content

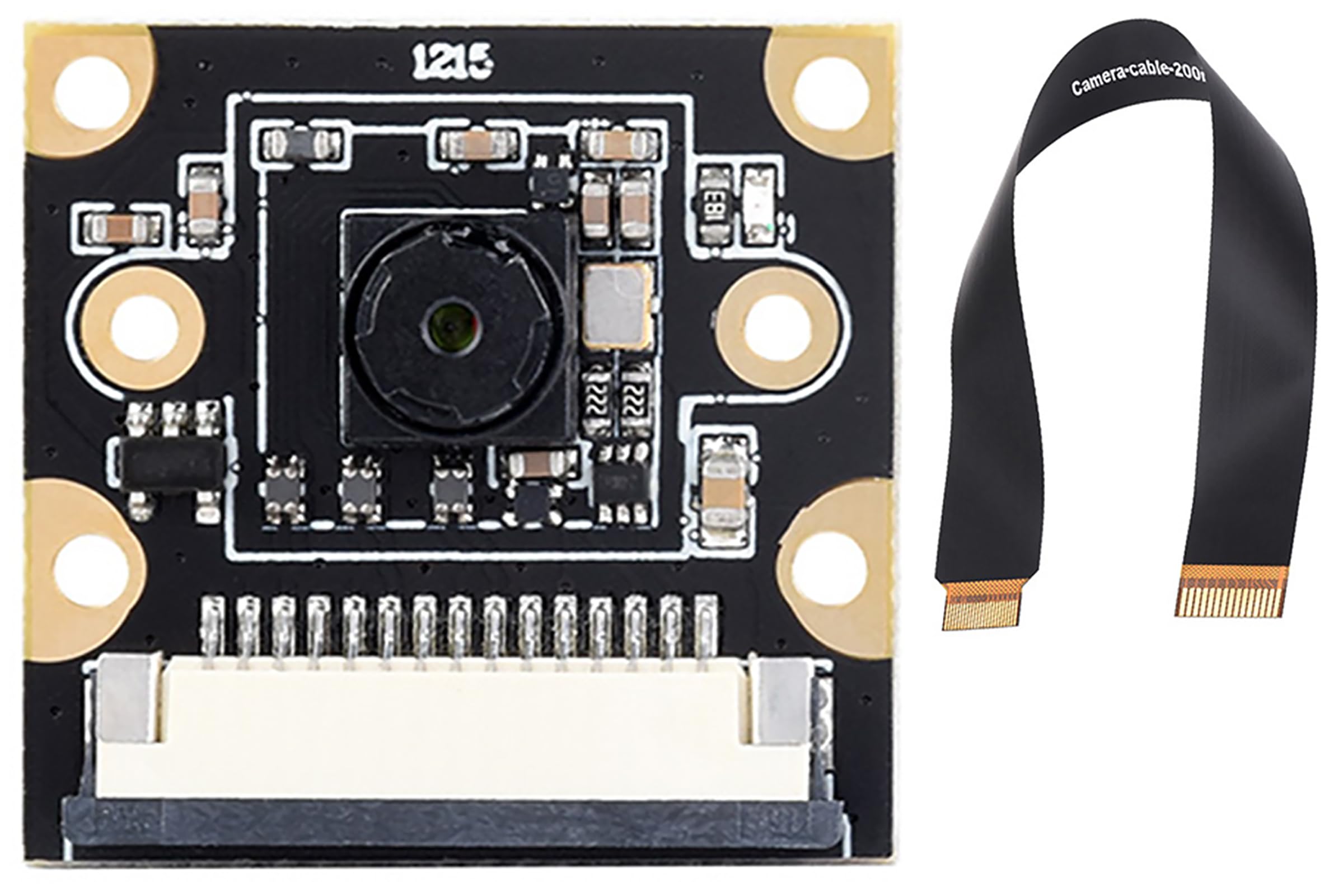

Pi5-IMX219 camera and with Pi5 CSI Flexible Cable 200mm.
Note: the RPi5 board is not included.
Hardware Connection Note：
To test the Camera, you need to connect a HDMI display or a DIS display for previewing.
The connectors of the DSI interface (display) and the CSI interface (camera) look the same, please take care of it when you connect the camera.
The CSI interface is placed between the Audio jack and the HDMI port. The CSI connector of Pi zero is beside the Power interface.
If you use the Compute Module, please check the actual place of the carrier board.

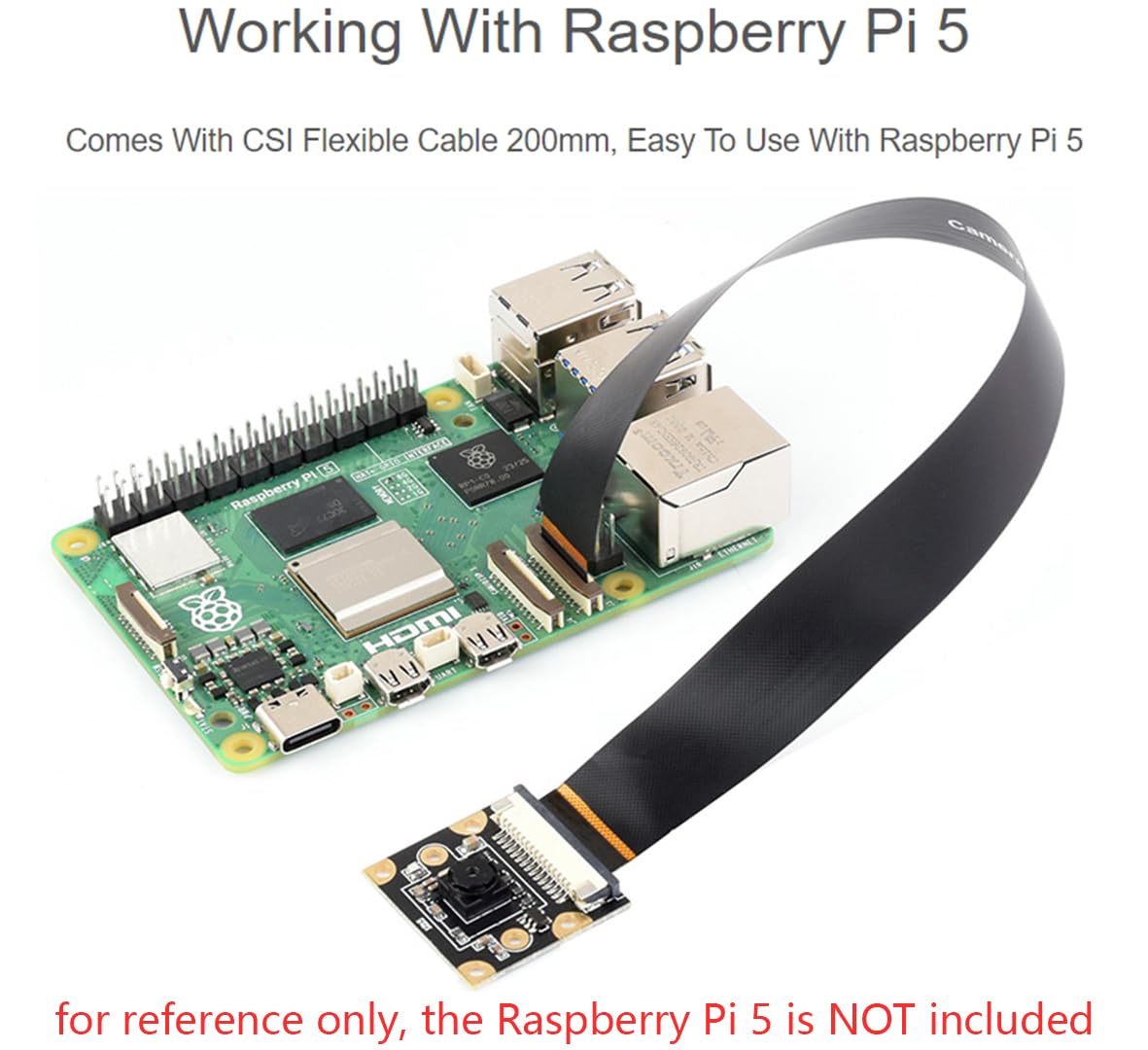

When Connects withRaspberry Pi 5, Place the metal surface of the FPC cable towards the wired network port, then connect to the CSI port. The Pi5 has two CSI ports; either port can be used for connection.
