| Manufacturer | FTVOGUE |
| Part Number | FTVOGUE1kitszycq76523 |
| Item Weight | 0.634 ounces |
| Package Dimensions | 4.61 x 2.24 x 0.59 inches |
| Item model number | Transceiver Module |
| Finish | Finish |
| Material | Material |
| Power Source | PowerSource |
| Installation Method | InstallationMethod |
| Item Package Quantity | 1 |
| Spout Height | 1 Centimeters |
| Handle Material | default |
| Accessory Connection Type | default |
| Included Components | inc |
| Batteries Included? | No |
| Batteries Required? | No |
How to Use:
Recommend to buy more than 2 pieces:

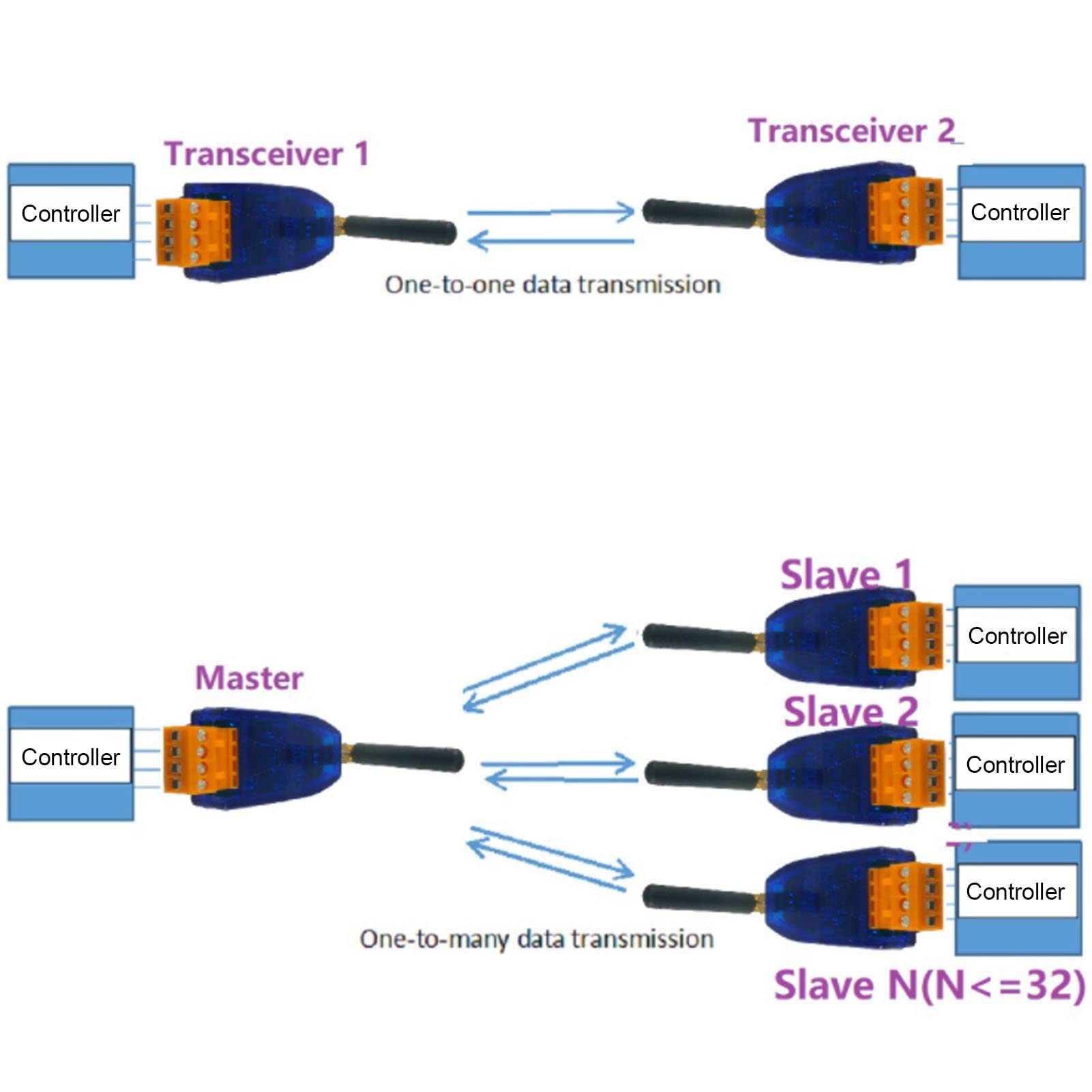

1. For 2PCS, module 1 and module 2 send data to each other.
2. For >=3PCS, one as master device, the other as slave device.

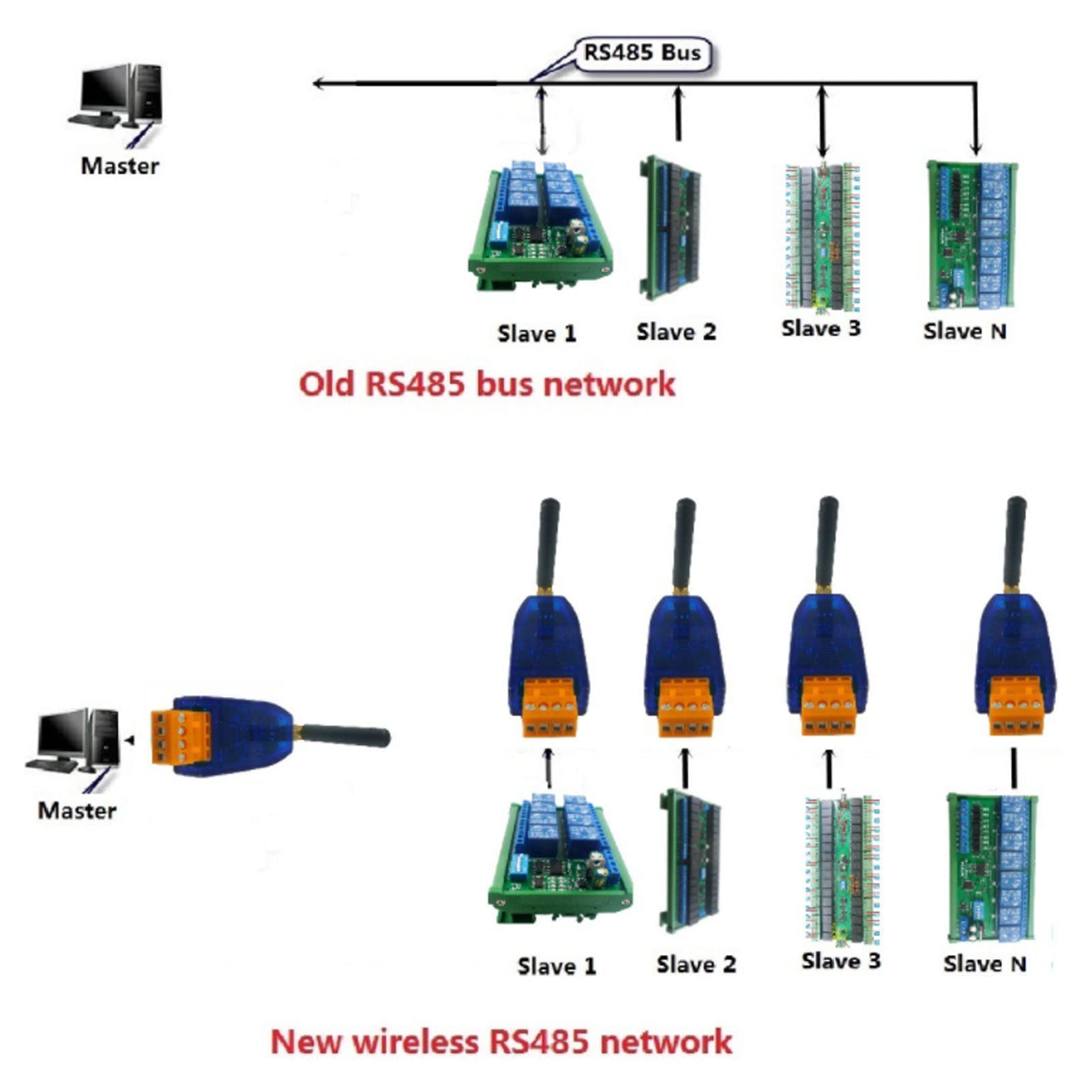

The way they work is the same as wired RS485 bus: Master device transmit data, slave devices can all receive data, any slave device transmit data, master device and the other slave devices can receive.(When ever only allowed one device, master or slave, to transmit data)
Transparent Transmission Mode Baud Rate: 1200, 2400, 4800, 9600(default), 19200
Open Ground Transmission Distance: 500M
Application: For IP PTZ camera For R4D3C32 N4D8B08 N4D8C12 RS485 relay Temperature sensor LED controller Remote control, telemetry system Wireless instrument Smart home, home automation Access control Smart meter Recognition system Data collection IT appliances Smart appliances Baby monitoring system, Thermometer
