| Product Dimensions | 1.38 x 0.84 x 0.53 inches |
| Item Weight | 0.176 ounces |
| ASIN | B08F55QTWP |
| Item model number | TF-Luna |
| Customer Reviews | 4.1 out of 5 stars 50Reviews |
| Best Sellers Rank | #5,070 in Single Board Computers (Computers & Accessories) |
| Is Discontinued By Manufacturer | No |
| Date First Available | August 3, 2020 |
| Manufacturer | SmartFly Tech |
| Language | English |

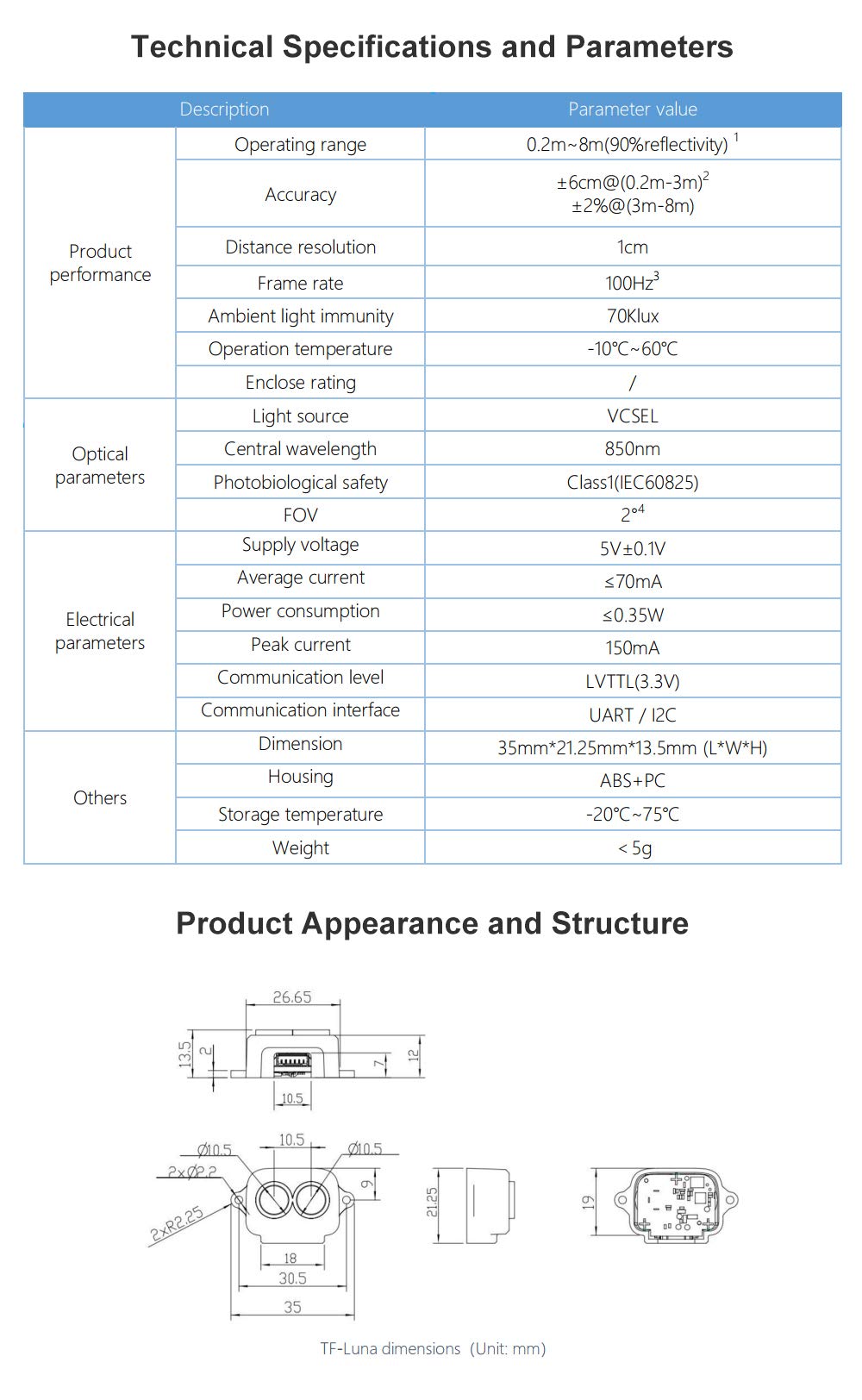

-Specification-
Operating range: 0.2m~8m(90%reflectivity)
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Measurement unit:cm
Range resolution: 1cm
FOV: 2°
Frame rate: 1~250Hz(Default setting is 100Hz )
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW

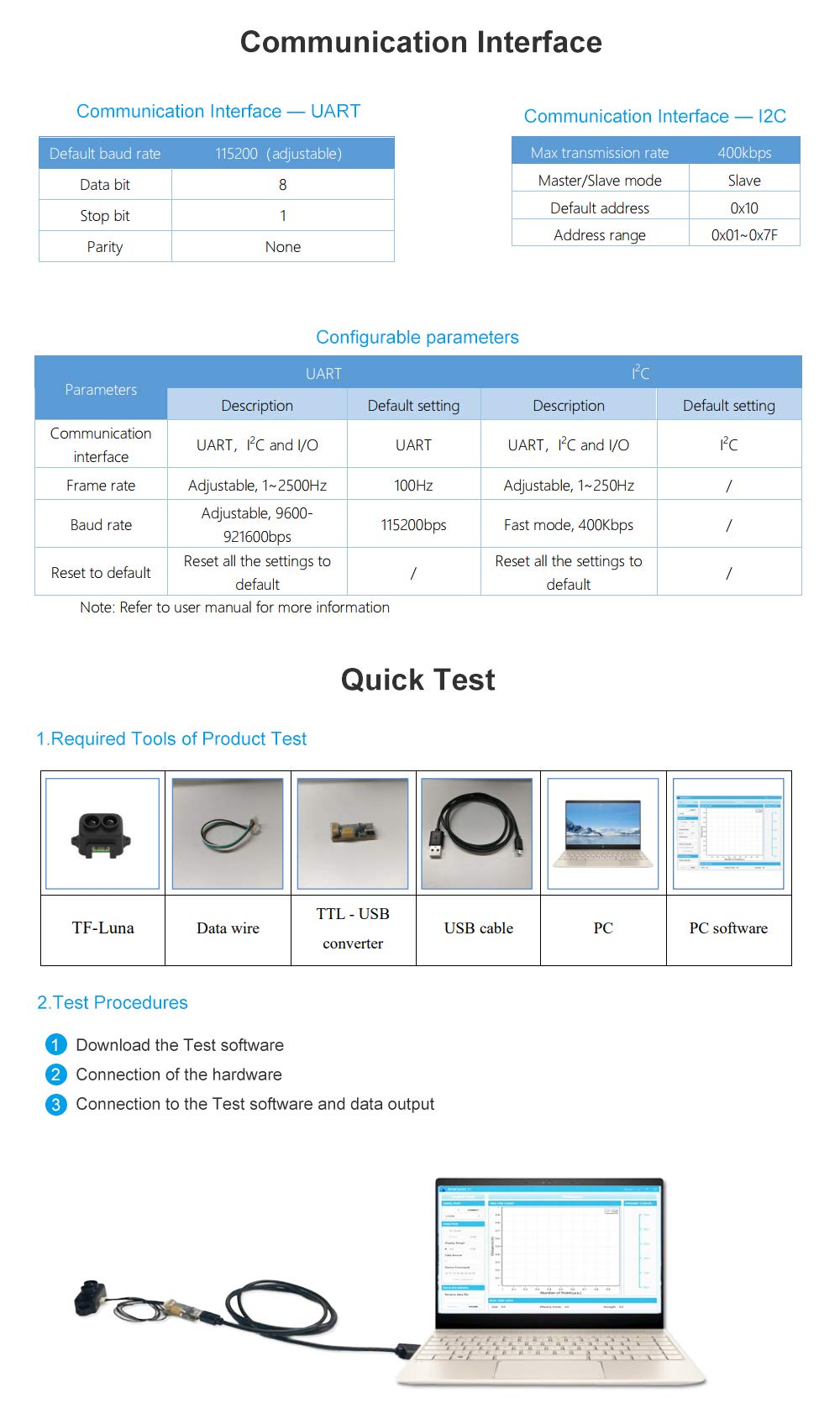

Communication level: LVTTL(3.3V)
Communication interface: UART/IIC
Default baud rate: 115200
Parity check: None
Light source:VCSEL
Wavelength:850nm
Operating temperature : -20°C~75°C
Certification:CE,FCC,ROHS
Size: 35mm*21.25mm*13.5mm (L*W*H)
Housing material: ABS+PC
Storage temperature: -20C~75C
Weight: ＜5g
-Major Applications-
Traffic Monitoring
Obstacle detection
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Distance measuring instrument

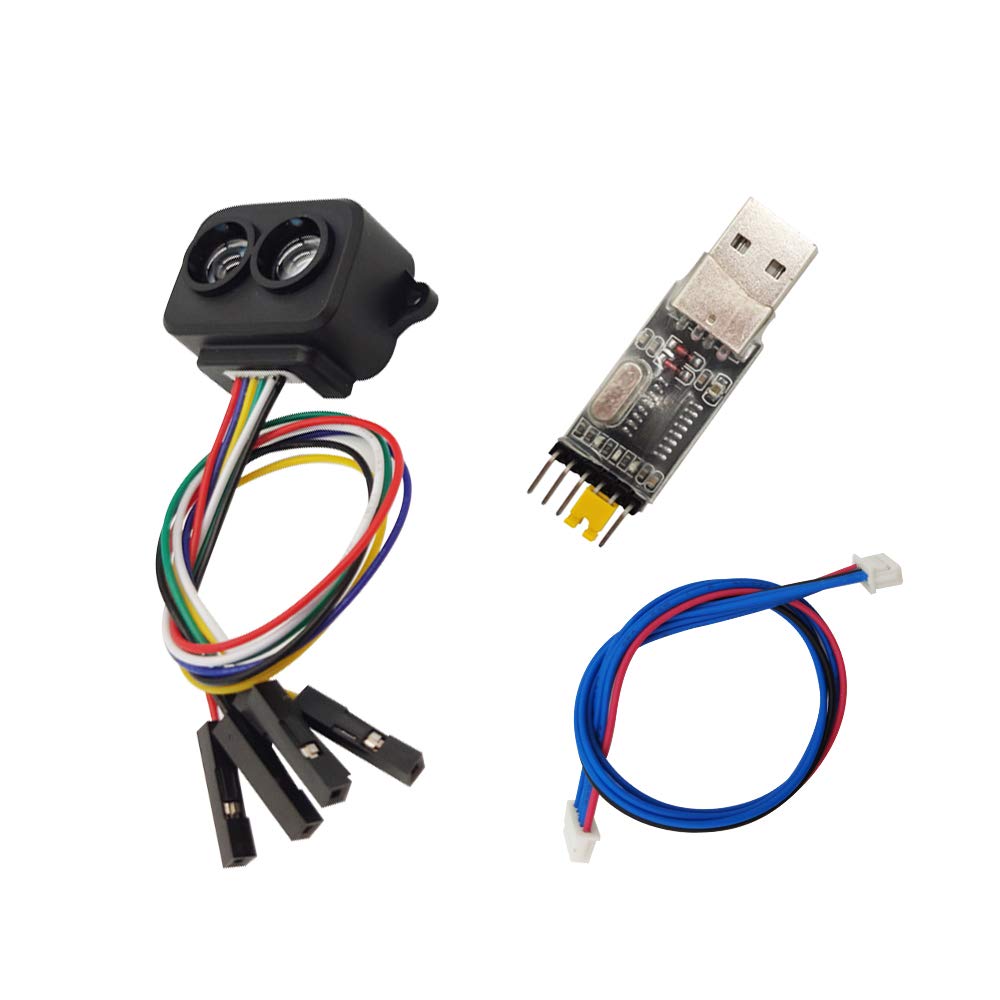

-Package Content-
1x TF-Luna LiDAR Module
1x Data wire
1x USB To RS232 TTL Converter Module
1x Serial Cable 15cm
-FAQ-
Q1: Is TF-Luna available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V±0.1V. If you have any further requirement, please contact us
Q2: TF-Luna will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
