SCBRHMI Industry Series TFT LCD Display Module

STWI080WT-01 is our 8“ Industry Series Screen.

Enjoy 8 inch industrial class 800x600 TFT LCD monitor & 4-wire resistance touch panel, 256MB of flash memory for HMI projects, 1G Hz Cortex A8 CPU, and 262k true-to-life colors. This offers 300 nit brightness, LED back light, View Area 162mm*122mm, Visual Angle 70/70/50/70, Working life an impressive 30,000 hours.

Ultra Compatible with Multiple Interfaces

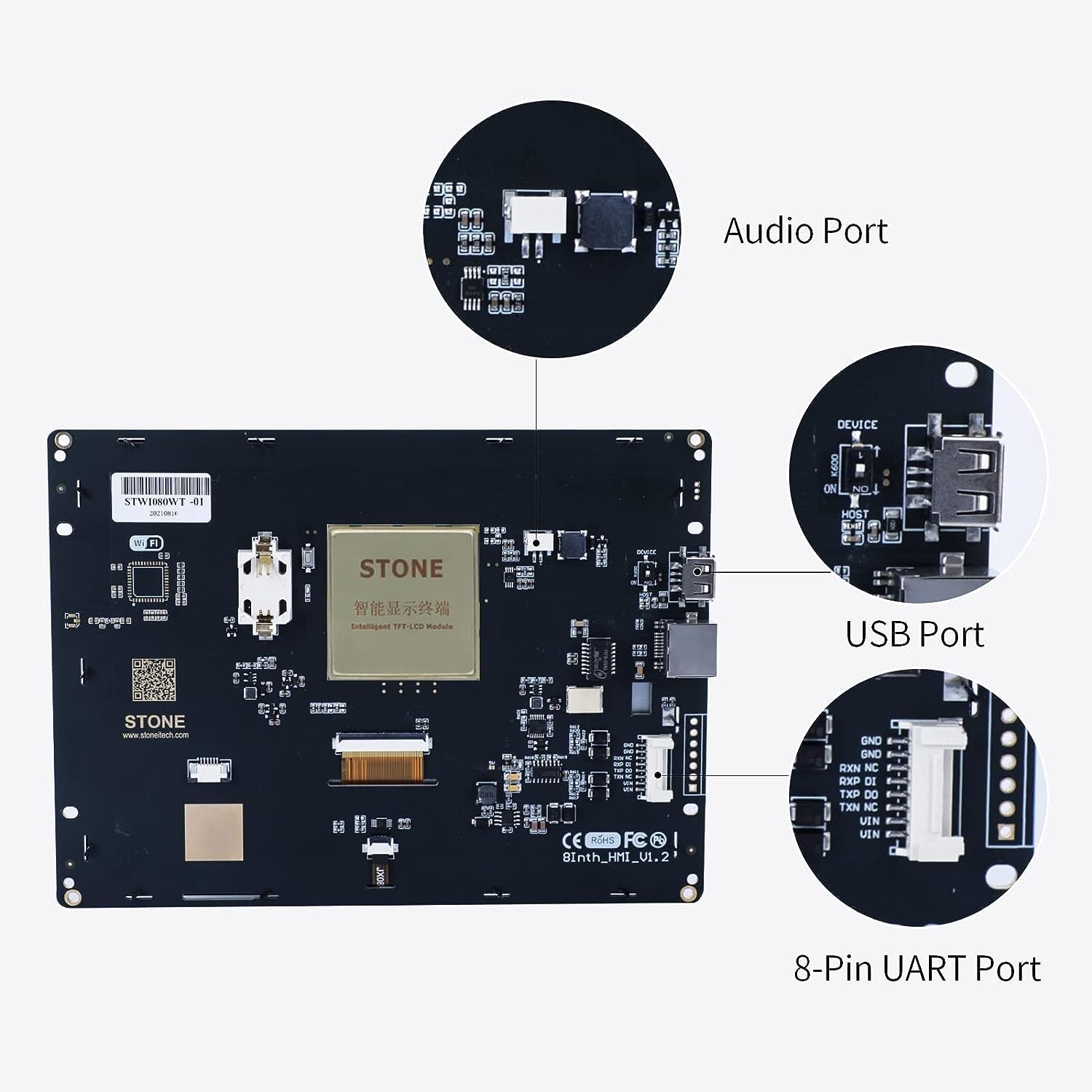

-Fully compatible with RS232/TTL UART Interface & USB port.

-Medical grade electromagnetic interference

-256MB flash memory can store your data, configuration files, image file, font file, video file and audio file etc.

-You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC.

Included GUI Design Software Makes Programming Fast & Easy

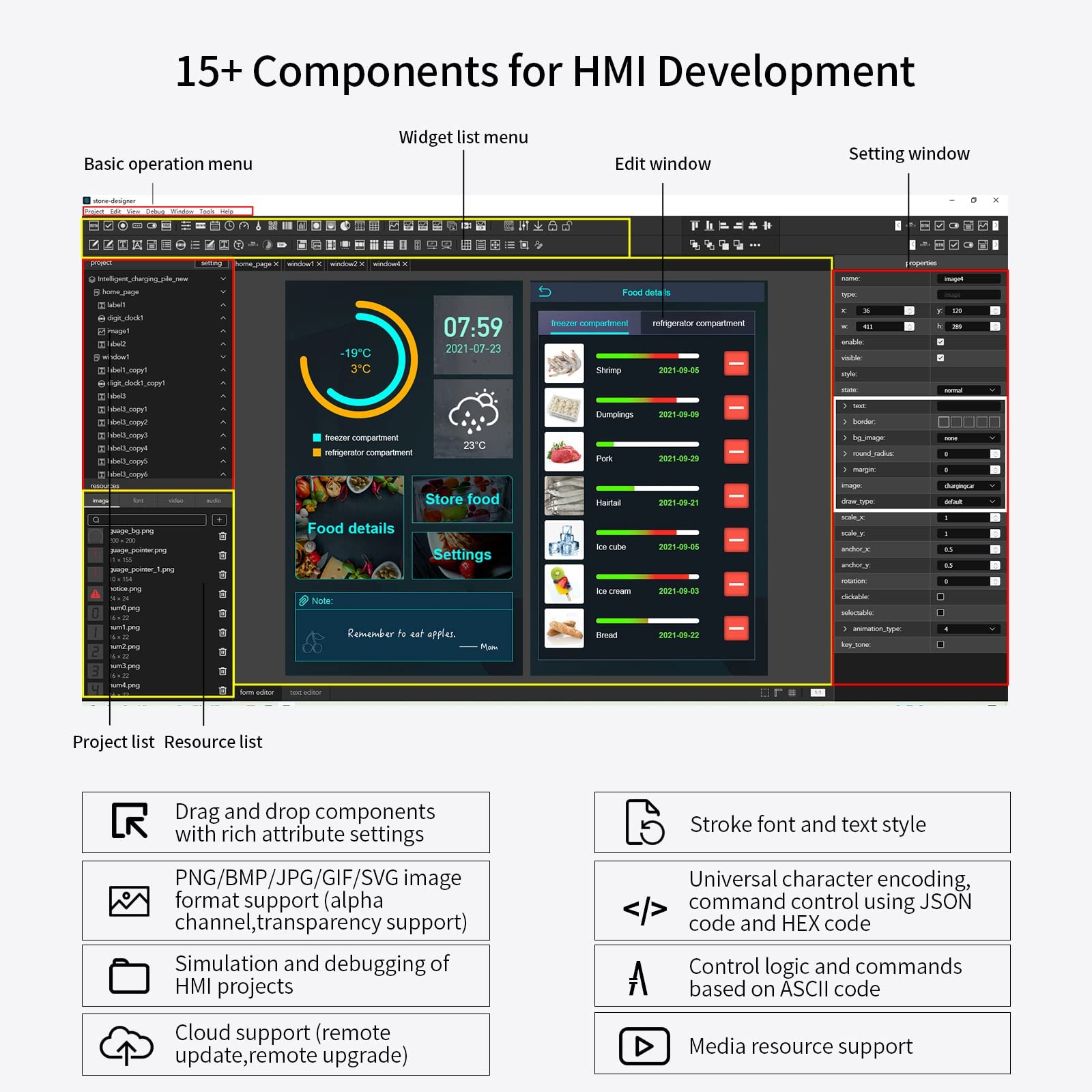

Our TFT LCD module is a whole display system that comes with no-cost GUI design software(STONE Designer). This offers an easy way to create an intuitive, superb touch user interface even for beginners. This will reduce 90% of your development time and cost. It makes designing a GUI a piece of cake.

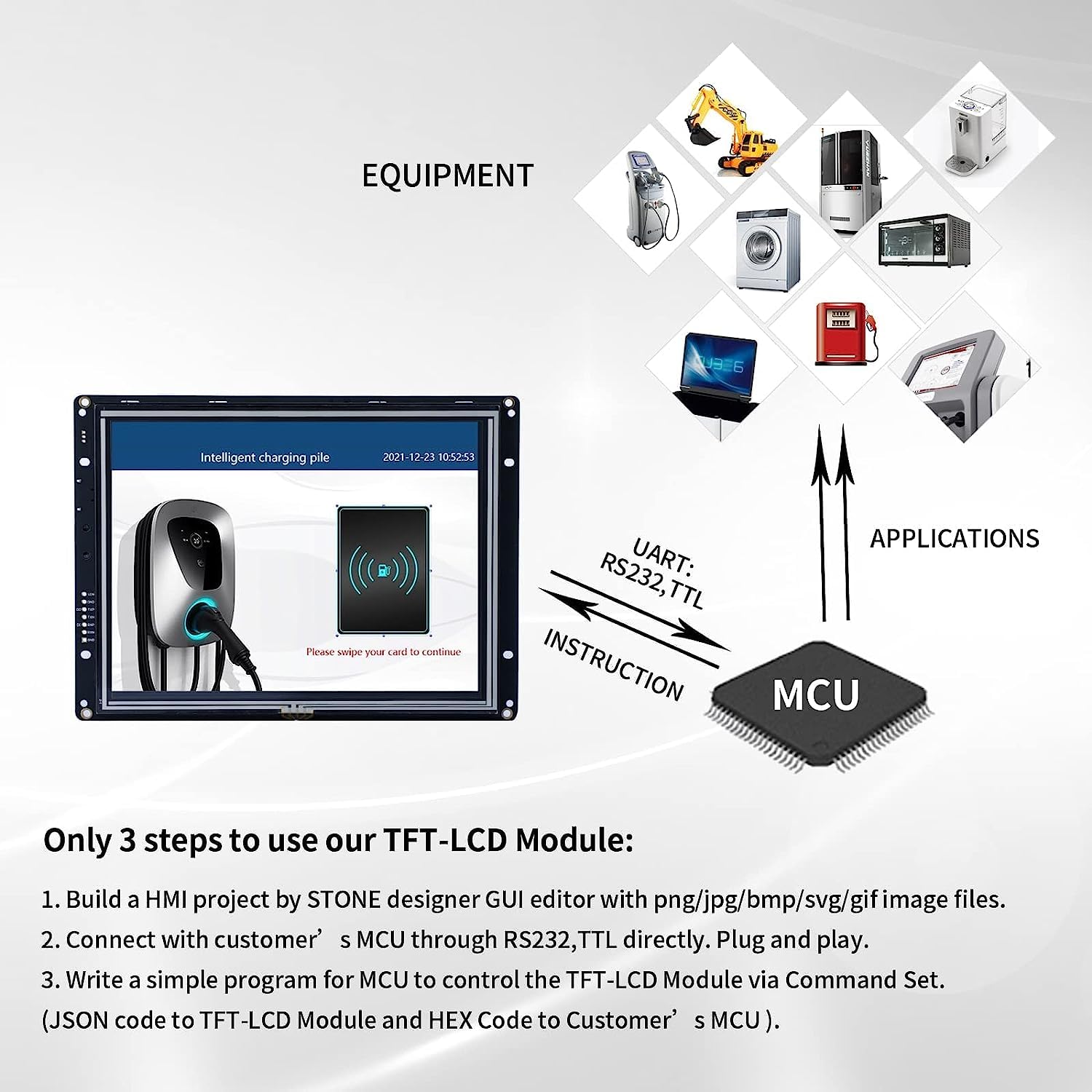

Only 3 steps to use our TFT-LCD Module:

1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.

2. Connect with customer’s MCU through RS232,TTL directly. Plug and play.

3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.

(JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ).

That’s all.
