| Item Weight | 4.4 pounds |
| Product Dimensions | 8.9 x 20.7 x 4.6 inches |
| ASIN | B01LZUQ4OU |
| Item model number | RX230 |
| Customer Reviews | 4.4 out of 5 stars 334Reviews |
| Best Sellers Rank | #9 in Audio & Video Crossover Parts |
| Is Discontinued By Manufacturer | No |
| Date First Available | September 20, 2016 |
| Color Name | Black |
| Material Type | Metal |
| Wattage | 20 watts |
| Noise Level | 90 dB |
| Voltage | 120 Volts |
| Manufacturer | Audiosavings |
| UPC | 811080027159 |
| Global Trade Identification Number | 00811080027159 |

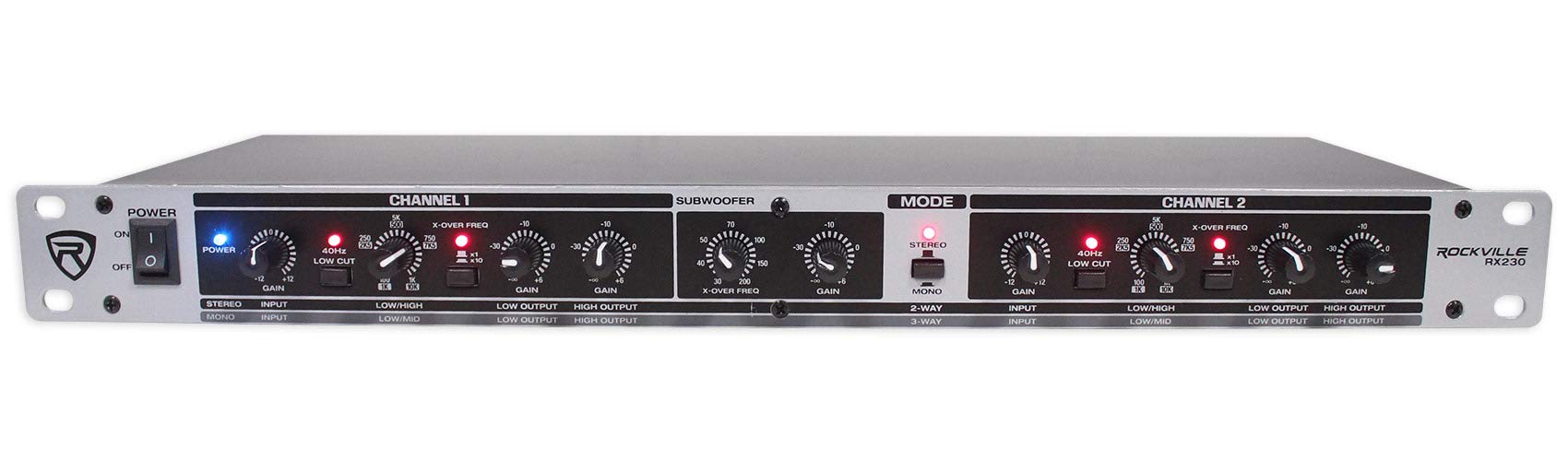

Features:

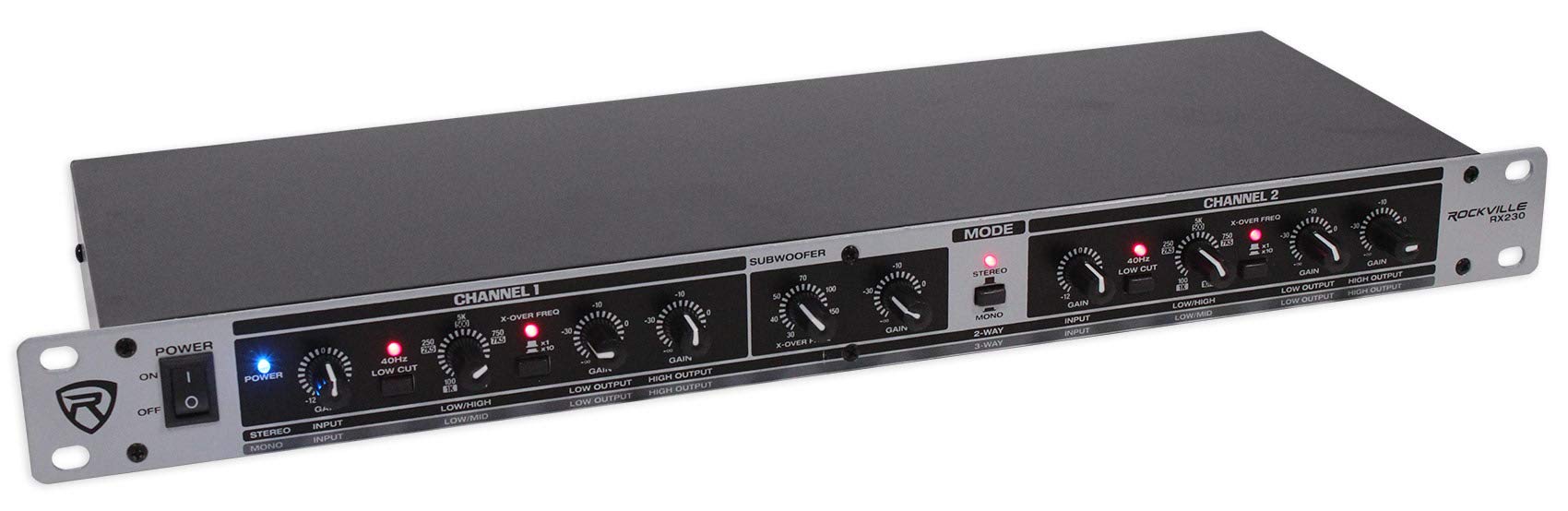

Rockville RX230 2-way Stereo / 3-way Mono rack mountable crossover
Ability to mix 2 channels output
24dB/Octave filters
Mute switches

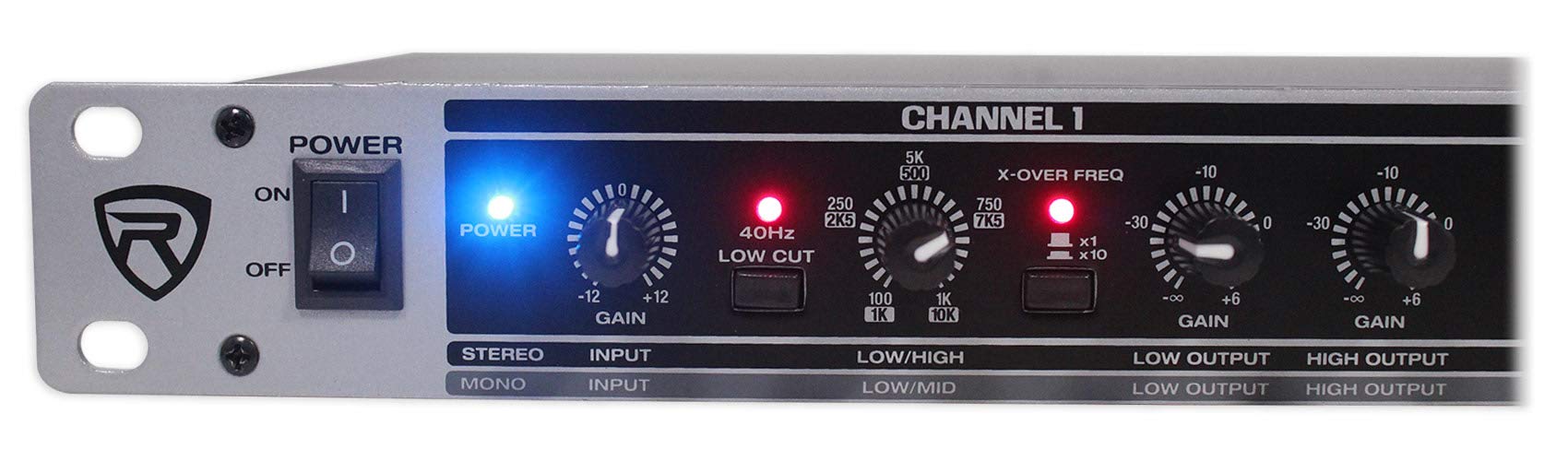

Channel Gain Control: 0 to +12 dB
Low Frequency Level Control: -∞ to +6 dB
High Frequency Level Control: -∞ to +6 dB
Low Frequency to High Frequency crossover: 100Hz to 1 Khz x10 range: Changes
Low Frequency to Mid Frequency from (100 Hz to 1 kHz) to (1kHz to 10 kHz)
Switchable 2-way stereo or 3-way mono operation
Subwoofer out

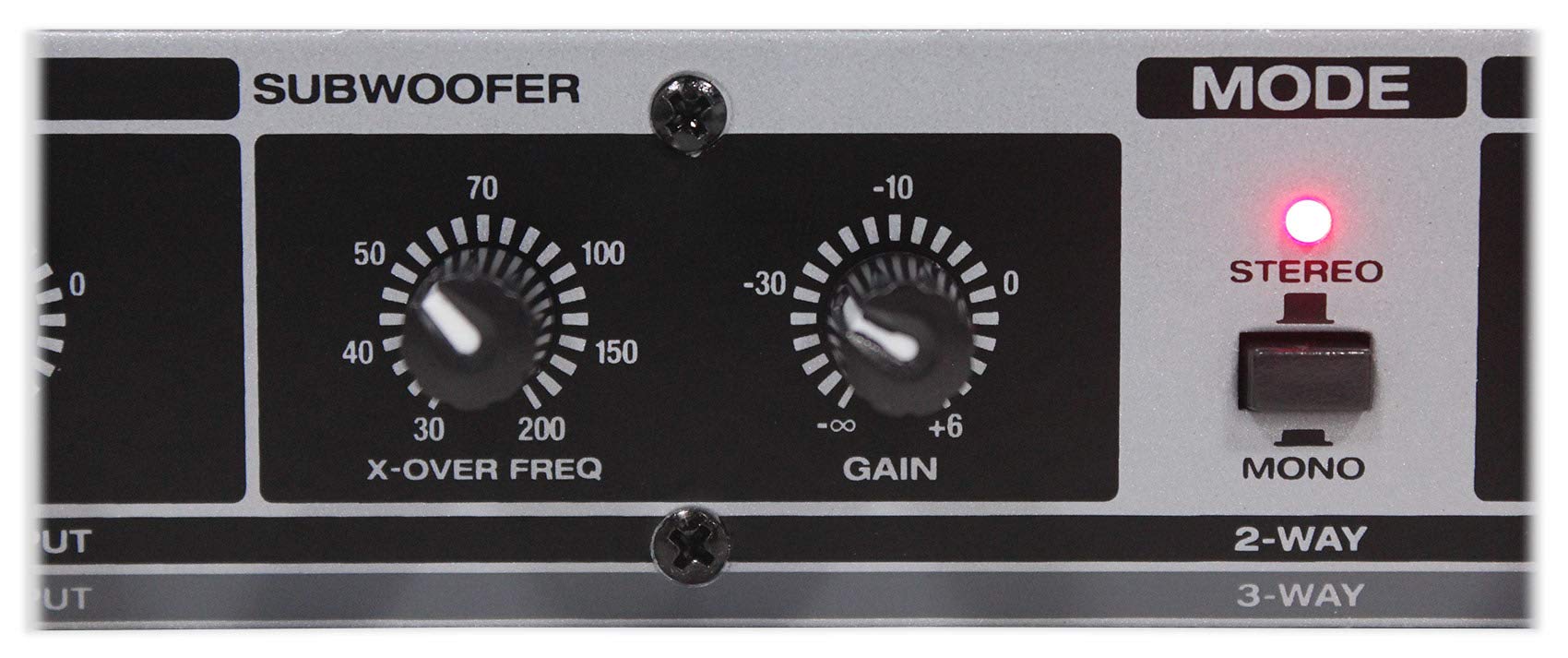

Subwoofer X-Over Freq ( 30Hz – 200Hz ) adjustable
Subwoofer Gain -6 to +6 dB
Specifications:
Each output is -3 dB at the selected crossover frequency value. Outputs are
essentially flat within their relative passbands.
Distortion: Less than 0.02% THD @ +4 dBu,@ 1 kHz
Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB;
22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB
Low Frequency Output: -86 dBu below 80 dB
High Frequency Output: -84 dBu below -78 dB
Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0
dB) +22 dBu
Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced
Input Impedance: 10k ohms unbalanced
Dimensions: 19 x 4.85 x 1.8 inches
Gross weight: 4.18 Lbs

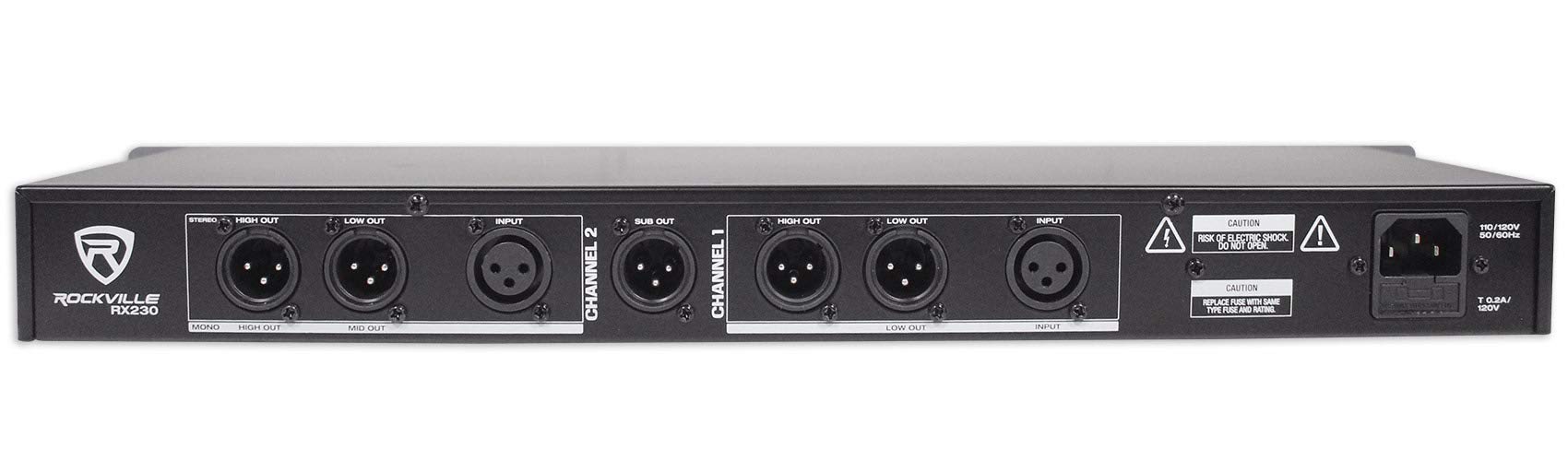

Connectors:
Inputs: XLR Balanced
Outputs: XLR Balanced
Power Requirements: 120V AC, 50/60 Hz, 20 watts
110-120V voltage
- Each output is -3 dB at the selected crossover frequency value. Outputs are essentially flat within their relative passbands.
-Distortion: Less than 0.02% THD @ +4 dBu,@ 1 kHz.
-Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB; 22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB.
-Low Frequency Output: -86 dBu below 80 dB.
-High Frequency Output: -84 dBu below -78 dB.
-Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0 dB) +22 dBu.
-Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced.
-Input Impedance: 10k ohms unbalanced.
-Dimensions: 19 x 4.85 x 1.8 inches.
-Gross weight: 4.18 Lbs.
-Connectors:
Inputs: XLR Balanced.
Outputs: XLR Balanced.
Power Requirements: 120V AC, 50/60 Hz, 20 watts.
110-120V voltage.
