| Item Weight | 3.88 ounces |
| Product Dimensions | 2.36 x 2.2 x 1.61 inches |
| Country of Origin | China |
| Item model number | RPLIDAR C1 |
| Shape | Square |
| Installation Method | Screw-In |
| Coverage | 12m |
| Usage | Outside; Professional, Inside; Professional |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for a full refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| Compatible Devices | ROS Robot, Detector, Autonomous Vehicles, Home Robots |
| Recommended Uses For Product | Driveway, Garage |
| Manufacturer | youyeetoo |
A new generation of fusion-type DTOF (Direct Time of Flight) RPLIDAR C1 Lidar laser sensor scanner integrates years of expertise and performs exceptionally well in high- definition detection of small and nearby objects, anti-interference, and anti-adhesion capabilities. With a 12-meter measurement radius, a sampling frequency of 5000 times per second, and 360-degree full-range laser scanning, its compact and nimble appearance fully meets the needs of applications such as robot positioning, mapping, navigation, and obstacle avoidance in various environments.
-Specification-
FOV: 360°
Angular resolution: 0.72° (typ.)
Scanning method: non-contact brushless mirror scanning
Scanning distance: 12m
0.05~12m(@70% reflectivity)
0.05~6m (@10% reflectivity)
Sampling frequency: 5KHz points/second
Scan frequency : 8~12Hz, 10Hz (typ.)
Communication interface: TTL UART
Anti-glare ability: 40,000lux
Near blind zone: 0.05m
Communication Rate: 460800
Working environment: indoor/outdoor
Implementation technology: Laser DTOF
Size: 55.6 x 59.8 x 41.3mm(only lidar）
Weight: 110g (only lidar）

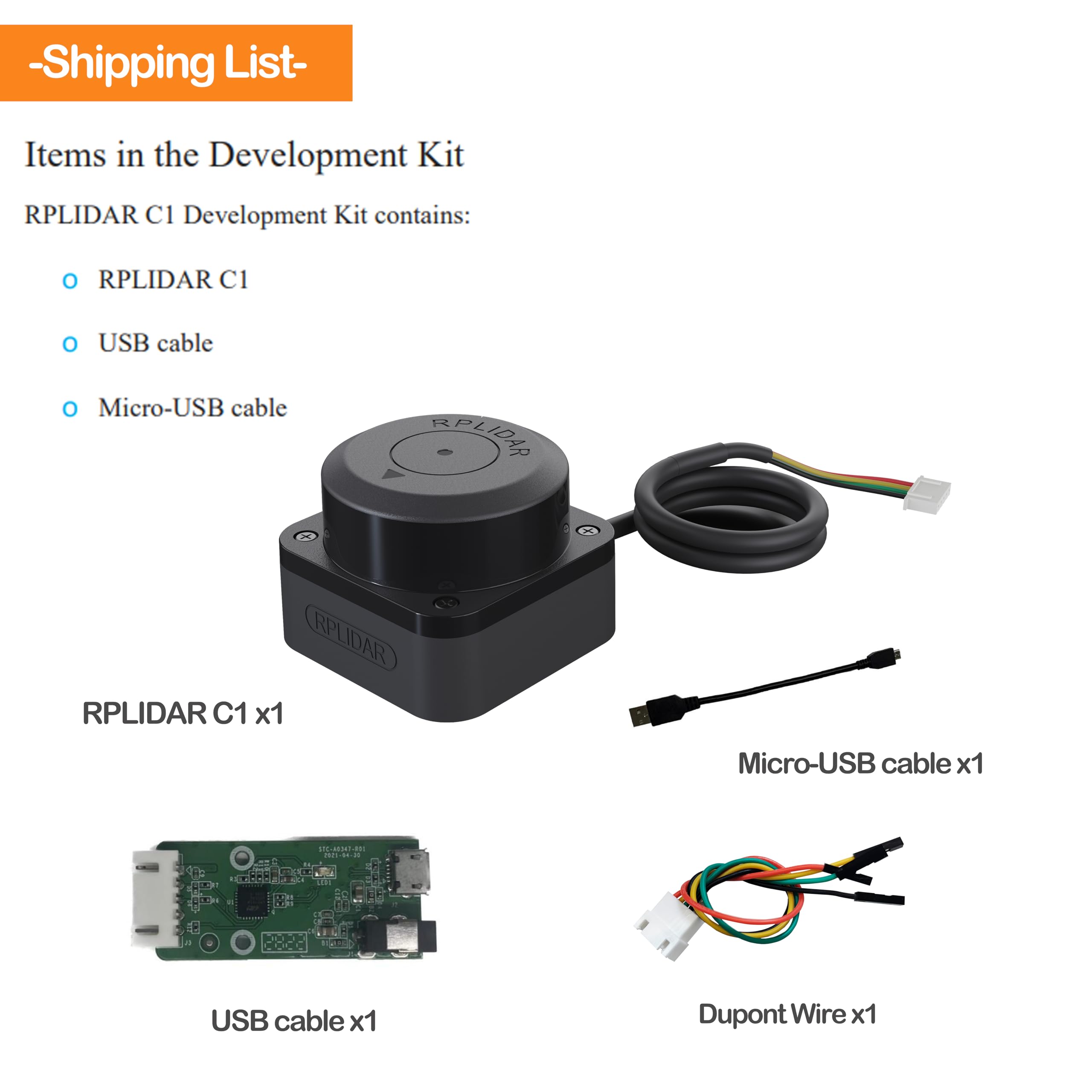

-Package Content-
RPLIDAR C1 Lidar Combo Set x1
-Technical Support-
SDK and Firmware, 3D Models, Application Note
Datasheet,User Manual, Protocol
