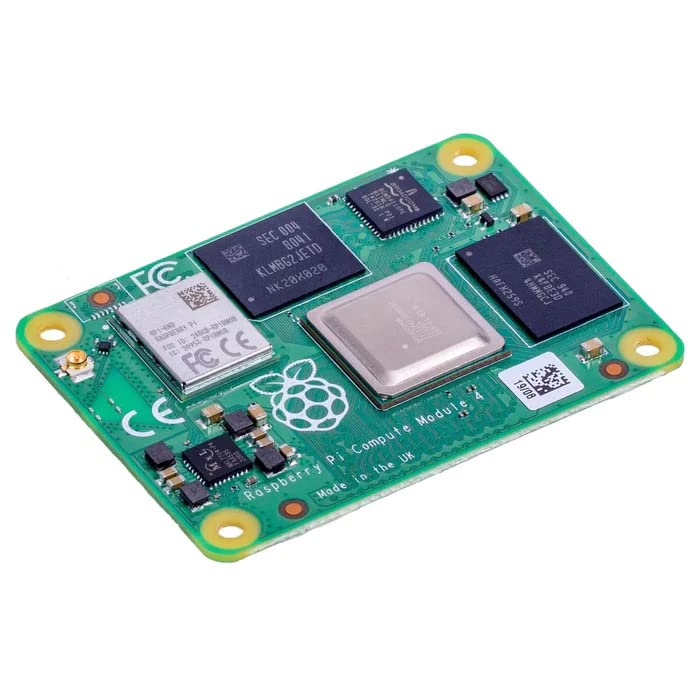

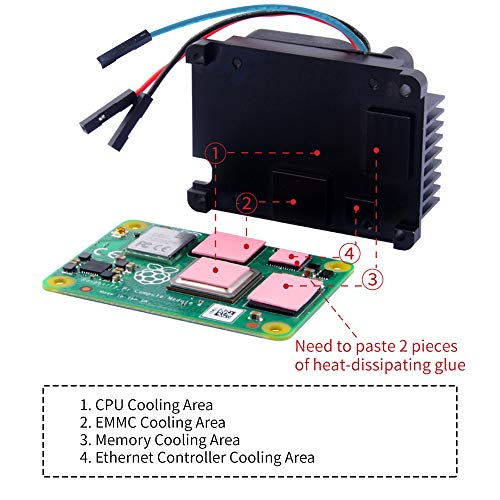

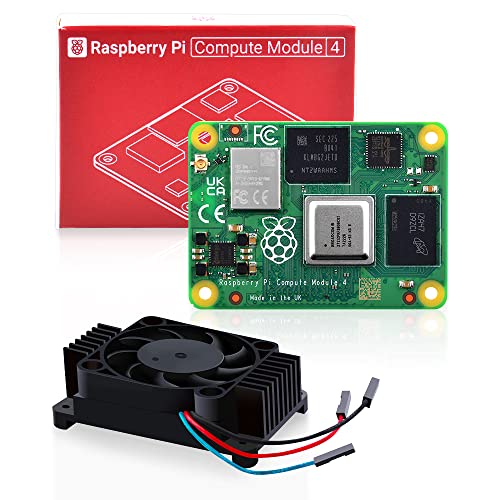

Raspberry Pi Compute Module 4 with CM4 heatsink PWM Fan, CM4 8GB RAM 32GB eMMC Single Board 64-Bit Quad-Core Processor Bluetooth 5.0 Dual-Band WiFi (CM4108032)

Product Description:

The power of the Raspberry Pi 4 in a compact form factor for deeply embedded applications!

The Raspberry Pi Compute Module 4 (CM4) harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.

Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces and PCIe Gen 2 x1 interface.

Specification:

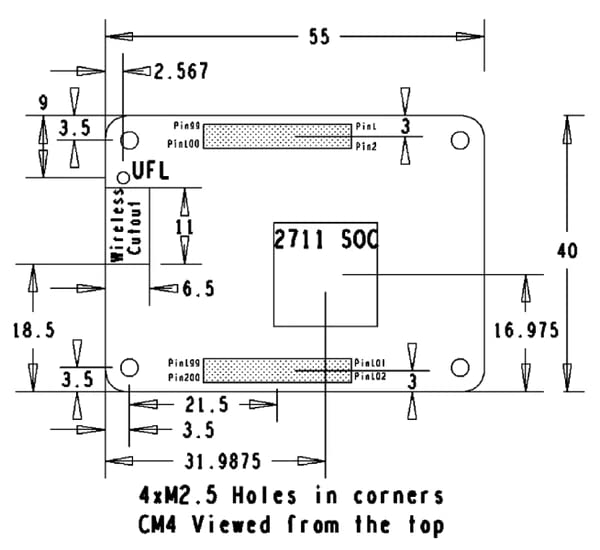

Form factor: 55 mm × 40 mm

Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

Memory: 8GB LPDDR4

EMMC: 32GB

Connectivity:

• 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options

• Onboard Gigabit Ethernet PHY supporting IEEE1588

• 1 × USB 2.0 interface


• PCIe Gen 2 x1 interface

• 28 GPIO signals

Video:

• Dual HDMI interface (up to 4Kp60 supported)

• 2-lane MIPI DSI display interface

• 2-lane MIPI CSI camera interface

• 4-lane MIPI DSI display interface

• 4-lane MIPI CSI camera interface

Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphicsc

Input power: 5V DC

Operating temperature: -20°C to +85°C

Compliance: For a full list of local and regional product approvals, please visit:

raspberrypi.org/documentation/hardware/

raspberrypi/conformity.md
