Features:
- The chassis panel is made of 2mm aluminum alloy, which is strong;
- The robot brings four 60mm mecanum omnidirectional wheels, the robot can move forward and backward, turn left, turn right, etc.;
- The robot is equipped with 4 high-torque TT motors, which provides sufficient horsepower for the chassis and the chassis travels fast;
- It is a cost-effective omnidirectional wheel chassis, suitable for learning, competition, DIY, etc.
- In order to facilitate transportation, the product is not assembled.
MC100 Metal Smart Car Chassis Parameters:

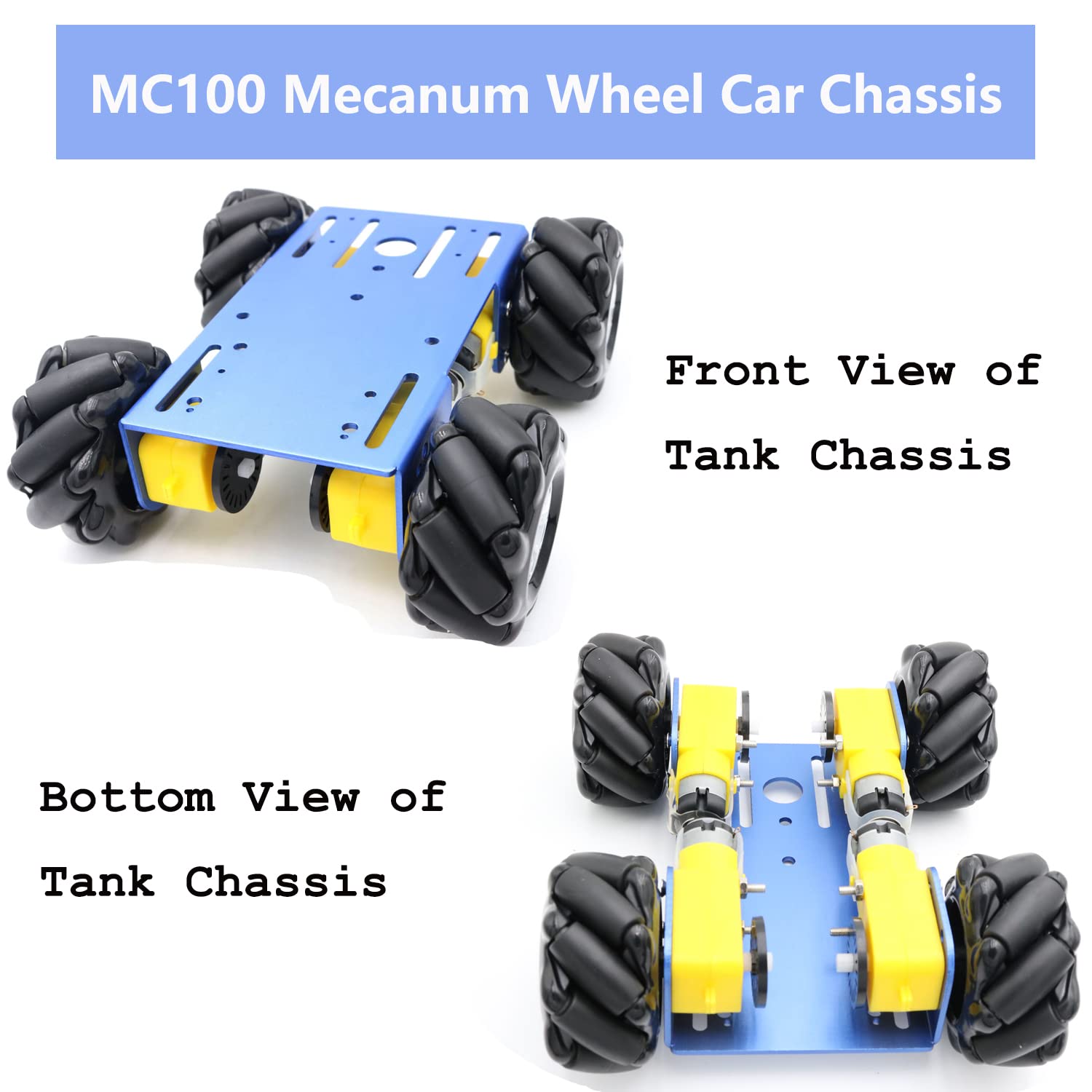

- Name: MC100 4WD metal smart car chassis

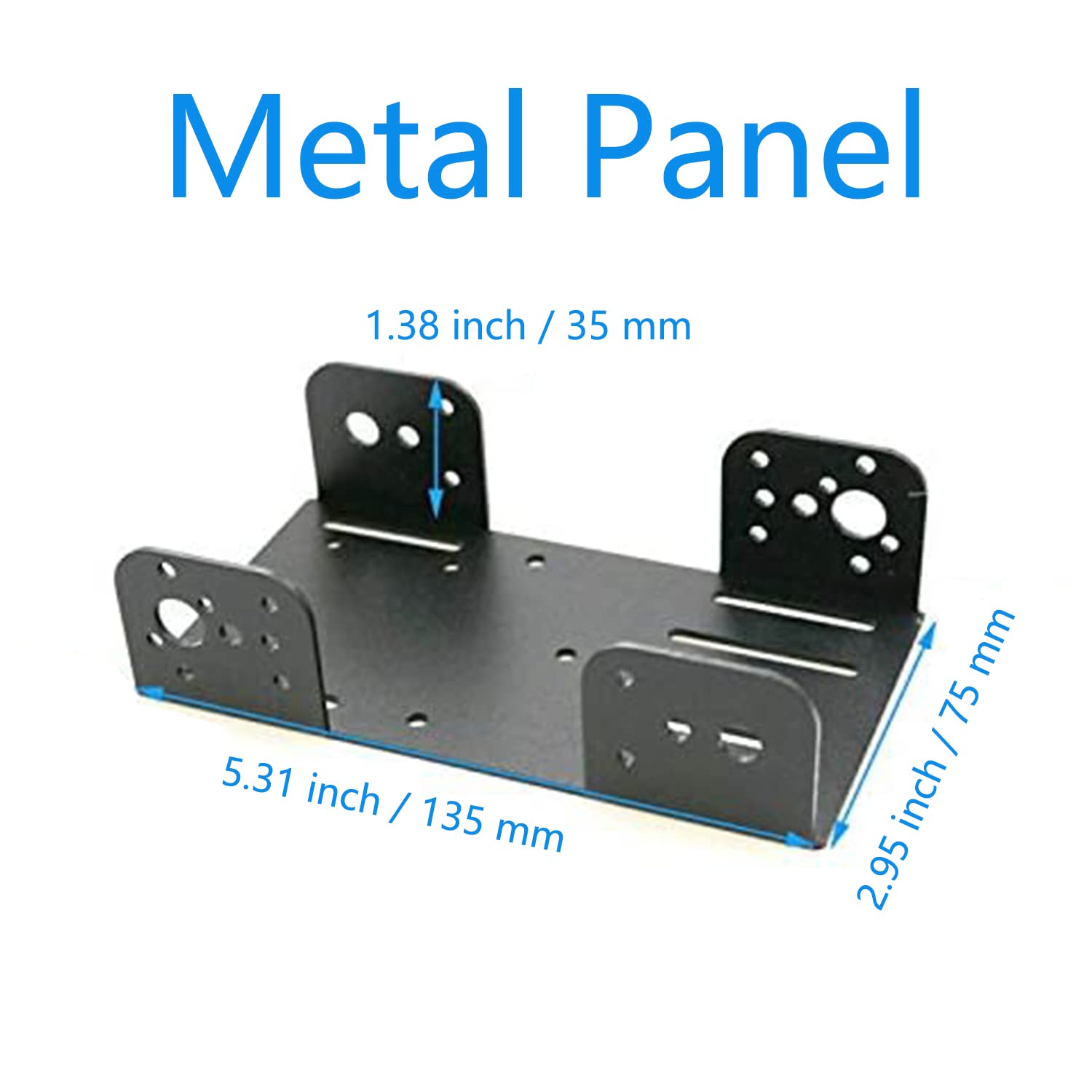

- Panel material: 2mm aluminum alloy
- Surface treatment: Sandblasting oxidation
- Panel color: black / blue

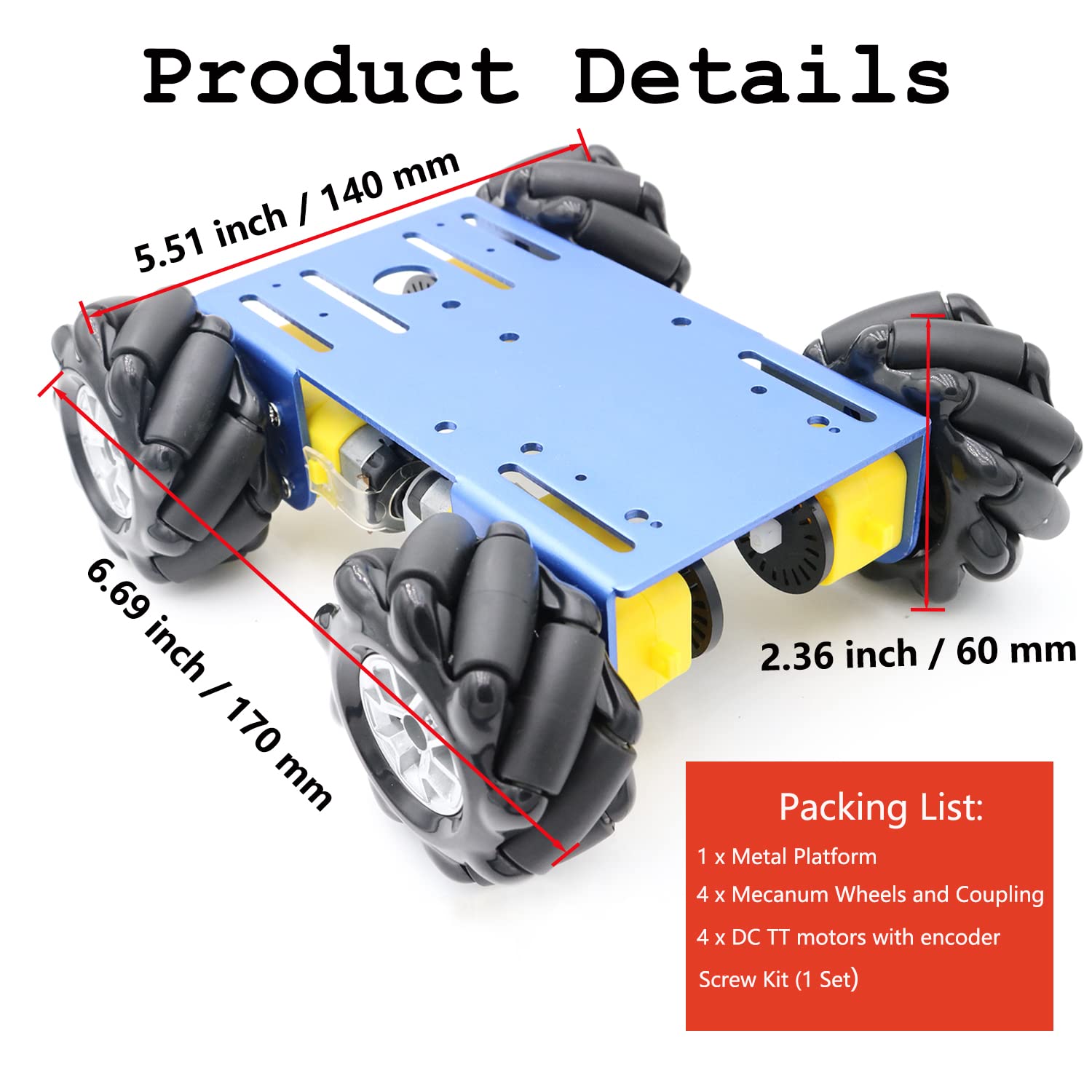

- Size: 170 * 140 * 60 mm / 6.69 * 5.51 * 2.36 inch (length * width * height)
- Motor: TT motor
- Wheels: 60mm mecanum omnidirectional wheel
- Weight: about 380g / 0.84lb
60mm Mecanum Omnidirectional Wheel:
- Name: 60mm Mecanum Wheel
- Color: black
- Material: plastic
- Inner wheel diameter: 35.5mm / 1.4 inch
- Outer wheel diameter: 60mm / 2.4 inch
- Thickness: 27mm / 1.1 inch
- Number of sub-rounds: 9
- Load-bearing: 10kg (4 functions)

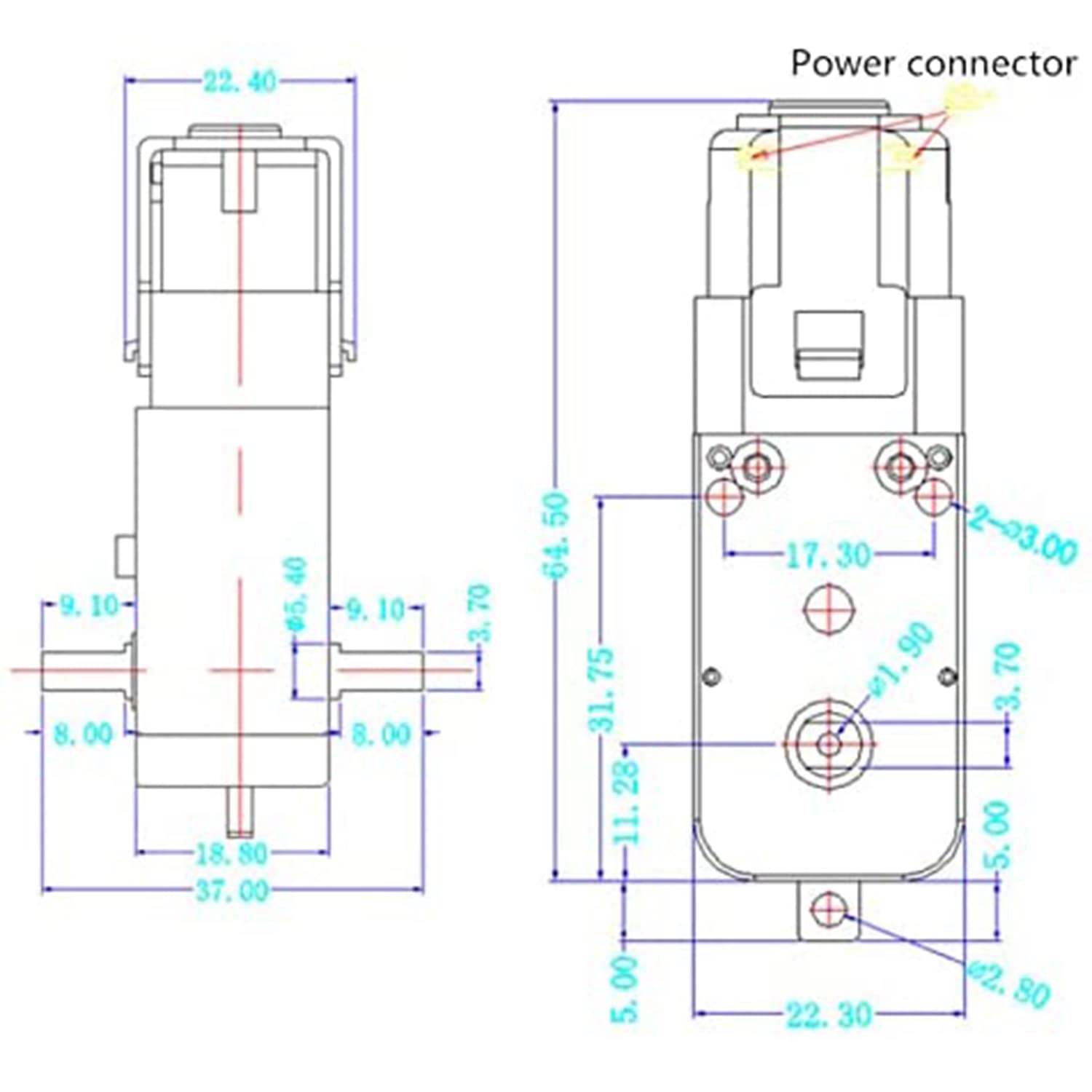

TT Motor Parameters:
- Voltage: 6V (recommended at 3-6V best)
- Motor specifications: 1:48, faster
- No-load current: ≤250mA
- No-load speed: 240±10% rpm

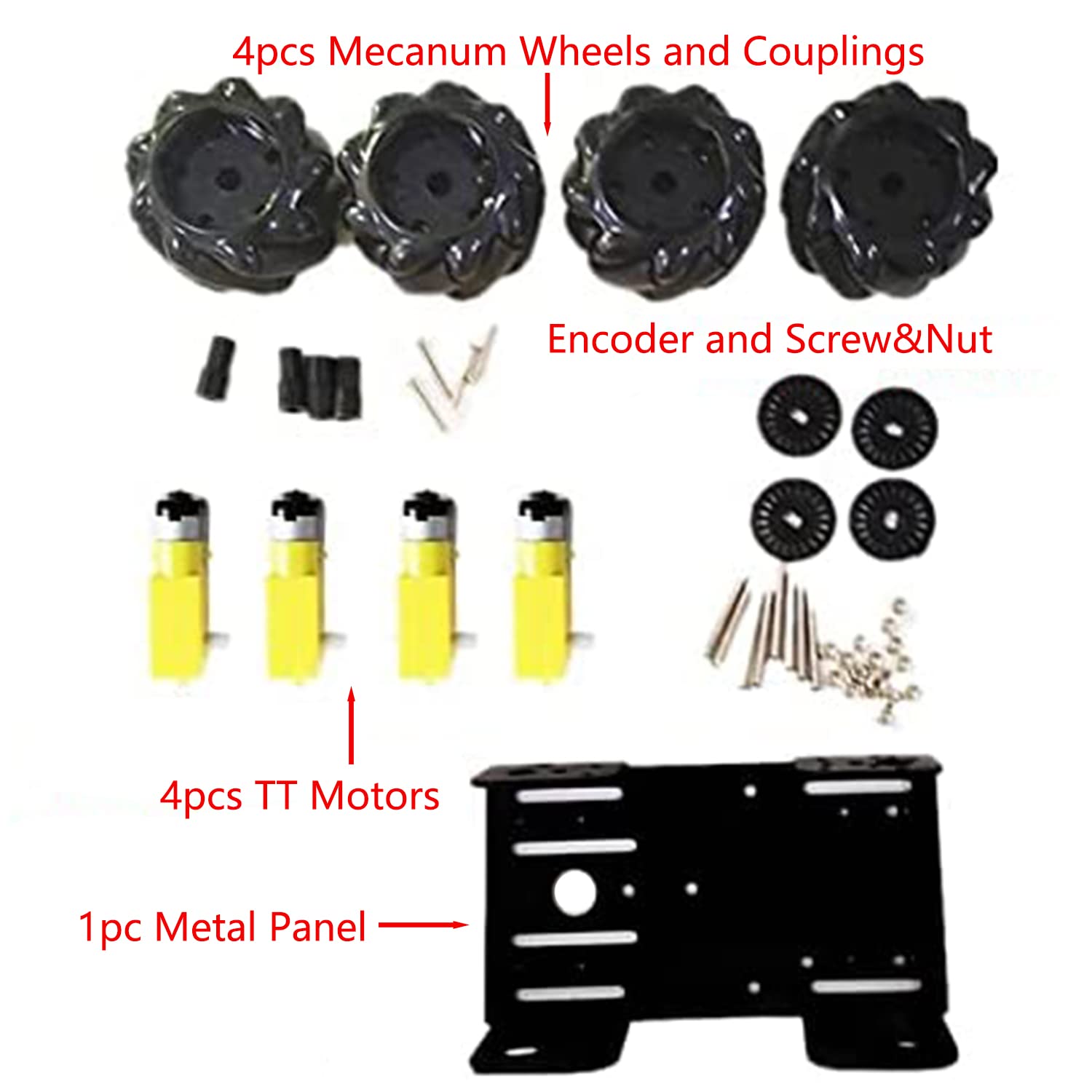

Shipping list:
- 1 × Metal panel
- 4 × 60mm omni wheel
- 4 × TT motor with 4pcs encoders
- Screw kit and other part
