| Item Weight | 13.1 ounces |
| Product Dimensions | 7.09 x 3.15 x 1.38 inches |
| Item model number | DY29 |
| Manufacturer Part Number | CMOBD2B-KBOX |
| Bulb Type | LED |
| Special Features | LED Indicators, 90CM Extension Cord |
| Manufacturer | CMTOOL |

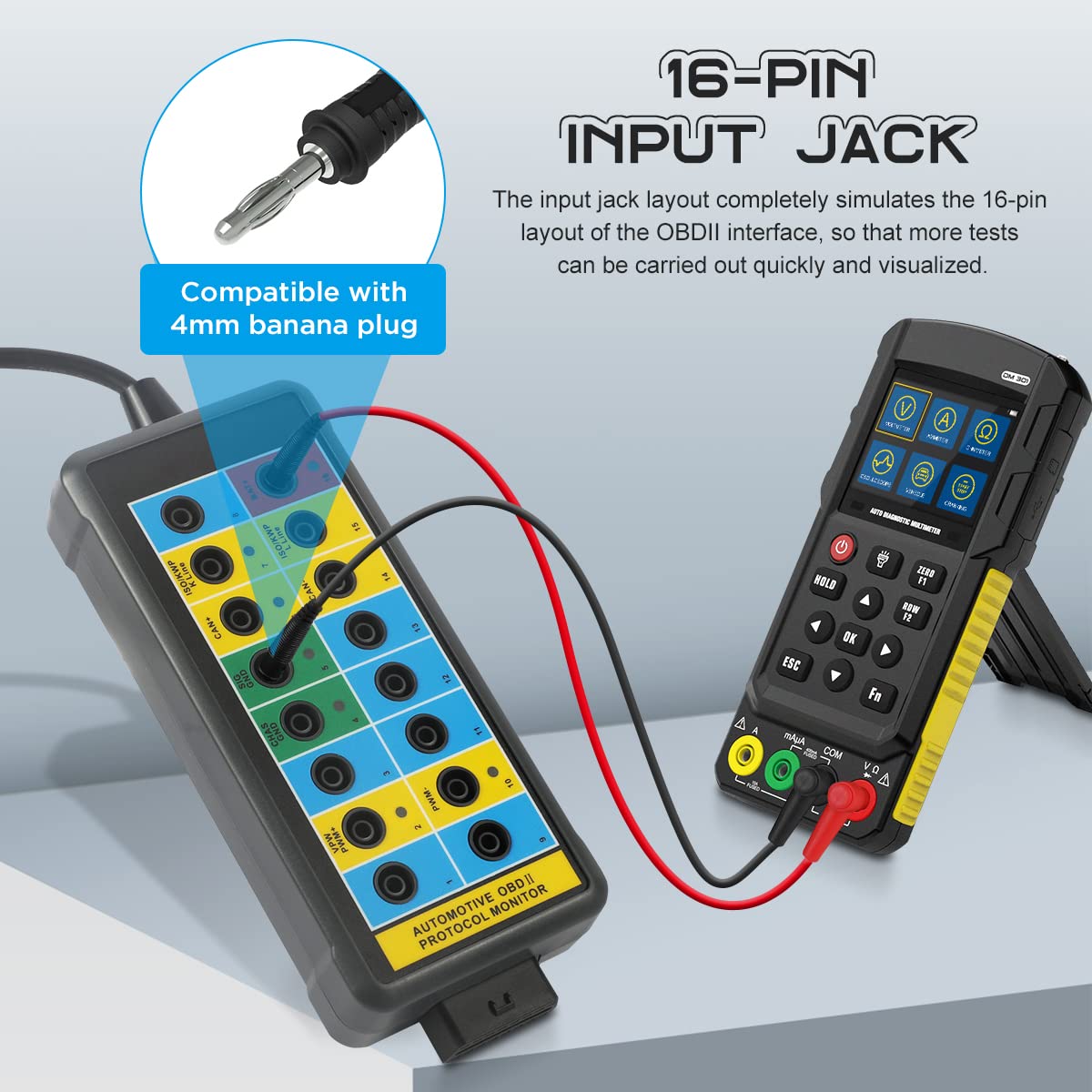

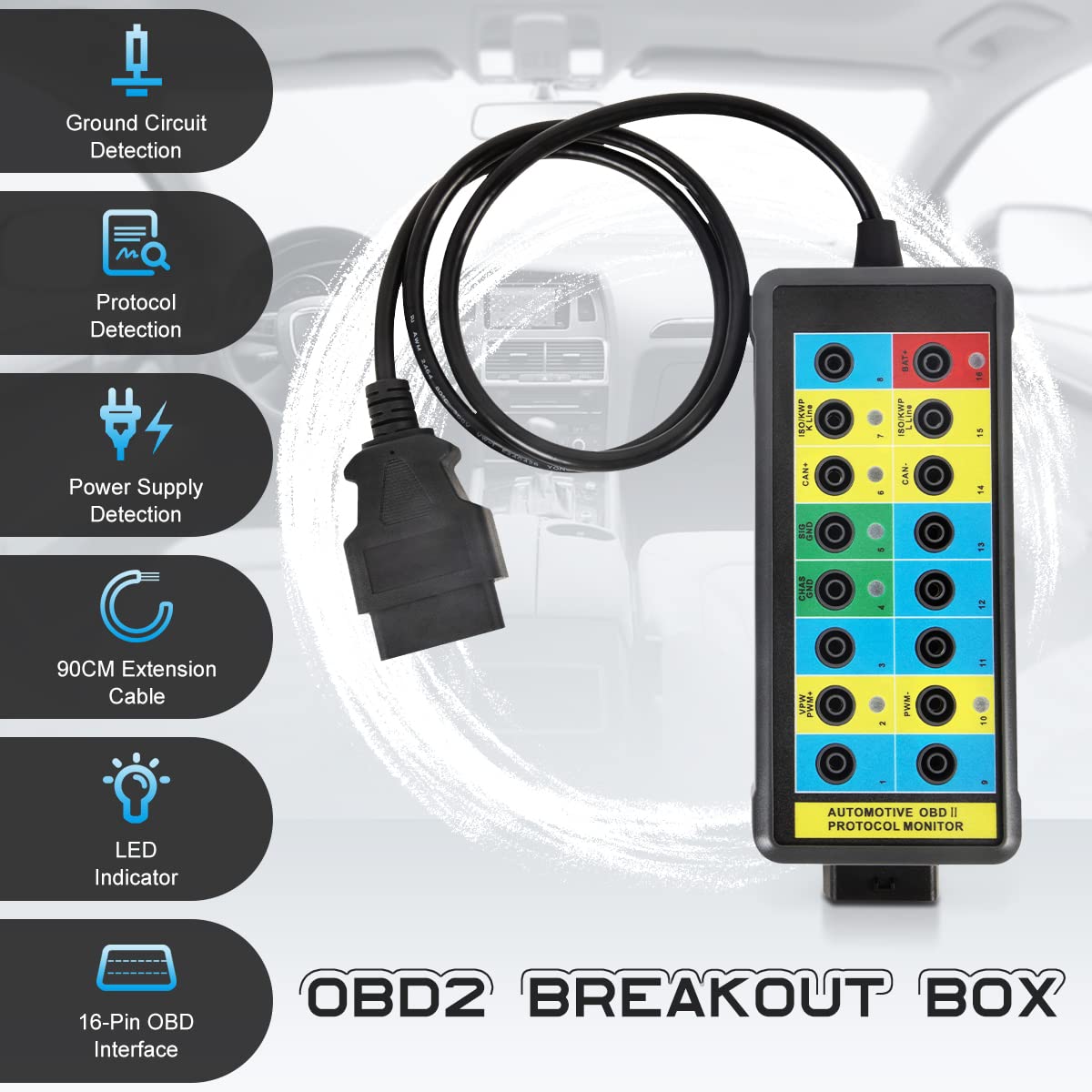

This is a professional automotive test tool for the OBDII diagnostic link connector which offers easy access to the OBDIl connector for monitoring signals of protocol, power and grounds conveniently and safely.

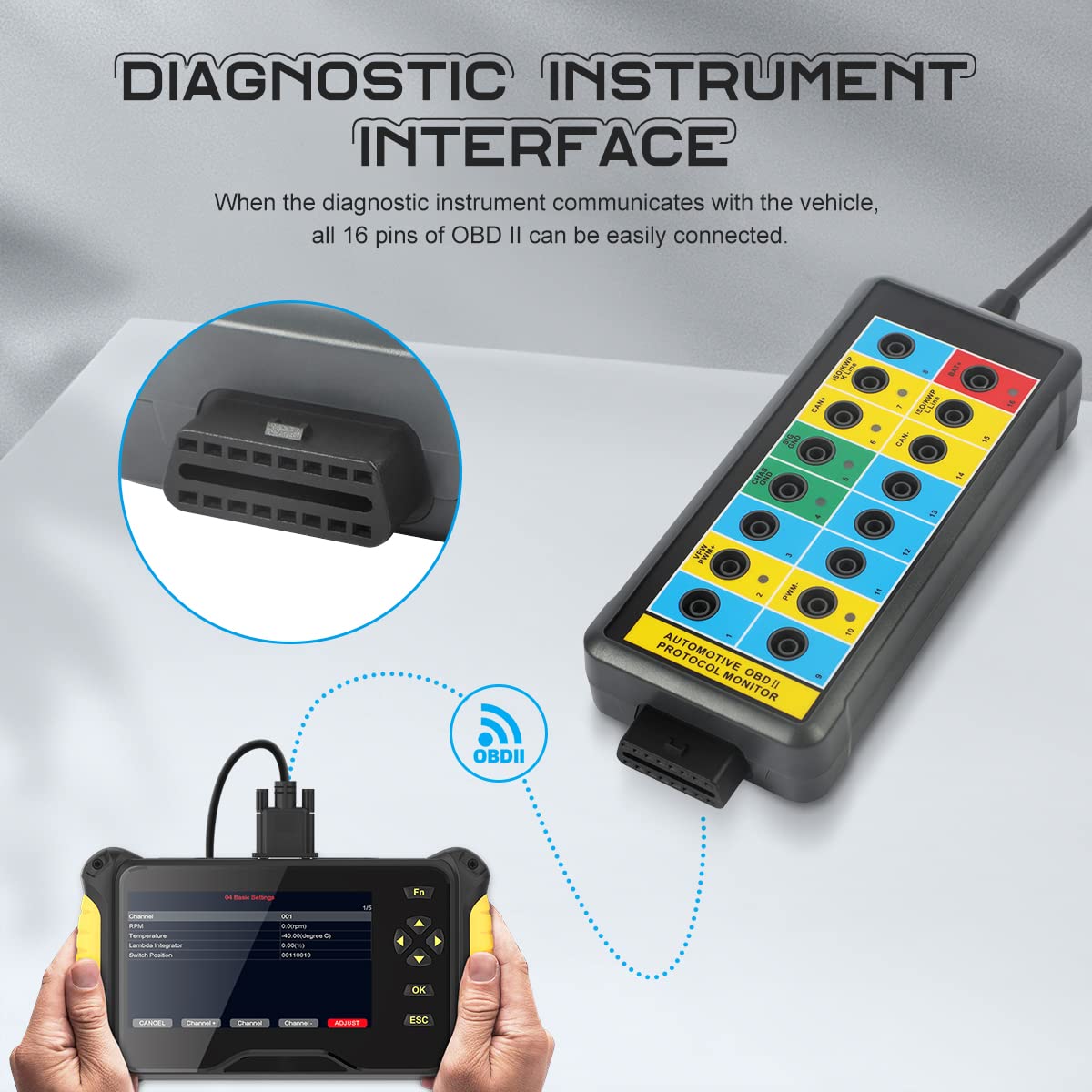

When unconfirmed signals are detected, the breakout box can also be connected to a multimeter or oscilloscope for further testing.

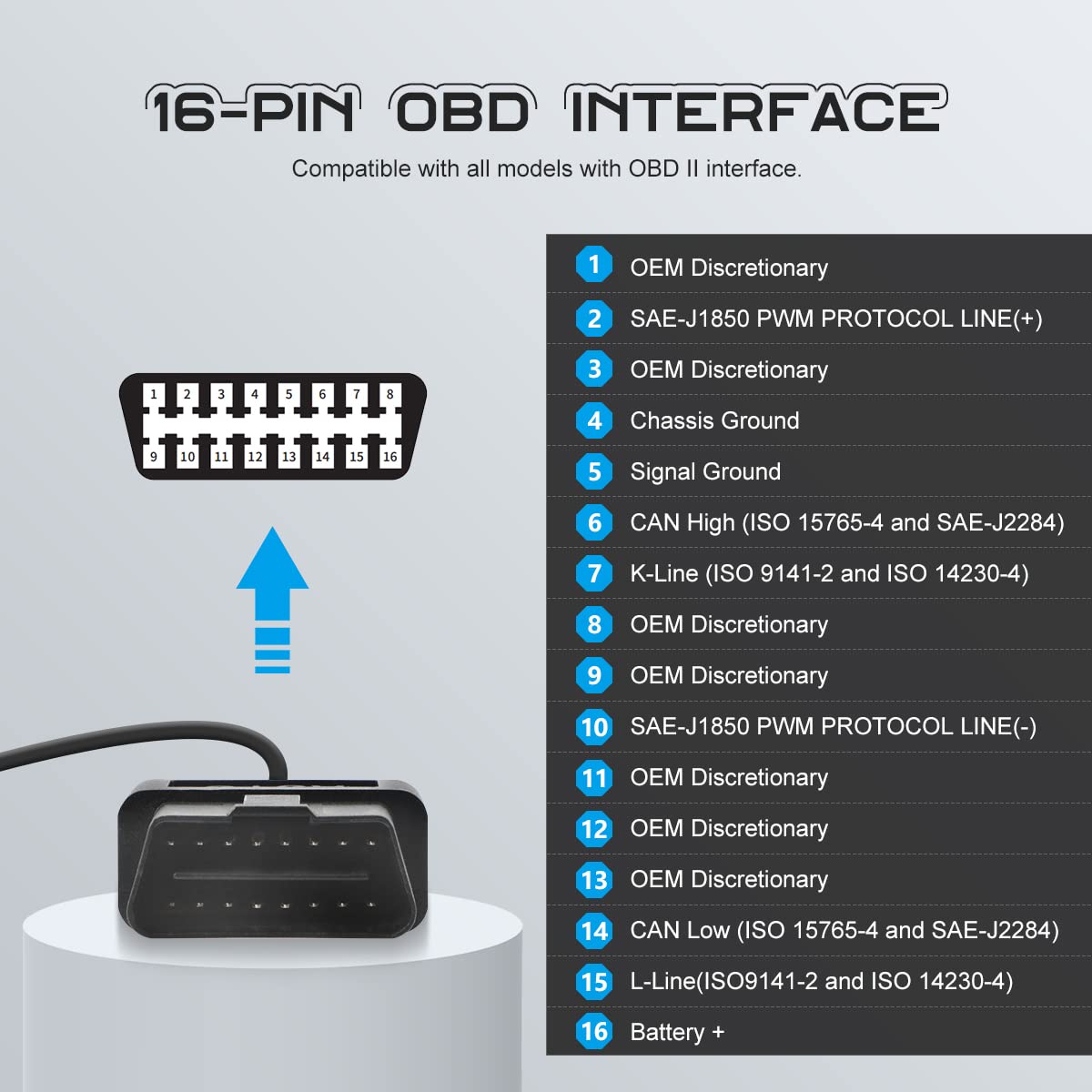

Pin 1/Pin 3/Pin 8/Pin 9/Pin 11/Pin 12/Pin 13: OEM Discretionary
Pin 2: SAE-J1850 PWM PROTOCOL LINE(+)
Pin 4: Chassis Ground
Pin 5: Signal ground
Pin 6: CAN High (ISO 15765-4 and SAE-J2284)
Pin 7: K-line for ISO 9141-2 and ISO 14230-4
Pin 10: SAE-J1850 PWM PROTOCOL LINE(-)
Pin 14: CAN Low (ISO 15765-4 and SAE-J2284)
Pin 15: L-Line (ISO9141-2 and ISO 14230-4)
Pin 16: Battery +

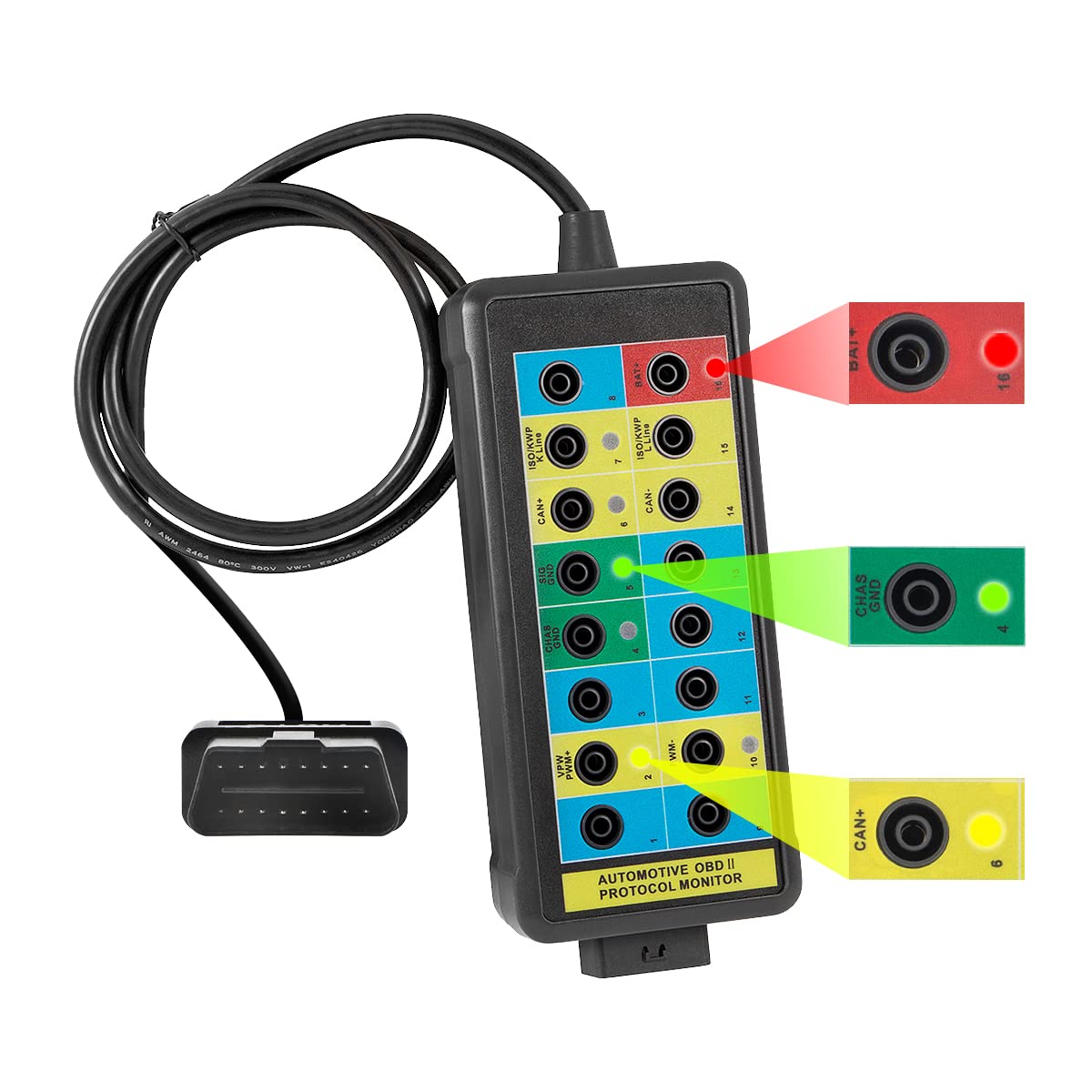

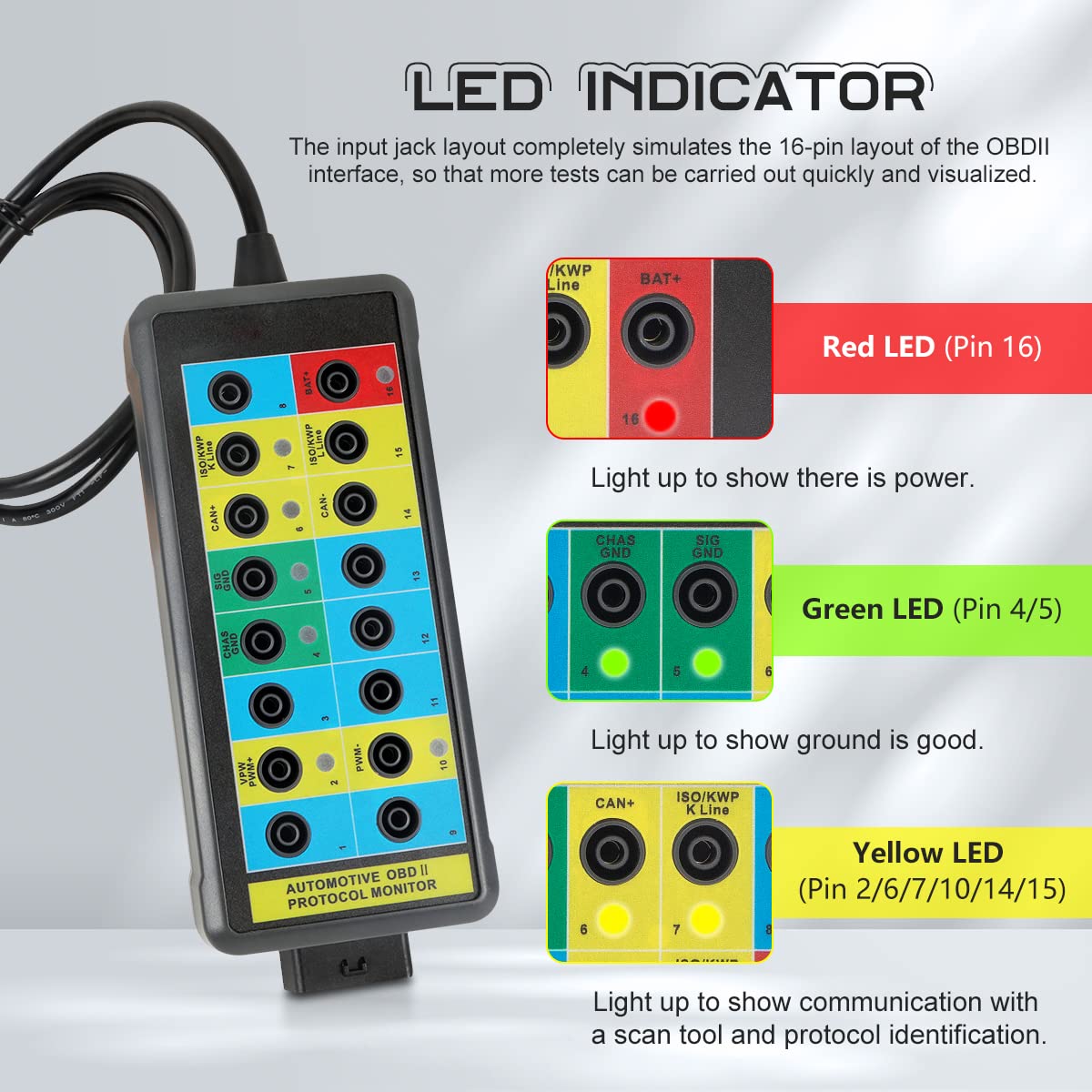

Light up to show there is power.
Light up to show ground is good.
Light up to show communication with a scan tool and protocol identification.
Diagnostic port: OBD II
Working voltage: DC 8V-30V
Load: 2.0A
Operating temperature: -20°C-70°C (-4°F-158°F)
OBD II extension cable length: 90cm
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
