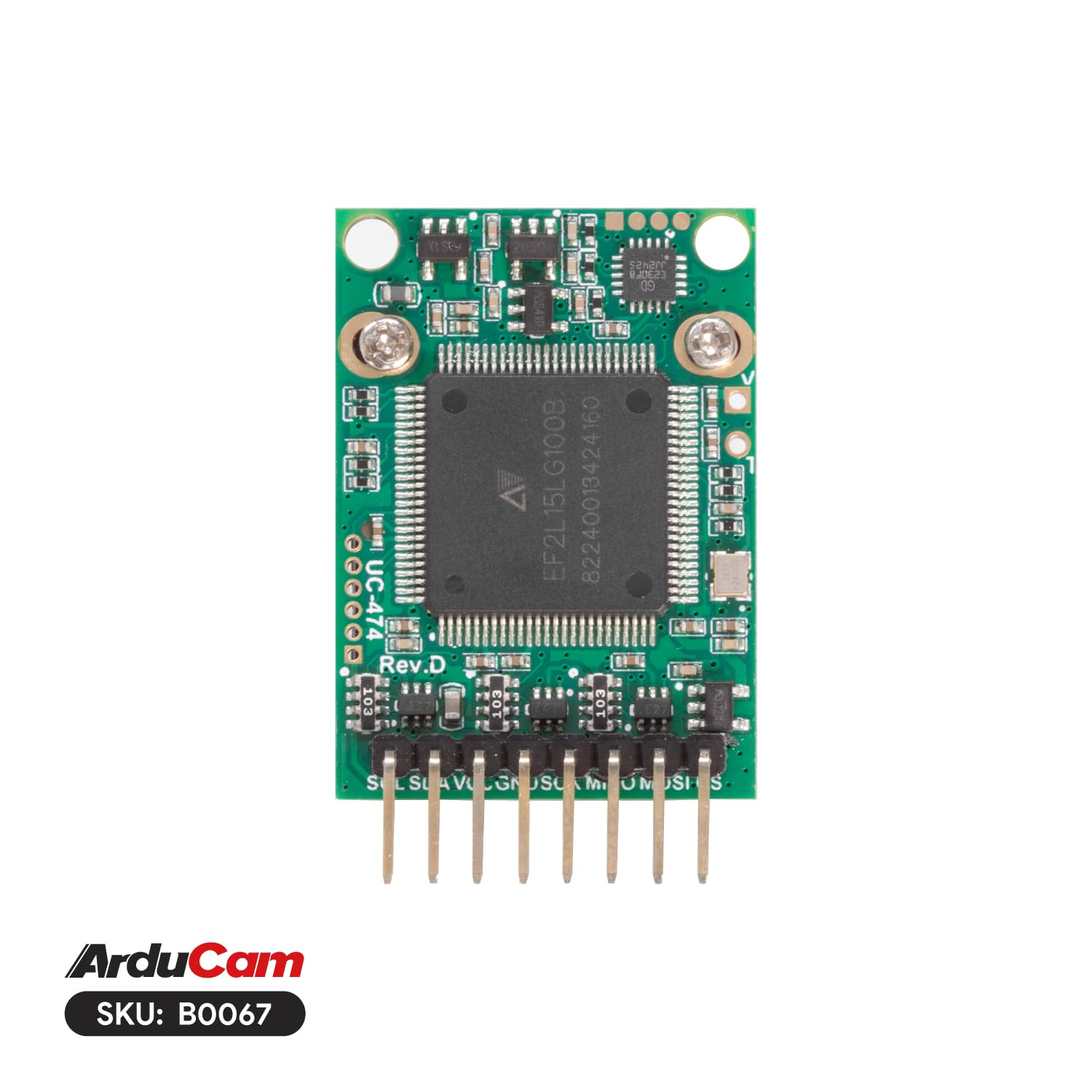

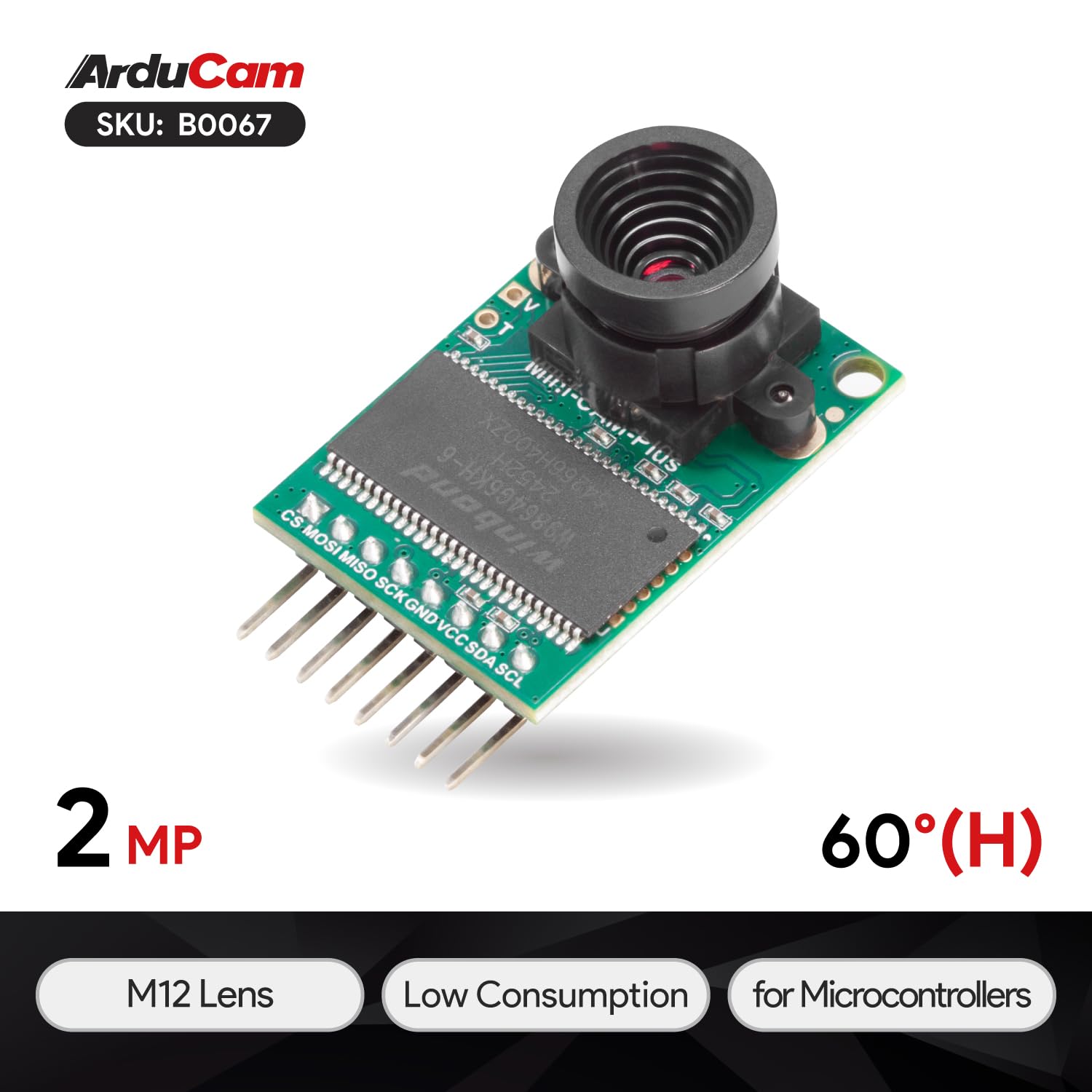

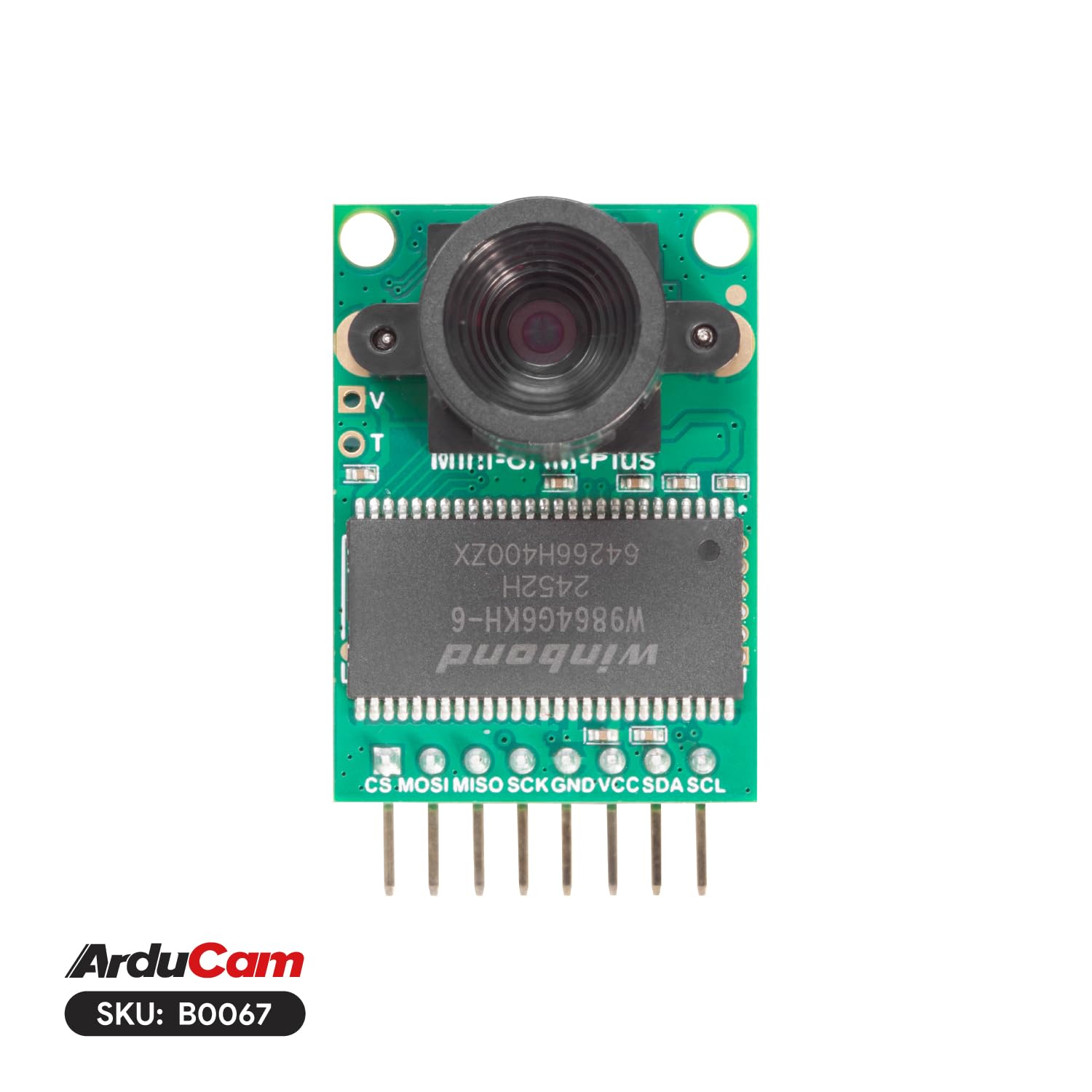

Arducam-M-2MP is optimized version of Arducam shield Rev.C, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The Arducam mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards. Arducam mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.
Application:
IoT cameras
Robot cameras
Wildlife cameras
Other battery-powered products
Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
Features:
2 megapixels image sensor OV2640

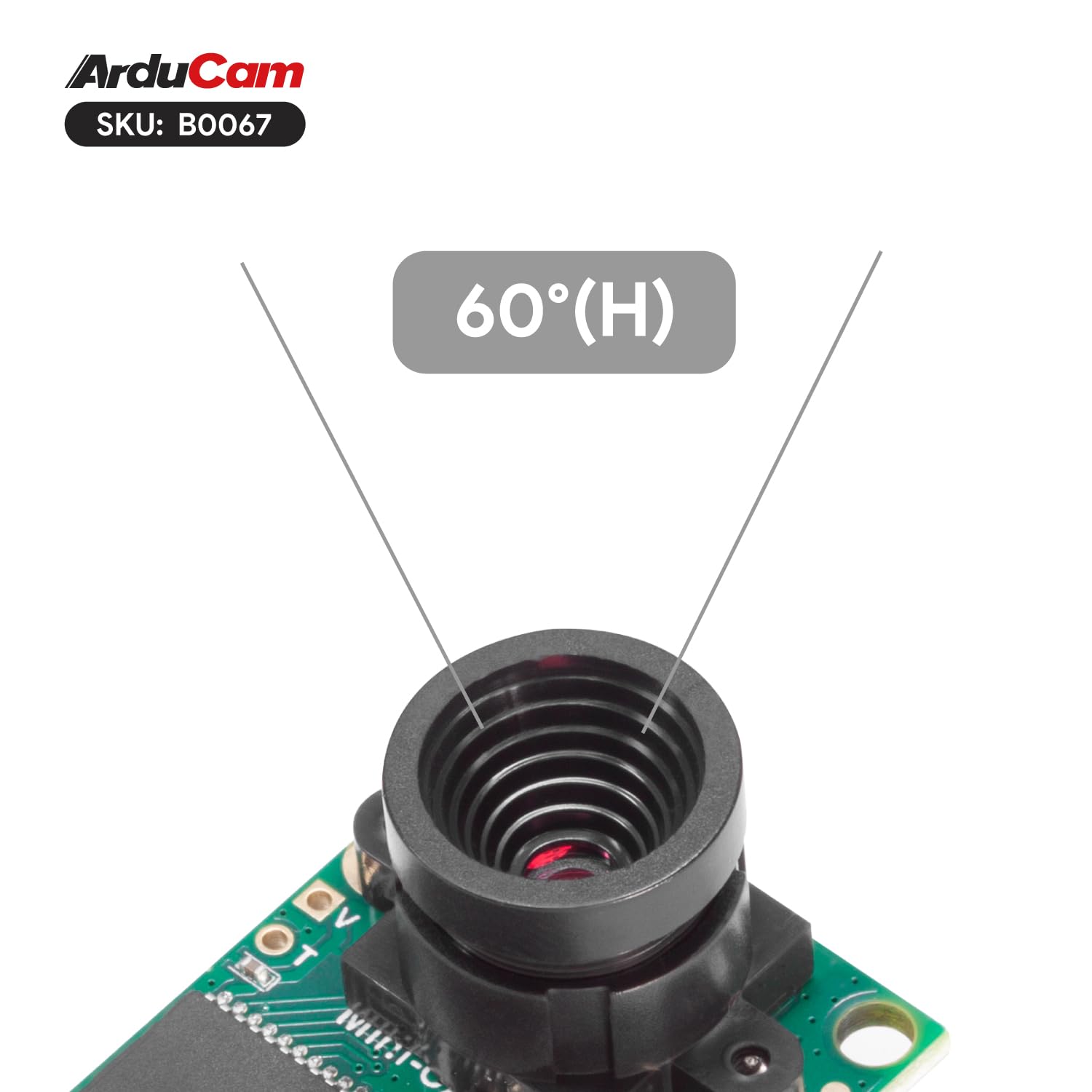

M12 mount or CS mount lens holder with changeable lens options
IR sensitive with proper lens combination
I2C interface for the sensor configuration
SPI interface for camera commands and data stream
All IO ports are 5V/3.3V tolerant
Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
Well mated with standard Arduino boards

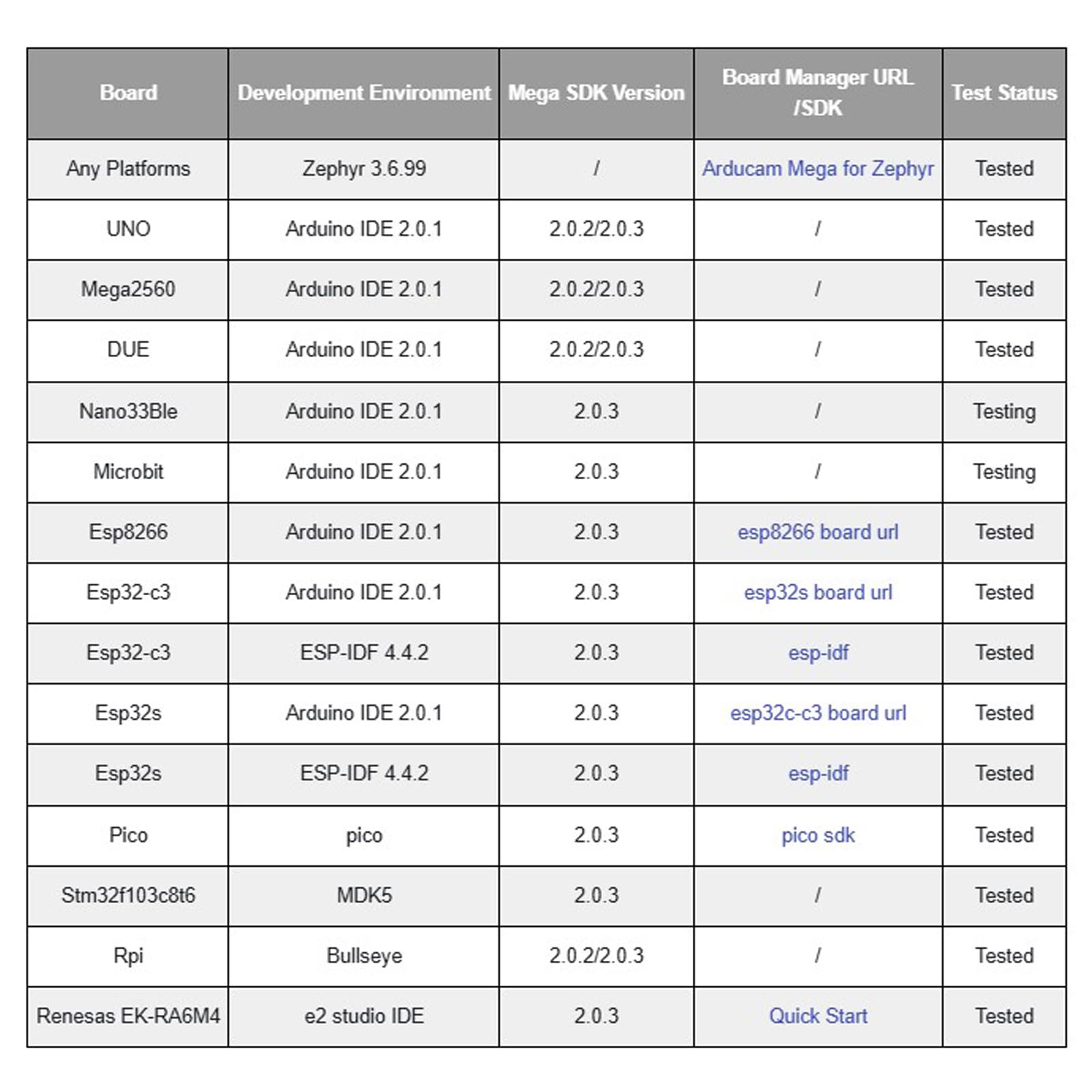

Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
Small form of factor
Package Including:
1pcs Arducam Mini module Camera Shield With OV2640 2 megapixels lens for Arduino UNO Mega2560 board
NOTE:Arduino UNO is not incldued
