| Standing screen display size | 0.91 Inches |
| Screen Resolution | 1280 x 800 pixels |
| Processor | 3.4 GHz cortex |
| Hard Drive | SSD |
| Card Description | Dedicated |
| Wireless Type | 802.11abg |
| Brand | MakerFocus |
| Item model number | 8541549353 |
| Item Weight | 0.32 ounces |
| Product Dimensions | 1.5 x 2.76 x 0.39 inches |
| Item Dimensions LxWxH | 1.5 x 2.76 x 0.39 inches |
| Processor Brand | AMD |
| Voltage | 3.3 Volts |
Introduction:
0.91-inch OLED display with balck-on-white support
128x32 resolution delivers crisp visuals with high contrast
Ultra-wide viewing angle: >160° (widest viewing angle among displays)
Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels—no level shifter required
Utilizes I2C bus, requiring only a few I/O pins to activate display
Ultra-low power consumption: Only 0.06W during normal display (significantly lower than TFT displays)
Specifications:
Display Color: White
Size: 0.91-inch
Type: OLED
Driver Chip: SSD1306
Resolution: 128*32 (Pixels)
Module Interface: I2C interface
Effective Display Area (AA Zone): 22.384x5.584 (mm)
Module PCB Base Size: 12.00x38.00 (mm)
Viewing Angle: >160°
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
VCC Power Supply Voltage: 3.3V to 5V

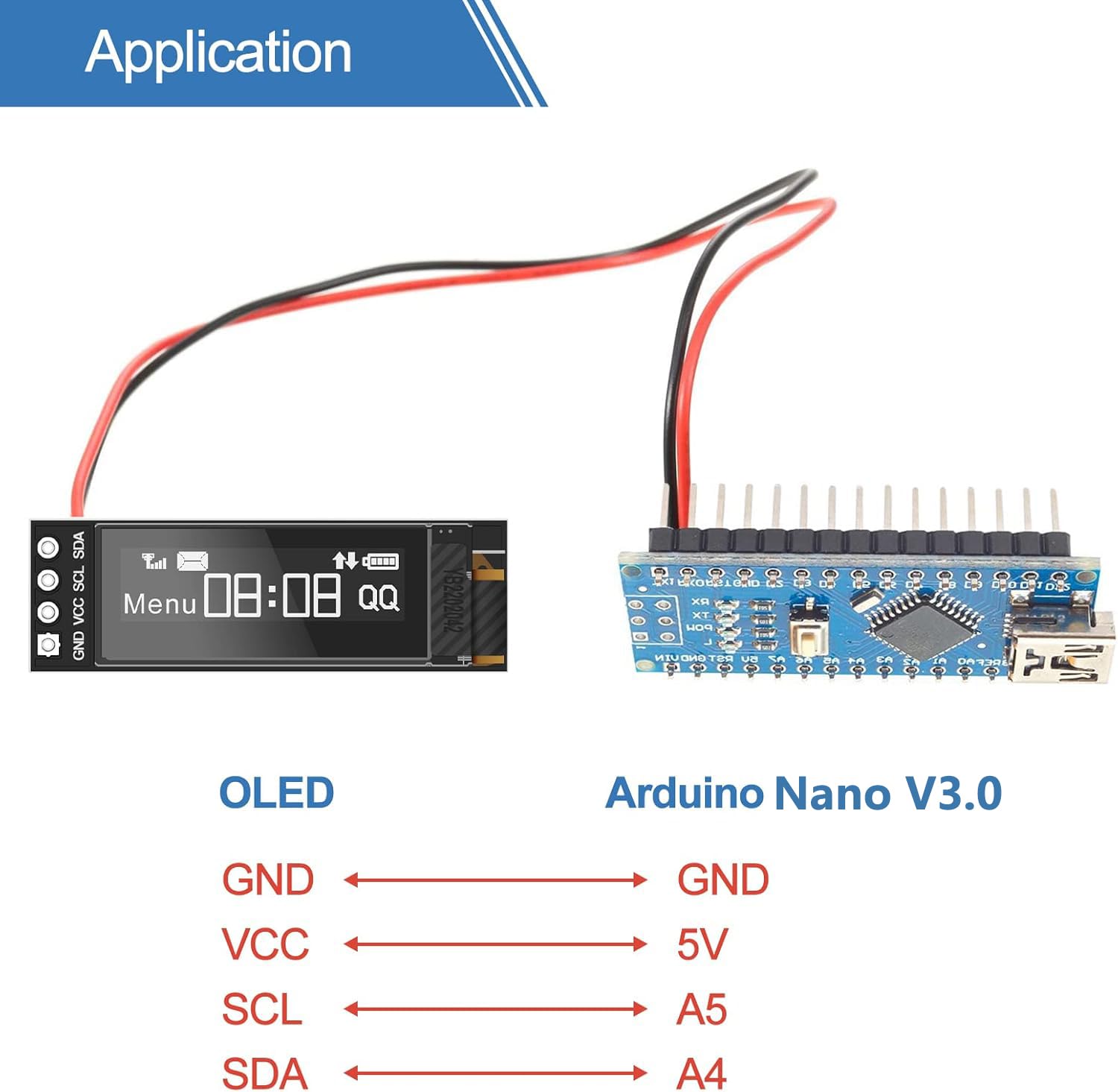

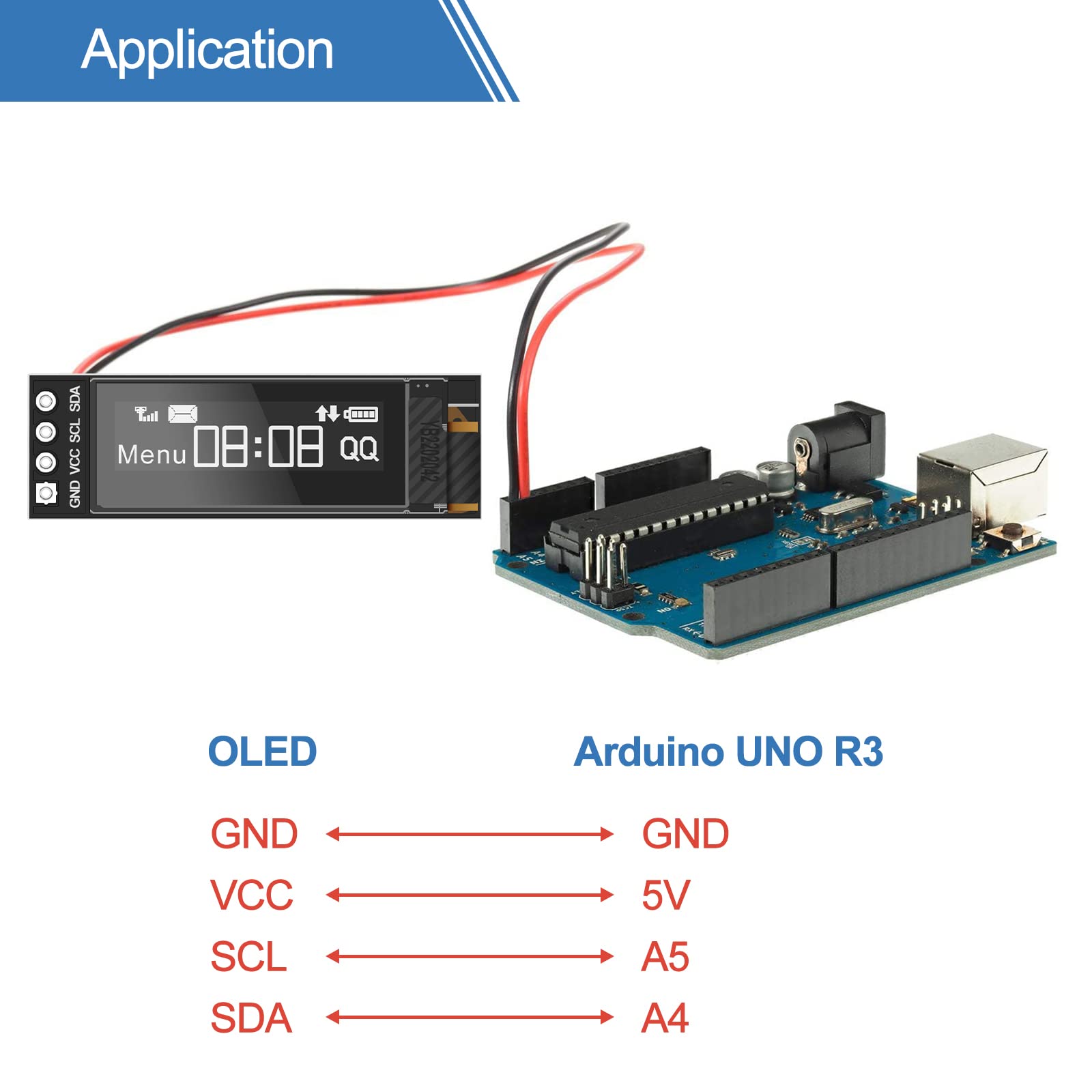

Interface Definition
GND: Power Ground
VCC: Power Positive (3.3V/5V)
SCL: I2C Bus Clock Signal
SDA: I2C Bus Data Signal
Package Content:

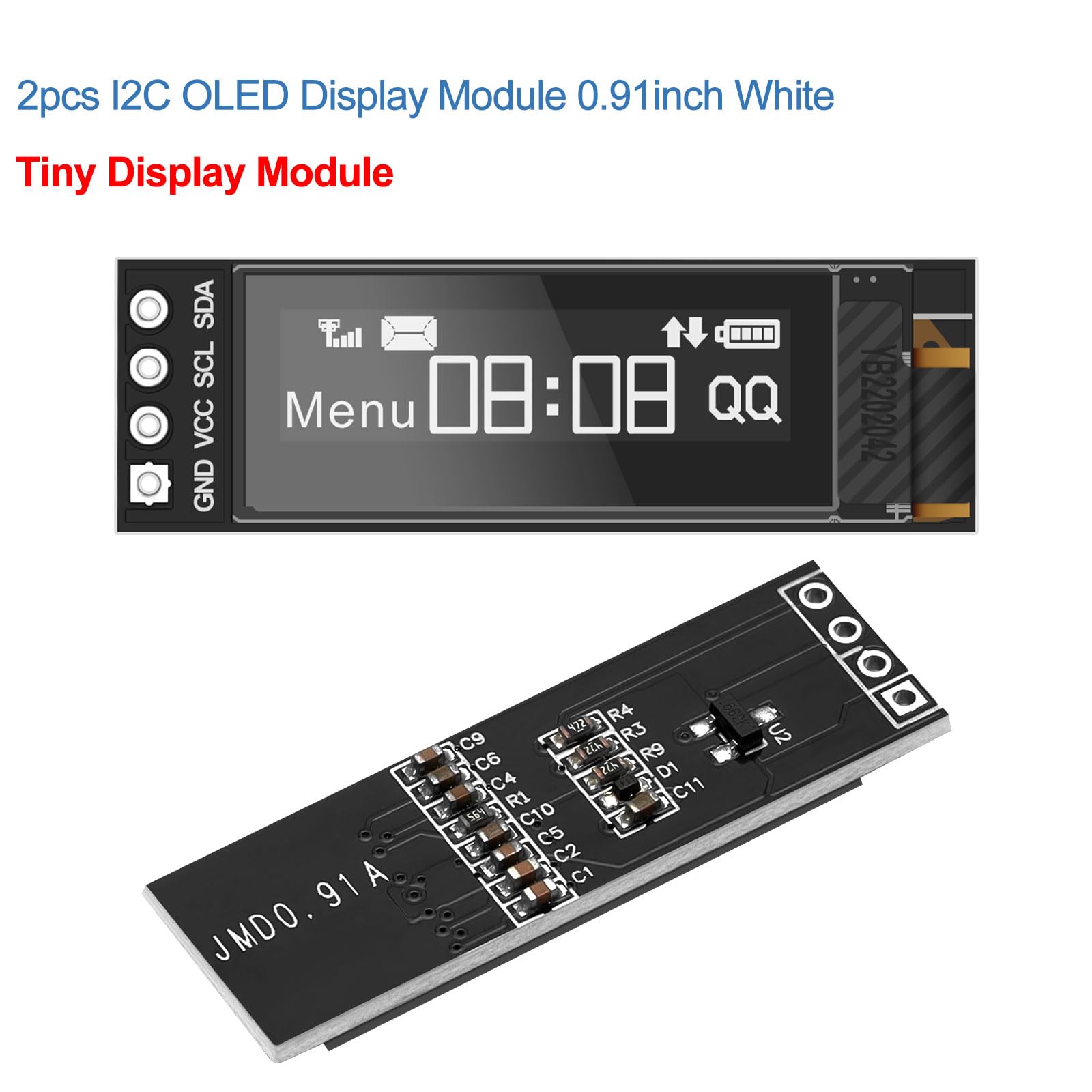

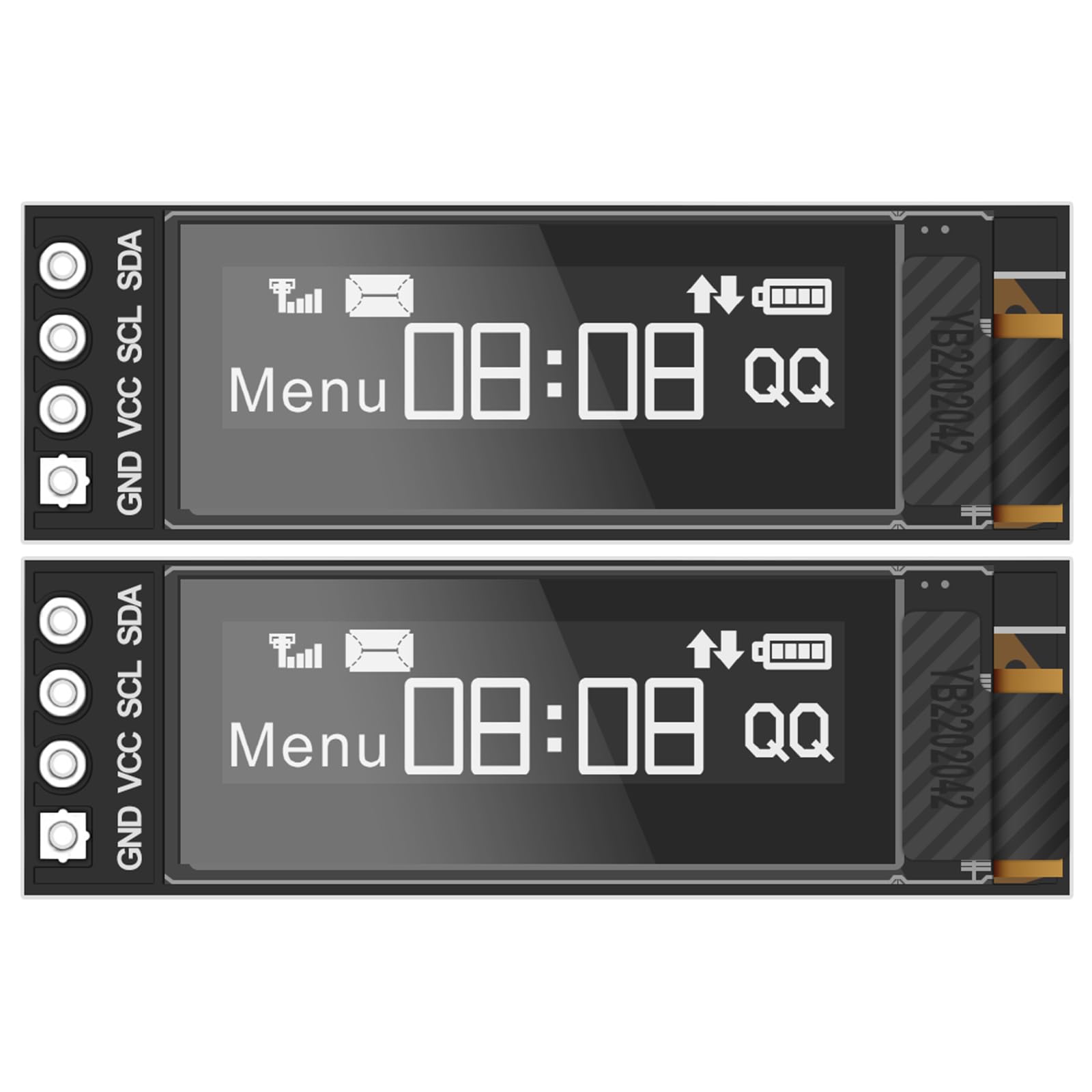

2 * 0.91 Inch I2C SSD1306 OLED White Display Module
