Innomaker IMX477 HQ Camera Module for Raspberry Pi, Jetson Nano, Jetson Xavier

Innomaker low cost hq camera module cam-imx477 with 12.3M imx477 sensor for raspberry pi jetson nano jetson xavier

Description:

cam-imx477 is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. Offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improving low-light performance) than IMX219 cameras. The IMX477 12.3MP Camera is suitable for industrial andconsumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity, Support Raspberry PI5/ Pi4/ PI3B+/ PI3/ PI2/ PI B+/ PI A/ PI ZERO/ CM4/ CM3+/ CM3/ Jetson Nano/ Jetson xaiver

Features：

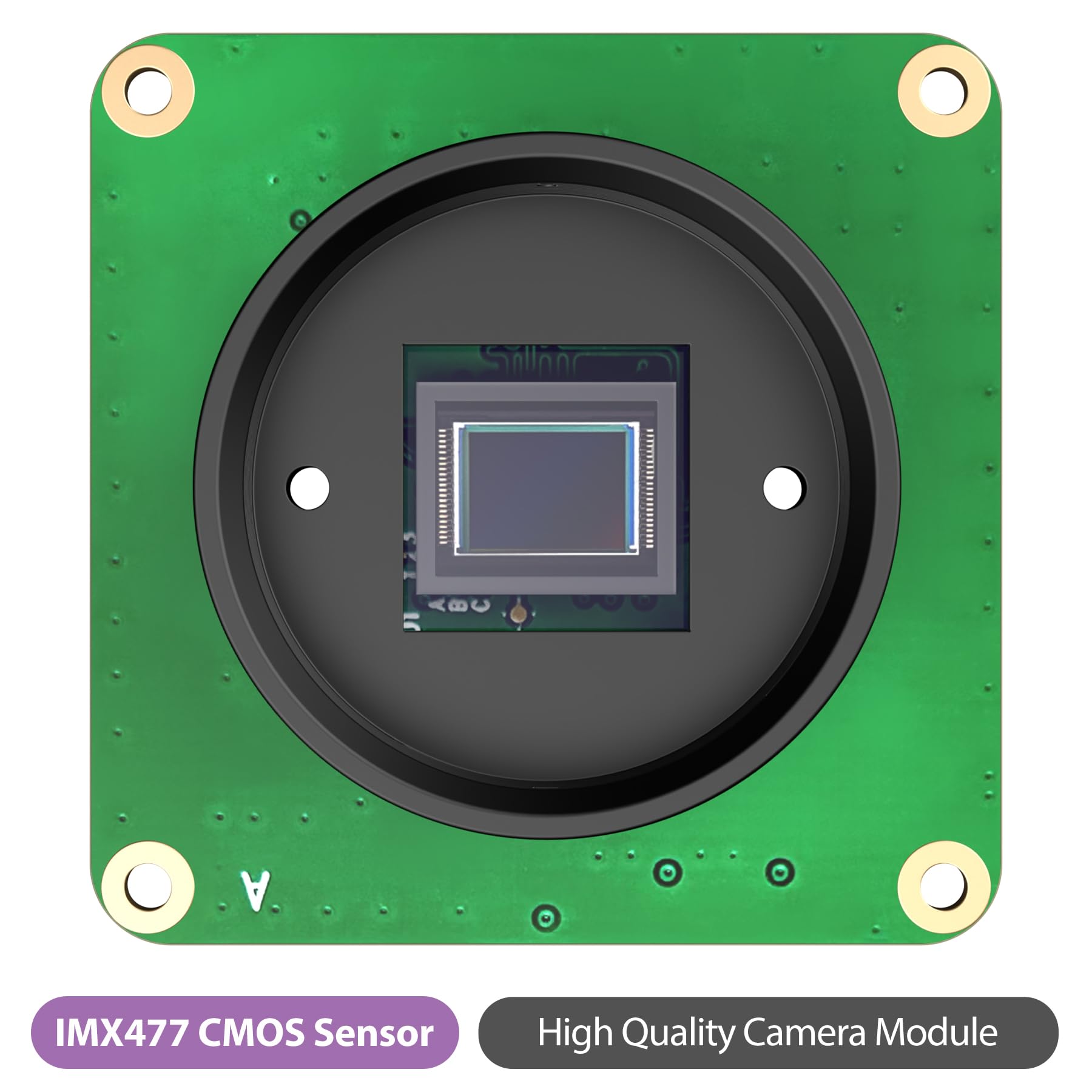

• 1.Sensor Type: 12.3 Megappixel IMX477R Sensor, Static Images: 12.3MP, 4056 (H)×3040 (V), 7.9mm CMOS diagonal size, Support 1080p@30fps, 720p@60fps and 640x480p@90fps video record.

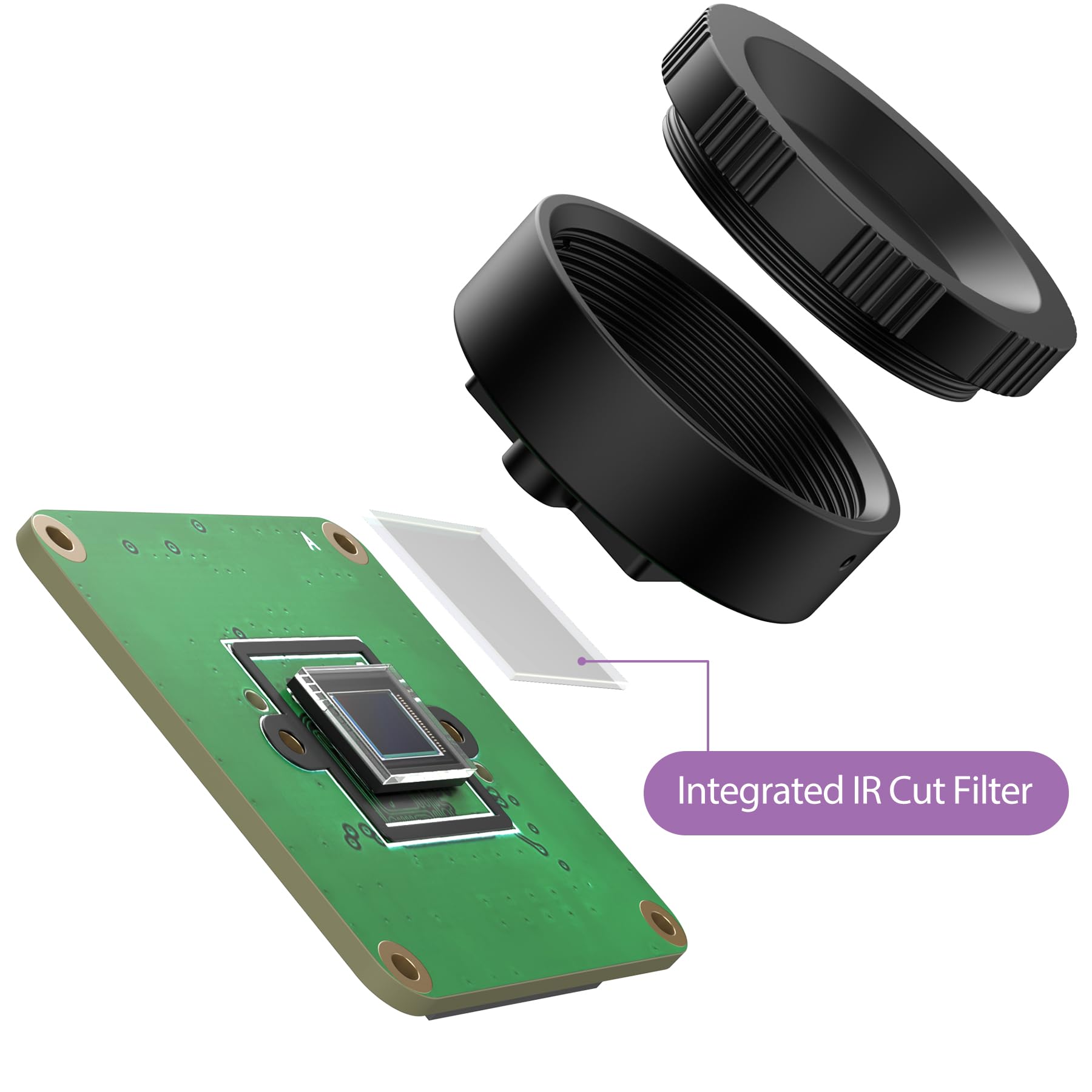

• 2.Support c/cs mount Lens, 20mm distance Lens seat with filter;

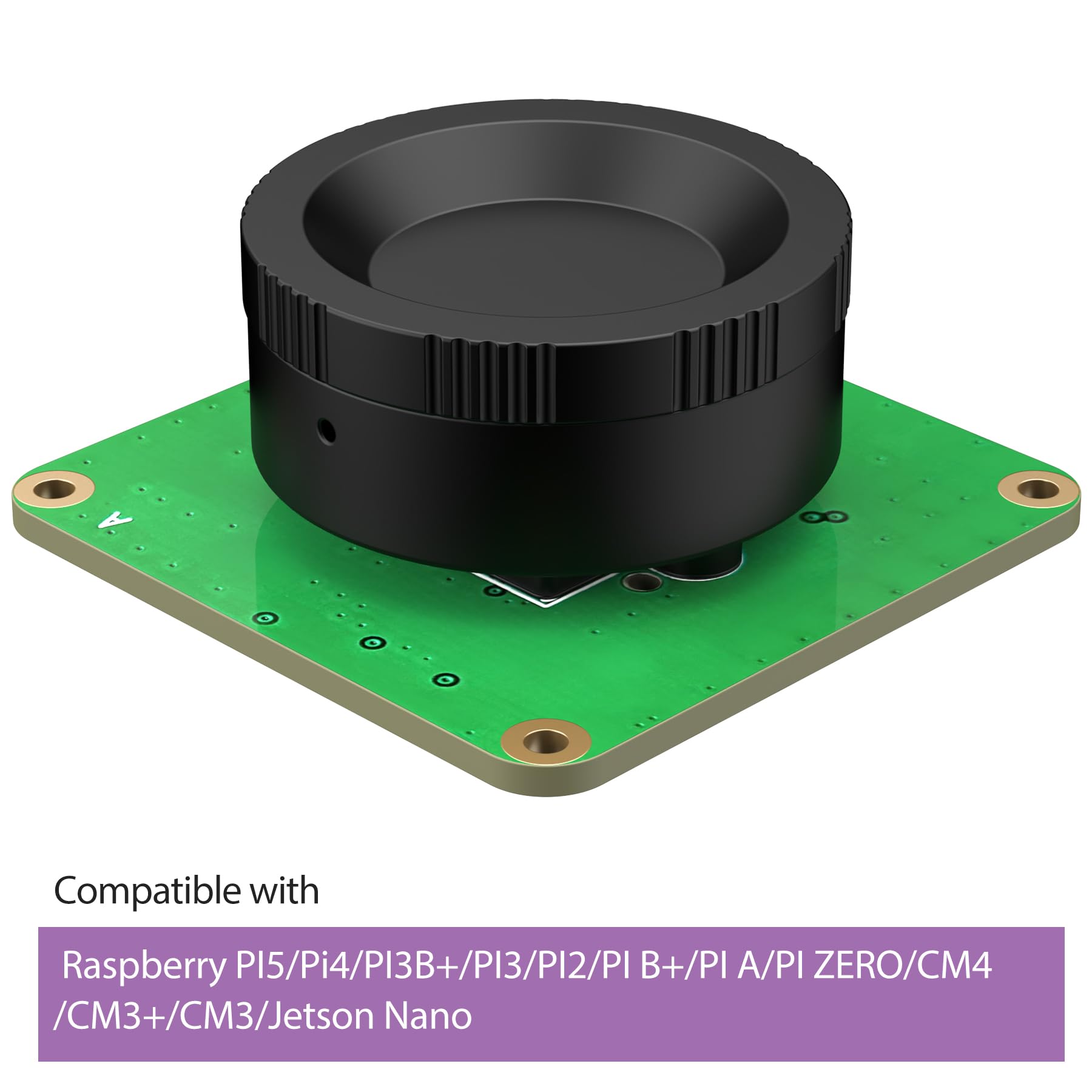

• 3.Compatible with Raspberry PI5/Pi4/PI3B+/PI3/PI2/PI B+/PI A/PI ZERO/CM4/CM3+/CM3/Jetson Nano.

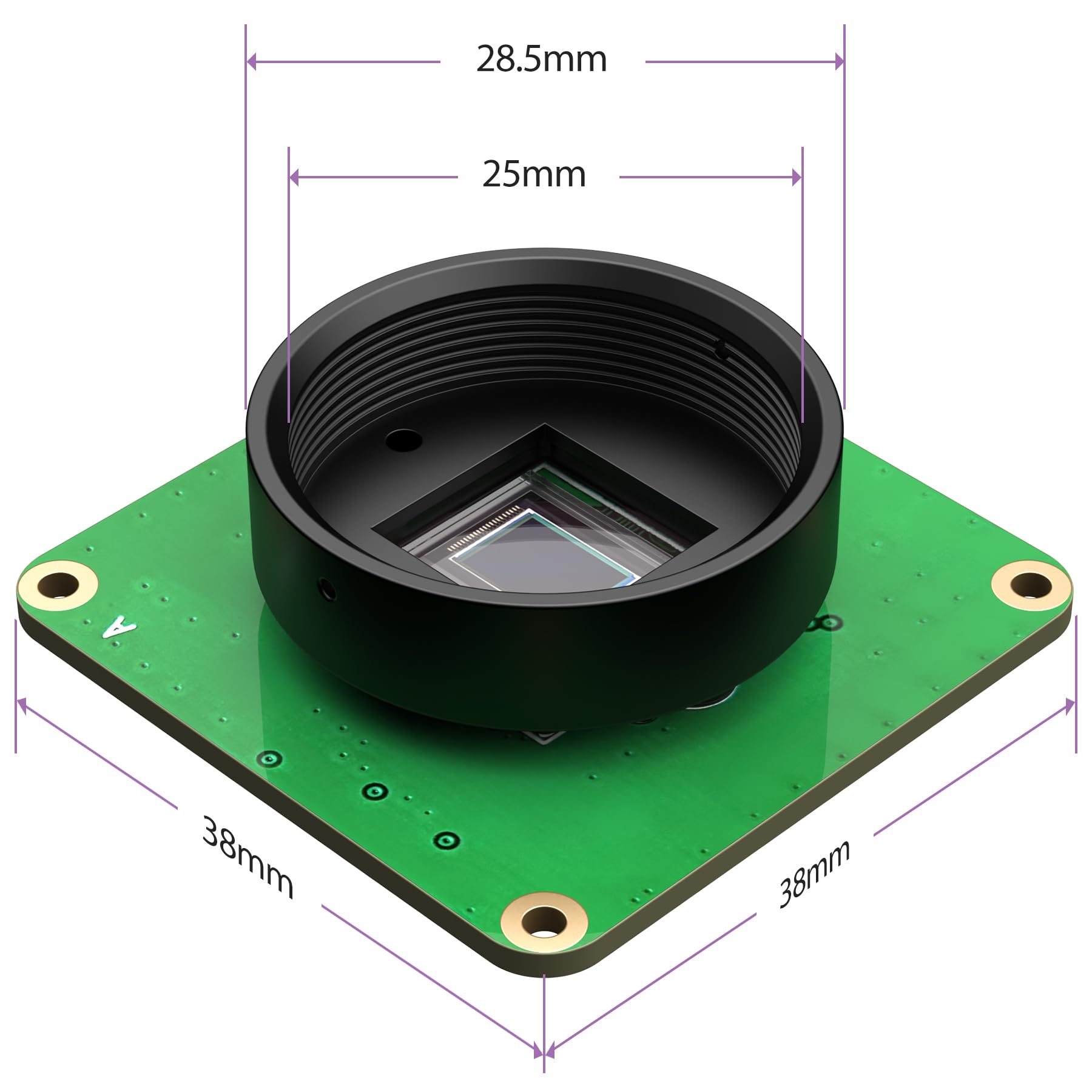

• 4.Output: RAW12/10/8, COMP8, Board Size 38mm x 38mm.
• 5.Packing List: cam-imx477, FPC Cable x2,

Quick Start For Raspberry PI Series

Step1, Modify config.txt

• sudo nano /boot/config.txt

For the latest version raspberry Pi OS, it should be

• sudo nano /boot/firmware/config.txt

Step2, Add below content to the last line

• dtoverlay=imx477

Step3, Reboot and use below command to preview

• libcamera-hello -t 0

Quick Start for Nvidia Series

Step 1: Open the terminal and execute the following

• sudo /opt/nvidia/jetson-io/jetson-io.py

Step 2: Select Configure Jetson Nano CSI Connector

Step 3: Select Configure for compatible hardware

Step 4: Select the camera that you want to use

• Camera IMX477 DUAL

Step 5: Select Save pin changes

Step 6: Select Save and reboot to reconfigure pins

Step 7: Press any key on the keyboard and the device will reboot with the applied camera configuration

For CAM0 port

• nvgstcapture-1.0 sensor-id=0

For CAM1 port

• nvgstcapture-1.0 sensor-id=1
