A3 Pen Plotter, iDraw1.0-16T A3 Working Area XY Plotter, Handwriting Writer Drawing Robot Kit iDraw Hand Writing Robot Kit -Assemble Needed

Bán tại: Mỹ
3.5
11,494,694đ
-
+
Dự kiến giao hàng từ Mỹ về Việt Nam ngày 03-12-2025 - 09-12-2025
*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay
Giá bạn thấy bằng giá bạn trả
Yên tâm mua sắm, giải tỏa rủi ro
Hàng chất lượng, rõ nguồn gốc
Sản phẩm nhập khẩu chính ngạch
Liên tục cập nhật hành trình
Miễn phí giao hàng trong nước
Cam kết giá bán niêm yết chính xác trên website
Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng
Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán
An toàn, minh bạch hợp pháp, không sợ rủi ro
Theo dõi và cập nhật quá trình vận đơn thường xuyên
Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu
Thương hiệu IDRAWHOME là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm A3 PEN PLOTTER, IDRAW1.0-16T A3 WORKING AREA XY PLOTTER, HANDWRITING WRITER DRAWING ROBOT KIT IDRAW HAND WRITING ROBOT KIT -ASSEMBLE NEEDED là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Customer Reviews 3.5 out of 5 stars 23Reviews
Best Sellers Rank #403,727 in Office Products (See Top 100 in Office Products) #58 in Wide Format & Plotter Printers
Tính năng sản phẩm
Sản phẩm A3 Pen Plotter, iDraw1.0-16T A3 Working Area XY Plotter, Handwriting Writer Drawing Robot Kit iDraw Hand Writing Robot Kit -Assemble Needed của thương hiệu iDrawHome với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

What you get

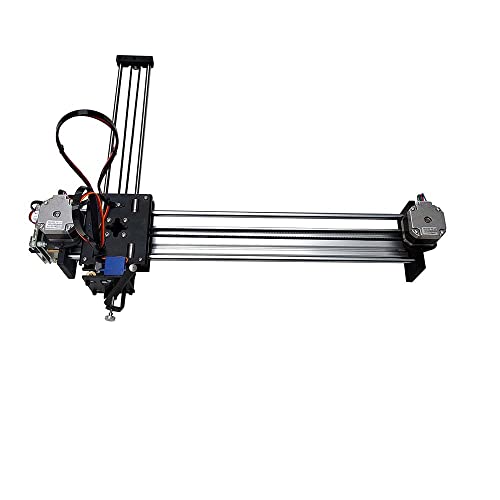

iDraw A3 XY PLOTTER

iDrawHome A3 Working Area XY Plotter

  • Power supply: DC12V 1A, 110-220V
  • Communication: USB serial communication, not support offline.
  • Work mode: writing, painting, engraving
  • Working area: A3
  • Support system: Windows Mac
  • File type: direct input, drawing or SVG JPG BMP PNG DXF
  • Positioning accuracy: 0.2mm
  • XY movement accuracy:0.2mm
  • Motor drive: high precision 42 stepper motor 16 subdivision A4988 drive
  • Operating software: Inkscape-Extensions-iDrawControl
  • Main control board: Exclusive Drawcore main control board compatible with EBBV2.3
  • Fixed code type: C,
  • With latest EBB firmware.

What's in the box

A mechanical assembly with metal rods, wires, and a black mounting plate. Includes additional components like a blue cable and smaller electronic parts, possibly for robotics or 3D printing.

NOTE

  • This is a plotter, not a printer.
  • After the typesetting operation, the output can be printed.
  • Requires hands-on ability.
  • Final Assemble needed!
7

More Accuracy

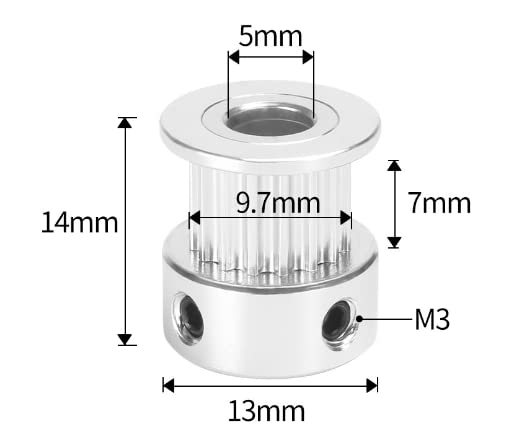

  • 16T 5mm bore Aluminum GT2 Timing Belt Pulley.
  • iDrawHome uses 16-tooth synchronous belt wheels. So the minimum movement distance is 0.01mm.
  • If uses the 20-tooth synchronous belt wheel, then it has a minimum movement distance of 0.0125mm.

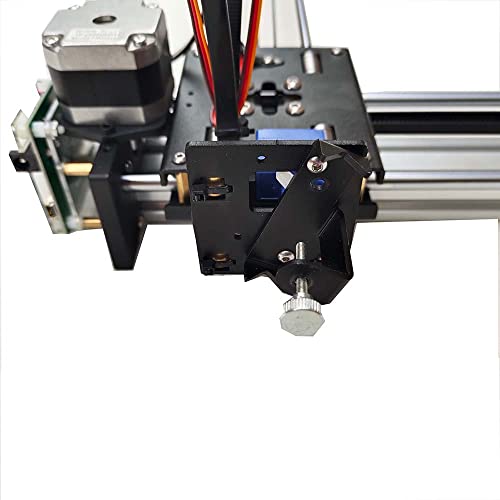

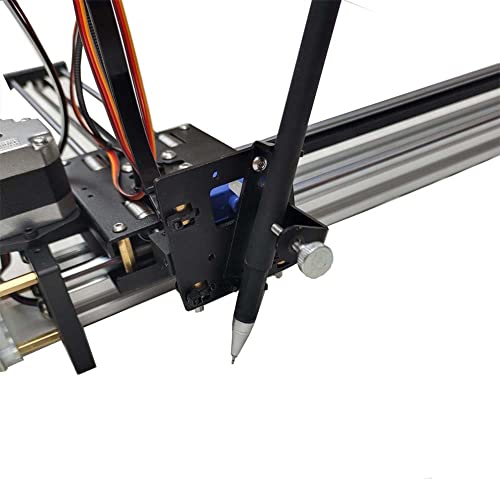

Penholder

iDraw Pen Clip

  • The nut of the pen clip, our nut is inside, and it will not fall off if you tighten it hard.
  • The other's nut is outside and will fall off if it is tightened.

22

  • It can mimic human handwritten notes.
  • It is the liberation of manpower for people with a large number of copying jobs.
  • With 100+ free fonts
  • Support custom fonts

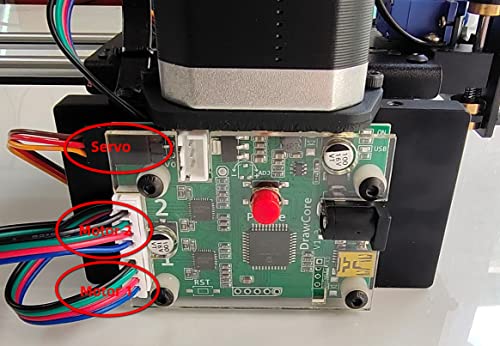

mainboard

  • All-in-one function integrated motherboard

4

  • User guide and software ( WIN/MAC version) are downloaded on a USB stick which is provided within the package.
  • Please use the software we have provided. Otherwise, there will be a problem of 0.8 times the set size.

Final Assemble needed!

A4

Final Assemble needed!

  • Almost assembled, one step is needed to finish the whole assembly.
  • Assemble guide provided.
  • If you don't want to assemble, do not order!
iDrawHome 1.0 A3 Pen Plotter
iDrawHome 2.0 H Structure Pen Plotter
iDrawHome 2.0 T-Structure Pen Plotter
iDrawHome 2.0 H-Structure Pen Plotter, iDraw 2.0 XY Plotter A0 Plotting Range.
iDrawHome 2.0 H-Structure Pen Plotter, iDraw 2.0 XY Plotter A1 Plotting Range
iDrawHome 2.0 H-Structure Pen Plotter, iDraw 2.0 XY Plotte2 Plotting Range
Customer Reviews
3.5 out of 5 stars23
5.0 out of 5 stars3
4.3 out of 5 stars36
Price $315.00$645.00$374.00no datano datano data
Working range A3 A3 A4 A0 A1 A2
Structure Cross Structure H-Structure T-Structure H-Structure H-Structure H-Structure
Controlled Inkscape-Extensions-iDraw Control Inkscape-Extensions-iDraw 2.0 Control Inkscape-Extensions-iDraw 2.0 Control Inkscape-Extensions-iDraw 2.0 Control Inkscape-Extensions-iDraw 2.0 Control Inkscape-Extensions-iDraw 2.0 Control
Model iDraw 1.0 A3 iDraw 2.0 H-A3 iDraw 2.0 T-A4 iDraw 2.0 H-A0 iDraw 2.0 H-A1 iDraw 2.0 H-A2
Plate None Yes Yes Yes Yes Yes
Connectivity USB USB USB USB USB USB
Support OS Windows OS Windows OS Windows OS Windows OS Windows OS Windows OS
MAC OS,,Linux MAC OS,,Linux MAC OS,,Linux MAC OS,,Linux MAC OS,,Linux MAC OS,,Linux
Promotion
Mô tả
Thông tin chi tiết sản phẩm:
  • Lifetime software support.
  • NOTE: It is a plotter, not a printer. it doesn't support word files. If you wantto write in signle stroke lines, you have to make single stroke in the first place. Computer fonrts are outline fonts.
  • Almost assembled, one step needed to finish the whole assemble..Assemble guide provided. Improved the power signal on the main control board.
  • ASSEMBLE NEEDED. A research tool for geeks, creators, DIY enthusiasts, students, teachers, automation researchers, etc.
  • Integration function board with lead-free process. Improved the power signal on the main control board.Hbot structure.
  • After the typesetting operation, the output can be printed. Requires hands-on ability.
