| Processor | none |
| Card Description | Dedicated |
| Wireless Type | 802.11bgn |
| Brand | FREENOVE |
| Item model number | FNK0079 |
| Operating System | Embedded |
| Item Weight | 2.47 ounces |
| Package Dimensions | 5 x 3.19 x 1.06 inches |
| Color | I2C 1602 2 Pack |
| Processor Brand | Freenove |
| Number of Processors | 1 |
| Computer Memory Type | SRAM |
Important Notes:
The I2C address of this LCD varies among different built-in chips. Please check the chip to get it.
(Refer to "About_I2C_Address.pdf" in downloaded file for details.)
* 8574AT chip: 0x3F
* 8574T or blank chip: 0x27
Overview:

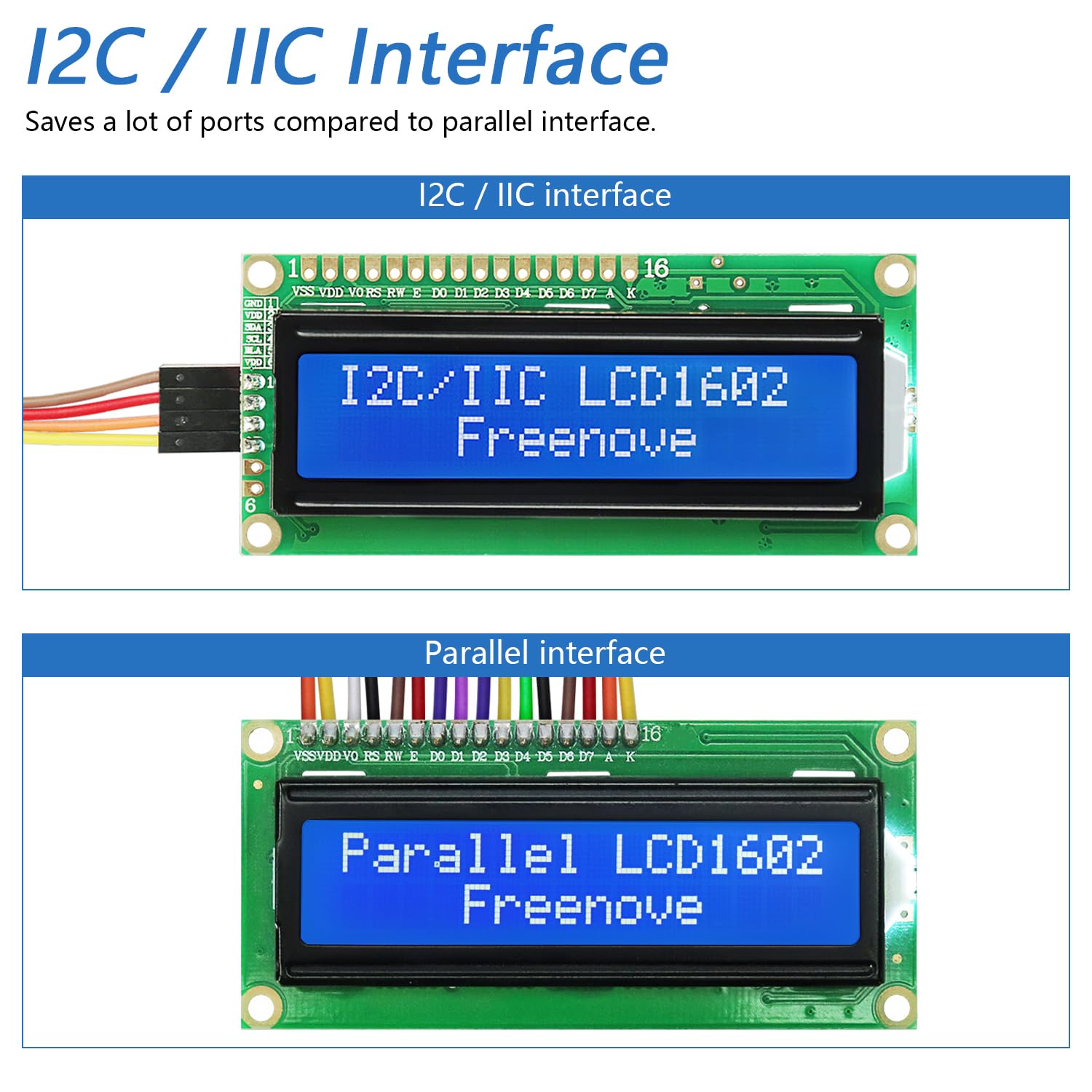

This is an I2C/IIC LCD module that can display 2 lines of characters, 16 for each.
It is compatible with most mainstream microcontrollers.

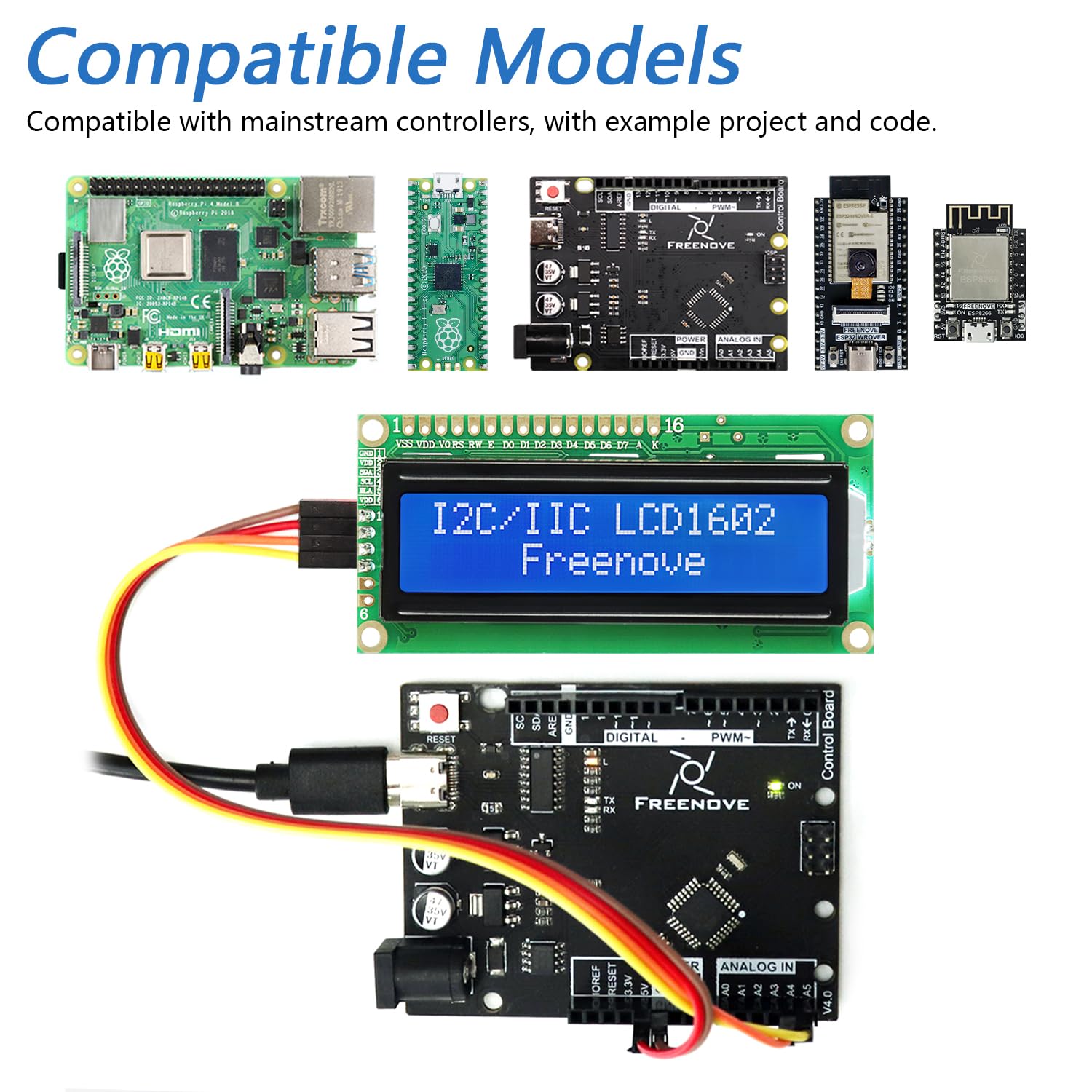

Compatible Models:
Mainstream models of Arduino / Raspberry Pi / Raspberry Pi Pico / ESP32 / ESP8266
(Note: Other controllers may also be compatible, but no tutorial and code are provided.)

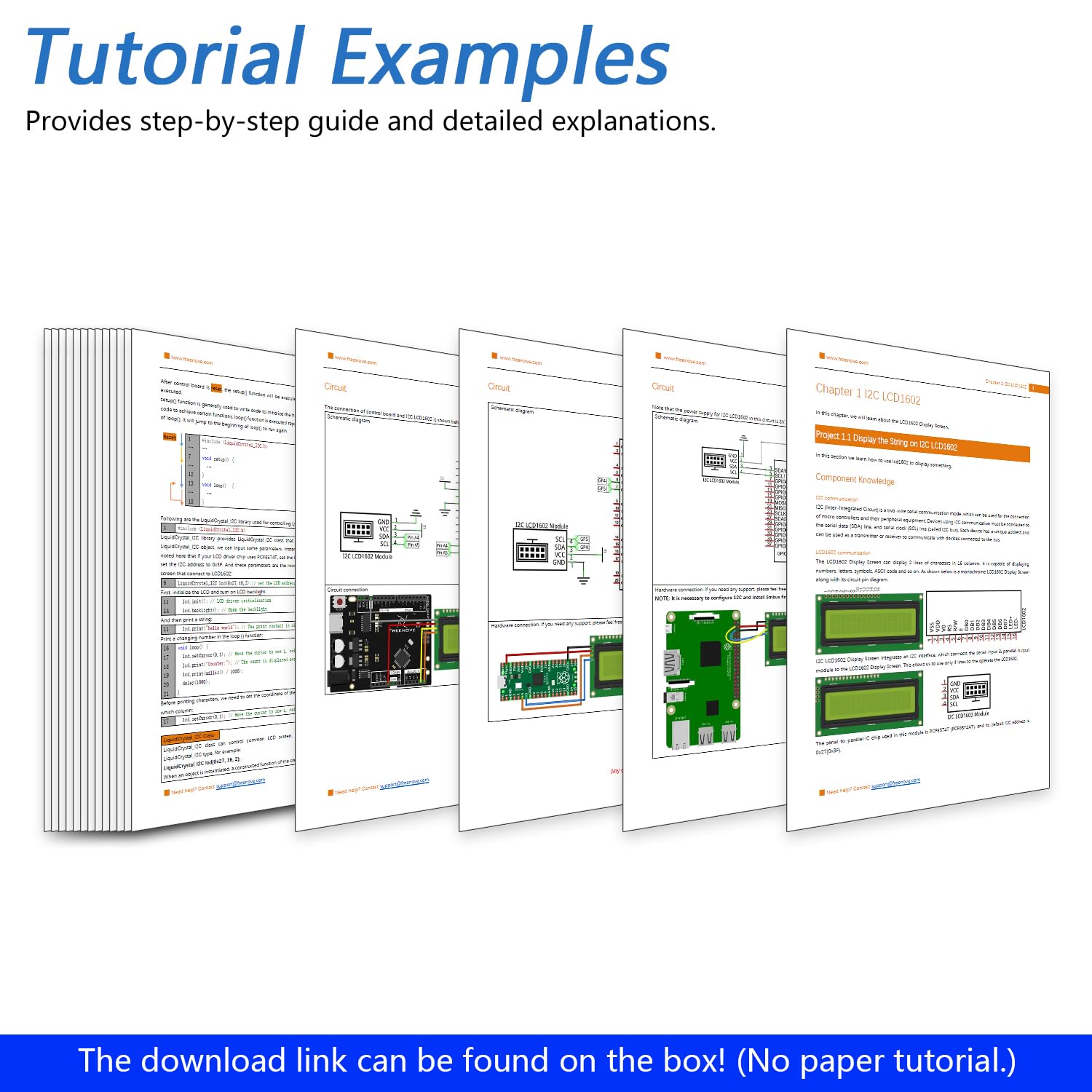

Tutorial:
Comes with tutorial and example code. (Download needed, no paper tutorial.)
The download link can be found on the product box.

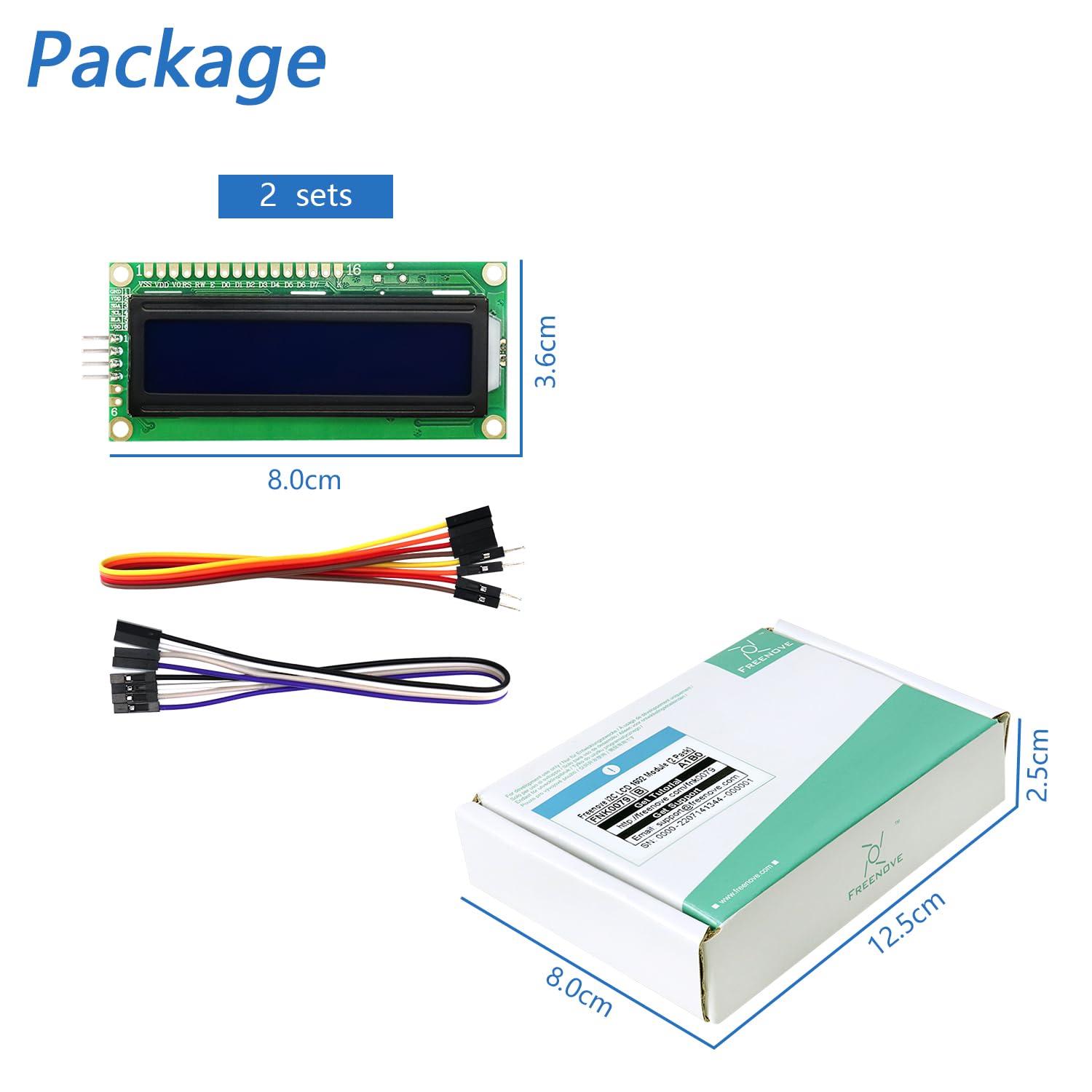

Package Includes:
2 x LCD module
2 x Jumper wire F/M (4 pin)
2 x Jumper wire F/F (4 pin)
