| Package Dimensions | 2.76 x 1.89 x 0.51 inches |
| Item Weight | 0.317 ounces |
| ASIN | B01DLHKMO2 |
| Customer Reviews | 4.3 out of 5 stars 157Reviews |
| Best Sellers Rank | #34,281 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #28 in Signal Converters |
| Is Discontinued By Manufacturer | No |
| Other display features | Wireless |
| Color | Blue |
| Date First Available | March 30, 2016 |
| Number of Channels | 4 |
| Material | ferrite |
| Manufacturer | HiLetgo |
Description:

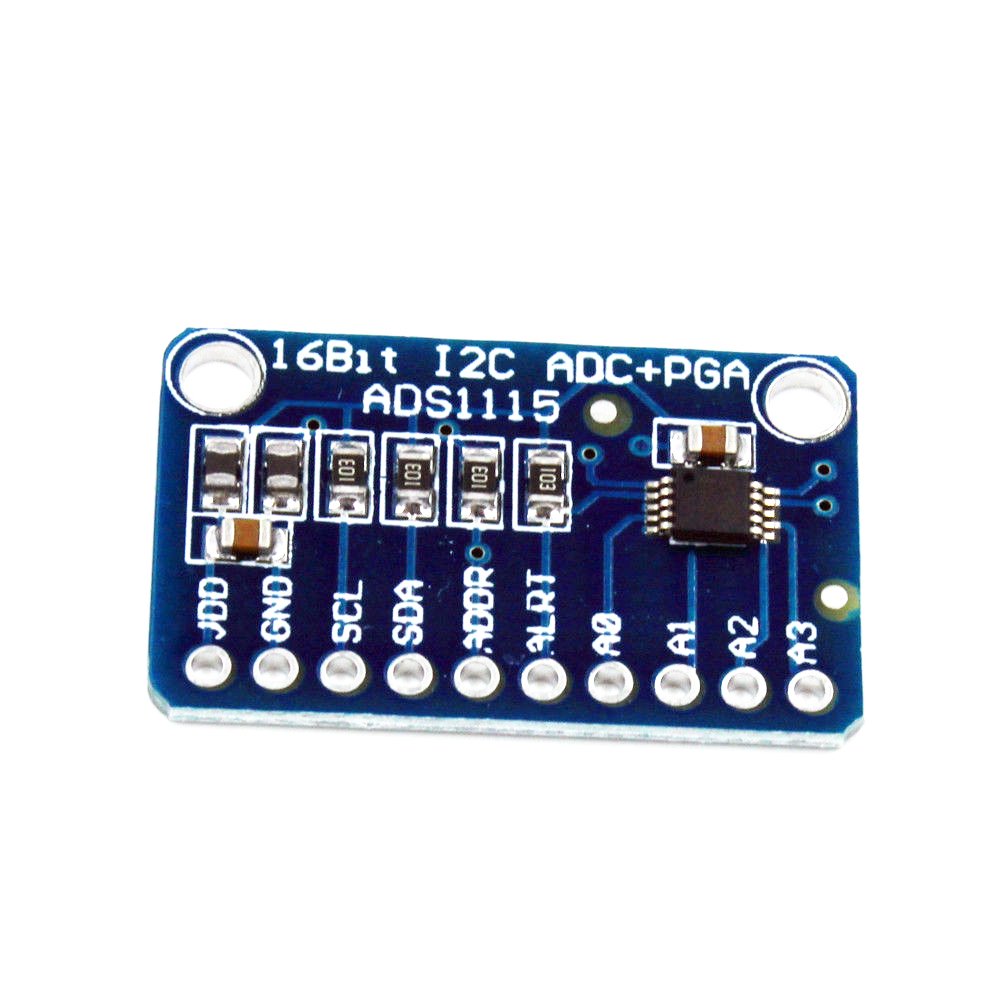

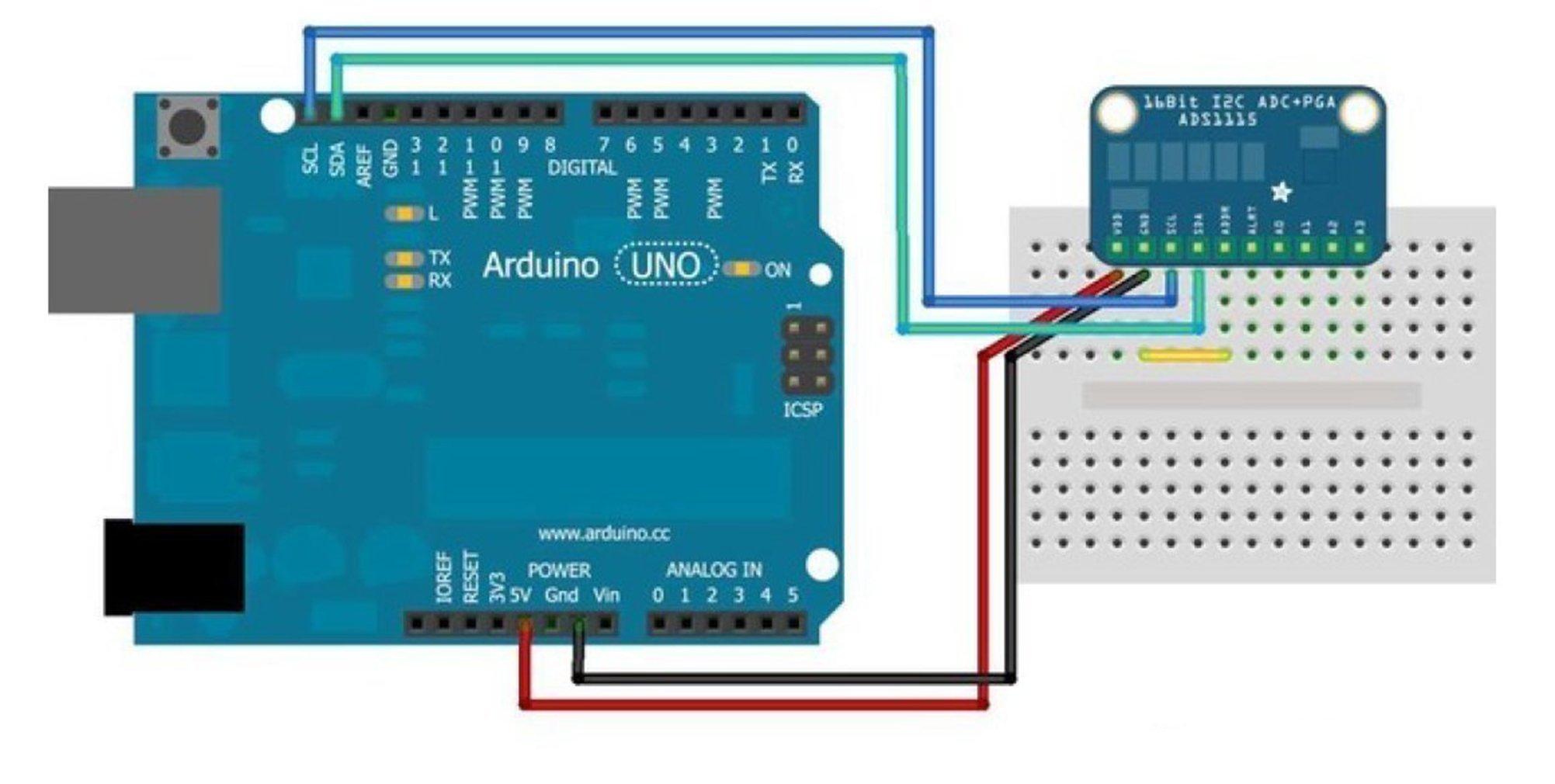

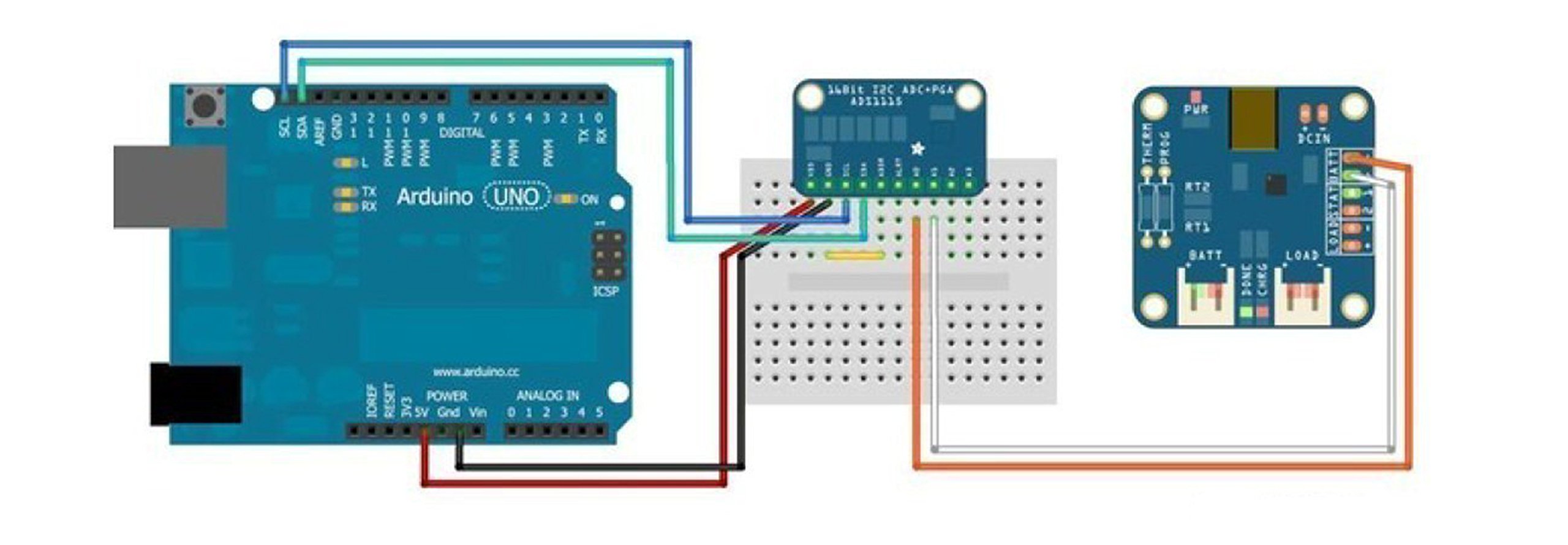

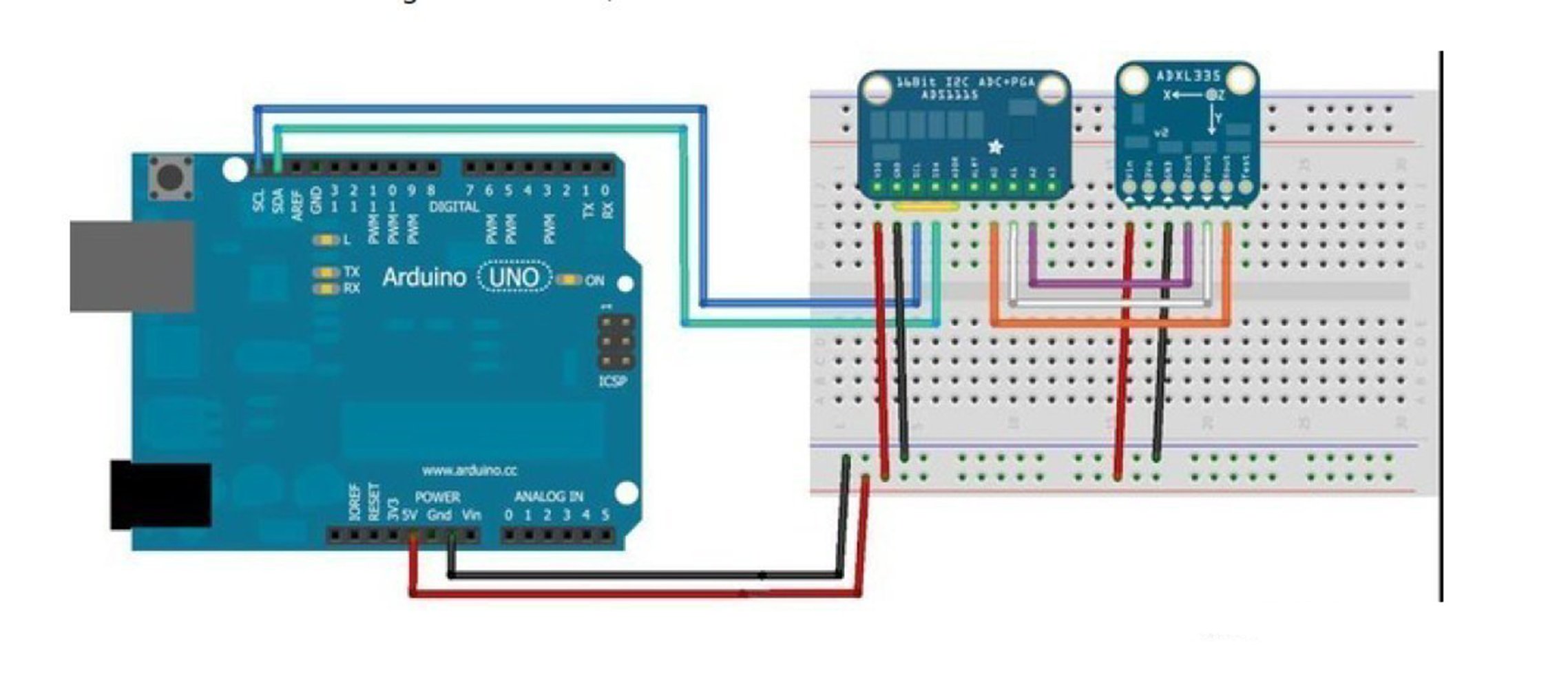

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller's I2C port and run the example code to start reading data.
Parameters:
ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3
Input voltage: 2.0v-5.5v
Channel input voltage : 0-VDD
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut Down
Programmable data rate: 8sps-860sps
Input range programmed control, 7 types input ranges:

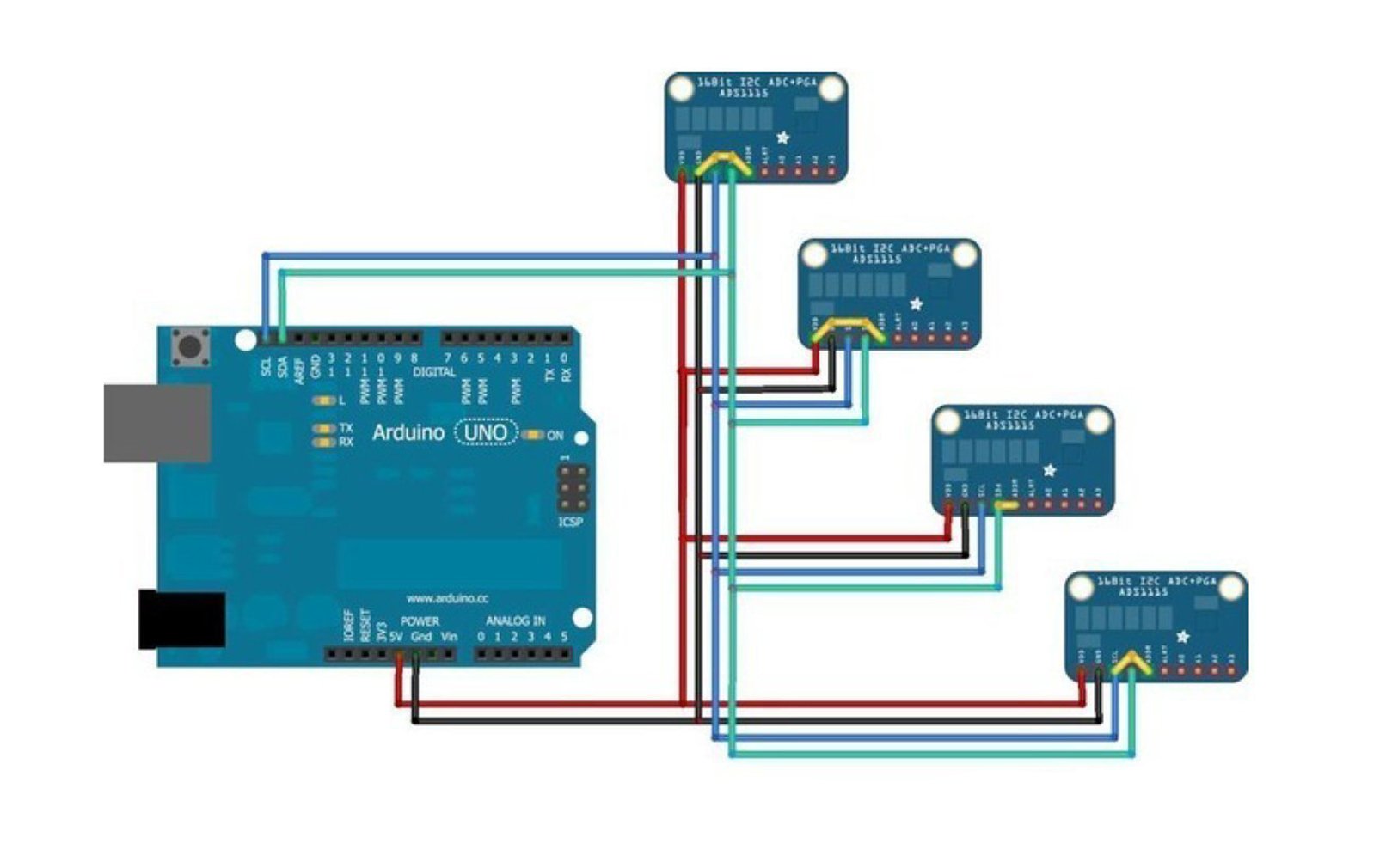

-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B
Package Included:
1* ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter
1* Pin Header
