| Package Dimensions | 3.11 x 2.28 x 0.28 inches |
| Item Weight | 0.634 ounces |
| Manufacturer | Teyleten Robot |
| ASIN | B0CLDGFQYS |
| Country of Origin | China |
| Customer Reviews | 4.4 out of 5 stars 3Reviews |
| Date First Available | October 19, 2023 |

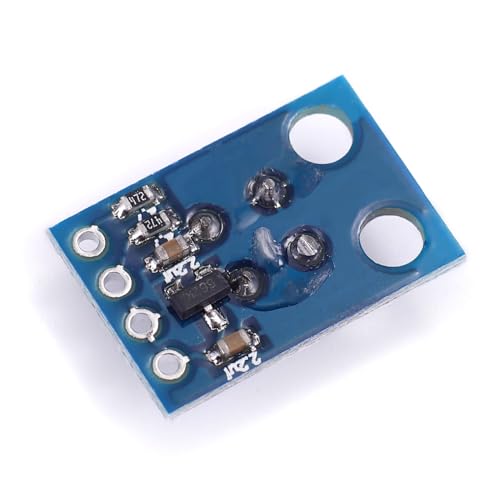

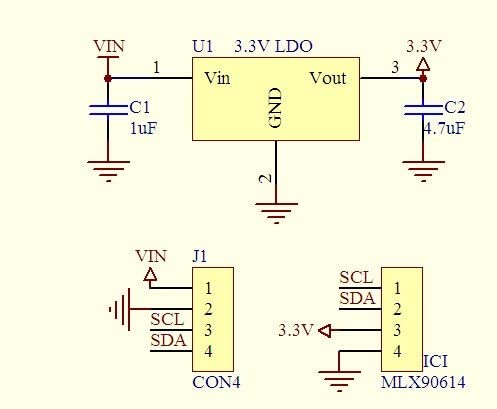

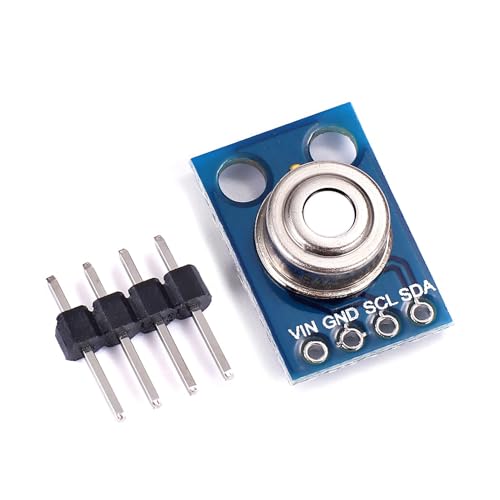

Features and Benefits: *Small size, low cost *Mounted on a breakout board with two types of pins *10k Pull up resistors for the I2C interface with optional solder jumpers *Easy to integrate *Factory calibrated in wide temperature range: *-40…+125°C for sensor temperature and *-70…+380°C for object temperature. *High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration *Measurement resolution of 0.02°C *Single and dual zone versions *SMBus compatible digital interface *Customizable PWM output for continuousreading *Simple adaptation for 8…16V applications *Sleep mode for reduced power consumption *Different package options for applications andmeasurements versatility *Automotive grade Applications Examples: *High precision non-contact temperaturemeasurements *Thermal Comfort sensor for Mobile AirConditioning control system *Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging *Automotive blind angle detection *Industrial temperature control of moving parts *Temperature control in printers and copiers *Home appliances with temperature control *Healthcare *Livestock monitoring *Movement detection *Multiple zone temperature control – up to 127sensors can be read via common 2 wires *Thermal relay / alert *Body temperature measurement Package included: 1* MLX90614 Infrared Temperature Sensor Module NOTE:Please contact us if you need the Datasheet.
