| Standing screen display size | 5 Inches |
| Screen Resolution | 800 x 480 |
| Max Screen Resolution | 800 x 480 Pixels |
| Brand | FREENOVE |
| Item model number | FNK0078A |
| Operating System | Embedded |
| Item Weight | 6.7 ounces |
| Product Dimensions | 8.35 x 5.51 x 1.5 inches |
| Item Dimensions LxWxH | 8.35 x 5.51 x 1.5 inches |
| Color | 5 inch IPS touchscreen |
| Processor Brand | Freenove |
| Computer Memory Type | SRAM |
| Voltage | 3 Volts |
| Manufacturer | Freenove |
| ASIN | B0B455LDKH |
| Country of Origin | China |
| Date First Available | June 15, 2022 |
Important Notes:
This kit does NOT include Raspberry Pi and its accessories.
This display has no HDMI port and is only compatible with certain models of Raspberry Pi.
Overview:
This is a 5 inch IPS monitor with 5-point touch capacitive screen for Raspberry Pi.

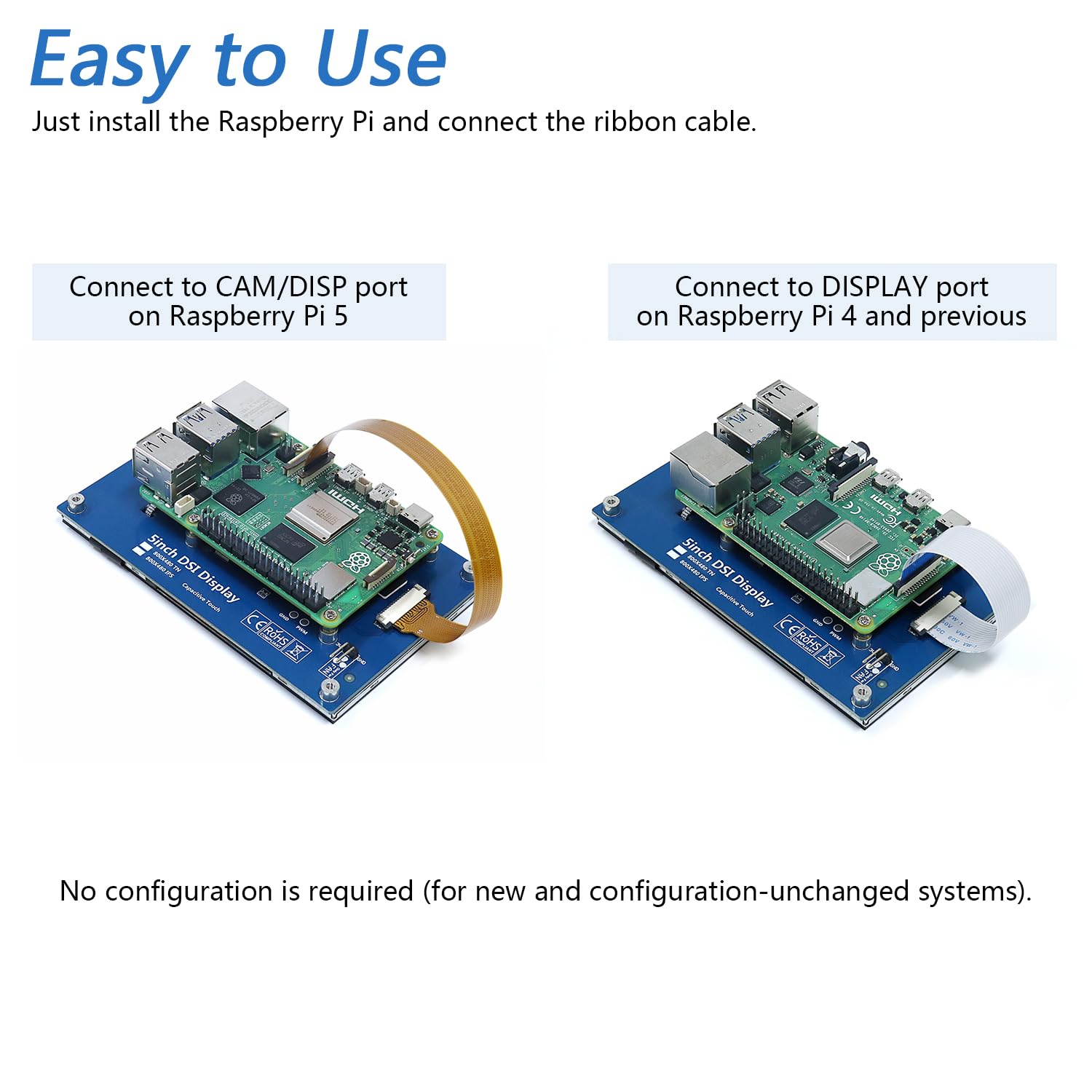

Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous).
We provide free technical support to help you with any questions and problems.

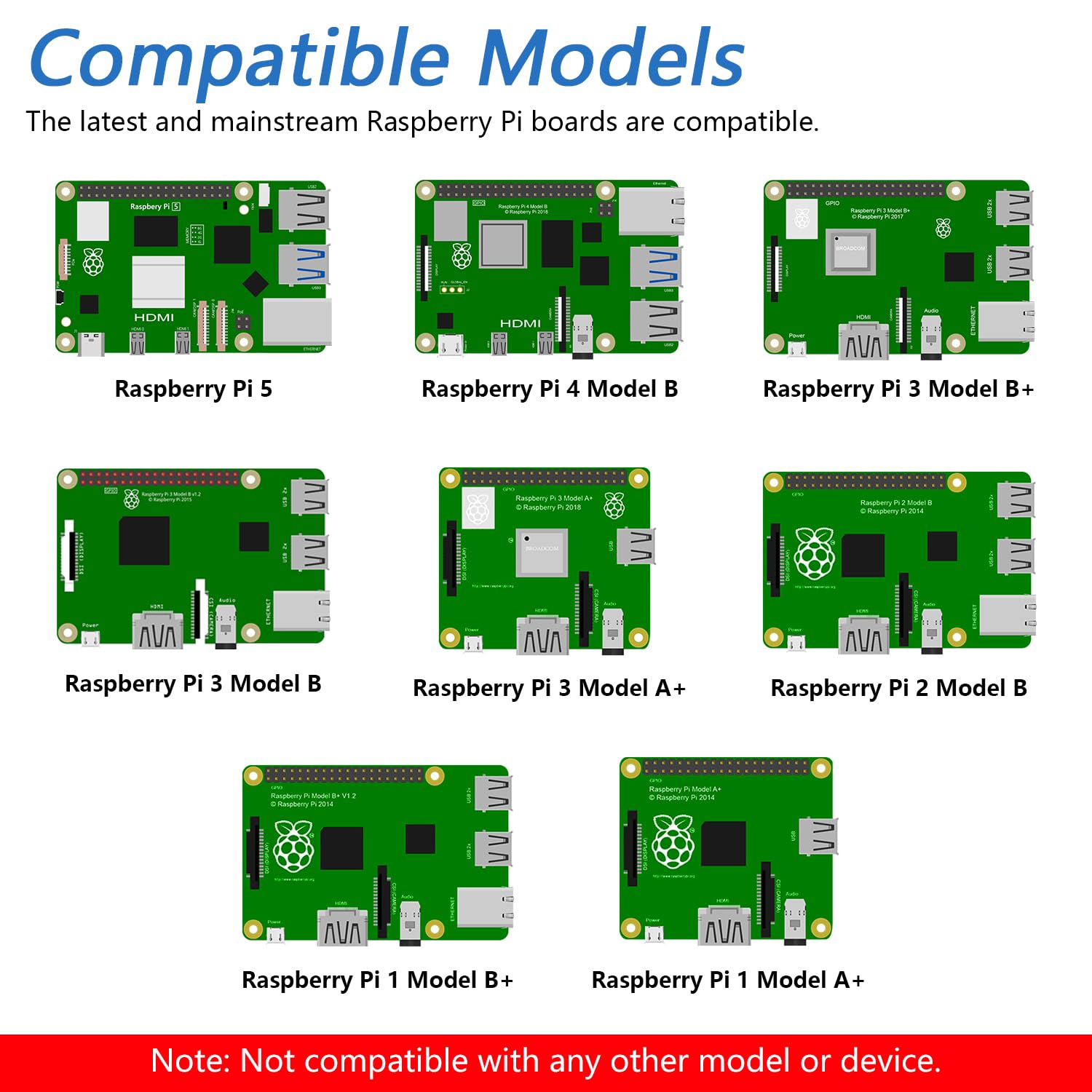

Compatible Models:
* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+
(Note: No HDMI, not compatible with any other device.)
Tutorial:
Comes with tutorial to show how to use. (Downloadable and paper tutorial.)
The download link can be found on the product box.
Screen Parameters:
Size: 5 inch
Resolution: 800 x 480 pixel
Refresh rate: 60 Hz

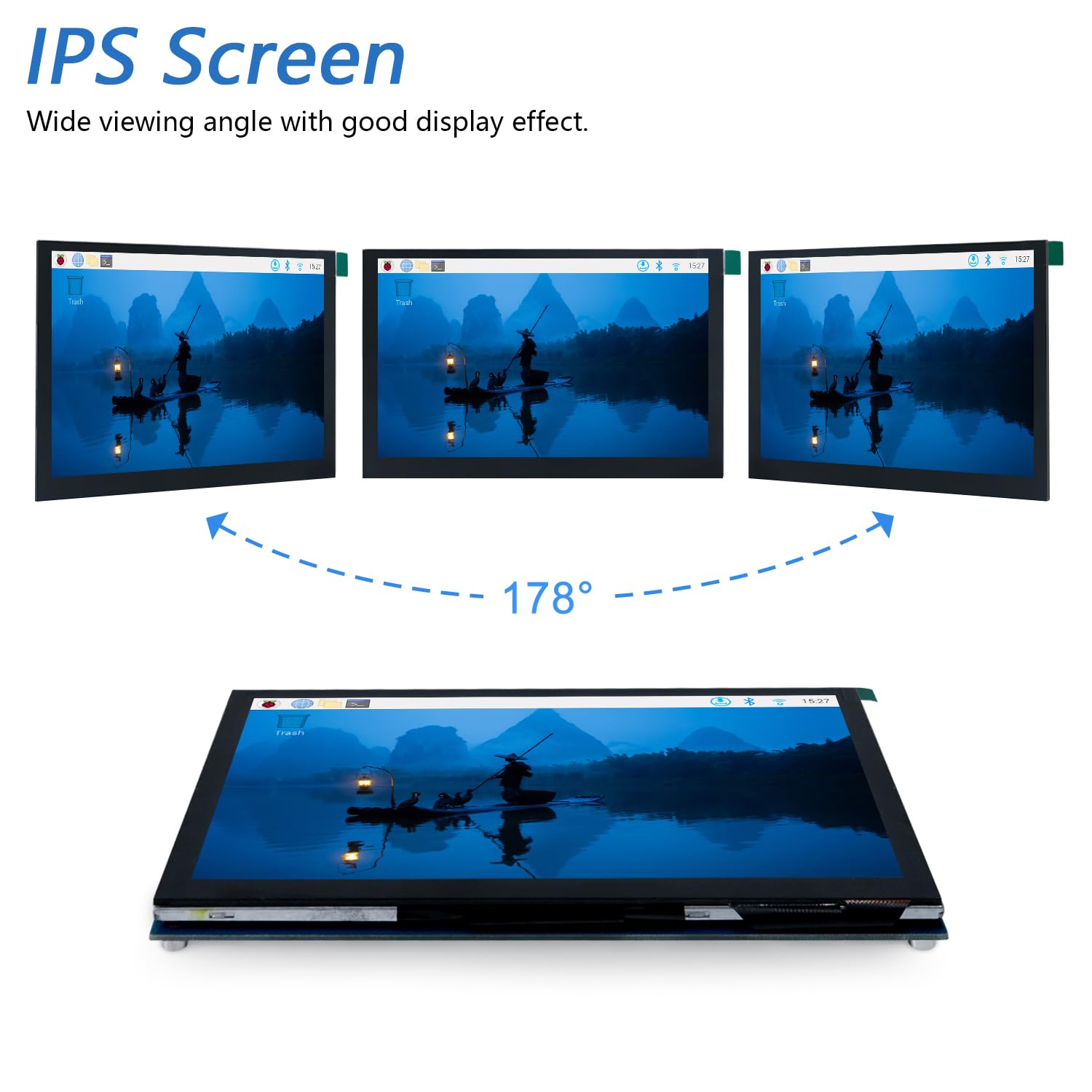

Screen type: IPS wide viewing angle

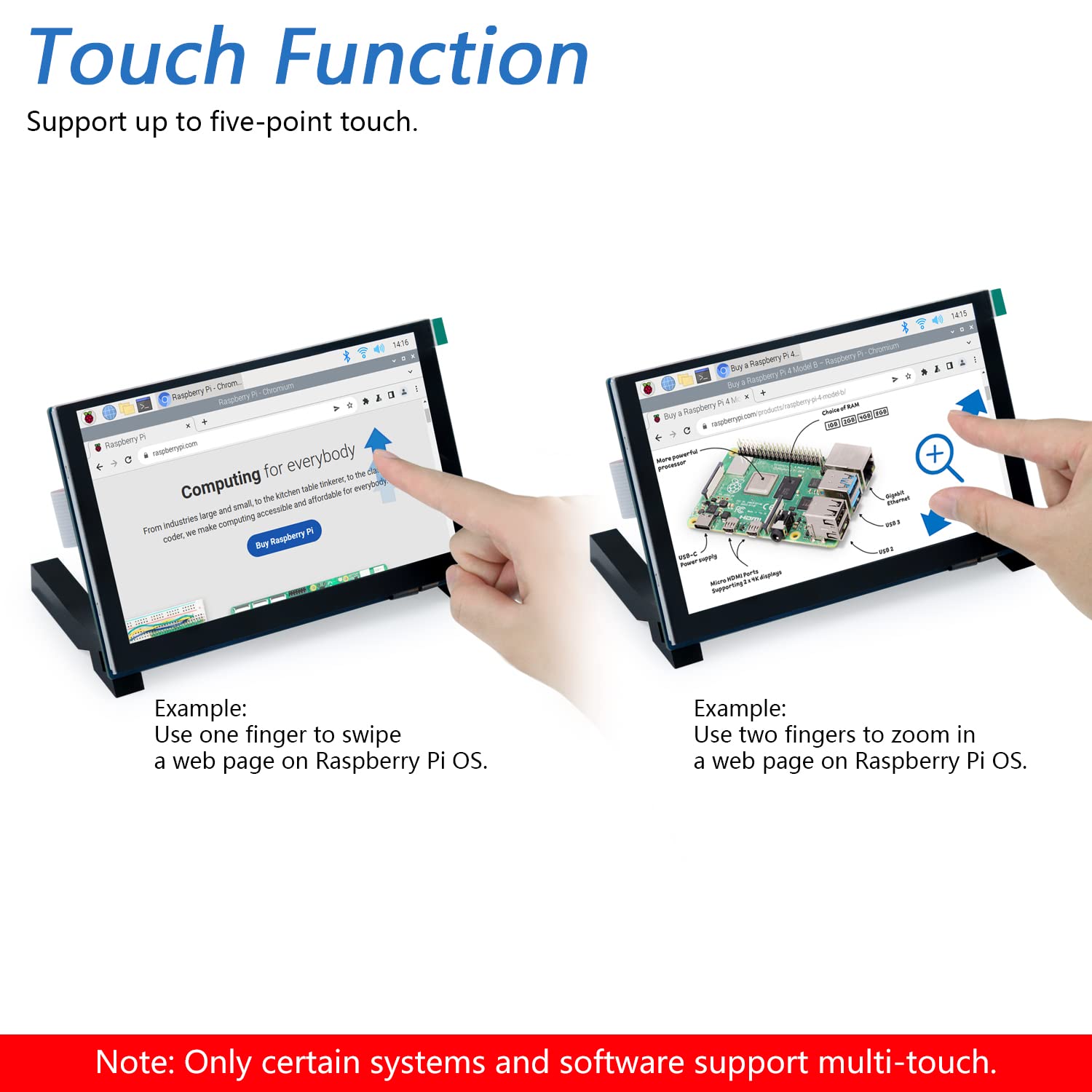

Touch type: 5-point touch capacitive
Interface: MIPI DSI
Package Includes:
1 x Touchscreen monitor
1 x Ribbon cable (5cm)
1 x Ribbon cable (10cm)
1 x Ribbon cable (16cm) for 5
1 x Cross screwdriver
4 x M2.5*4+4 standoff
4 x M2.5*4 screw
2 x M2.5*12 screw
2 x Monitor stand
