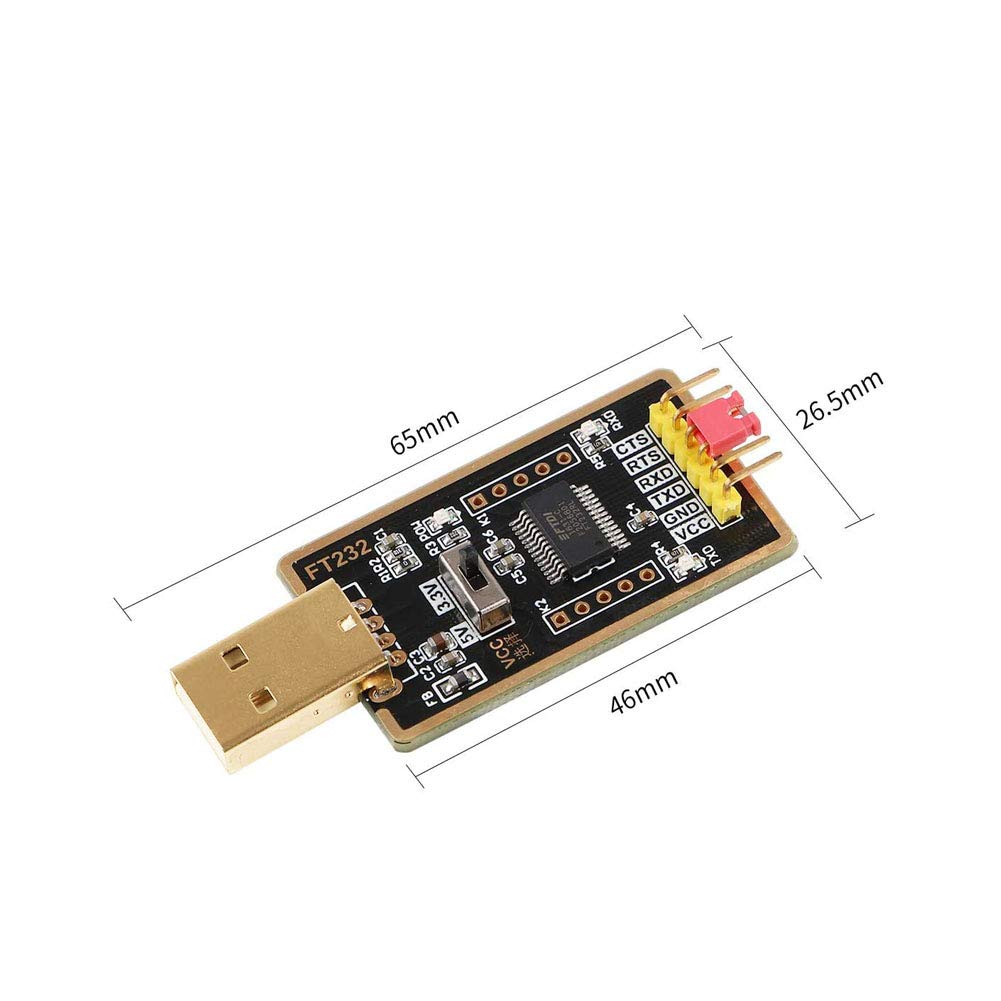

| Product Dimensions | 5.91 x 3.94 x 0.12 inches |
| Item Weight | 20 Grams |
| ASIN | B08HM2HGNZ |
| Customer Reviews | 5.0 out of 5 stars 9Reviews |
| Best Sellers Rank | #972 in Serial Adapters |
| Is Discontinued By Manufacturer | No |
| Date First Available | September 8, 2020 |
| Manufacturer | Feanteek Technology |
| Country of Origin | China |
| Number of Ports | 2 |
| Warranty Type | 12 months warranty |
| Item Package Quantity | 1 |
| Input Voltage | 5 Volts |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
Deal for programmers, hardware engineers and DIY User.
Compared to other USB to TTL UART adapters, this adapter not only supports 3.3V and 5V logic levels
This USB to TTL Converter user Original FT232RL chip. FT232RL is uart to USB TTL devices.
Specification:
Main chip: FTDI FT232RL

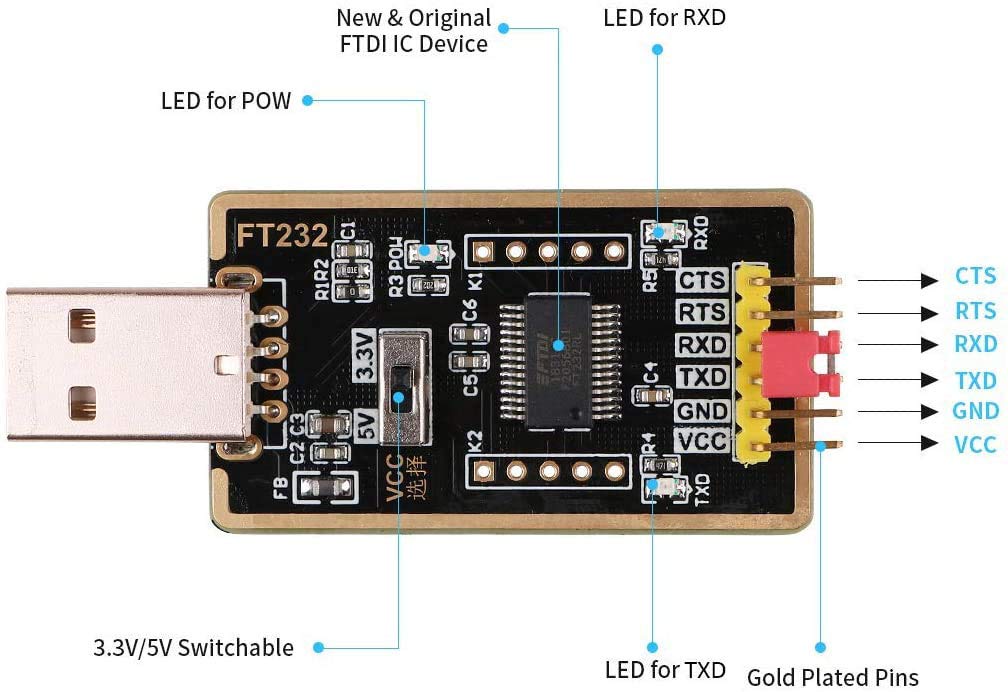

Pin Definition: CTS#,RTS#,RXD,TXD,GND,VCC
Output VCC: 3.3V/5V
TTL Level: 3.3V/5V
USB interface: 2.0
The maximum speed: 3Mbps
About indicator LED:
PWM LED:Power Indicator
RXD LED:The data transmission indicator flashes when there is data from the USB port.
TXD LED:The data receiving indicator flashes when the USB port receives data.
List of supported systems
1,Windows xp,7,8,10
2,Ubuntu 11.10, kernel 3.0.0-19
3,Mac OS X 10.3 to 10.8 (32 &64 bit)
4,Mac OS X 10.9 and above(64 bit)
You can download the driver directly from FTDI's website
Packing list:

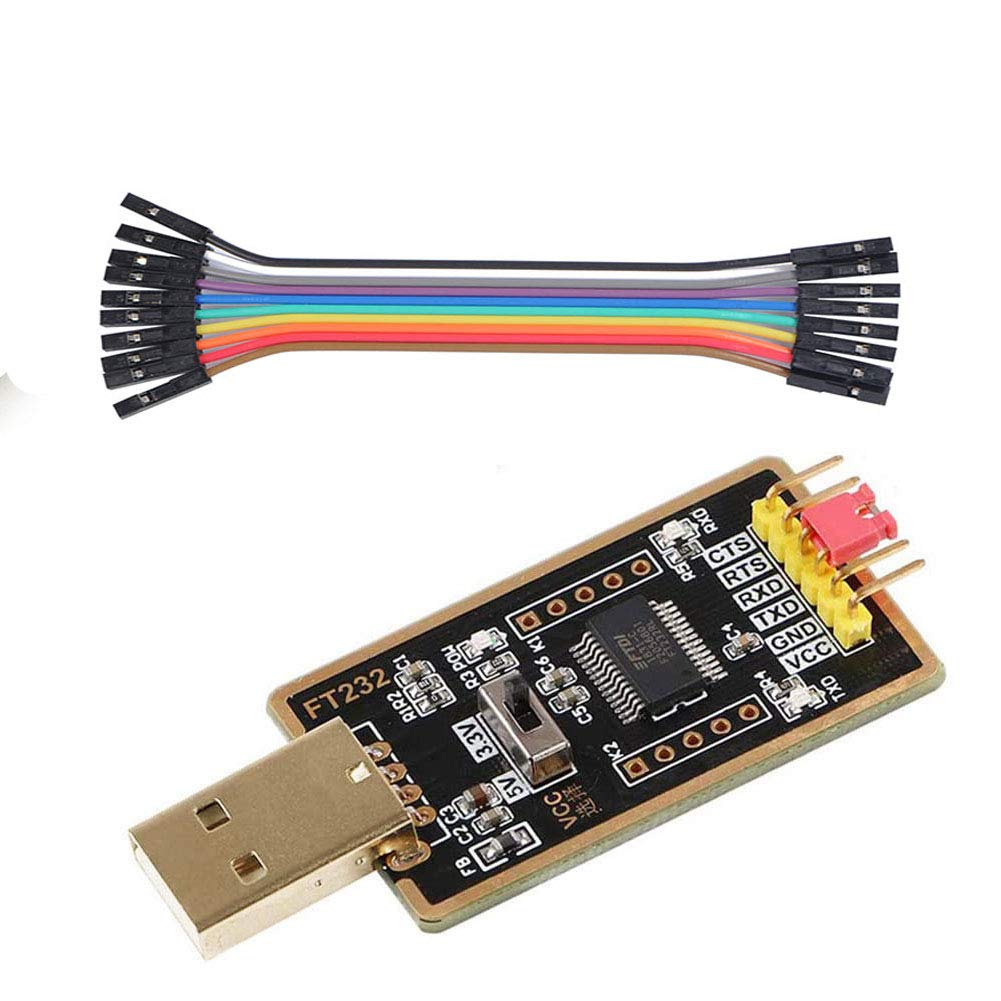

1 X FTDI FT232RL USB to TTL Adapter
1 X 10 PIN DuPont cable(20CM)
WARRANTY:
Feanteek offers a 1-year warranty and lifetime technical support for this USB-to-TTL adapter。If you meet any question, Please contact us, We will fix your issue with in 24 hours.
