Thương hiệu EC BUYING là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm EC BUYING ESP32-DEVKITC DEVELOPMENT BOARD ESP32 DEVELOPMENT BOARD EQUIPPED WITH WROOM-32U MODULE INTEGRATED WIFI BLUETOOTH MODULE MICROPROCESSOR INTERFACE SPI I2C I2S SUITABLE FOR ARDUINO WIFI (3PCS) là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Wireless Communication Standard 802.11n, Bluetooth
Processor Count 3
Item Weight 1.13 ounces
Package Dimensions 6.89 x 4.96 x 0.75 inches
Processor Brand Espressif
Manufacturer EC Buying
ASIN B0B64TWJQX
Country of Origin China
Date First Available July 9, 2022
Tính năng sản phẩm
Sản phẩm EC Buying ESP32-DevKitC Development Board ESP32 Development Board Equipped with WROOM-32U Module Integrated WiFi Bluetooth Module Microprocessor Interface SPI I2C I2S Suitable for Arduino WiFi (3PCS) của thương hiệu EC Buying với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

EC buying ESP32 DevKitC core Board ESP32 Development Board ESP32-WROOM-32U WiFi Bluetooth Development Board for Arduino IDE

ESP32-DevKitC Development Board ESP32 Development Board
Detials shows

3pcs for ESP32-DevKitC core Board ESP32 Development Board ESP32-WROOM-32D Compatible with Arduino IDE

esp32 weover product specifications

ESP WROOM 32 ESP32 Development Board 2.4GHz WiFi Dual Cores Microcontroller Integrated with Antenna RF Low Noise Amplifiers Filters

esp32 functional block diagram
SCH
Mô tả
Thông tin chi tiết sản phẩm:
  • Overview ESP32-DevKitC V4 is a small development board based on ESP32. Most of the pins of the modules on the board have been drawn out. Developers can easily connect various peripheral devices through jumpers according to actual needs, or plug the development board into the ESP32-DevKitC V4. Use on a breadboard. To better meet the needs of different users, ESP32-DevKitC V4 also supports the following different configurations: Optional multiple ESP32 modules Optional pin header or female header
  • ♥Wi-Fi: ◇Protocol: Support 802.11 b/g/n (802.11n, speed up to 150 Mbps), A-MPDU and A-MSDU aggregation, support 0.4 µs guard interval ◇Frequency range: 2.4 GHz ~ 2.5 GHz ♥Bluetooth: ◇Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards ◇RF: NZIF receiver with -97 dBm sensitivity, Class-1, Class-2, and Class-3 transmitter, AFH. ◇Audio: CVSD and SBC audio
  • ♥Hardware: ◇Module interface: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC. ◇On-chip sensor: Hall sensor ◇Integrated crystal oscillator: 40 MHz crystal oscillator ◇Integrated SPI flash: 4 MB ◇Working voltage/supply voltage: 3.0V ~ 3.6 V ◇Working current: Average: 80 mA ◇Minimum supply current: 500 mA ◇Recommended operating temperature range: -40 °C ~ +85 °C

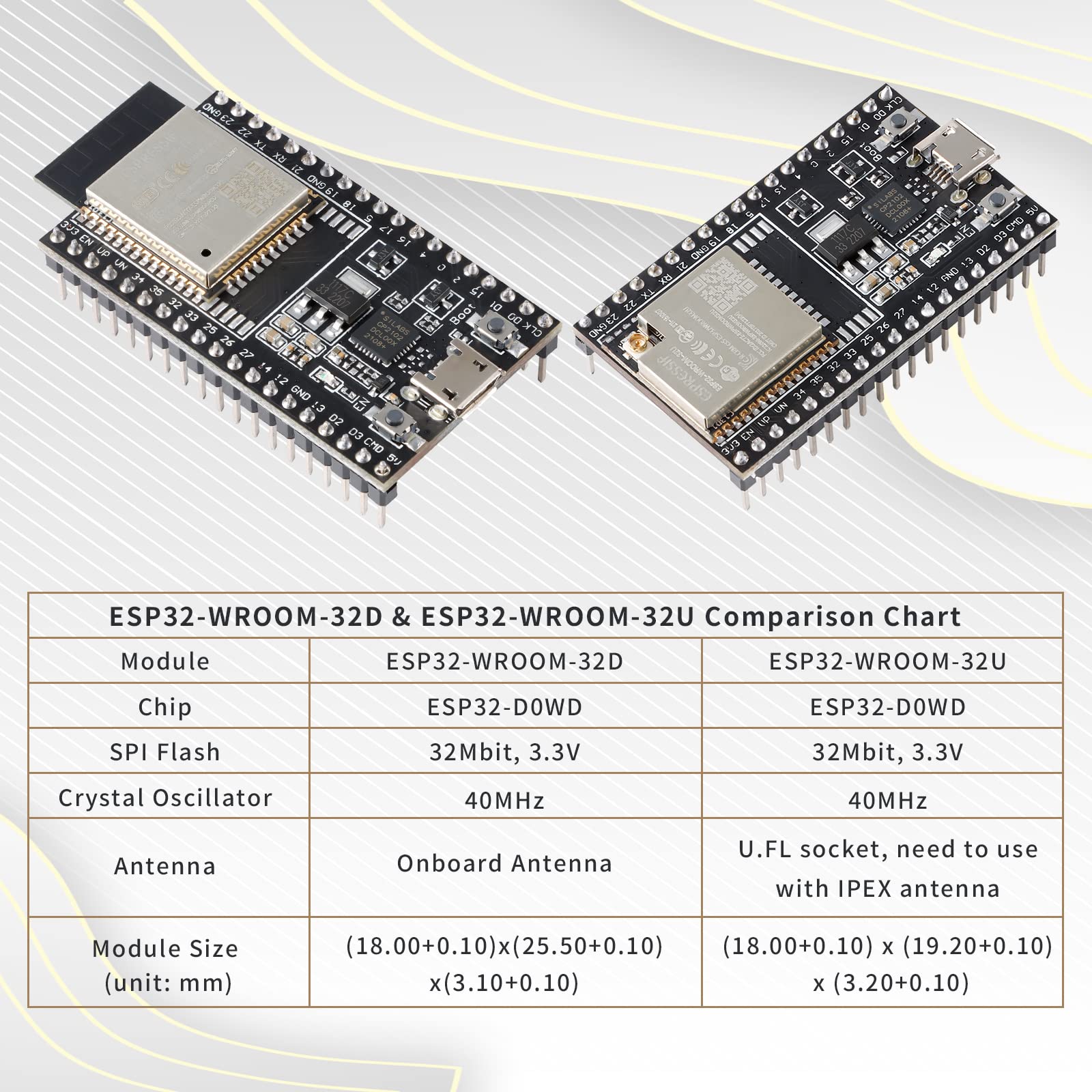

  • ♥Module Overview: ESP32-WROOM-32U and ESP32-WROOM-32D are general-purpose Wi-Fi+BT+BLE MCU modules, which are powerful and versatile. Can be used for low-power sensor networks and demanding tasks such as speech encoding, audio streaming, and MP3 decoding. Unlike ESP32-WROOM-32D, ESP32-WROOM-32U integrates a U.FL socket. ESP32 also integrates rich peripherals, including a capacitive touch sensor, Hall sensor, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S, and I2C, etc.
  • ♥Power Options: The development board can choose one of the following three power supply methods: Micro USB powered (default) 5V / GND pin power supply 3V3 / GND pin power supply Note: The above power modes cannot be connected at the same time, otherwise the development board and/or power supply may be damaged.
