| Processor | 240 MHz none |
| RAM | SRAM |
| Memory Speed | 240 MHz |
| Included Components | 1 * Power Cord, 1 * ESP32 Development Board, 2 * Pin Headers |
| CPU Manufacturer | NVIDIA |
| Wireless Communication Standard | 802.11abg |
| RAM Memory Technology | SRAM |
| Processor Count | 2 |
| Total USB Ports | 1 |
| Product Dimensions | 1.97 x 1 x 0.05 inches |
| UPC | 190033879688 |
| Item model number | 8541612336 |
| Item Weight | 0.16 ounces |
| Item Dimensions LxWxH | 1.97 x 1 x 0.05 inches |
| Processor Brand | NVIDIA |
| Voltage | 3.3 Volts |
| Manufacturer | MakerFocus |
| ASIN | B076KJZ5QM |
| Country of Origin | China |
| Is Discontinued By Manufacturer | No |
| Date First Available | October 19, 2017 |
WiFi Kit 32 (V3) is a classic IoT development board. It’s a highly integrated product based on ESP32(including WiFi and BLE), Li-Po battery management system, 0.96” OLED are also included. It’s the best choice for smart cities, farms homes and IoT makers
Features:
1. Microprocessor: ESP32-S3FN8 (Main frequency up to 240 MHz)
2. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures

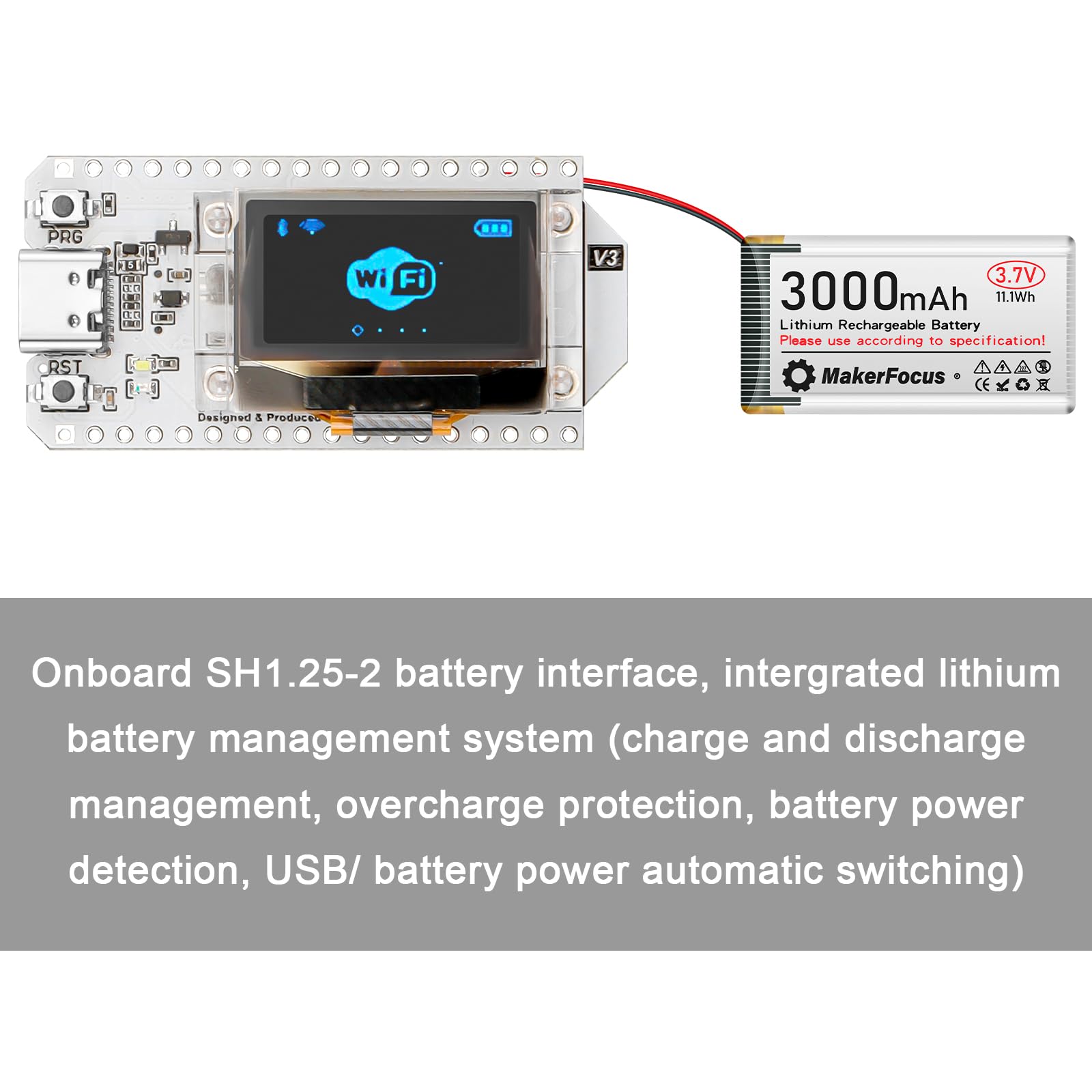

3. Onboard SH1.25-2 battery interface, integrated lithium battery management system 4. Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna
5. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information

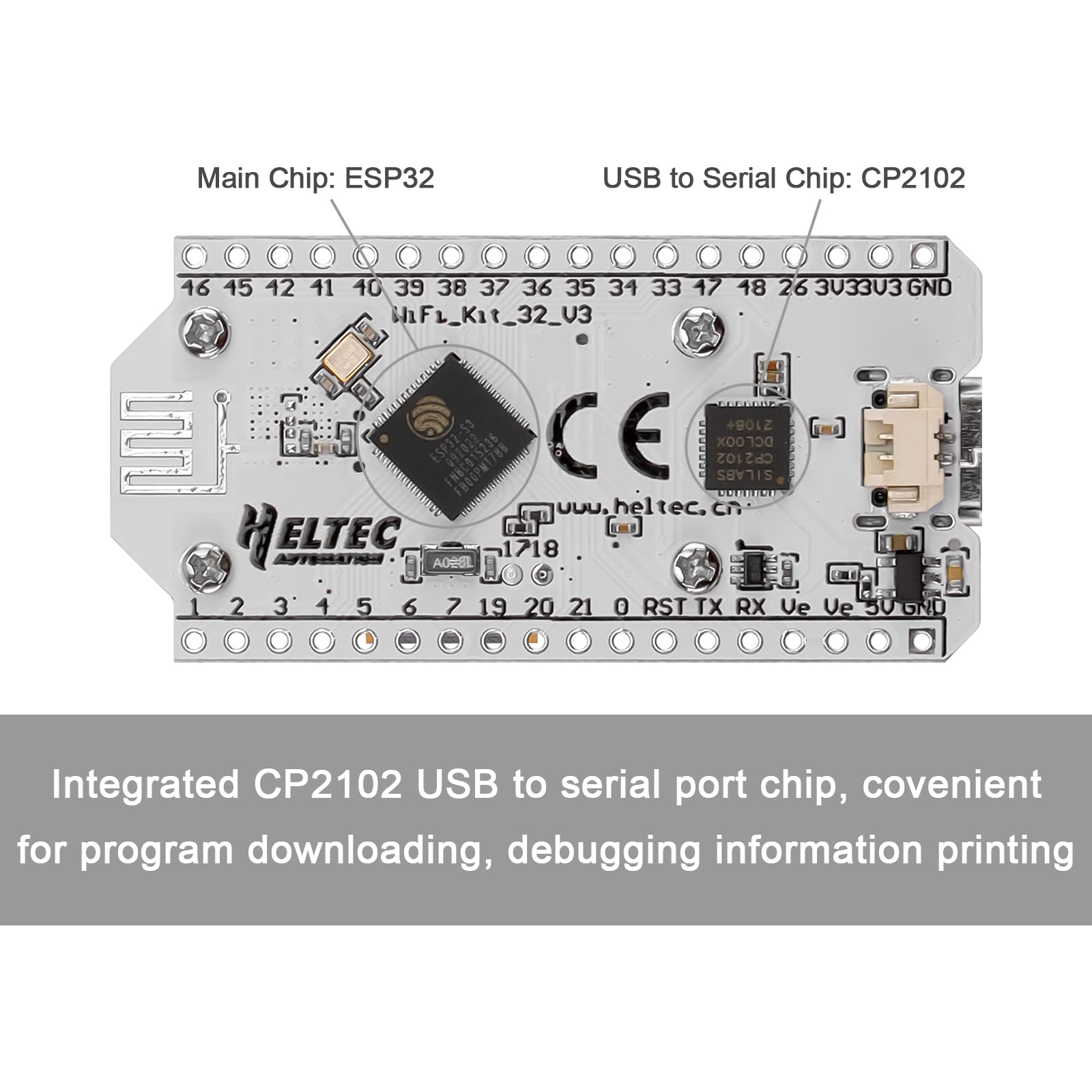

6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
7. Support the Arduino development environment
Parameter:

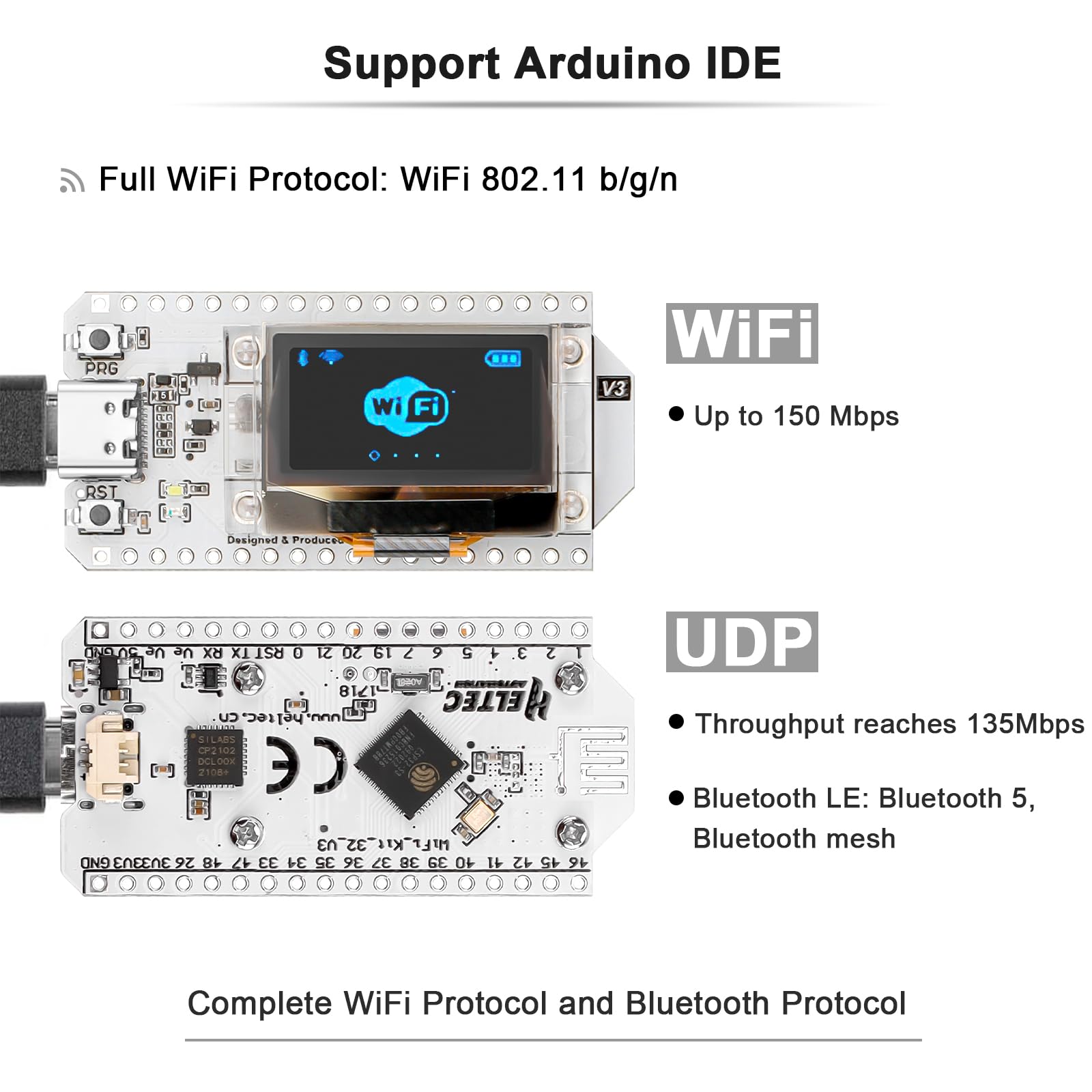

WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh
Hardware Resource: 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

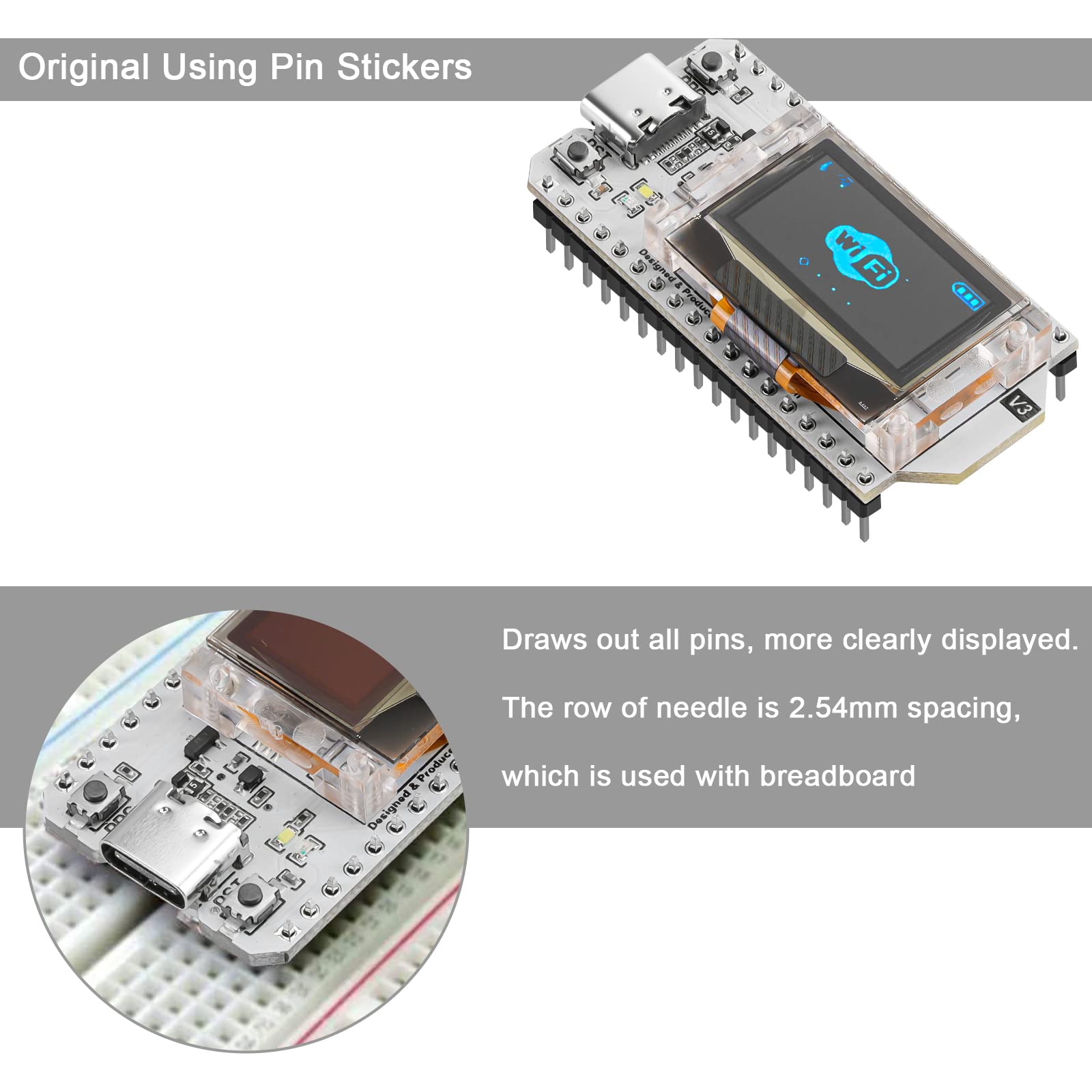

Interface: Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Power consumption: Deep sleep 10 uA
Operating temperature: -20~70℃
Dimensions: 50.2 * 25.5* 10.2 mm
Package Content:
1 * Power Cord
1 * ESP32 Development Board
2 * Pin Headers
