| Package Dimensions | 4.21 x 3.98 x 0.39 inches |
| Item Weight | 0.247 ounces |
| ASIN | B0BNHL6G2V |
| Customer Reviews | 3.4 out of 5 stars 4Reviews |
| Best Sellers Rank | #779 in USB Computer Network Adapters |
| Date First Available | November 28, 2022 |
Description:
ESP-01S Programmer USB to ESP-01 adapter module has USB to TTL driver chip CH340G onboard, so you can easily use your computer to do ESP-01 functional debugging.
It is a great programmer for the ESP-01/ESP-01S. It's very easy to just plug it in and send AT commands, or flip the switch to program and upload a sketch from Arduino IDE. Also you don't need a separate 3.3V power supply to power the ESP-01. (Please make sure that you set EPS-01/ESP-01S wifi module correctly in the female header when you plug it. )
Features:
Applications: Home automation, Sensor networks, Industrial wireless control etc,.
Package Included:
2 X USB to ESP8266 ESP-01/01S Wireless Wifi Programmer Adapter Module
**********
**********
Onboard CH340G driver chip, can plug to your computer directly, easy to use.
Please make sure that your computer has installed the driver CH340G before you program the new firmwares!
This version has mode switching button.

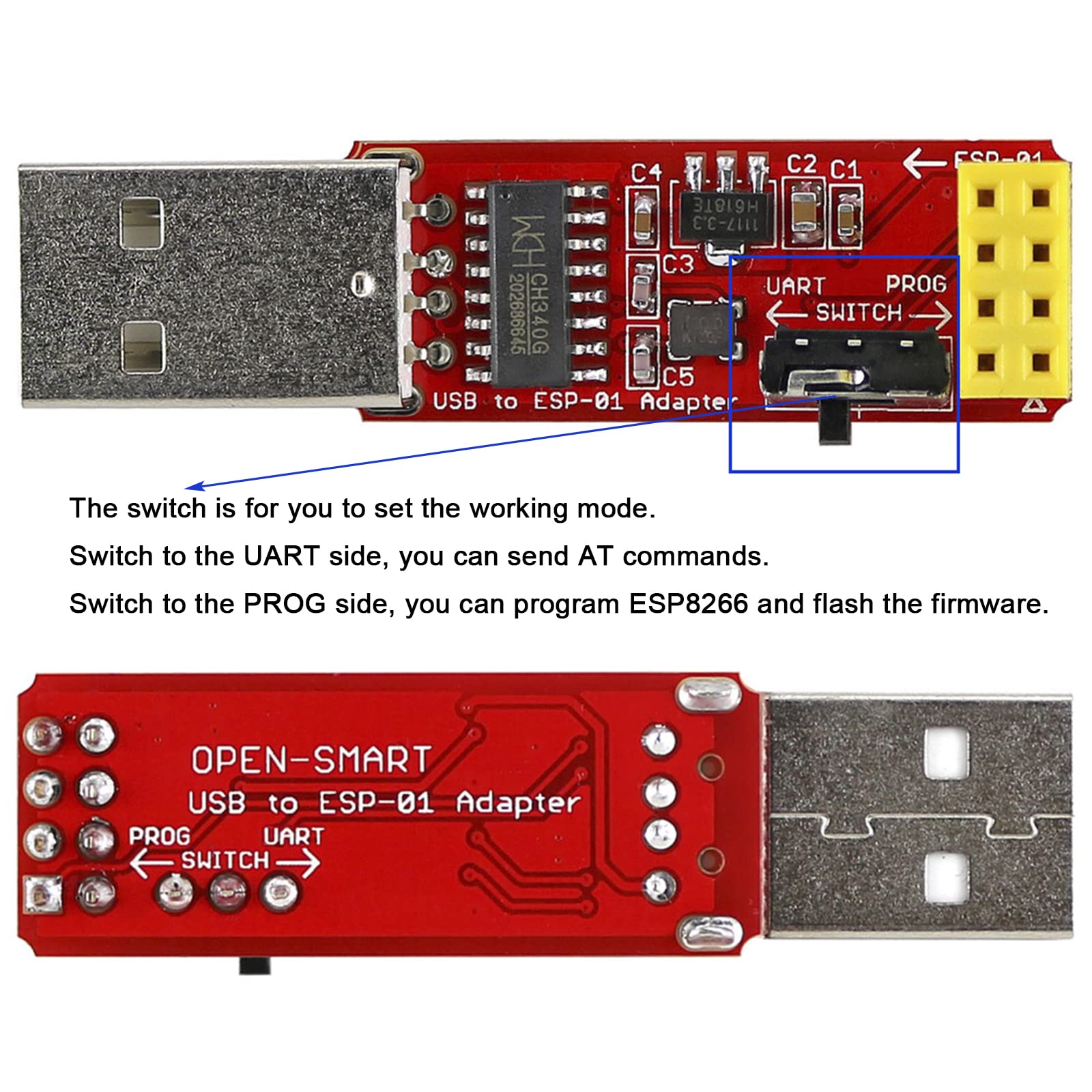

There are two working mode that you can choose via the toggle switch onboard.
PROG side is for firmware programming, while UART side is for serial TTL debugging by AT commands.
So make sure that the switch is pulled to the PROG side before you flash new firmware.

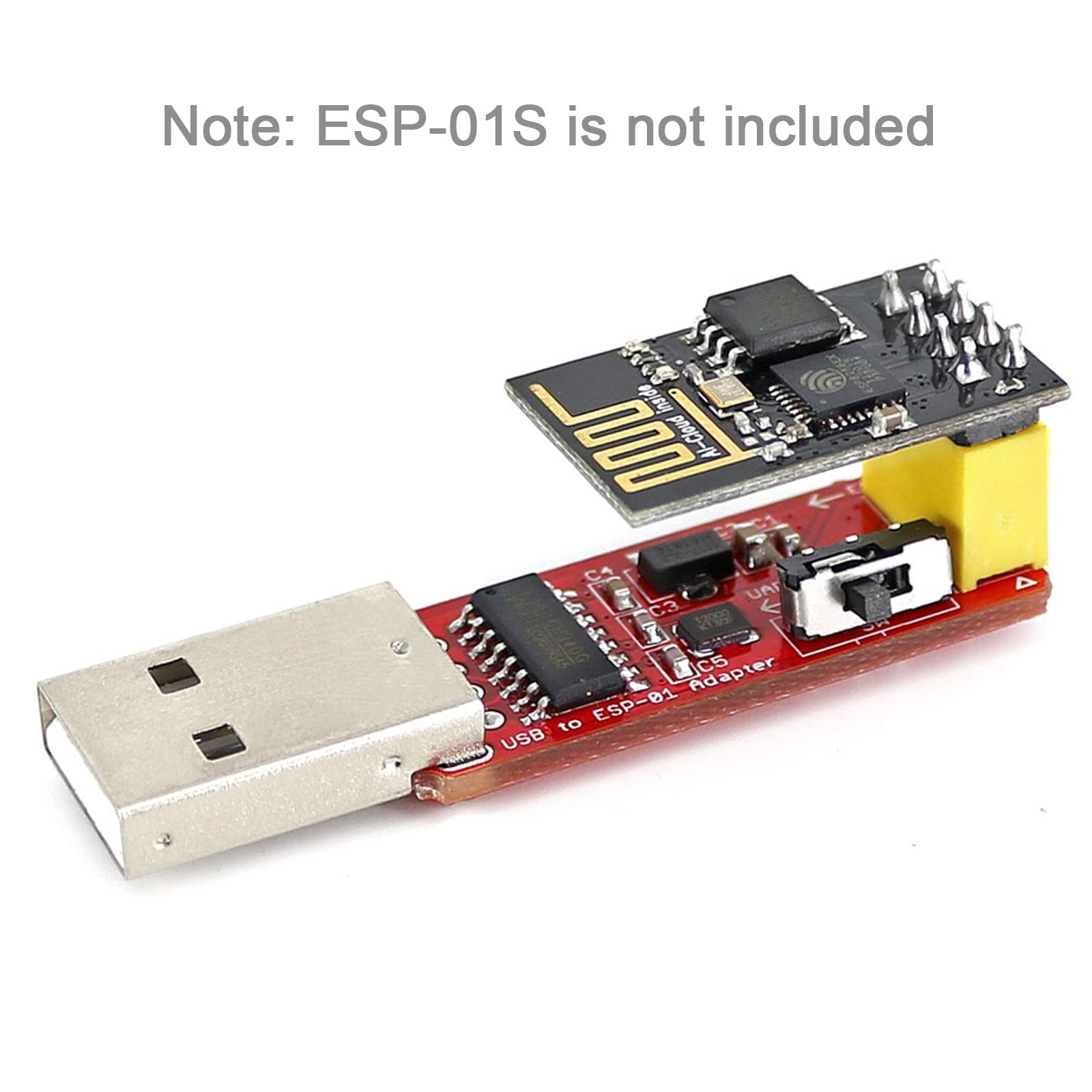

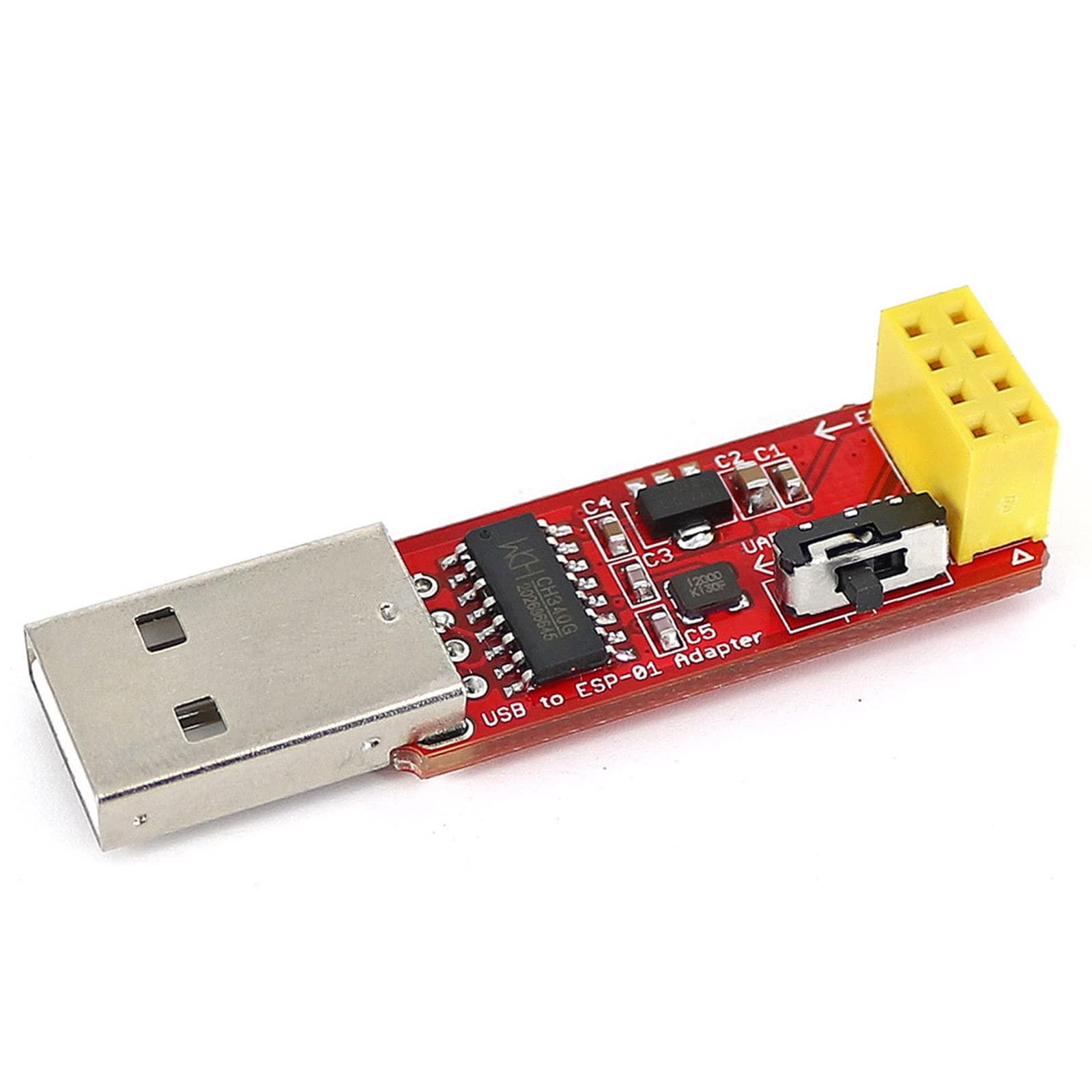

USB to ESP-01S Programmer Red PCB version, is with yellow female header onboard, perfect to plug the ESP-01/01S wifi module, it is very simple and no need hook up wires.
Please make sure that you set the ESP-01 in correct direction as above picture shows.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| 2pcs USB to ESP8266 ESP-01S Programmer | ESP-01S 4MB Flash + USB programmer | ESP-01S 4MB Flash + USB ESP Prog V1.0 | 5PCS ESP-01S 4MB Flash + 2PCS USB programmer | ESP8266 ESP-F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S Programmer | 5pcs ESP-01S 4MB Wifi wireless serial transceiver module | |
| Customer Reviews | 123 | 70 | 8 | 3 | 64 | 22 |
| Programmer Driver IC | CH340G | CH340G | CH340C | CH340G | CP2102 | |
| Support programming | ESP-01/ESP-01S | ESP-01/ESP-01S | ESP-01/ESP-01S | ESP-01/ESP-01S | ESP-01S ESP-F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S | |
| Reset Button | ✓ | ✓ | ||||
| ESP-01S module | ✓ | ✓ | ✓ | ✓ |
