| Standing screen display size | 5 Inches |
| Screen Resolution | 800 x 480 |
| Max Screen Resolution | 800 x 480 Pixels |
| Number of USB 2.0 Ports | 1 |
| Brand | ELECROW |
| Series | RR050 |
| Item model number | RPA05010R |
| Item Weight | 3.99 ounces |
| Product Dimensions | 1 x 4.7 x 3 inches |
| Item Dimensions LxWxH | 1 x 4.7 x 3 inches |
| Color | Black |
| Voltage | 5 Volts |
| Manufacturer | ELECROW |
| ASIN | B013JECYF2 |
| Is Discontinued By Manufacturer | No |
| Date First Available | August 7, 2015 |
Online installation (RPi need to be connected to the Internet)
1) Log onto the Pi by Putty SSH (User: pi; Password: raspberry)
2) Download the driver from github then execute the following command
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD5-show
3) Wait for a moment after executing, then you can use the corresponding Raspberry LCD.
When you test the item and find the screen appear to be blank white, white line, black screen, no touch function and flashing etc?
Please modify the config.txt to adjust the output resolution. Details refer to user manual.

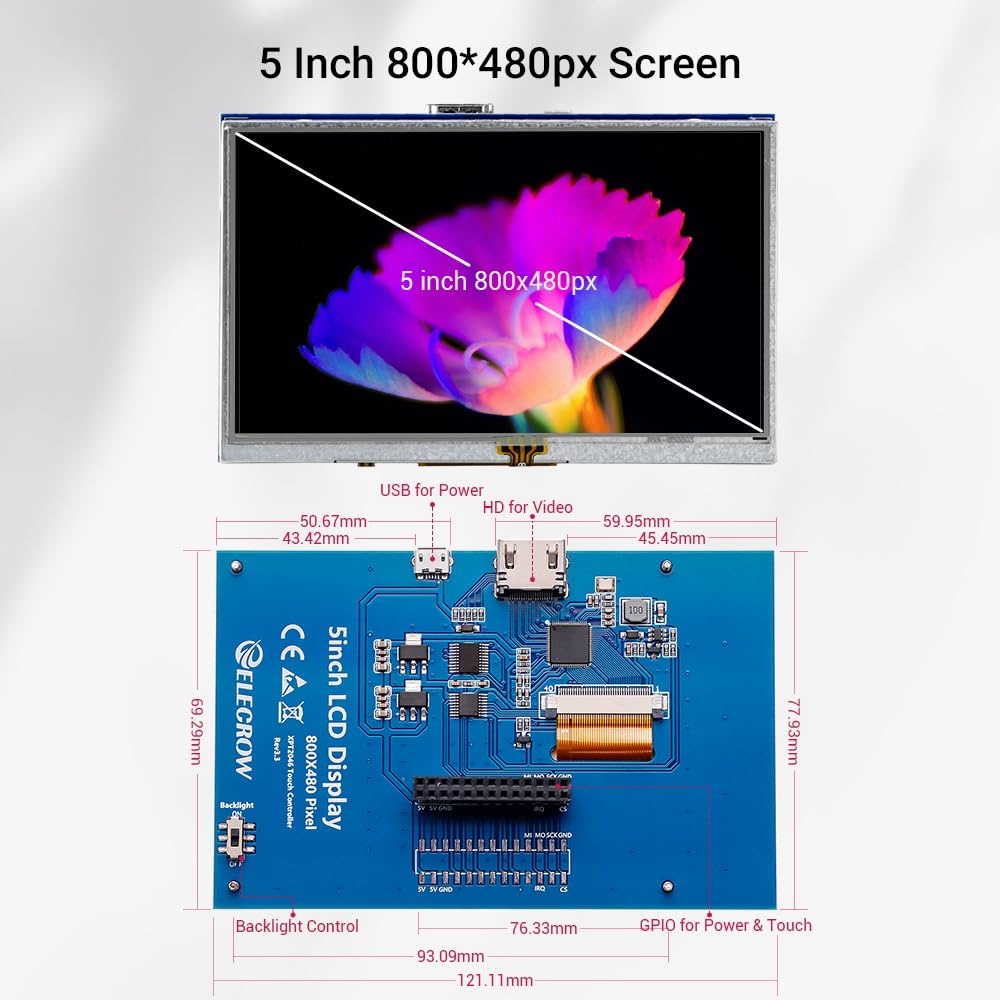

1. Micro USB: get 5V power (not need when connect by GPIO)
2. HD interface: Audio/video transmission
3. Backlight switch: turn on/off the backlight (save power)
4. GPIO (13*2): get 5V power& touch function
5. Extended interface
5 Inch Touch Display x1
Dual HD Connector x1
Micro HD to HD Connector x1
Copper Pillars (4pcs) x1
Touch Pen x1
CD x 1
 RR050 |  RC050 |  RC050S |  5" Touch |  RC070 |  RC070S | |
|---|---|---|---|---|---|---|
| Customer Reviews | 1,198 | 556 | 368 | 368 | 245 | 368 |
| Screen Size | 5 Inch | 5 Inch | 5 Inch | 5 Inch | 7 Inch | 7 Inch |
| Touchscreen Type | Resistive | Capacitive | Capacitive | Capacitive | Capacitive | Capacitive |
| Screen Resolution | 800x480 | 800x480 | 800x480 | 800x480 | 1024x600 | 1024x600 |
| Earphone/Speaker | Earphone | Speaker | Earphone | Earphone & Speaker |
