| Package Dimensions | 6.18 x 3.82 x 1.34 inches |
| Item Weight | 6 ounces |
| Manufacturer | DIYmalls |
| ASIN | B0B9GTFMDK |
| Customer Reviews | 4.2 out of 5 stars 8Reviews |
| Best Sellers Rank | #512,901 in Electronics (See Top 100 in Electronics) #10,073 in Computer Monitors |
| Date First Available | August 12, 2022 |

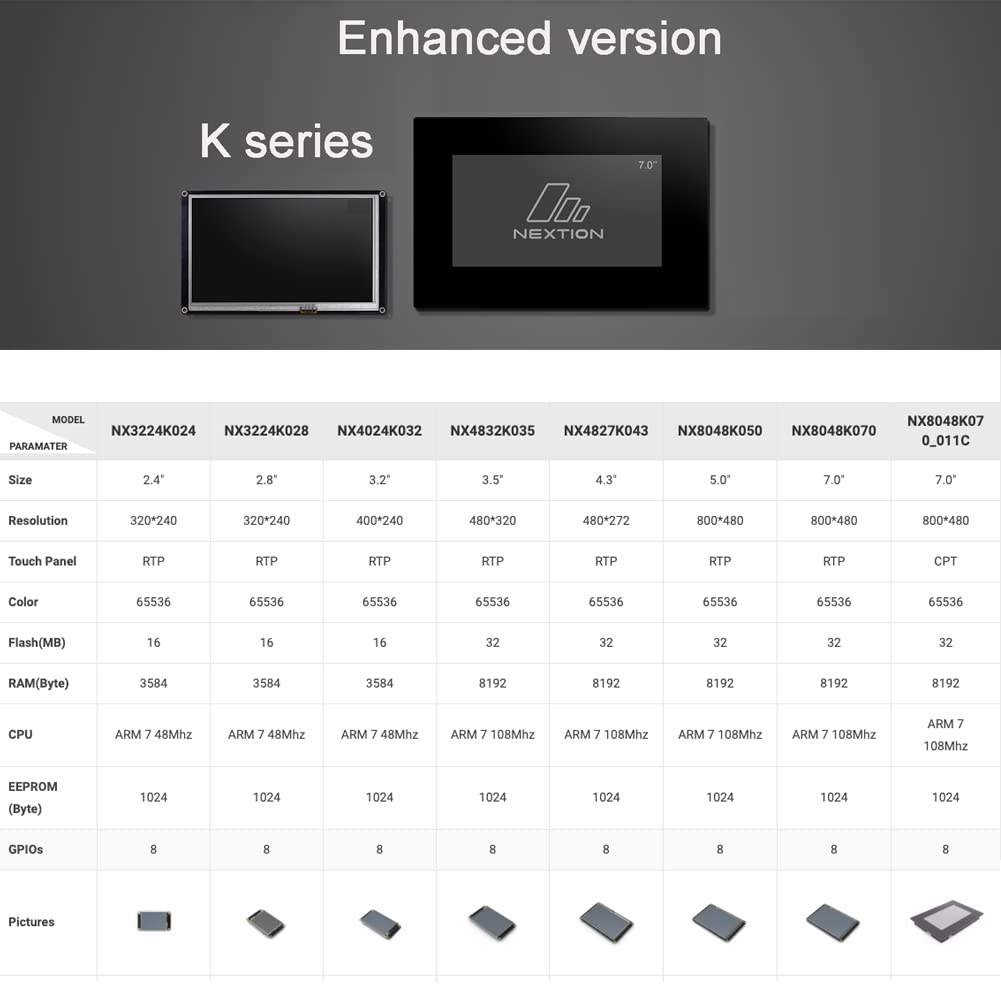

-The Enhanced Series hardware feature of 3.5″ and above is more powerful than Nextion Basic Series in terms of MCU, Flash Storage and SRAM.
-The Enhanced Series integrates RTC for keeping accurate time, EEPROM for users’ data storage and 8 digital GPIOs (4 PWM capable).
-For Nextion Enhanced, users also can develop HMI GUI project via Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce HMI project development workloads.
-Easy-to-Use Nextion HMI software
-ASCII text based instructions over serial
-Assignable attribute value components at runtime
-Drag-and-Drop components for GUI design and interaction
-User Event Code pane for GUI interaction and peripheral MCU communication
(Note: If your HMI project was developed via 0.53 or prior version Nextion Editor, we recommend you to use the LTS version for project maintenance as the latest version is not fully compatible with your exsisting source code and GUI desgin.)
 |  |  |  | | | |
|---|---|---|---|---|---|---|
| Nextion 7 Enhanced w/Enclosure | Nextion 2.4 Basic | Nextion 2.4 Discovery | Nextion 4.3 Intelligent | Nextion 5 Intelligent w/Enclosure | Nextion 7 Intelligent w/Enclosure | |
| Customer Reviews | 8 | 5 | — | 3 | 3 | 1 |
| Price | — | — | — | $69.90 | $88.90 | $128.90 |
| Model | NX8048K070-011C | NX3224T024 | NX3224F024 | NX4827P043-011C | NX8048P050-011C | NX8048P070-011C-Y |
| Size | 7.0 inch | 2.4 inch | 2.4 inch | 4.3 inch | 5.0 inch | 7.0 inch |
| Resolution | 800x480 | 320x240 | 320x240 | 480x272 | 800x480 | 800x480 |
| Flash | 32 MB | 4 MB | 4 MB | 128 MB | 128 MB | 128 MB |
| RAM | 8192 Byte | 3584 Byte | 3584 Byte | 512 KB | 512 KB | 512 KB |
| EEPROM (Byte) | 1024 | / | / | 1024 | 1024 | 1024 |
| GPIOs | 8 | / | / | 8 | 8 | 8 |
| RTC | Yes | / | / | Yes | Yes | Yes |
| Recommend Power | DC 5V 2A | DC 5V 500mA | DC 5V 500mA | DC 5V 1A | DC 5V 1A | DC 5V 2A |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| USB to TTL | Nextion IO Adapter | Nextion GPIO Expansion | 400 Breadboard | DHT11 Sensor | 2.4" ESP32 Touchscreen | |
| Customer Reviews | 34 | 25 | 5 | 11 | 3 | 6 |
| Price | $7.95 | $8.99 | $8.99 | — | — | $23.98 |
| Package List | 1x cp2102 usb to ttl w/cable | 1x io adapter | 2x gpio expansion board | 1 set breadboard w/accessories | 2x dht11 temperature humidity sensor w/cable | 1pcs ESP32-2432S024C |
