| Wireless Type | Bluetooth |
| Brand | DIYmall |
| Item Weight | 1.44 ounces |
| Package Dimensions | 8.27 x 6.06 x 0.59 inches |
| Color | 1 X ESP32-WROOM-32 Development Board + 1 X ESP32 Expansion Board |
| Manufacturer | DIYmall |
| ASIN | B0B1PL4GGY |
| Country of Origin | China |
| Date First Available | May 19, 2022 |
ESP32 Chip:
The ESP32 is dual core, this means it has 2 processors.
It has Wi-Fi and bluetooth built-in.
It runs 32 bit programs.
The clock frequency can go up to 240MHz and it has a 512 kB RAM.

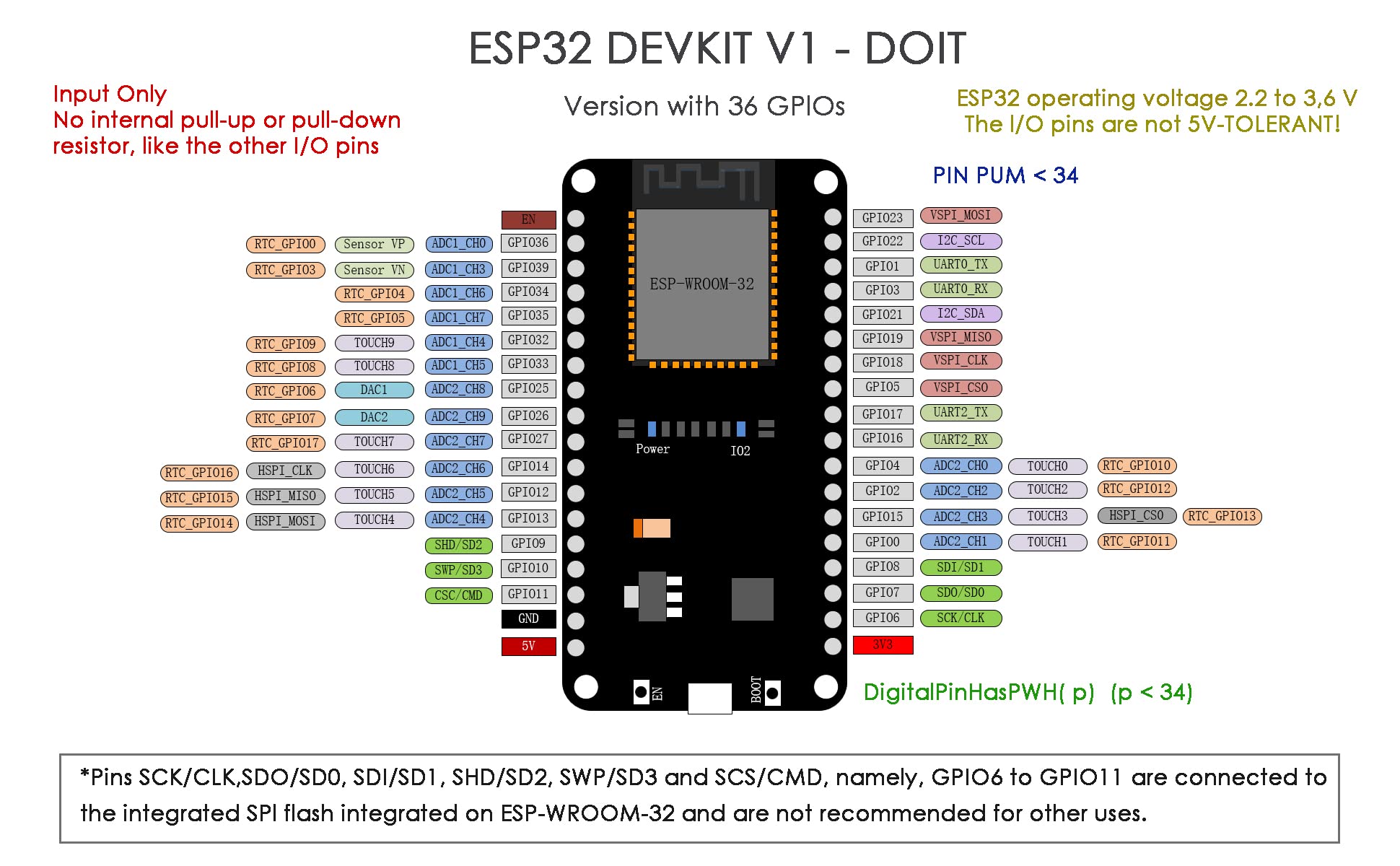

This particular board has 36 pins, 18 in each row.
It also has wide variety of peripherals available, like: capacitive touch, ADCs, DACs, UART, SPI, I2C and much more.
It comes with built-in hall effect sensor and built-in temperature sensor.
The ESP32 peripherals include:
18 Analog-to-Digital Converter (ADC) channels
3 SPI interfaces
3 UART interfaces
2 I2C interfaces
16 PWM output channels
2 Digital-to-Analog Converters (DAC)
2 I2S interfaces
10 Capacitive sensing GPIOs
ESP32 Expansion Board is designed for DIYmall ESP32 Development Board only.
You only need to input DC 6.5-30V voltage on the black DC jack to power the DIYmall ESP32 Development Board. And the ESP32 Expansion Board also comes with a DIP switch, for controlling the power.
In order to connect other sensors easily, the ESP32 Expansion Board also has 2 rows of 2.54mm pin headers, powering external sensors/modules with DC 3.3V voltage.
ESP32 Expansion Board has brought out all the pins of DIYmall ESP32 Development Board in the form of 2.54mm pin header.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
