DieseRC DC 12V 24V 30V Secure Remote Control Switch Universal Wireless 433Mhz Rf 10A Relay Receiver Board with 2 Transmitter Key Fobs for Motor Light Gate Door DIY Wireless Controller

Thương hiệu: DieseRC

DieseRC DC 12V 24V 30V Secure Remote Control Switch Universal Wireless 433Mhz Rf 10A Relay Receiver Board with 2 Transmitter Key Fobs for Motor Light Gate Door DIY Wireless Controller

Bán tại: Mỹ

4.3

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

726,240đ

Sản phẩm có thể phát sinh phụ phí vận chuyển

Color

2 Buttons

4 Buttons

Dự kiến giao hàng từ Mỹ về Việt Nam ngày 20-12-2025 - 26-12-2025

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu DIESERC là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm DIESERC DC 12V 24V 30V SECURE REMOTE CONTROL SWITCH UNIVERSAL WIRELESS 433MHZ RF 10A RELAY RECEIVER BOARD WITH 2 TRANSMITTER KEY FOBS FOR MOTOR LIGHT GATE DOOR DIY WIRELESS CONTROLLER là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Manufacturer	DieseRC
Part Number	Lmpyf
Item Weight	4.8 ounces

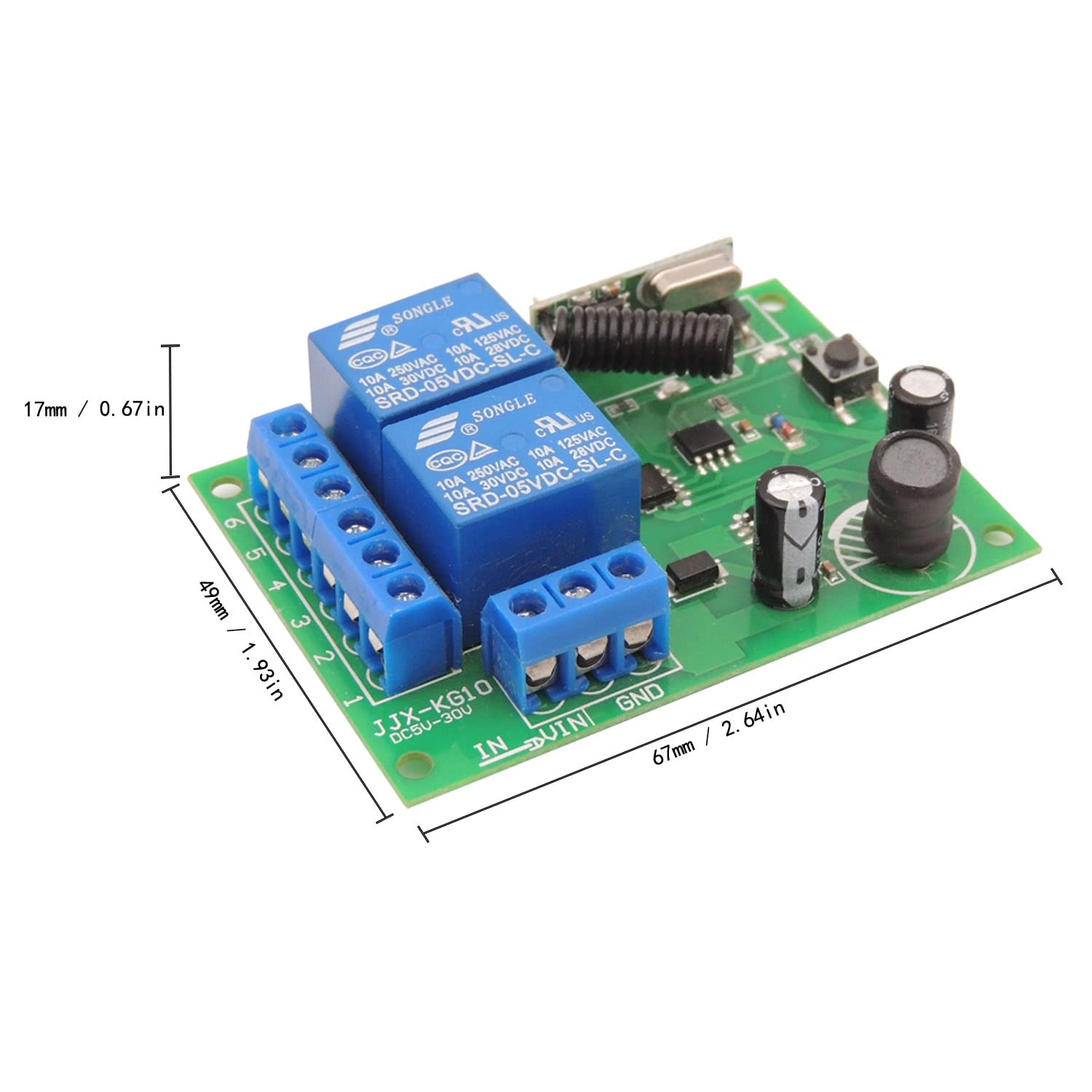

Product Dimensions	2.95 x 2.17 x 1.18 inches
Country of Origin	China
Item model number	2402
Batteries	1 CR2 batteries required. (included)
Color	2 Buttons
Item Package Quantity	1
Batteries Included?	Yes
Batteries Required?	Yes
Battery Cell Type	Lithium Manganese Dioxide
Description Pile	CR2016
Coil Resistance	15
Coil Voltage	24 Volts
Contact Current Rating	10 Amps
Maximum Switching Current	10 Amps
Maximum Switching Voltage	30 Volts
UPC	750828381309

Tính năng sản phẩm

Sản phẩm DieseRC DC 12V 24V 30V Secure Remote Control Switch Universal Wireless 433Mhz Rf 10A Relay Receiver Board with 2 Transmitter Key Fobs for Motor Light Gate Door DIY Wireless Controller của thương hiệu DieseRC với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

About DieseRC

DieseRC is a professional manufacturer of RF remote control switches and WIFI / Zigbee / Bluetooth smart switches, which focus on providing customer with convenient, energy-saving, safe, efficient and economical remote control devices and solutions. We have our own factory, our own engineers and our own brand. Our products have been praised by general customers and widely used in different fields, such as lighting, motor, garage door, electric curtain, water pump, ventilation system, alarm bell, the electric door lock, etc.

2402

Strong 433 MHz RF signal

DieseRC RF wireless relay remote control switch, which uses 433MHz frequency radio frequency technology, has strong signal that can pass through walls, floors, doors, and EV1527 learning code chip which makes the system safer. You can control each device connected to the relay receiver through the transmitter from any location within a reliable distance.

2402

Easy to use

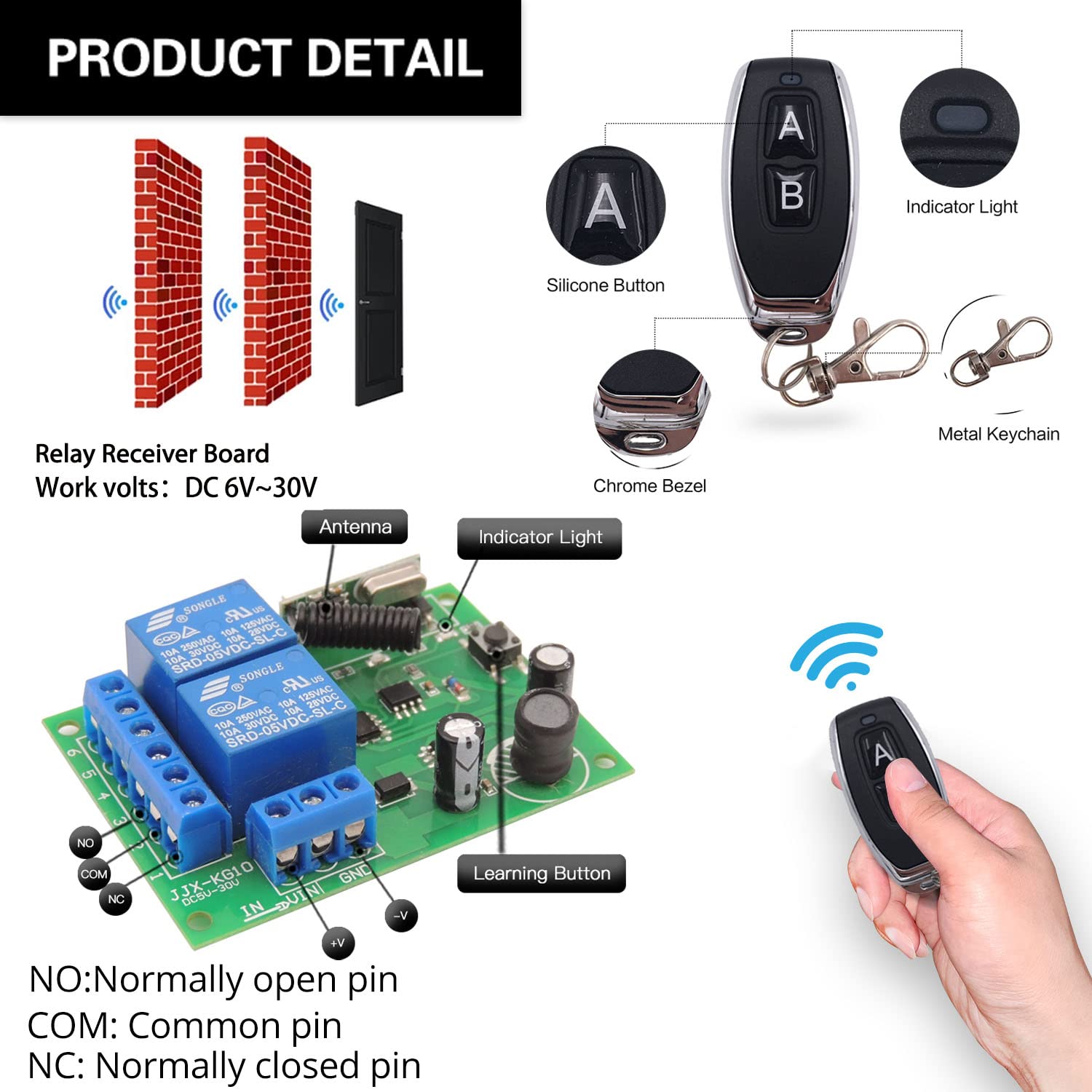

Extremely easy to setup and reset. There are 3 operating modes (momentary / toggle / latched mode). You can easily setup yourself according to your needs. The operating mode is adjustable. The receiver with 2 relays which can be controlled independently. And there are 3 terminals (normally open, common, normally closed) of each relay.

2402

Wide Application

The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. Wireless remote control applications range from simple household remote controls to automation such as electric curtains, garage doors, motor, alarm systems, lighting, etc.

Product Parameters

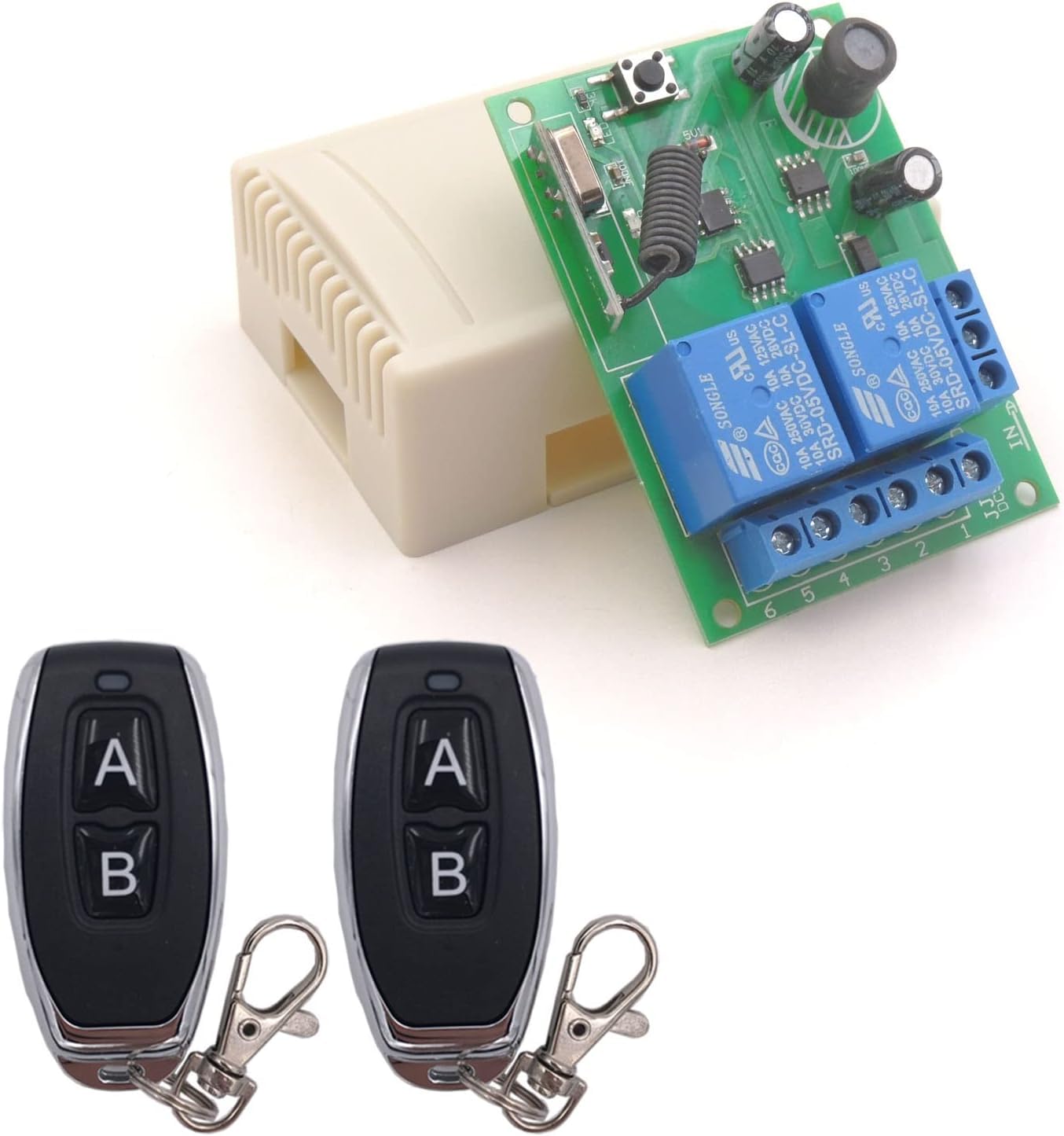

Package includes

1x RF Relay Receiver
2x Remote Controls(included battery)
1x Product Manual

Momentary mode

Press and hold button "A", relay "1" will turn on; Release button "A", this relay "1" will turn off.

Setup

Press the learning button 1 times (on the receiver). Wait 3 seconds;
Press the "A" button on the remote control. Wait 3 seconds.
Press the "B" button on the remote. To succeed.

Toggle mode

Press button "A", relay "1" will turn on; Press button "A" again, this relay "1" will turn off.

Setup

Press the learning button 2 times (on the receiver). Wait 3 seconds;
Press the "A" button on the remote control. Wait 3 seconds.
Press the "B" button on the remote. To succeed.

Latched mode

Press button "A", relay "1" will turn on; Press button "B", relay "2" will turn on, at the same time relay "1" will turn off.

Setup

Press the learning button 3 times (on the receiver). Wait 3 seconds;
Press the "A" button on the remote control. Wait 3 seconds.
Press the "B" button on the remote. To succeed.

Reset

Press the learning button 8 times (on the receiver).To succeed.

Notice:

Reset before you want to change the operating mode of one remote control.
After reset, all the remote controls cannot work anymore.

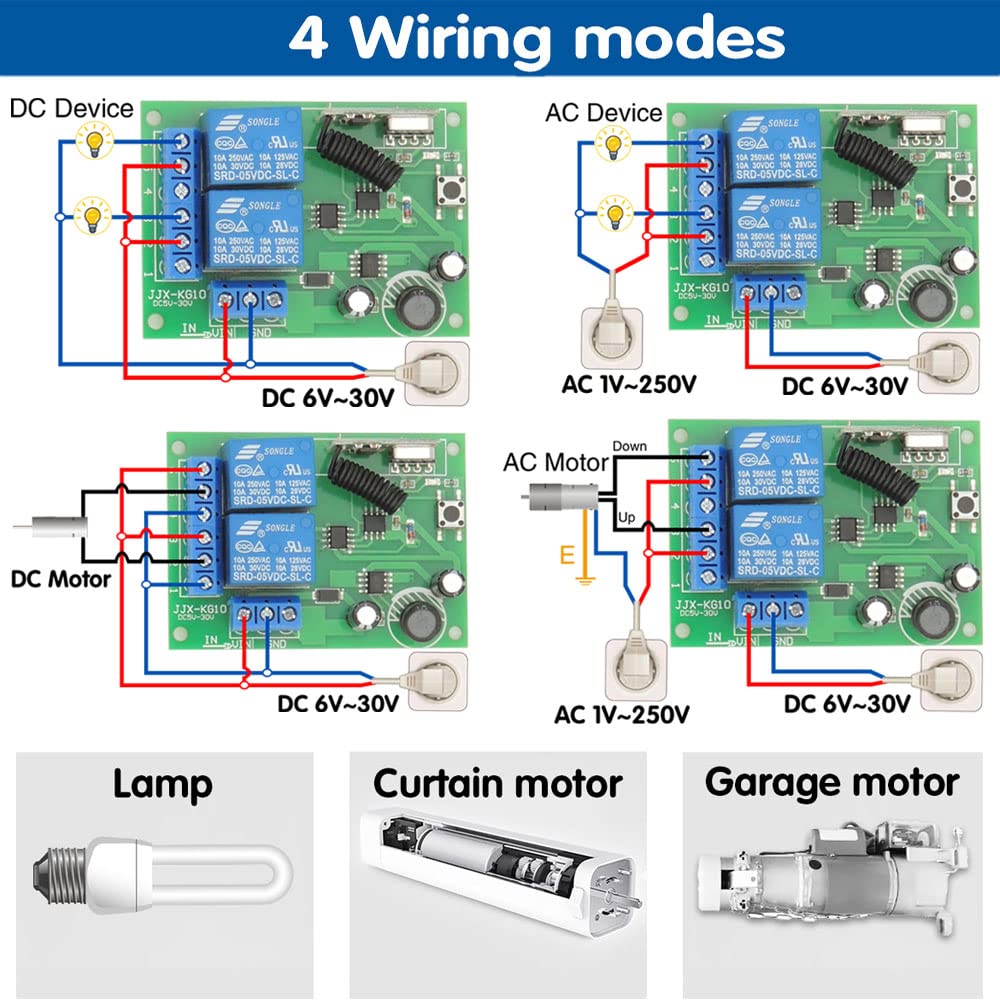

Wiring Diagram

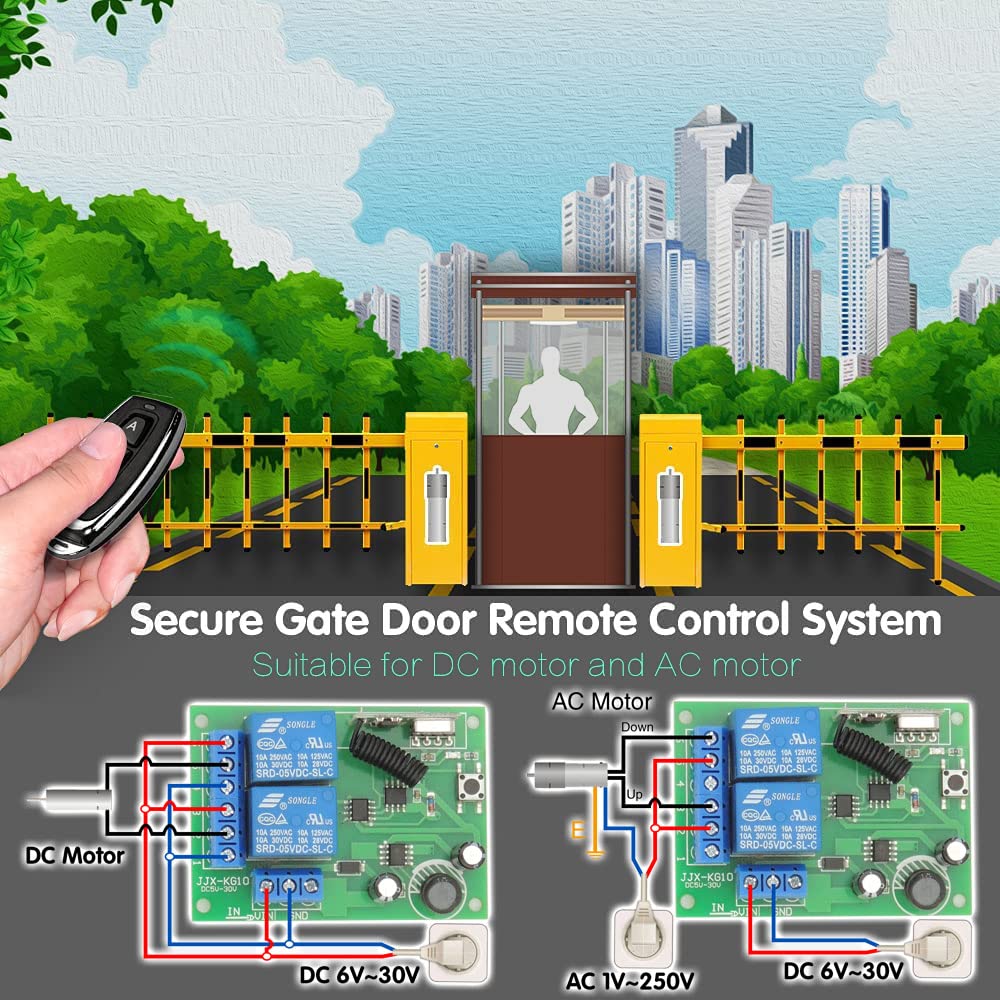

According to different use scenarios, there are a variety of different wiring methods, flexible processing


	DieseRC remote control	DieseRC remote control	DieseRC remote control	DieseRC remote control	DieseRC remote control

Customer Reviews	1,301	1,429	2,072	171	767
Price	$14.99	$16.99	$17.99	$15.19	$17.59
Channel	1	2	2	4	4
Voltage	DC 12V	DC 6V~30V	AC 85V~250V	DC 12V	AC 85V~250V
Remote control	433MHz RF	433MHz RF	433MHz RF	433MHz RF	433MHz RF

Mô tả

Thông tin chi tiết sản phẩm:

【Great design】433Mhz RF wireless remote control switch.Stable and reliable performance with high reception sensitivity (> 97dBm). Radio frequency signal transmission.Strong signal can pass walls, floors, doors,board and so on.It can be controlled within 30 meters distance with no obstacle. The code of the chip is EV1527 learning code which is the most popular technology that make the remote control system more security.
【Easy to use】Extremely easy to set up and reset. There are 3 operating mode(momentary/toggle/latched mode) can be chose. You can easily set up by yourself depends on your needs. The operating mode of the product is adjustable. This item has already been setup in toggle mode. Regardless of whether it is a DC motor or an AC motor, you can use this product for remote control easily. Wireless remote control switch forward/reverse.
【More Flexibility】This receiver contain 2 relays, and there are 3 terminals(normally open, common, normally closed) for each relay.This 2 relays are independent, so that you can remote control each of them independently by pressing the remote button. Each receiver can store about 20 transmitters. And One transmitter can control multiple receivers too( the transmitter need to match with receiver ).
【Quality Assurance】High-quality relay that can be used over 100,000 times.Let this product is more long-lasting and stable to use.This receiver adopts 10A relay, which can load high-power electrical appliances to ensure long-term stability control. The high-power terminal can withstand a current of 15A, so that this product can have a good effect even when the current is unstable. The receiver is suitable for DC 6V~30V voltage,so both DC12V and DC24V is OK. It is more flexible to use.
【Wide Application】Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as, garage door, electric door, shutter door, expansion door and electric curtain, fan, Lamp, lighting, ventilation device, Signal transmission and so on.
