| Package Dimensions | 4.13 x 2.83 x 0.67 inches |
| Item Weight | 1.76 ounces |
| ASIN | B08KXRHK7H |
| Item model number | CQRSENTDS01 |
| Customer Reviews | 4.3 out of 5 stars 152Reviews |
| Date First Available | October 9, 2020 |
| Specific Uses For Product | laboratory, scientific research, teaching, liquid quality analysis, online analysis |
| Manufacturer | CQRobot |

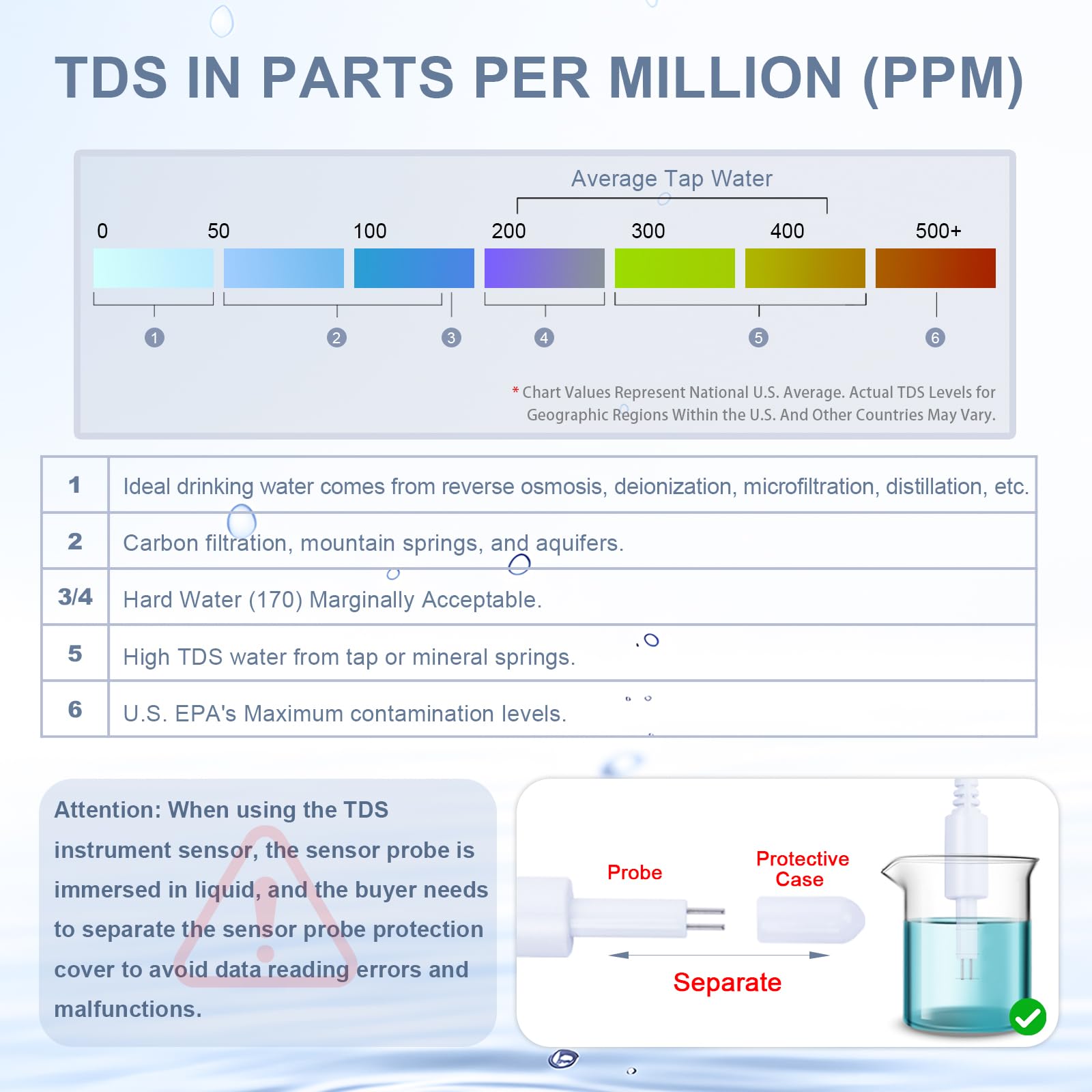

TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is.

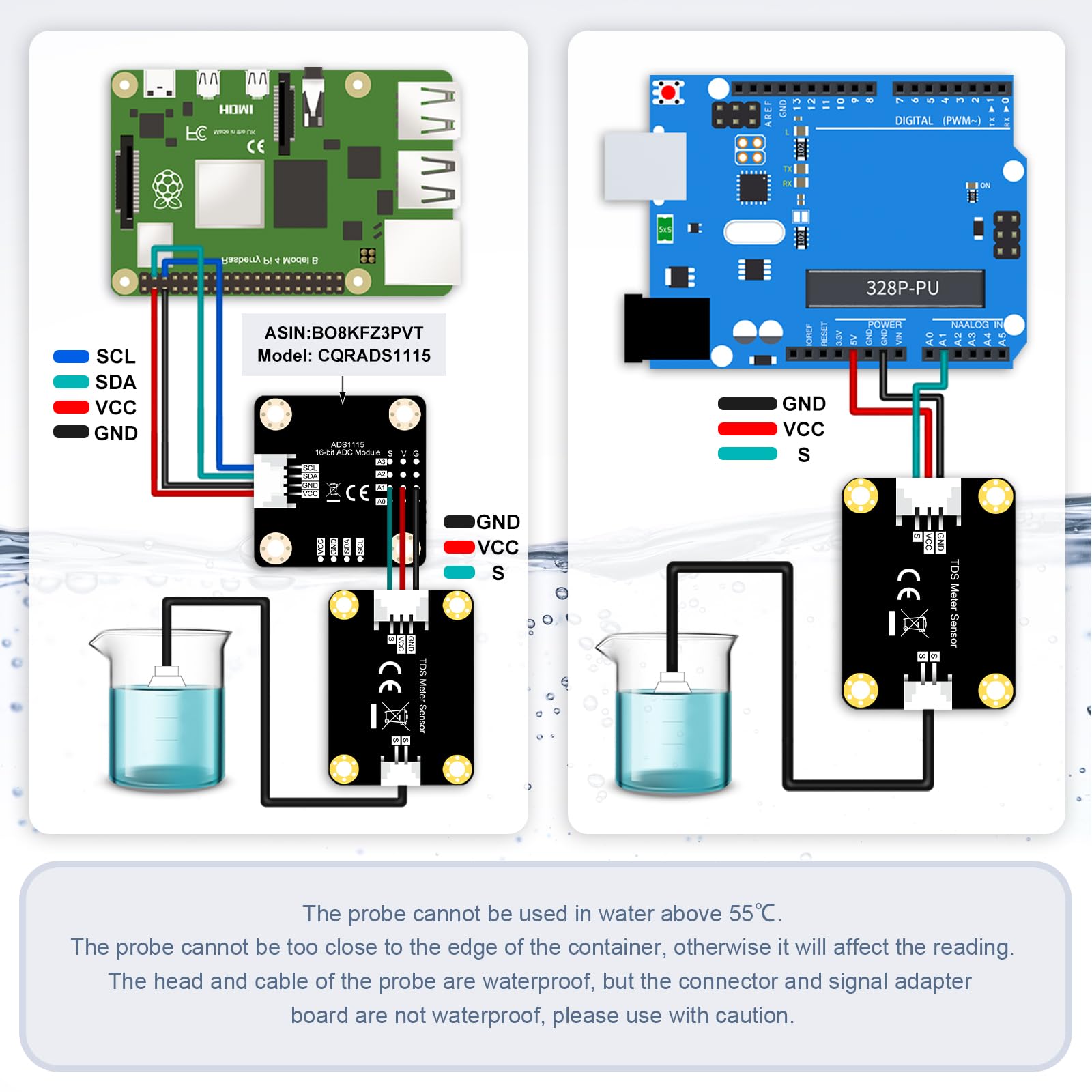

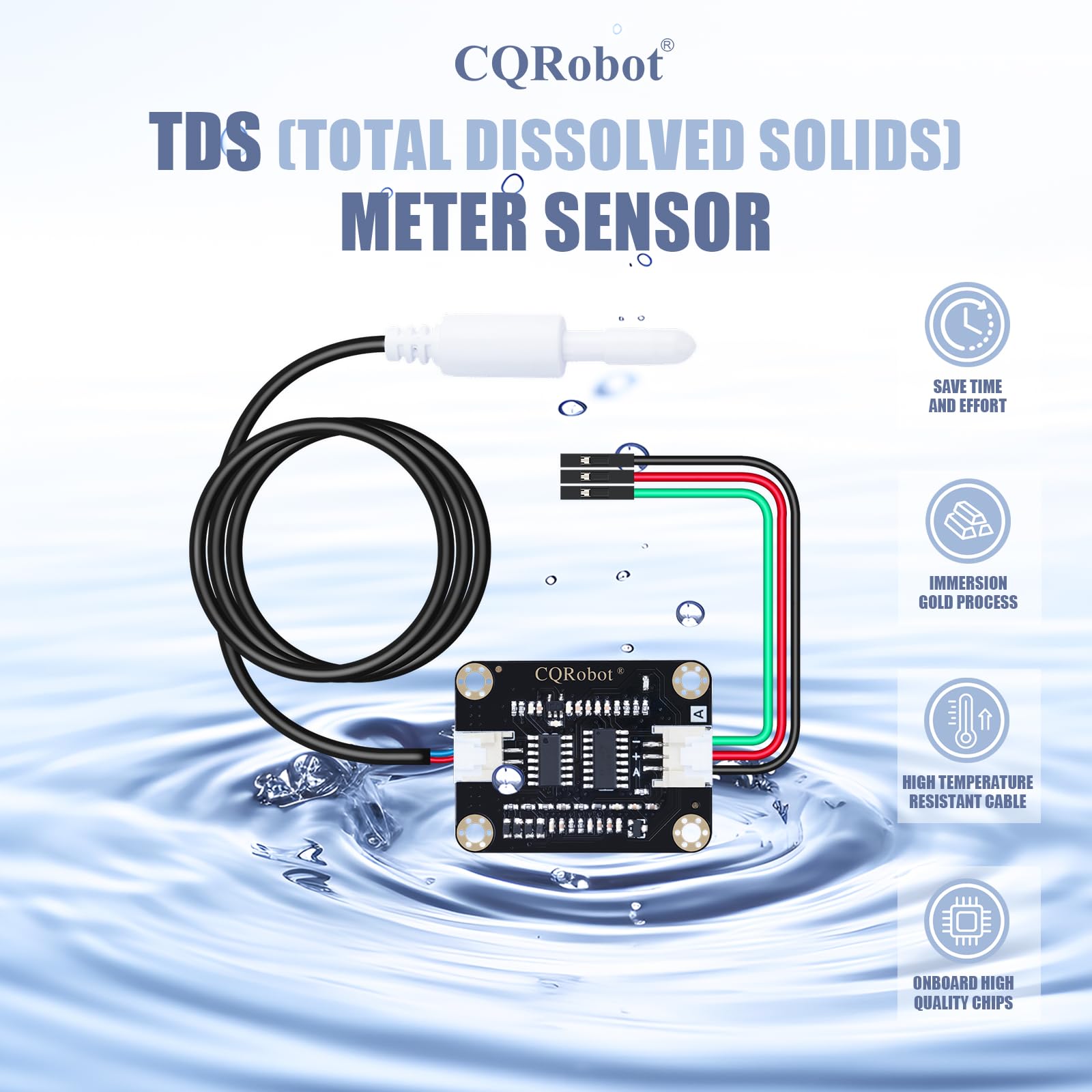

The CQRSENTDS01-TDS sensor can be used to measure the TDS value of water after connecting to the arduino controller. It can be used with CQRobot ADS1115 16-Bit ADC Module (ASIN: B08KFZ3PVT, model: CQRADS1115) to accurately collect and convert analog signals to meet the compatibility requirements of Raspberry Pi motherboards.
Attention: This kit does not include CQRobot ADS1115 16-bit AD conversion module. For technical support, please refer to CQRobot Wiki to get the test code, SKU: CQRSENTDS01.

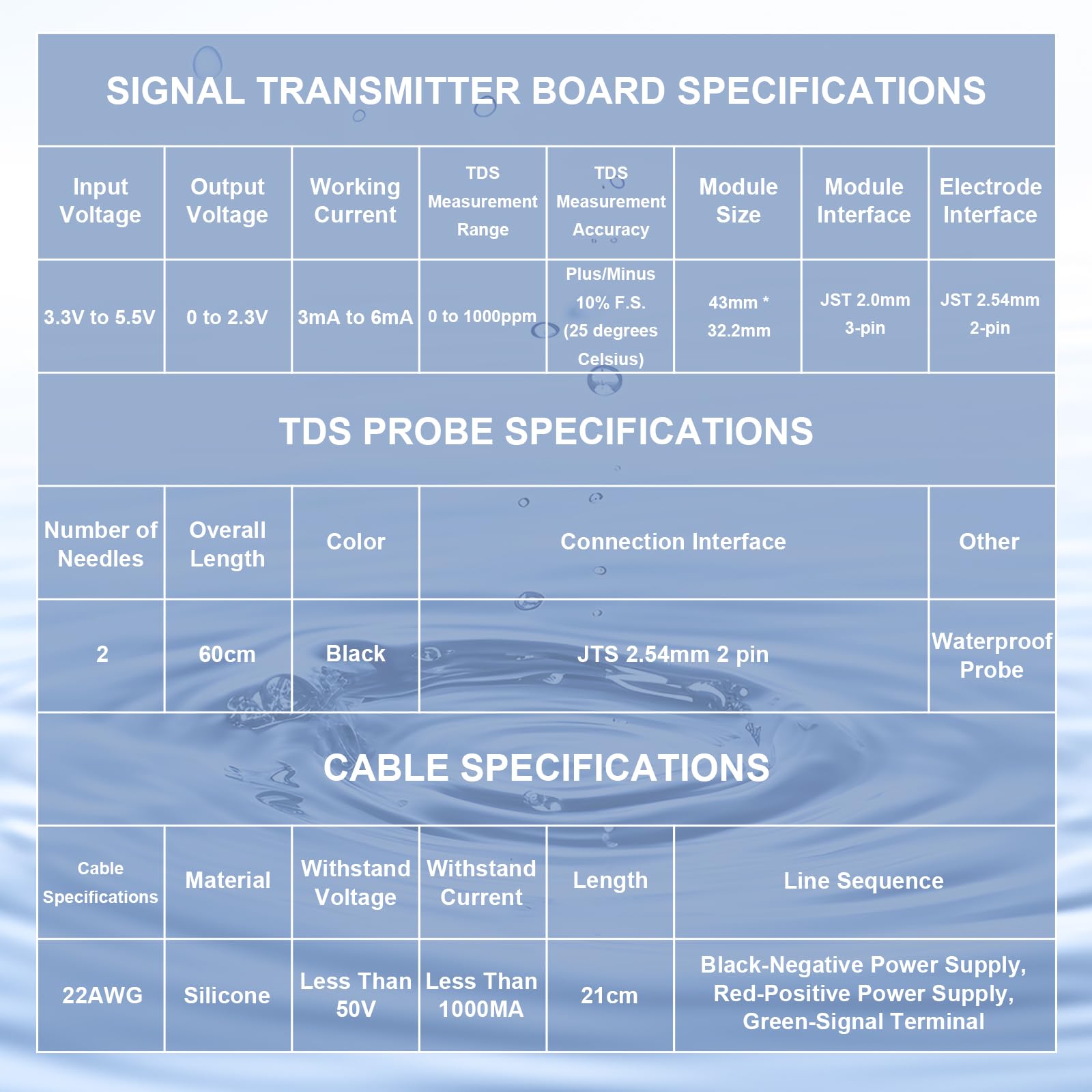

SPECIFICATION
Signal Transmitter Board Specifications
- Input Voltage: 3.3V to 5.5V
- Output Voltage: 0 to 2.3V
- Working Current: 3mA to 6mA
- TDS Measurement Range: 0 to 1000ppm
- TDS Measurement Accuracy: Plus/Minus 10% F.S. (25 Degree Celsius)

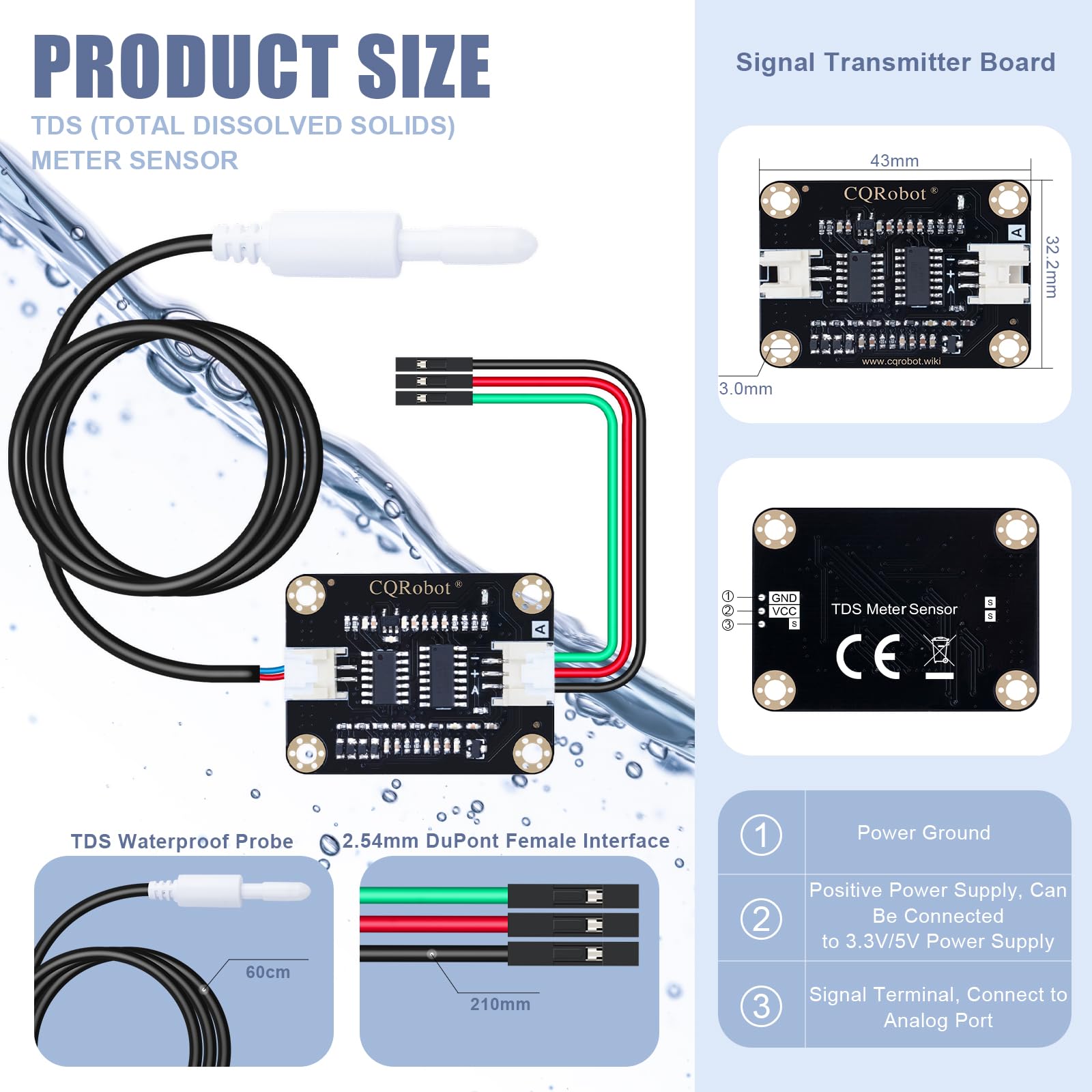

- Module Size: 43mm * 32.2mm
- Module Interface: JST 2.0mm 3-Pin
- Electrode Interface: JST 2.54mm 2-Pin
TDS Probe Specifications
- Number of Needle: 2
- Total Length: 83cm
- Connection Interface: JTS 2.54mm 2-Pin
- Color: Black
- Other: Waterproof Probe
Cable Specifications
- Cable specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm
- Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Signal Terminal.
SHIPPING LIST
1 * Signal Transmitter Board
1 * TDS Probe
1 * JST 3-Pin Cable
