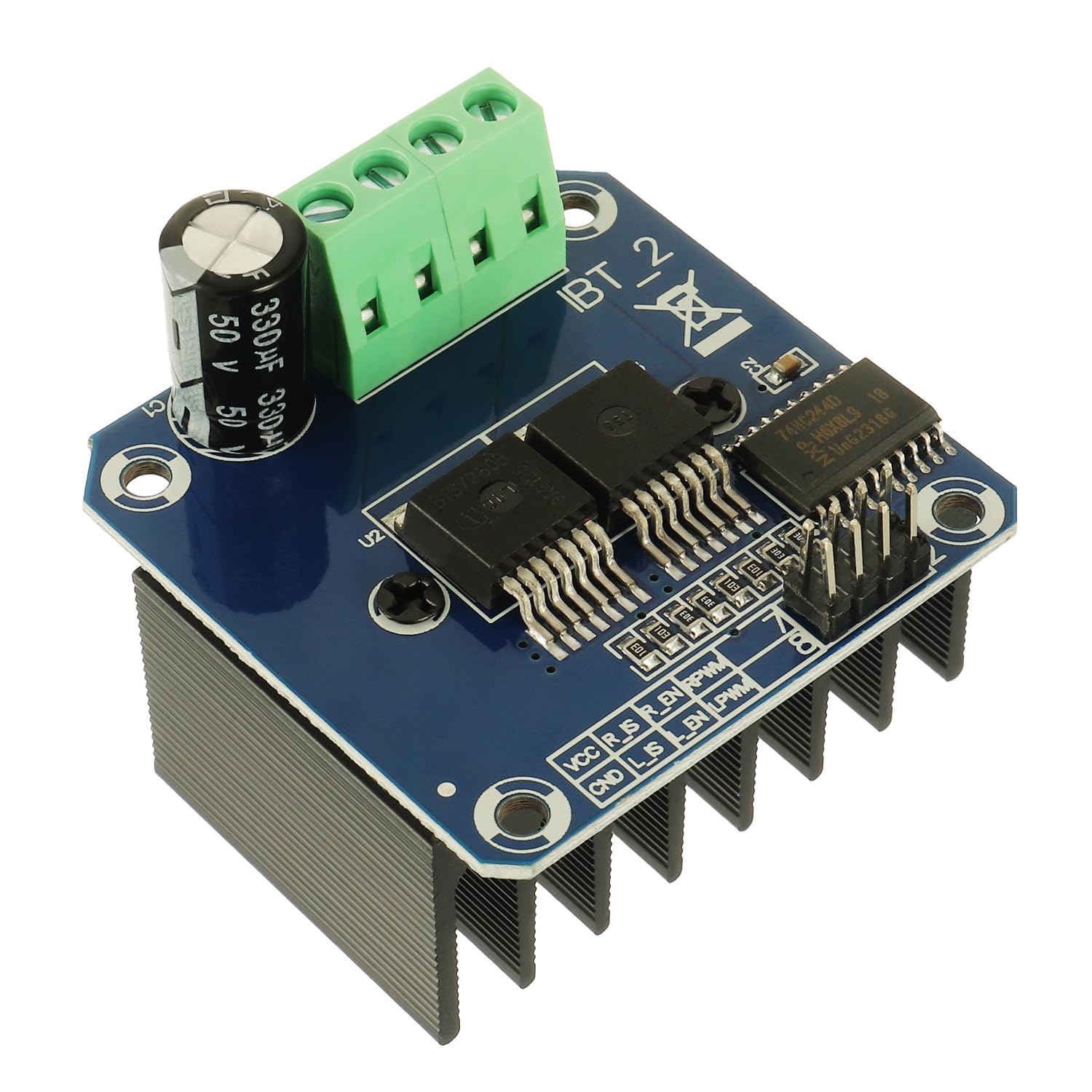

HUAREW BTS7960 High Power Smart Car Motor Driver Module semiconductor Refrigeration Drive

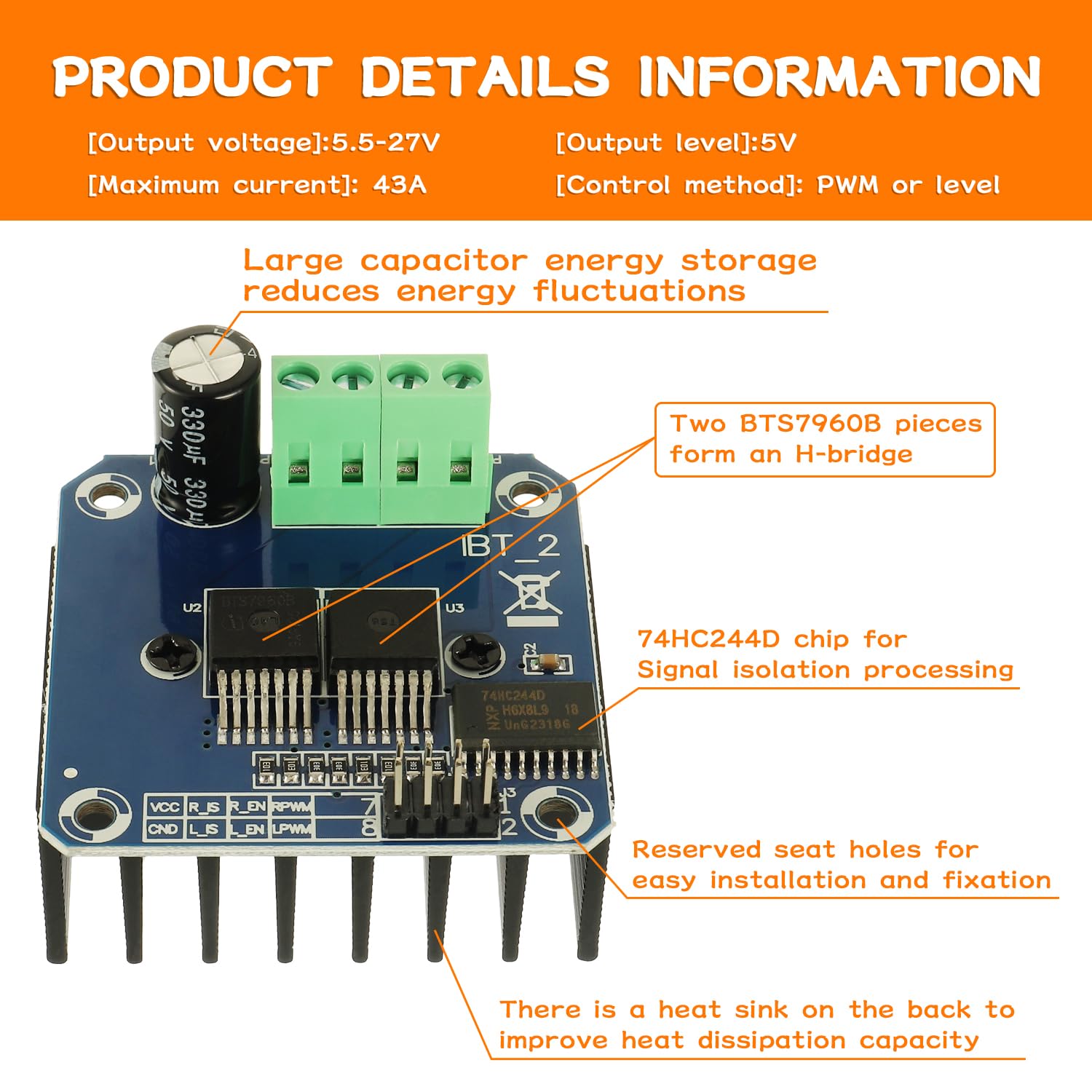

Specifications:
Input voltage: 6V-27V
Input level: 3.3-5V
Maximum current: 43A
Control mode: PWM or level
Duty ratio: 0-100%
Overvoltage protection value: 30V
Overcurrent protection value: 84A
Overheat protection value: 200 °C
Rated power: Within 200W
Features:
1.Can solder heat sink, Improve heat dissipation capacity
2.5V isolate with singlechip, and effectively protect singlechip

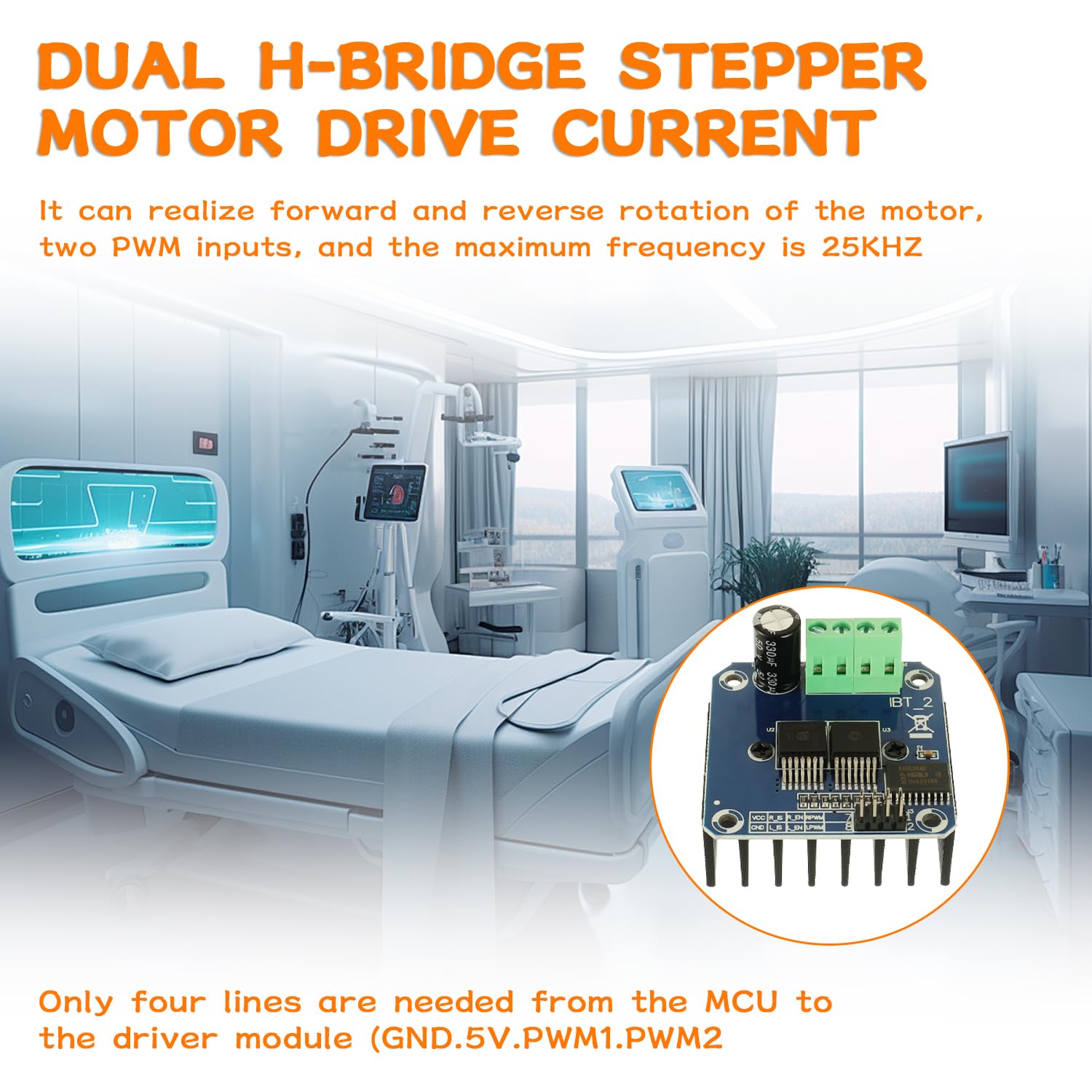

3.Support PWM speed adjustment, you can control the speed of the motor
4.Support positive and reverse control, you can control the direction of the motor
5.overcurrent protection, short circuit protection and over temperature protection

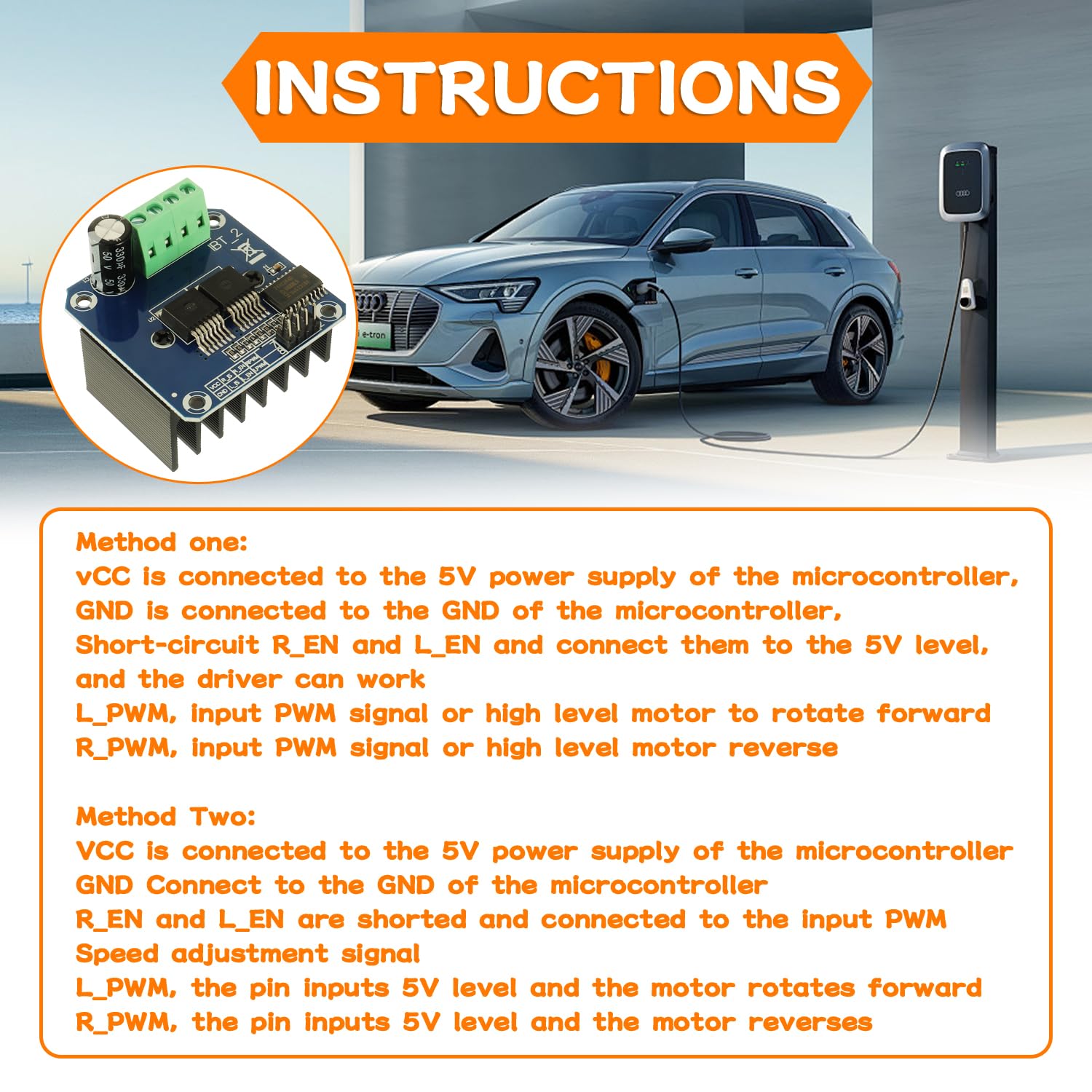

Connection method:
Method 1:
VCC connected to the 5V power supply of the singlechip, and GND is connected to the GND of the singlechip.
R_ EN and L_EN short-circuit and connect to 5V level, the driver can work
L_ PWM, input PWM signal or high-level motor foreward conversion
R_ PWM, input PWM signal or high level motor reversal
Method 2:
VCC connected to the 5V power supply of the singlechip, and GND is connected to the GND of the singlechip.
R_ EN and L_EN short-circuit and Connect input PWM signal speed regulation
L_ PWM, Pin input 5V level motor forward conversion
R_ PWM, Pin input 5V level motor reversal

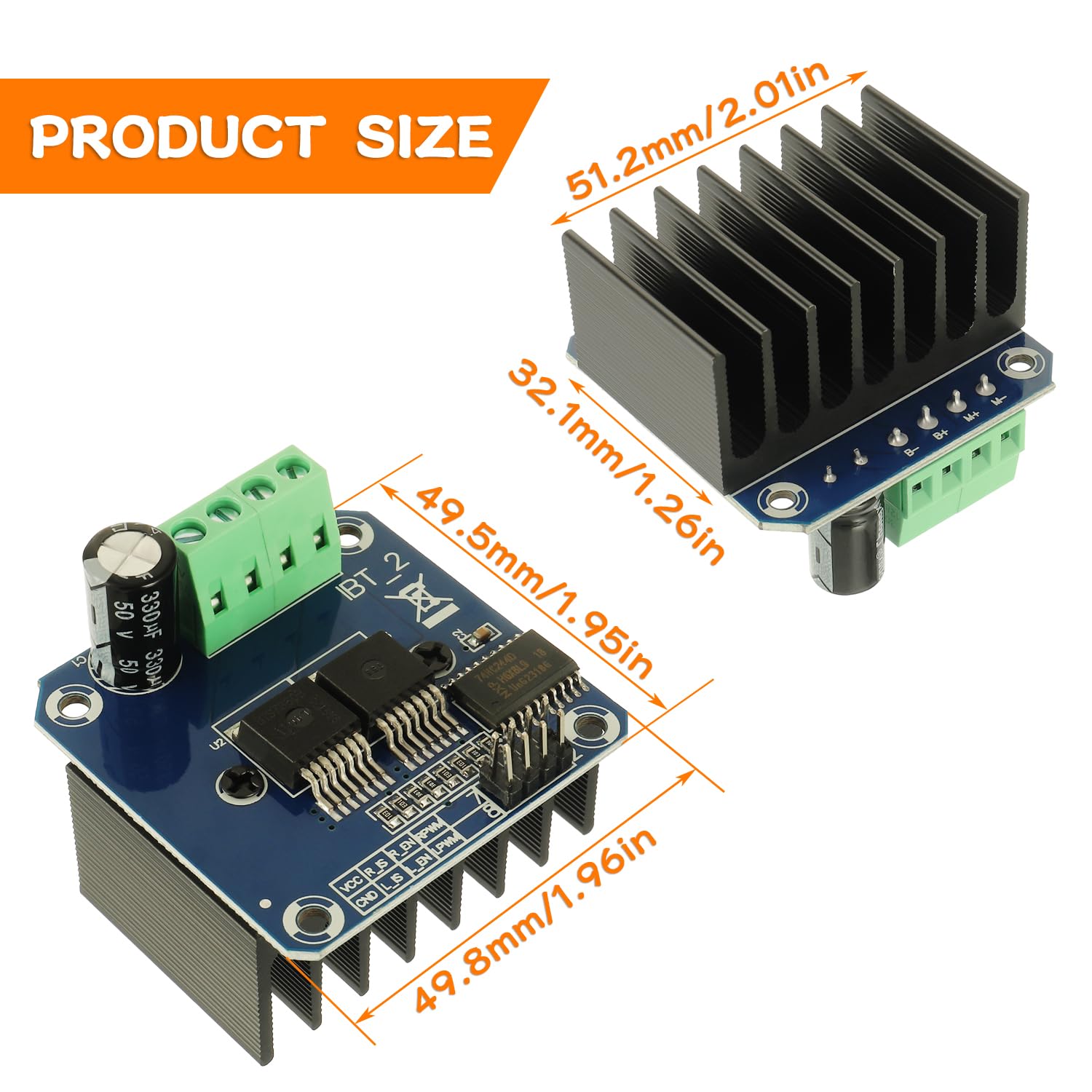

Package includes：
1 pieces * BTS7960 motor driver module
Tip:
This product is a high power motor drive module. Each module can only be connected to one DC motor in both forward and reverse directions.Multiple module combinations can drive multiphase motors
