Arduino UNO R4 WiFi [ABX00087] - Renesas RA4M1 + ESP32-S3, Wi-Fi, Bluetooth, USB-C, CAN, 12-bit DAC, OP AMP, Qwiic Connector, 12x8 LED Matrix for Advanced IoT & Embedded Projects

Thương hiệu: Arduino

Arduino UNO R4 WiFi [ABX00087] - Renesas RA4M1 + ESP32-S3, Wi-Fi, Bluetooth, USB-C, CAN, 12-bit DAC, OP AMP, Qwiic Connector, 12x8 LED Matrix for Advanced IoT & Embedded Projects

Bán tại: Mỹ

4.7

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

1,088,118đ

Dự kiến giao hàng từ Mỹ về Việt Nam ngày 30-11-2025 - 06-12-2025

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu ARDUINO là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm ARDUINO UNO R4 WIFI [ABX00087] - RENESAS RA4M1 + ESP32-S3, WI-FI, BLUETOOTH, USB-C, CAN, 12-BIT DAC, OP AMP, QWIIC CONNECTOR, 12X8 LED MATRIX FOR ADVANCED IOT & EMBEDDED PROJECTS là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Processor	48 MHz
RAM	SRAM
CPU Manufacturer	Renesas
Wireless Communication Standard	Bluetooth
Compatible Devices	Devices with UART, SPI, I2C, or CAN interfaces
RAM Memory Technology	SRAM
Processor Count	1
Total USB Ports	1
Product Dimensions	3.15 x 7.87 x 10.24 inches
Item model number	ABX00087
Item Weight	0.705 ounces
Item Dimensions LxWxH	3.15 x 7.87 x 10.24 inches
Processor Brand	Renesas
Manufacturer	Arduino
ASIN	B0C8V88Z9D
Date First Available	June 21, 2023

Tính năng sản phẩm

Sản phẩm Arduino UNO R4 WiFi [ABX00087] - Renesas RA4M1 + ESP32-S3, Wi-Fi, Bluetooth, USB-C, CAN, 12-bit DAC, OP AMP, Qwiic Connector, 12x8 LED Matrix for Advanced IoT & Embedded Projects của thương hiệu Arduino với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

The Iconic Arduino UNO, Reimagined for the Future

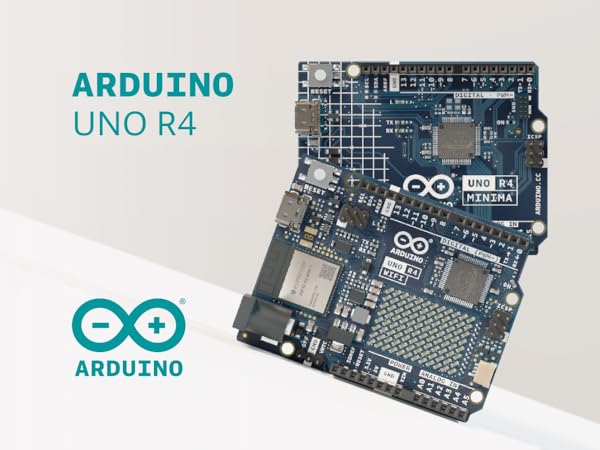

arduino uno r4 minima and uno r4 wifi introduced in white background

arduino uno r4 wifi being used in context with lamp diods

The Arduino UNO R4 WiFi

The Arduino Uno R4 WiFi is the premium version of the new UNO R4 line. It combines the powerful Renesas RA4M1 microcontroller with an ESP32-S3 module, offering advanced Wi-Fi and Bluetooth capabilities, plus a built-in LED matrix.

arduino uno r4 minima in context with circuits

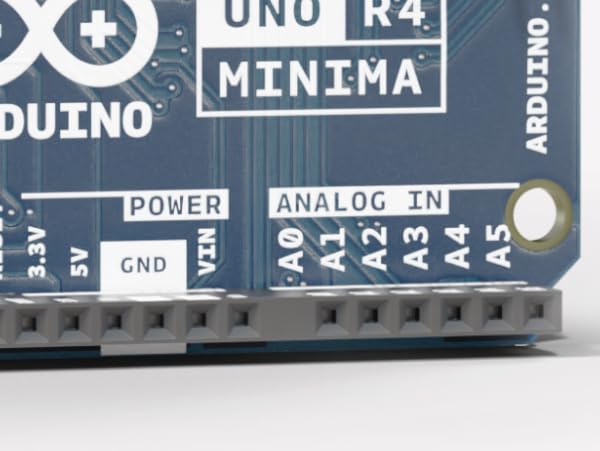

The Arduino UNO R4 Minima

The Arduino Uno R4 Minima is the cost-effective option in the UNO R4 family. It features the powerful 32-bit Renesas RA4M1 microcontroller, maintaining the classic UNO form factor and providing a seamless upgrade path for projects.

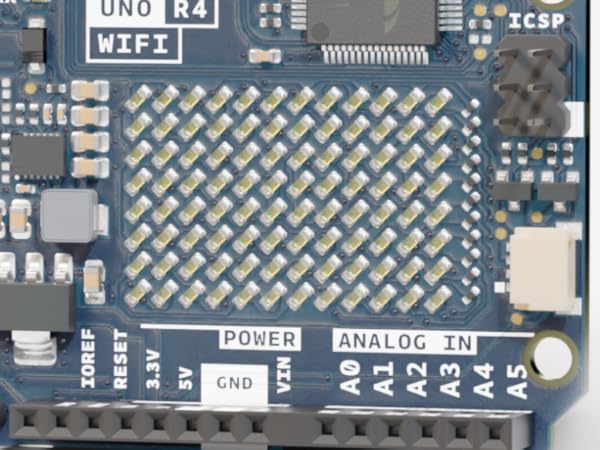

12x8 LED Matrix
The on-board red LED matrix can display sensor data or create playful animations without extra hardware.
Qwiic Connector
A simple connector allows for easy prototyping with a vast ecosystem of compatible modules.

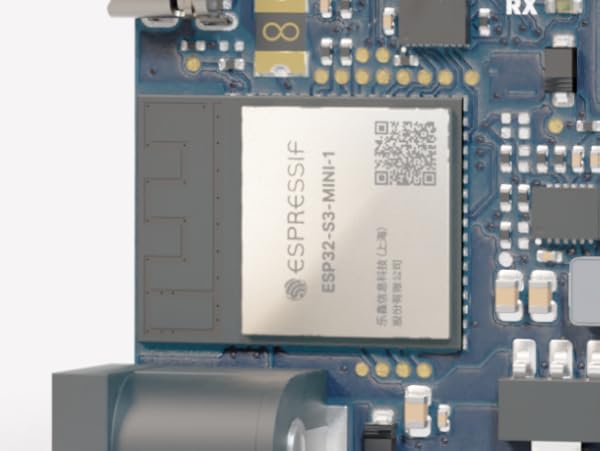

ESP32-S3 Module
This dedicated module provides reliable Wi-Fi and Bluetooth Low Energy (BLE) connectivity.

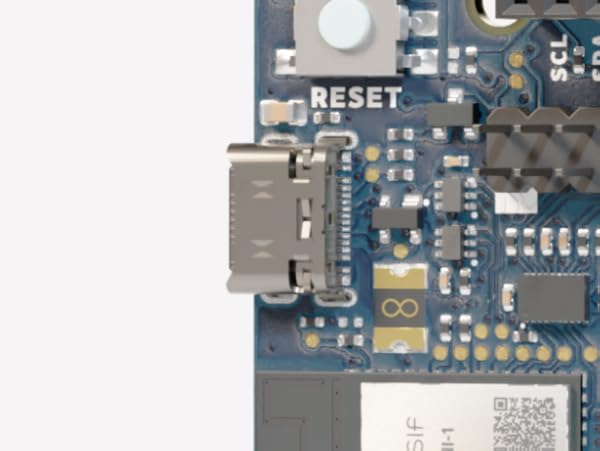

USB-C Connection
A modern USB-C port is used for programming and power.

USB-C Connection
A modern USB-C port is used for programming and power.

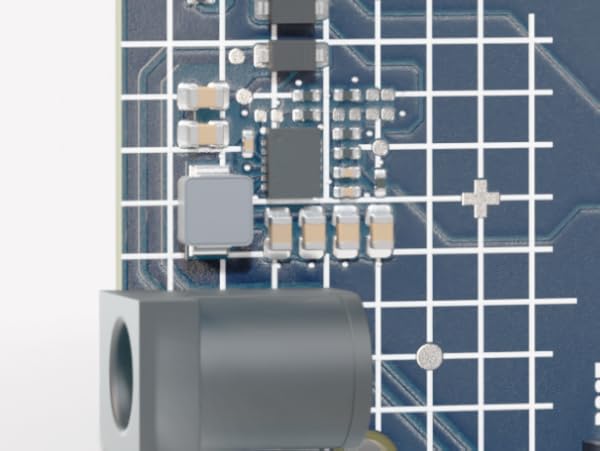

DCDC Converter
The board's new DCDC converter allows for a wider input voltage range (up to 24V).

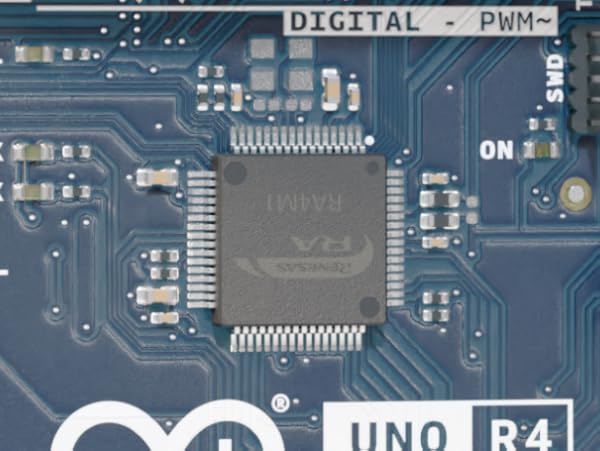

Renesas RA4M1 Processor
A powerful 32-bit Arm Cortex-M4 microcontroller provides a faster clock speed and more memory.
Advanced Capabilities
Includes a 12-bit DAC, CAN Bus, and OP AMP for more complex projects

WiFi and BLE

The integrated ESP32-S3 module enables seamless wireless communication, allowing you to connect to the Internet and interact via Bluetooth.

arduino uno r4 wifi with cloud comaptibility

Arduino Cloud

Both boards are compatible with the Arduino Cloud, providing an easy and intuitive way to program, monitor, and manage your projects from anywhere.

arduino uno r4 wifi and uno r4 wifi minima features

Wide Voltage Range

Both boards feature a new DCDC converter, allowing them to handle up to 24V. This simplifies projects with motors or LED strips.

arduino uno r4 wifi ram renesas processor

More Memory & Power

Both boards feature a 48 MHz clock speed and 256 kB of Flash memory, allowing for more precise calculations and larger projects.

What is the main difference between the Uno R4 WiFi and the Uno R4 Minima?
The Uno R4 WiFi includes an on-board ESP32-S3 for Wi-Fi and Bluetooth, plus an LED matrix. The Uno R4 Minima is a more cost-effective version without these features.
Is the Arduino Uno R4 series backward compatible with my old projects?
Yes, the Uno R4 boards maintain the same form factor, pinout, and 5V operating voltage as the UNO R3, ensuring compatibility with your existing shields and projects.
What is the Qwiic connector for?
The Uno R4 WiFi's Qwiic connector allows for quick plug-and-play integration with a vast ecosystem of I2C sensors and modules, including our own Arduino Modulinos.
How does the Uno R4 compare to the original Uno R3?
The Uno R4 is a significant upgrade with a faster 32-bit processor, more memory, and new features like a DAC and CAN Bus, while keeping the classic 5V operating voltage.

Mô tả

Thông tin chi tiết sản phẩm:

Dual-Core Processing with Renesas RA4M1 and ESP32-S3: The Arduino UNO R4 WiFi combines the Renesas RA4M1 microcontroller (ARM Cortex-M4) and the ESP32-S3 Wi-Fi/Bluetooth chip, delivering powerful dual-core processing capabilities. This combination offers flexibility for a wide range of projects, from high-speed communications and wireless control to real-time data processing and edge AI applications.
Comprehensive Wireless Connectivity: Equipped with Wi-Fi and Bluetooth 5.0, the UNO R4 WiFi ensures robust wireless communication for IoT projects, remote sensors, smart devices, and wireless control applications. Whether connecting to the cloud, other devices, or local networks, the board offers stable and high-speed wireless connectivity for seamless operation.
Modern USB-C, CAN, & Qwiic Connector: The USB-C port enables efficient power delivery and fast programming, improving ease of use compared to traditional USB connections. The Controller Area Network (CAN) support allows for reliable, real-time communication in industrial, automotive, or robotic systems. Additionally, the Qwiic Connector makes it easy to add I2C sensors and peripherals, simplifying the connection process and reducing the need for complex wiring.
High-Precision 12-bit DAC & OP-AMP: For projects that require high-quality analog output, the 12-bit DAC (Digital-to-Analog Converter) and integrated operational amplifier (OP-AMP) provide precise analog signal generation and amplification. This feature is ideal for audio projects, sensor interfacing, or applications where analog signal control and processing are necessary.
Integrated 12x8 LED Matrix: The UNO R4 WiFi includes a built-in 12x8 LED Matrix, enabling users to display dynamic visuals, messages, or real-time data on the board itself. This makes it perfect for projects that require immediate visual feedback, such as status indicators, event displays, or interactive user interfaces.
