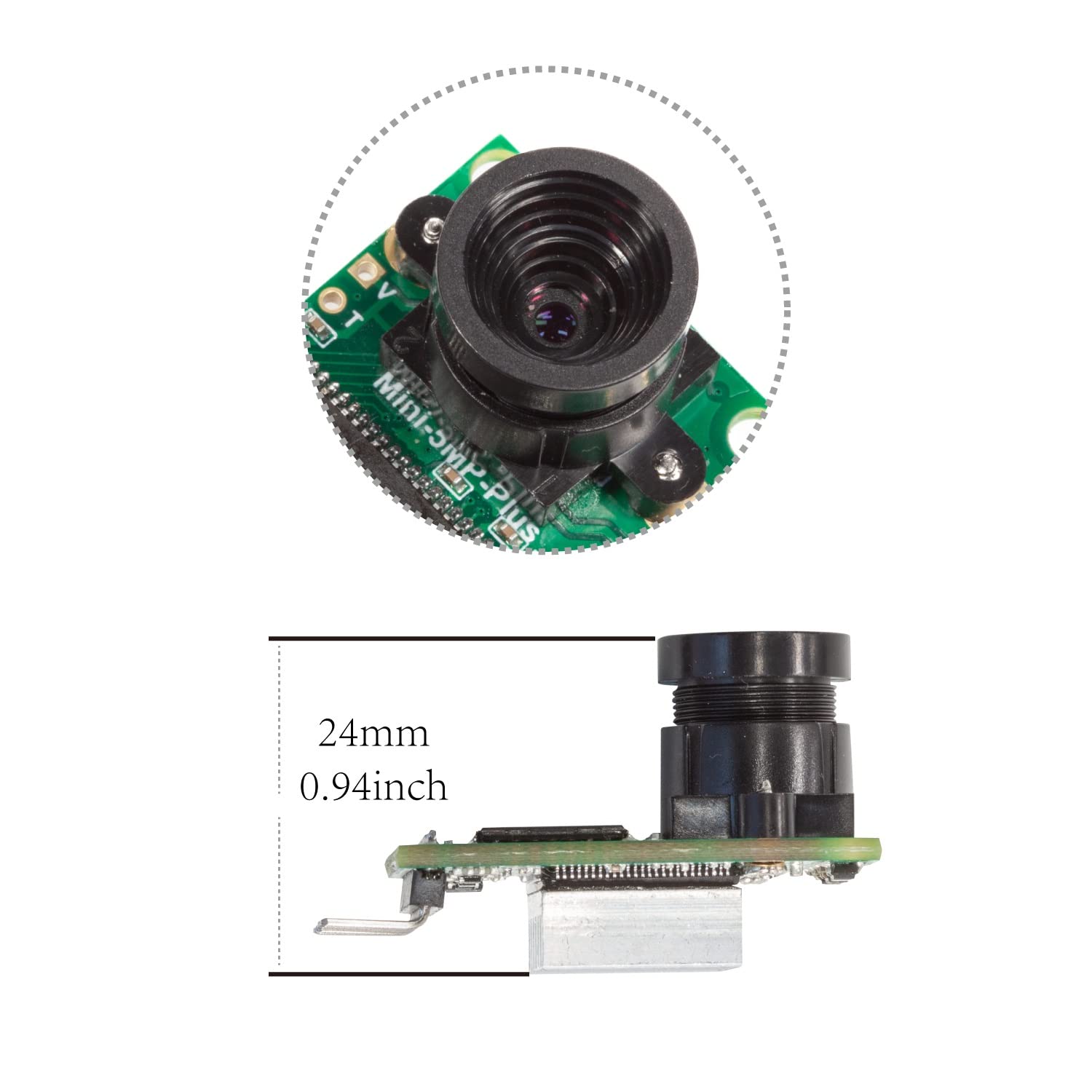

| Standing screen display size | 0.94 Inches |
| Screen Resolution | 2592 x 1944 |
| Processor | Tegra |
| Chipset Brand | arm |
| Card Description | Dedicated |
| Wireless Type | Infrared |
| Brand | Arducam |
| Item model number | B0068 |
| Operating System | Linux |
| Item Weight | 1.06 ounces |
| Package Dimensions | 6.3 x 2.8 x 1.65 inches |
| Color | Black |
| Processor Brand | ARM |
| Power Source | battery powered |

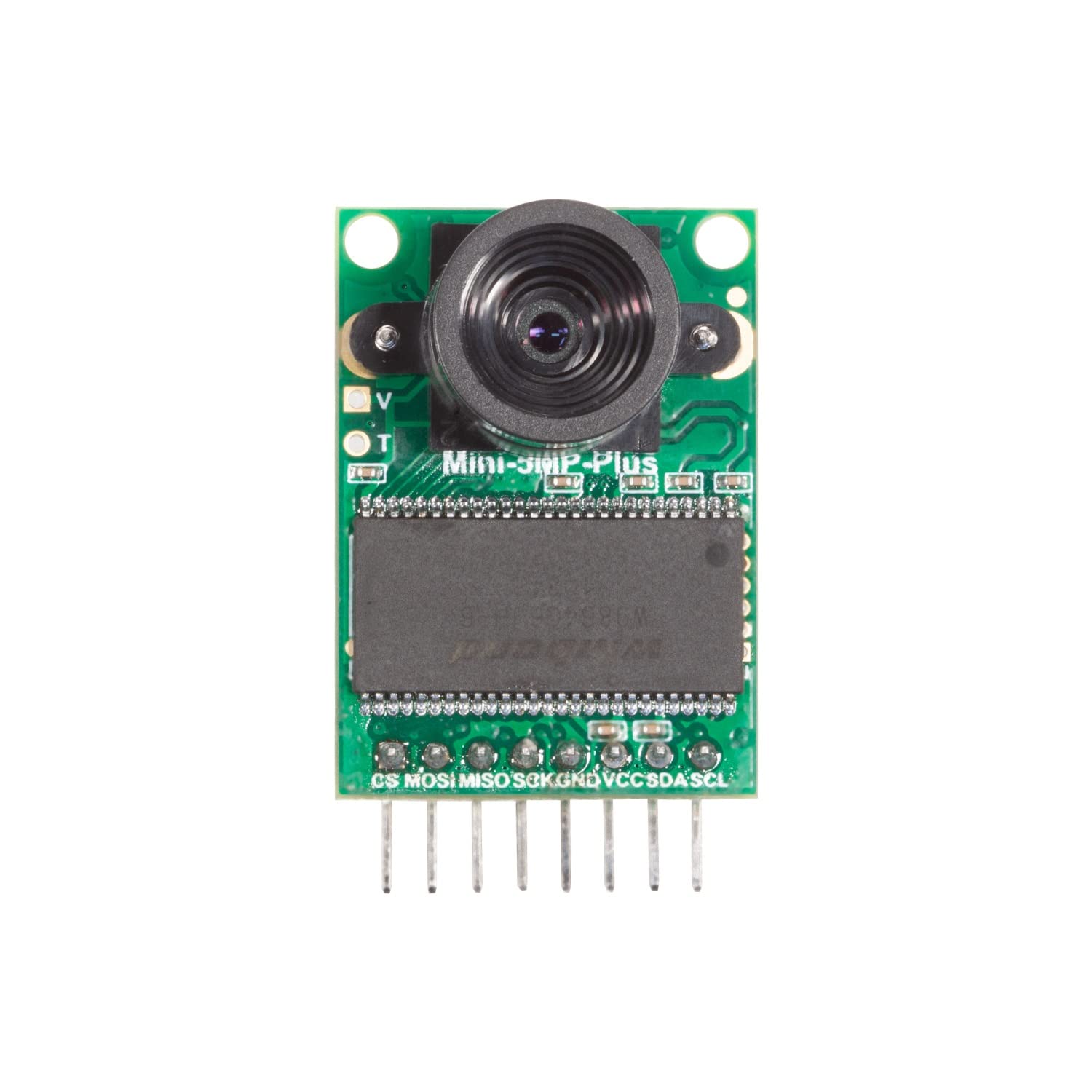

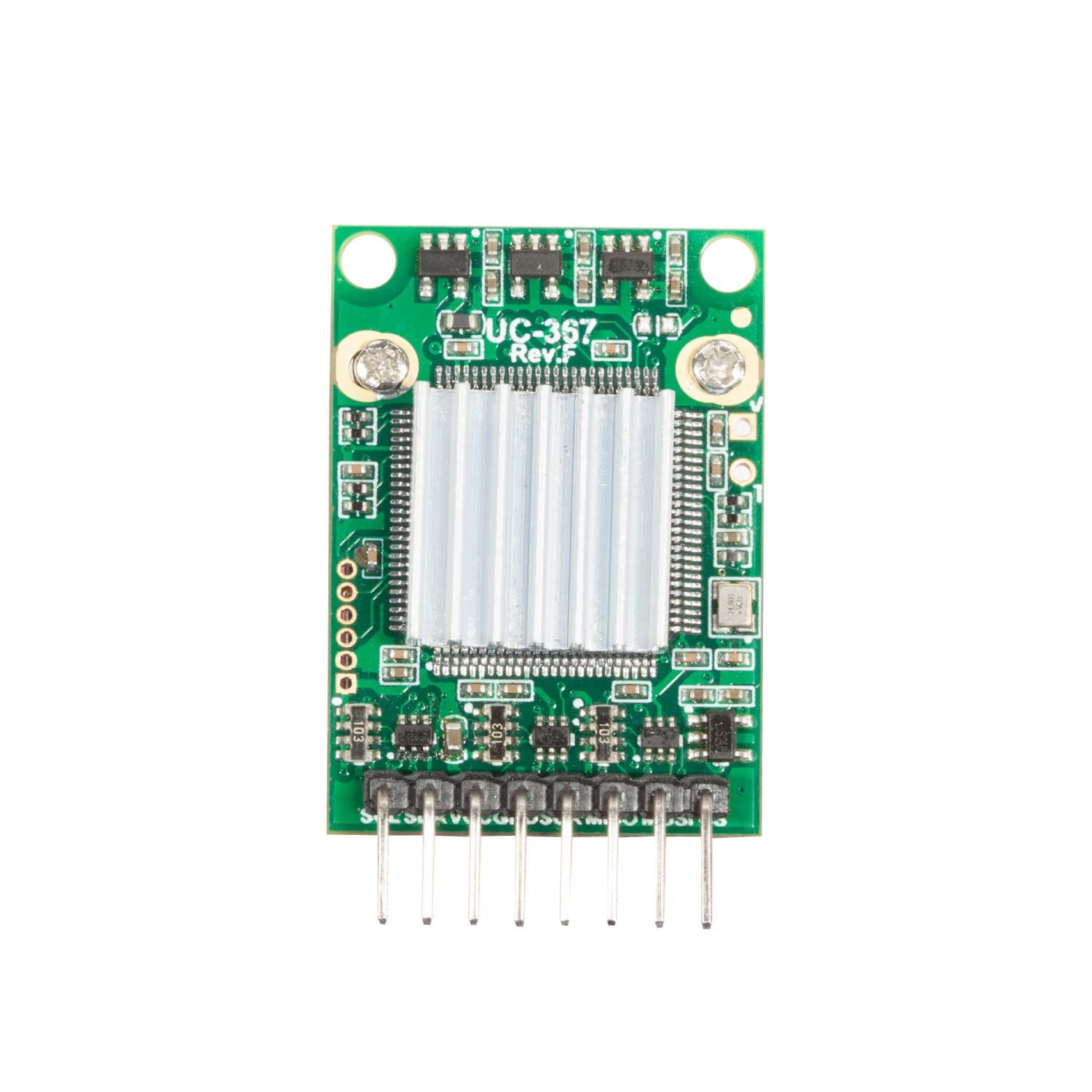

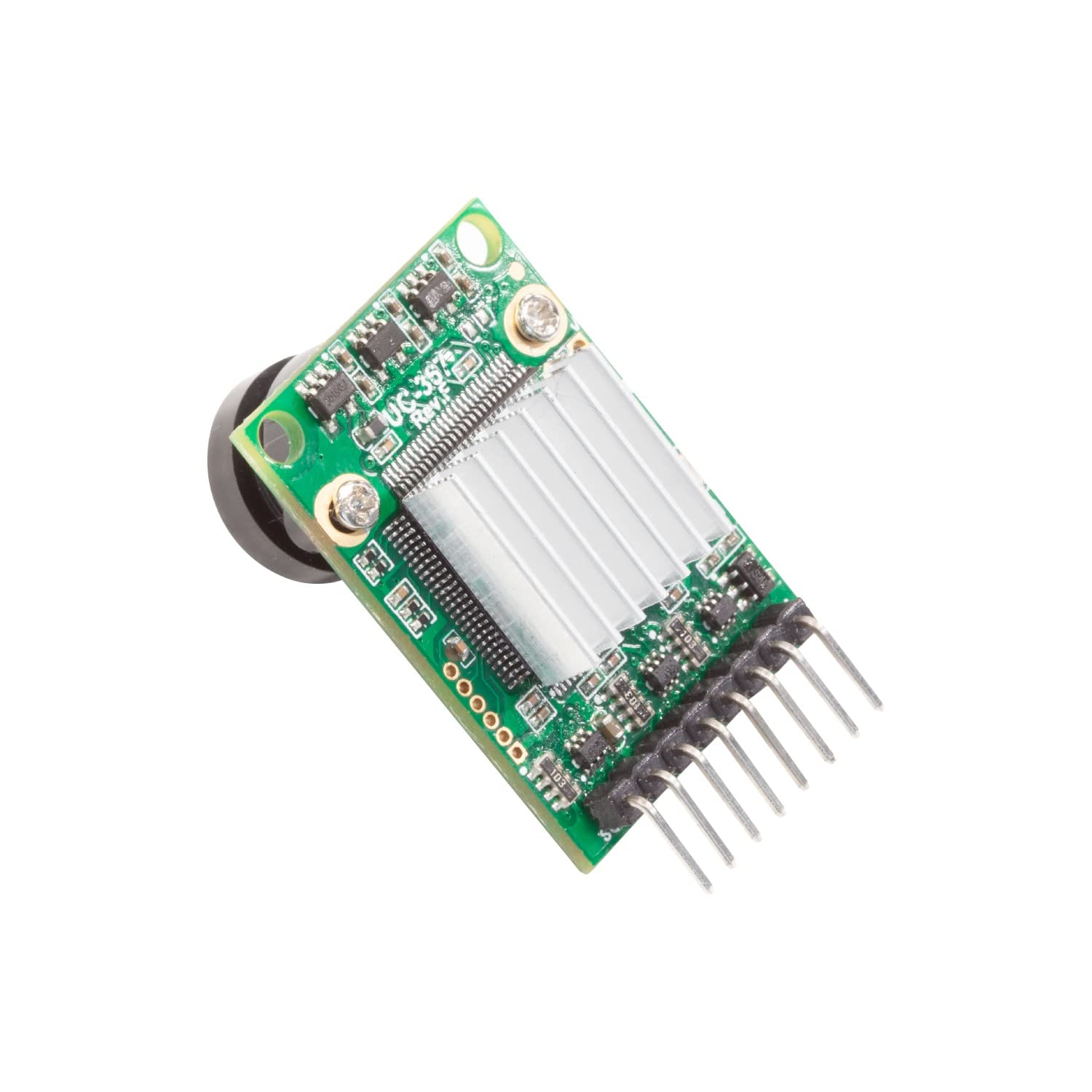

ArduCAM-M-5MP is optimized version of ArduCAM shield Rev.C, and is a high definition 5MP SPI camera, which reduce the complexity of the camera control interface.
It integrates 5MP CMOS image sensor OV5642, and provides miniature size, as well as the easy to use hardware interface and open source code library.
The ArduCAM mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards.
ArduCAM mini not only offers the capability to add a camera interface which doesn't have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.
Feature:
IR sensitive with proper lens combination
All IO ports are 5V/3.3V tolerant
Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read
operation, low power mode and etc.
Well mated with standard Arduino boards
Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
Small form of factor
Application:
IoT cameras
Robot cameras
Wildlife cameras
Other battery-powered products
Packing included:
1pcs Arducam Mini module Camera Shield w/ 5 MP OV5642 for Arduino UNO Mega2560 board
NOTE:Arduino UNO is not incldued
FTP support for datasheets
