| Package Dimensions | 5.08 x 3.31 x 1.3 inches |
| Item Weight | 1.13 ounces |
| ASIN | B0989M9QQG |
| Customer Reviews | 4.4 out of 5 stars 45Reviews |
| Date First Available | April 6, 2021 |
Detection
sing high-quality dual-panel design, with power indicator and TTL signal output instructions;
The switching signal having a DO (TTL) output and analog output AO ;
TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
Analog output voltage with the higher concentration of higher voltage.
A gas, natural gas, city gas , smoke better sensitivity.
There are four screw holes for easy positioning ;
Has a long life and reliable stability
Rapid response and recovery characteristic
Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note:
After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .
VCC: positive power supply (5V)
GND: power supply is negative
DO: TTL switching signal output
AO: analog signal output
Package included:

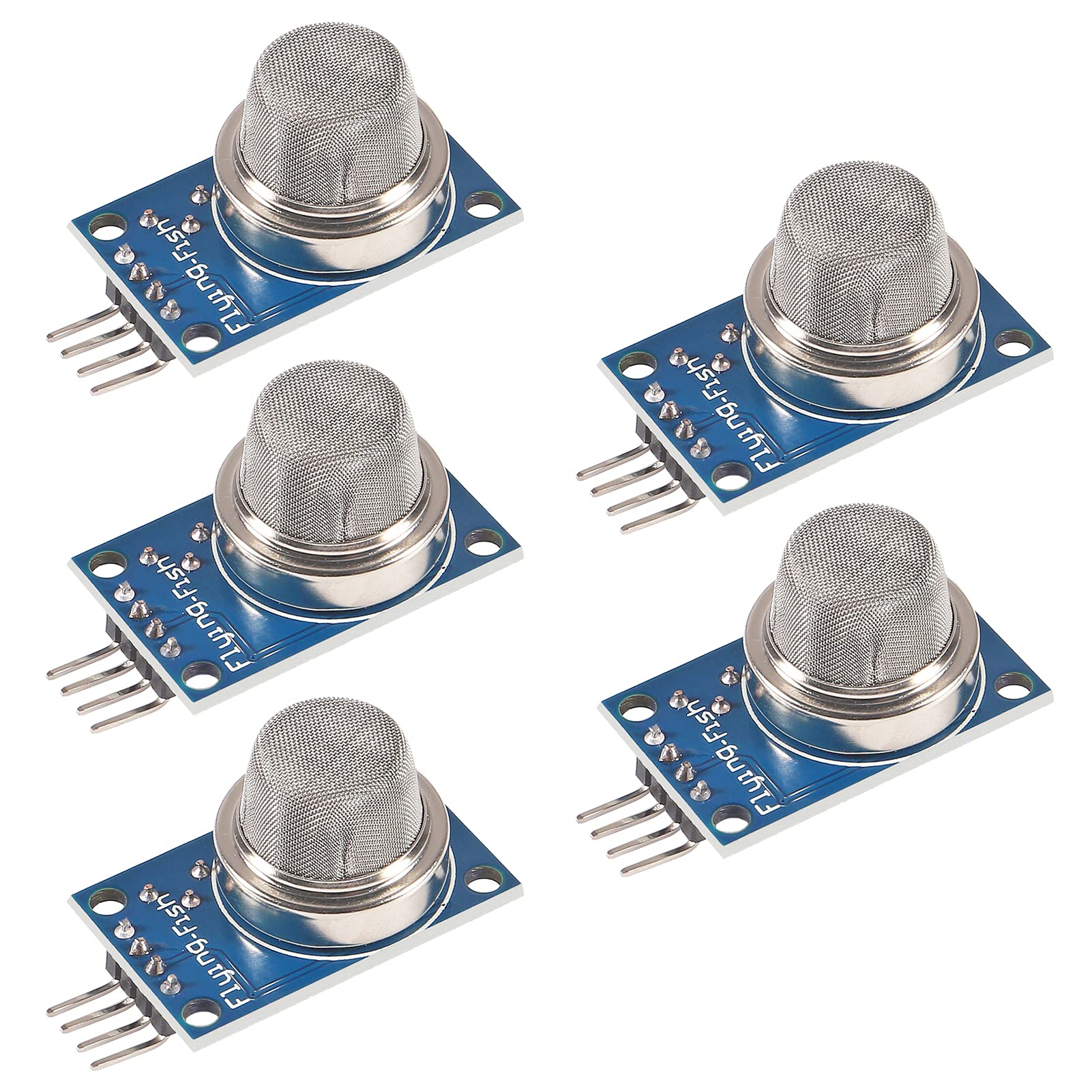

5 x MQ-2 MQ2 Smoke Gas LPG Butane Hydrogen Gas Sensor Detector Module
