| Standing screen display size | 3.5 Inches |
| Wireless Communication Standard | 802.11b |
| Processor Count | 1 |
| Product Dimensions | 2.83"L x 2.13"W x 0.59"H |
| UPC | 706352974012 |
| Item model number | STWI035WT-01 |
| Item Weight | 1.53 pounds |
| Item Dimensions LxWxH | 2.83 x 2.13 x 0.59 inches |
| Manufacturer | SCBRHMI |
| ASIN | B09Q5YBJH4 |
| Date First Available | October 8, 2022 |

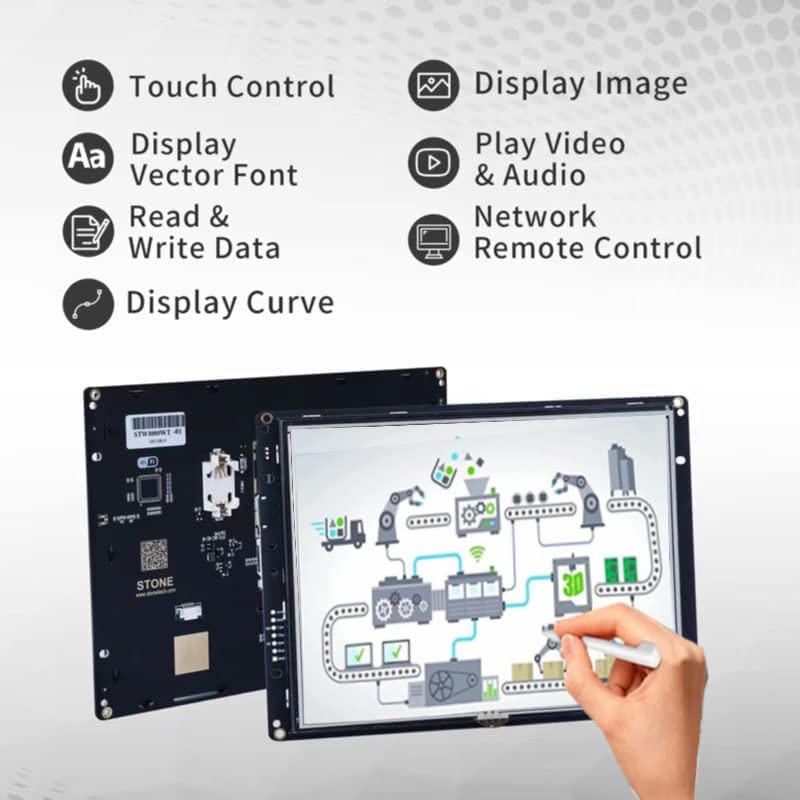

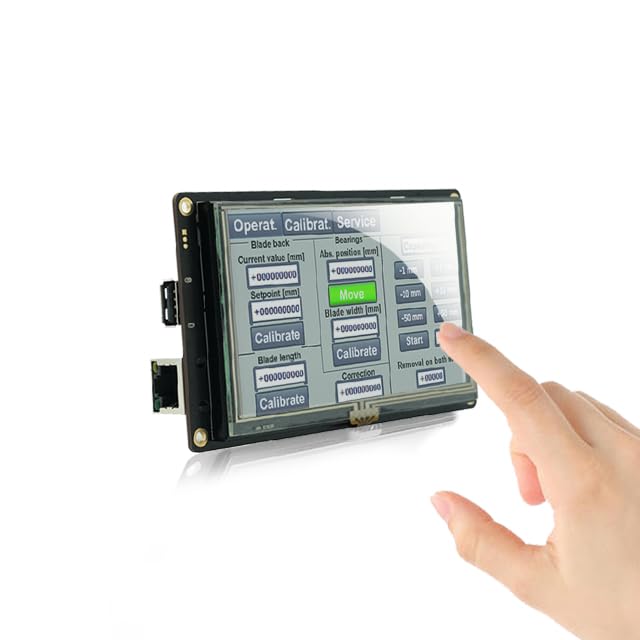

STWI035WT-01 is our 3.5“ Industry Series Screen.
Enjoy 3.5 inch industrial class 320x240 TFT LCD monitor & 4-wire resistance touch panel, 256MB of flash memory for HMI projects, 1G Hz Cortex A8 CPU, and 262k true-to-life colors. This offers 300 nit brightness, LED back light, View Area 70.08mm*52.56mm, Visual Angle 60/60/50/55, Working life an impressive 30,000 hours.
-Fully compatible with RS232/TTL UART Interface & USB port.
-Medical grade electromagnetic interference
-256MB flash memory can store your data, configuration files, image file, font file, video file and audio file etc.
-You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC.

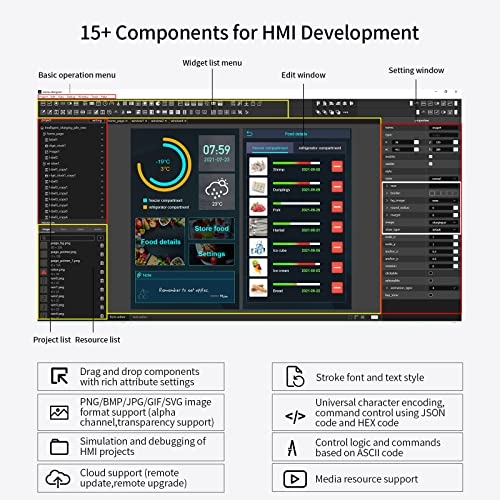

Our TFT LCD module is a whole display system that comes with no-cost GUI design software(STONE Designer). This offers an easy way to create an intuitive, superb touch user interface even for beginners. This will reduce 90% of your development time and cost. It makes designing a GUI a piece of cake.

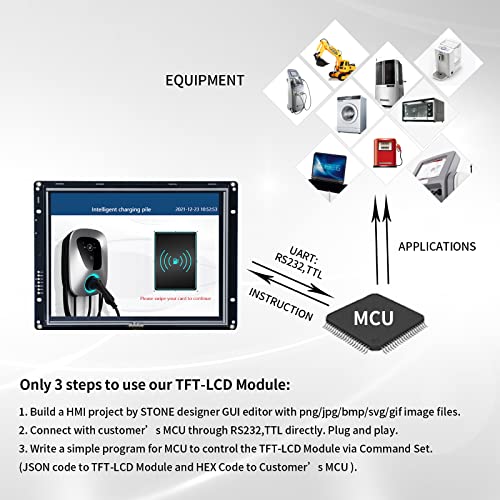

1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.
2. Connect with customer’s MCU through RS232,TTL directly. Plug and play.
3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.
(JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ).
That’s all.
Important Information:
This product comes with an RS232 interface as the default configuration, but you can easily modify it to a TTL interface if needed. Please ensure compatibility with your system before purchasing.
Note: This model does not include an Ethernet port and does not support RS485 or RS422 interfaces. Make sure the product meets your application requirements before proceeding with the purchase.
Software installation service for Android, iOS, and Linux systems. Control board included. To get the software and control board, refer to the after-sales sticker inside the packaging or the product manual, or consult the code for more details.
Please ensure you download the required software for full product functionality. We recommend scanning the code and installing the software before first use. Thank you for choosing our product - we're committed to providing excellent service!
 STWC043WT-01 | STWC070WT-01 | STWC101WT-01 |  STWI035WT-01 | STWI043WT-01 |  STWI050WT-01 | |
|---|---|---|---|---|---|---|
| Customer Reviews | 4 | — | 5 | 1 | 2 | 15 |
| Price | $68.99 | — no data | — no data | $68.00 | $76.00 | $88.99 |
| Size | 4.3 inch | 7 inch | 10.1 inch | 3.5 inch | 4.3 inch | 5 inch |
| Series | Civil Type | Civil Type | Civil Type | Industry Series | Industry Series | Industry Series |
| CPU | Cortex A8 | Cortex A8 | Cortex A8 | Cortex A8 | Cortex A8 | Cortex A8 |
| Flash Memory | 128M | 128M | 128M | 256M | 256M | 256M |
| Resolution | 480*272 | 800*480 | 1024*600 | 320*240 | 480x272 | 800*480 |
| Interface | RS232/TTL | RS232/TTL | RS232/TTL | RS232/RS422/RS485/TTL | RS232/RS422/RS485/TTL | RS232/RS422/RS485/TTL |
| Voltage | DC 4.5-6V | DC 4.5-6V | DC 4.5-6V | DC 5-28V | DC 5-28V | DC 5-28V |
| Work Temperature | -20℃ to +70℃ | -20℃ to +70℃ | -20℃ to +70℃ | -30℃ to +80℃ | -30℃ to +80℃ | -30℃ to +80℃ |
| Brightness cd/m2 | 300 | 300 | 400 | 300 | 350 | 600 |
