| RAM | LPDDR |
| Brand | UMLIFE |
| Item Weight | 2.08 ounces |
| Package Dimensions | 7.09 x 4.41 x 0.94 inches |
| Manufacturer | UMLIFE |
| ASIN | B09NCXKW9B |
| Country of Origin | China |
| Date First Available | December 10, 2021 |

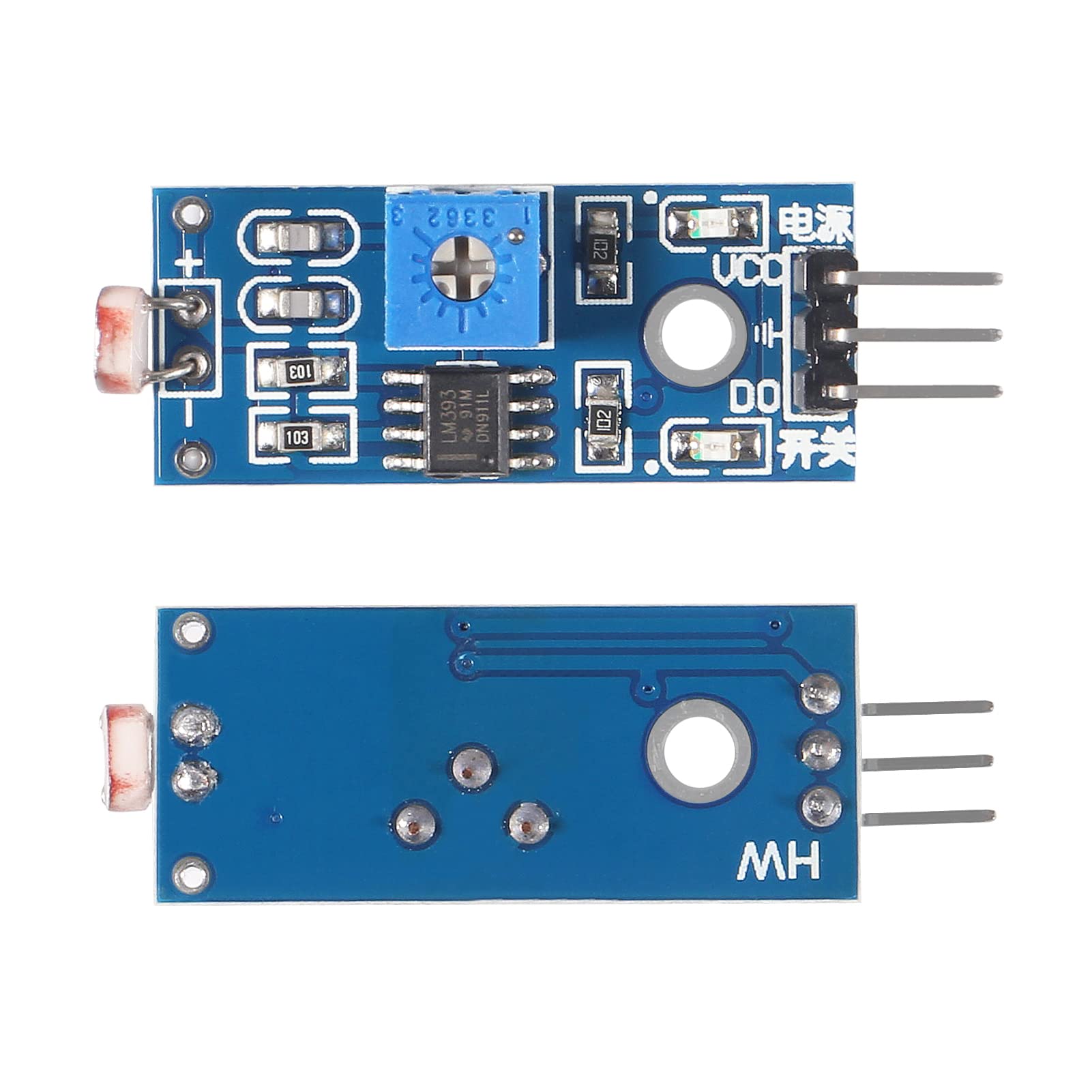

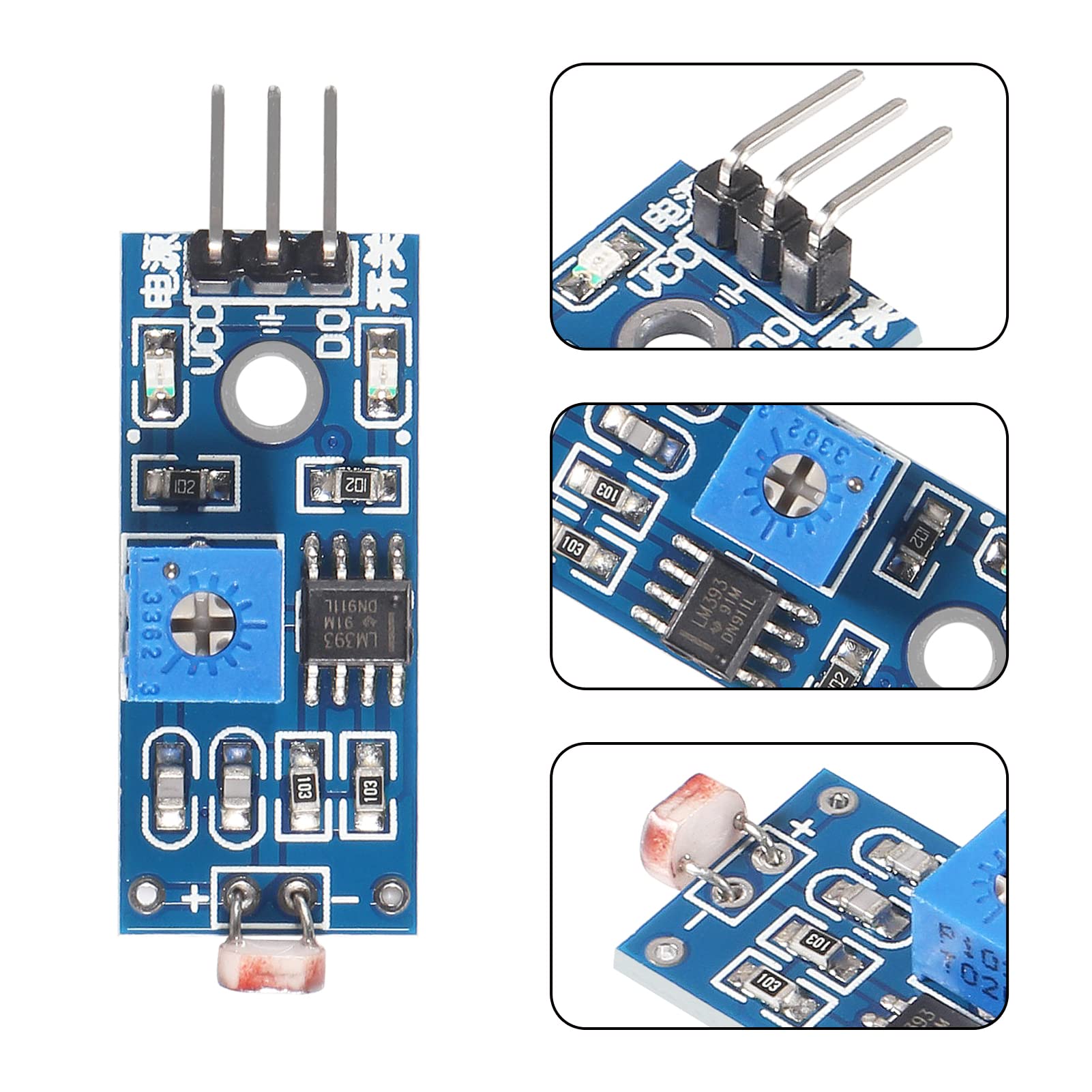

Features:
1. A sensitive sensor type photoresistor
2. The comparator output signal is clean, good waveform, driving ability, more than 15mA.
3. Adjustable potentiometer to adjust the brightness of the light detection
4. Working voltage: 3.3V-5V
5. Output format: digital switching outputs (0 and 1)
6. A fixed bolt holes for easy installation

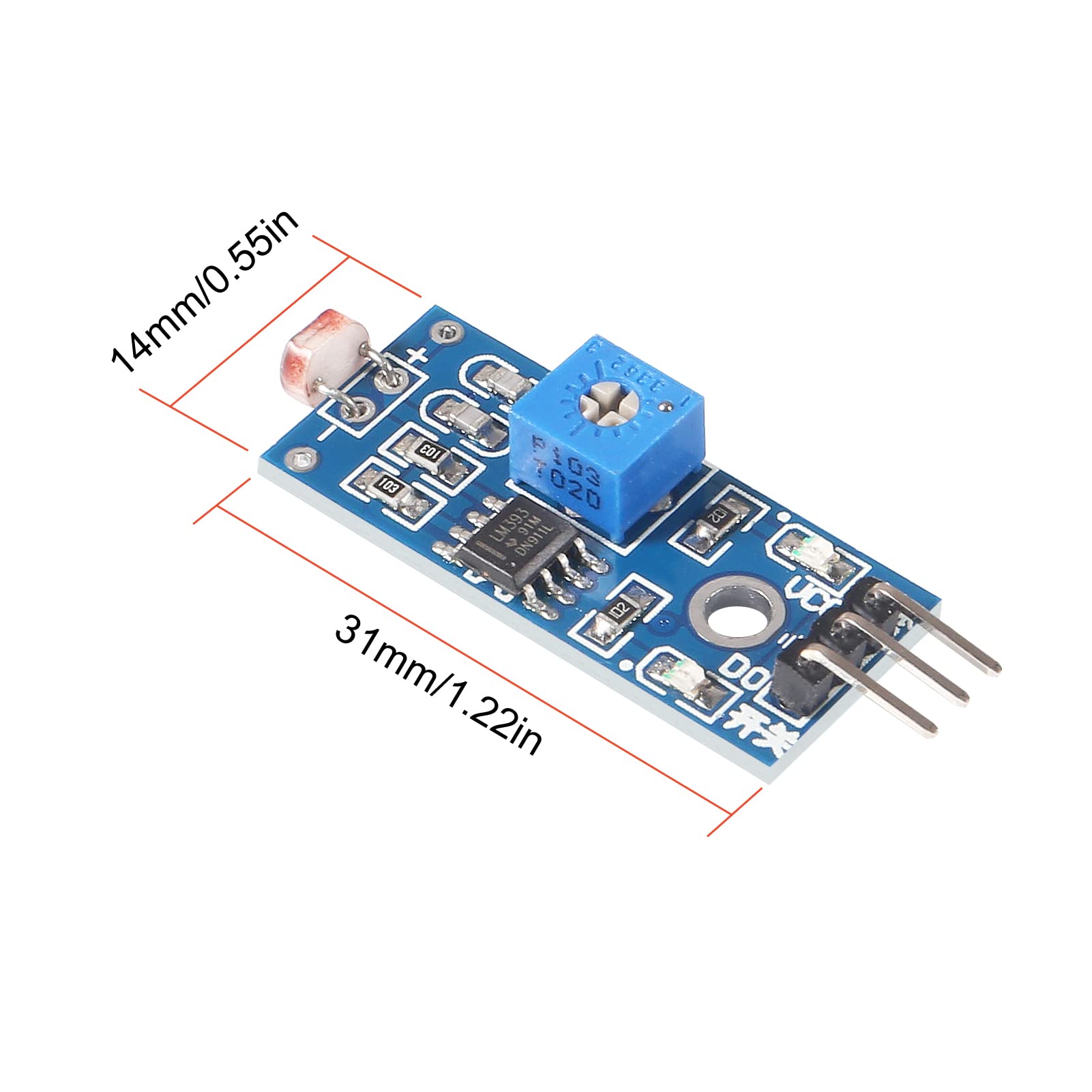

7. PCB size: 3.2cm x 1.4cm
8. Wide voltage LM393 comparator
Module instructions
1.The photoresistor module is most sensitive to ambient light, generally used to detect the brightness
of the surrounding environment, triggering a single-chip or relay module;
2. When the brightness of the ambient light reaches the set threshold, the DO end outputs a high level.
When the ambient light brightness exceeds the set threshold, the DO end outputs a low level;
3. The DO output terminal can be directly connected to the single-chip microcomputer, and the high-low level
is detected by the single-chip microcomputer, thereby detecting the change of the light brightness of the environment;
4. The DO output terminal can directly drive the relay module of the store, which can form a light control switch.

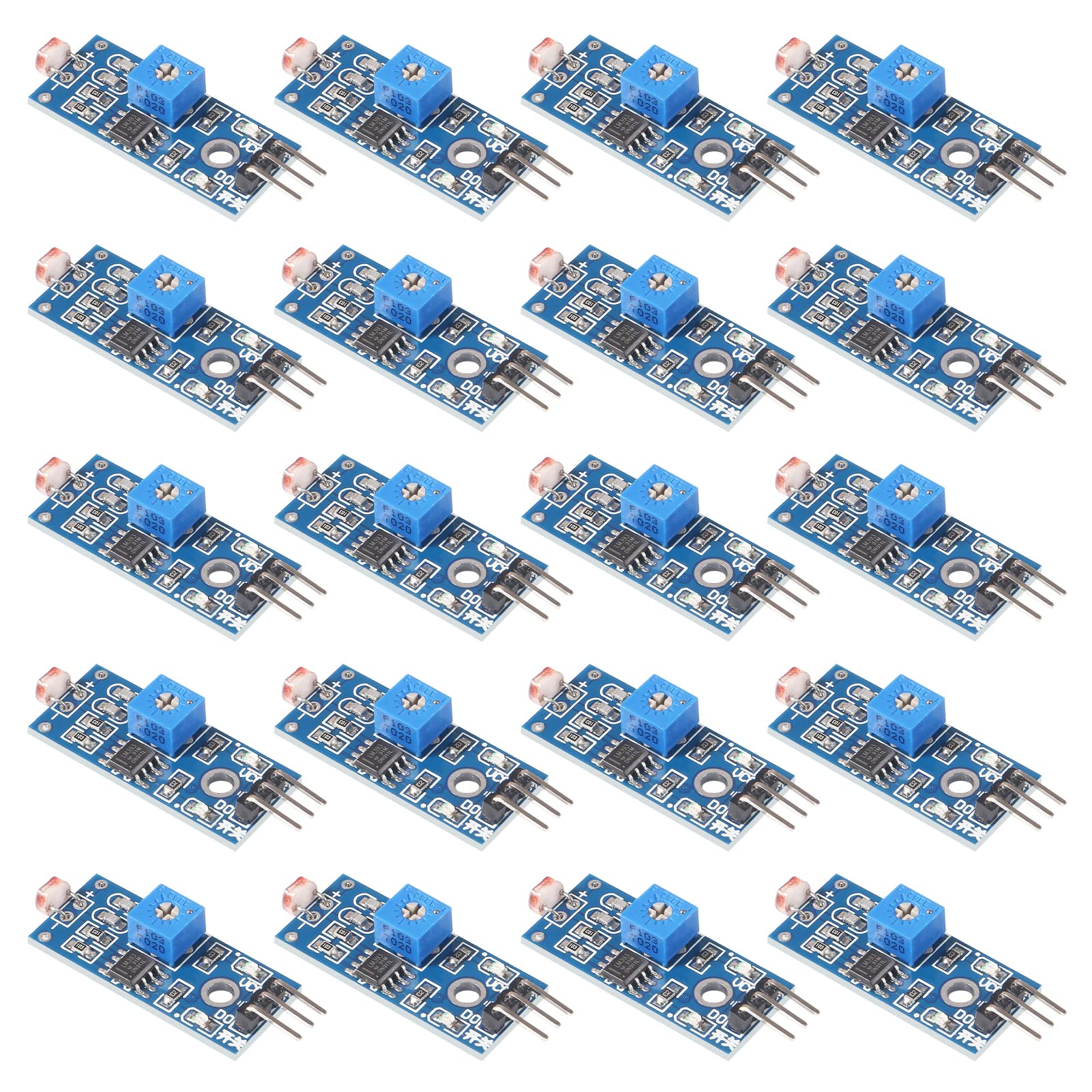

20PCS 5MM LDR Photosensitive Sensor Module Light Dependent Resistor Sensor Module Digital Light Detection LM393 3 pins for Arduino
