Frienda 20 Pieces IR Infrared Obstacle Avoidance Sensor Module 3-Wire Reflective Photoelectric Sensor Module Compatible with Arduino/Raspberry Pi 3/Smart Car Robot

20 Pieces IR infrared obstacle avoidance sensor module 3-wire reflective photoelectric sensor module compatible with Arduino/Raspberry Pi 3/Smart Car Robot

Feature:
When the module detects an obstacle in front of the signal, the green indicator lights on the board level, while the OUT port sustained low signal output, the module detects the distance 2 - 30 cm, detection angle 35 degree, the distance can detect potential is adjusted clockwise adjustment potentiometer, detects the distance increases. Counterclockwise adjustment potentiometer, reducing detection distance.

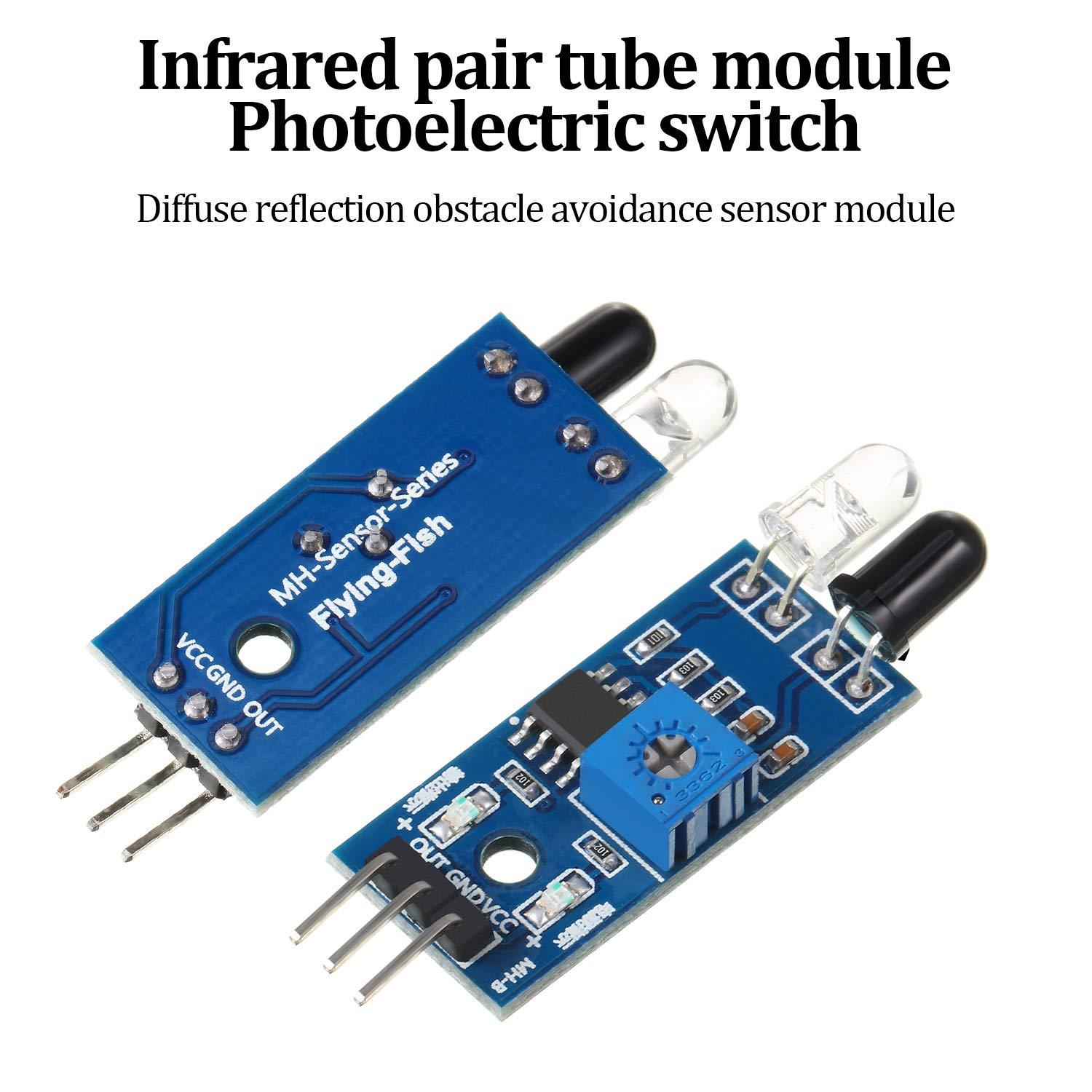

Infrared reflection detection:
The sensor active infrared reflection detection, target reflectivity and therefore the shape is critical detection distance. Where the minimum detection distance black, white, maximum; small objects away from a small area, a large area from the grand.

Connect to:
The sensor module output port OUT port can be directly connected to the microcontroller can also be directly drive a 5V relay; Connection: vCC-VCC; GND-GND; OUT.

Usage:

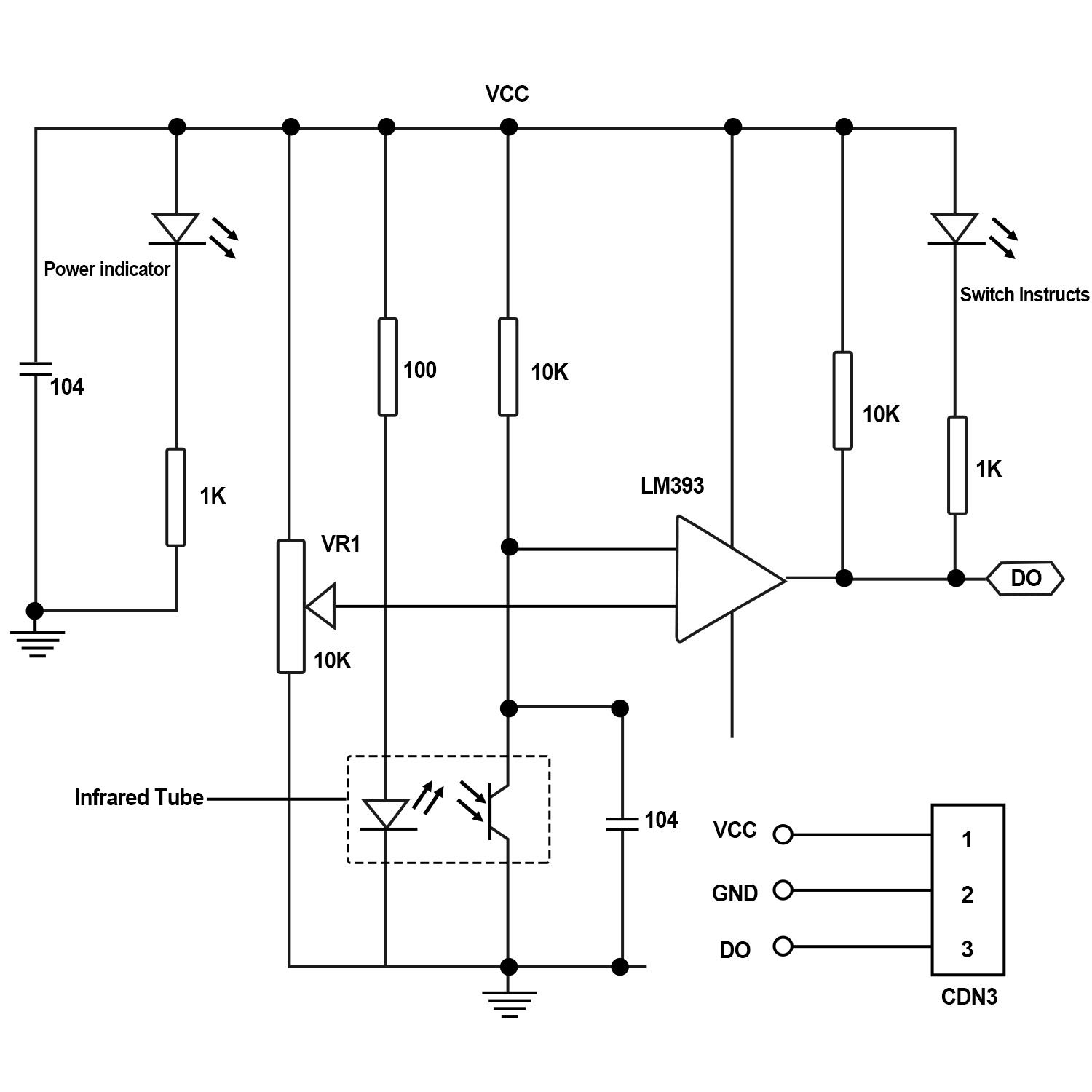

Can be applied for 3-5V direct current power supply modules. When the power is turned on, the red power indicator light. Using the comparator LM393. Each module has been shipped threshold comparator voltage adjusted by potentiometer good, non-special case, do not adjustable potentiometer.

Specification:
Interface:
1. VCC: external 3.3-5 voltage (can be directly connected to 5v MCU and 3.3v MCU)
2. GND: gND external
3. OUT: small board digital output interfaces (0 and 1)
Connection : vCC-VCC; GND-GND; OUT

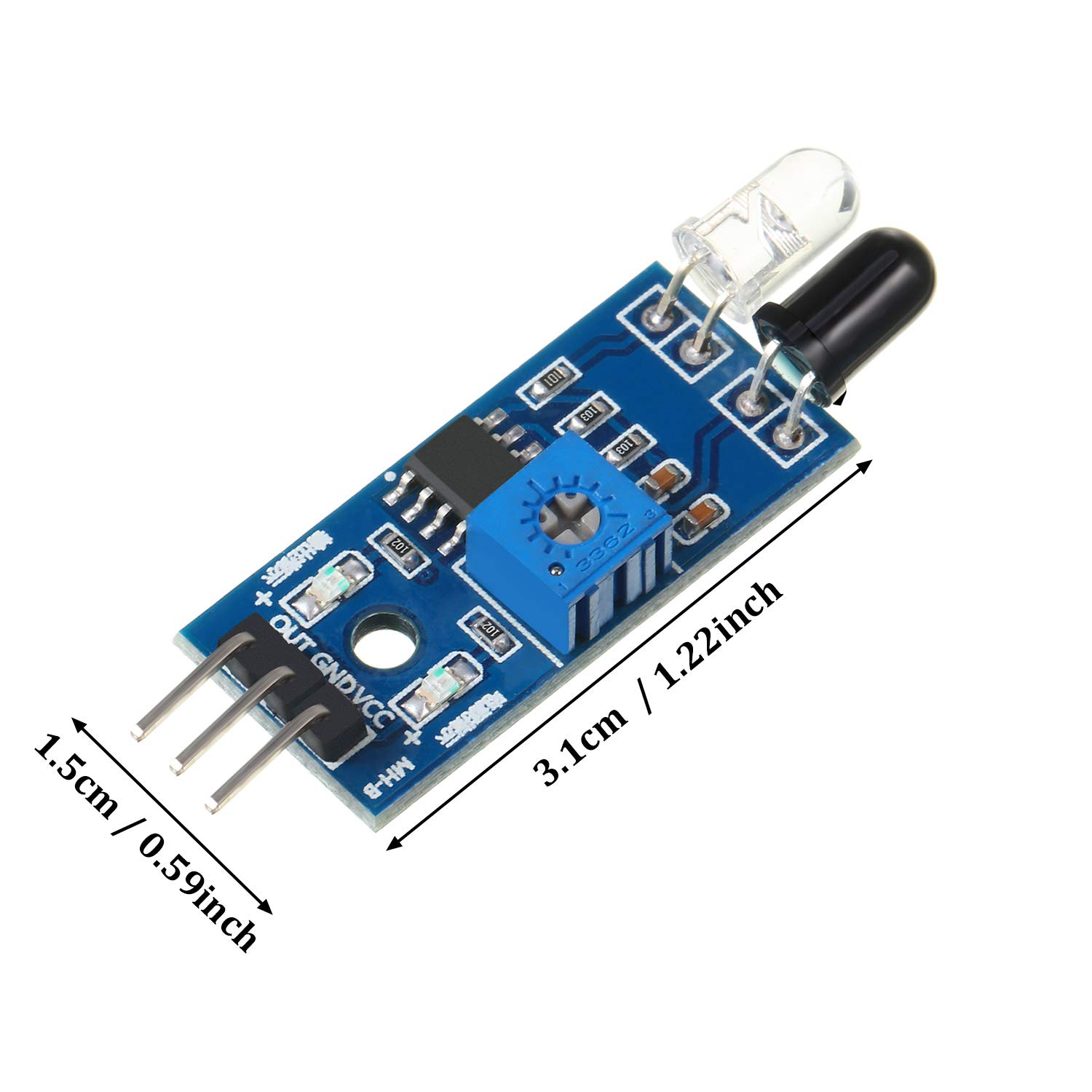

Board size: 3.1 x 1.5 cm/ 1.22 x 0.59 inch, with the screw holes of 3mm, easy fixed installation

Package includes:
20 x Infrared obstacle avoidance module

Note:
The mention of brand names and any related models above are only for purposes of demonstrating compatibility, our trademark is Frienda.
