| Number of Pieces | 1 |
| Batteries Required? | Yes |
| Batteries Included | No |
| Material Type(s) | Aluminum |
| Warranty Description | 1 |
| Manufacturer reference | DPC-XGL1-JP |
| Package Dimensions | 31.3 x 23.7 x 14 cm; 1.75 kg |
| ASIN | B0CW36K1J5 |
Hanging shock absorbing thong chassis is designed for all terrain smart cars and robots DIY projects.Adopts 8-channel high elastic carbon steel tension spring and heavy duty micro bearings, providing excellent shock absorption and optimal performance on all surfaces.This chassis is constructed with full metal construction and has enough expansion holes to easily integrate deep cameras, controllers, sensors and other components.This design promotes user-friendly development and expansion possibilities.Note: All relevant course materials are provided in English.

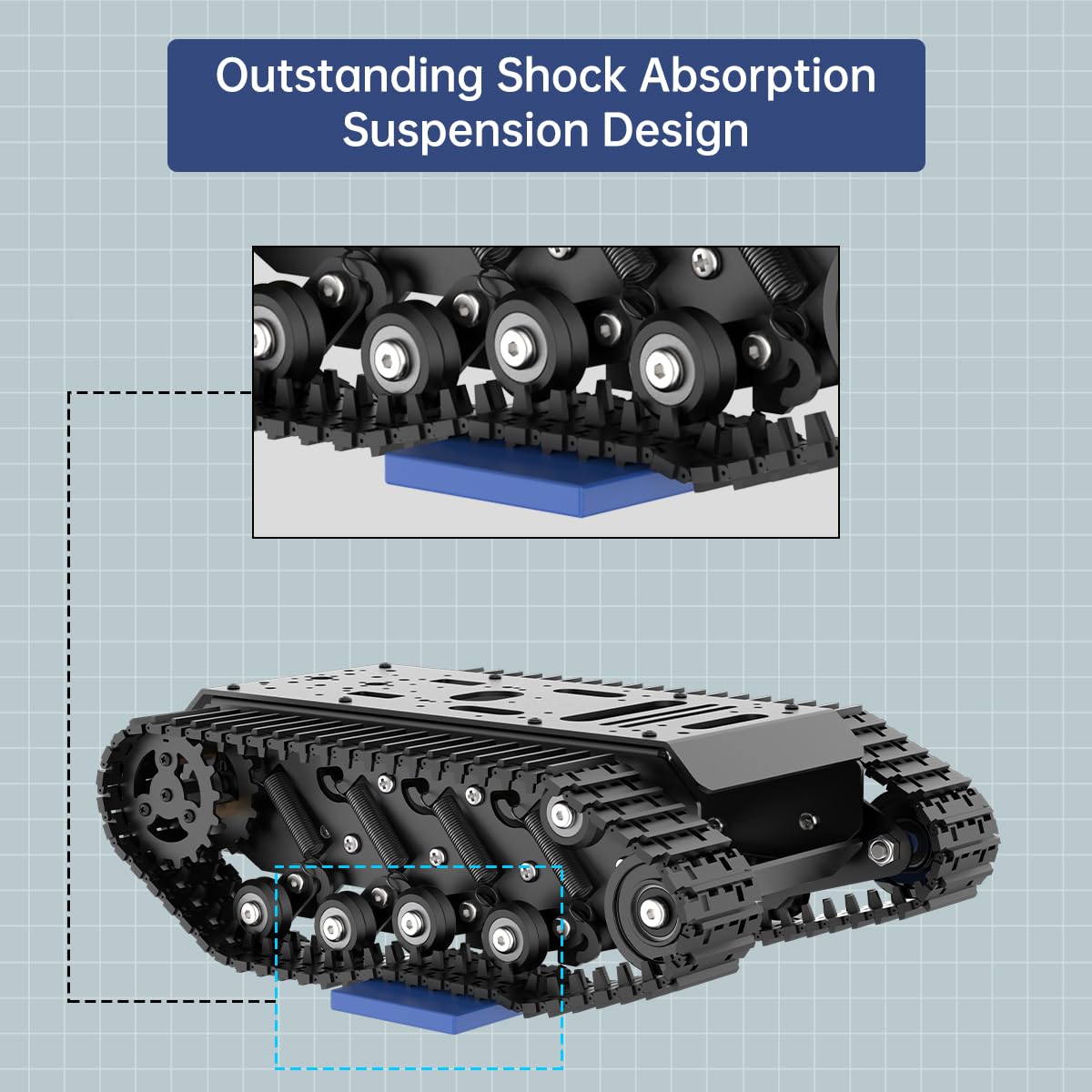

Built-in 8 channel high elastic carbon steel tension spring and micro bearing.
Heavy duty micro bearings increase the shock absorption of the chassis

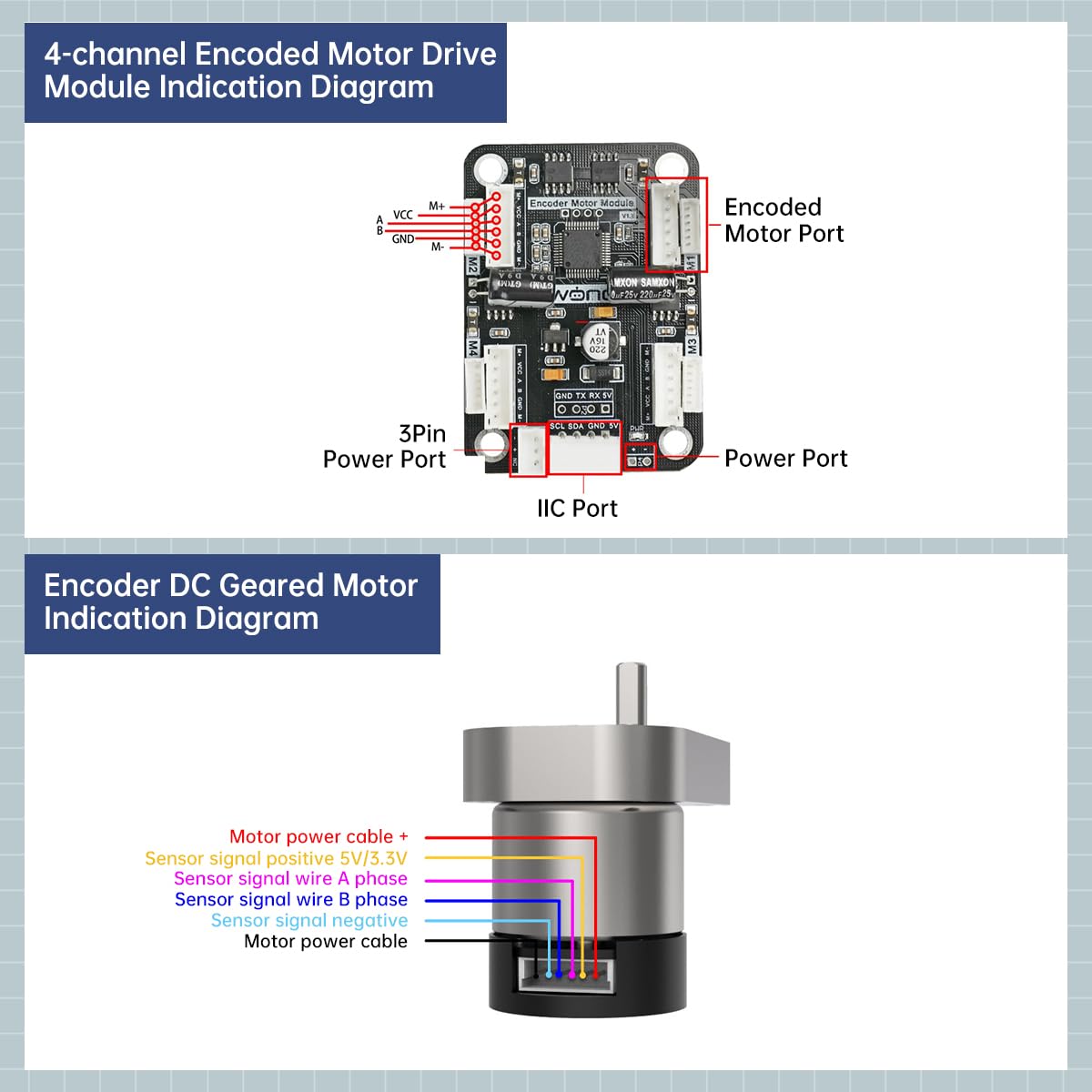

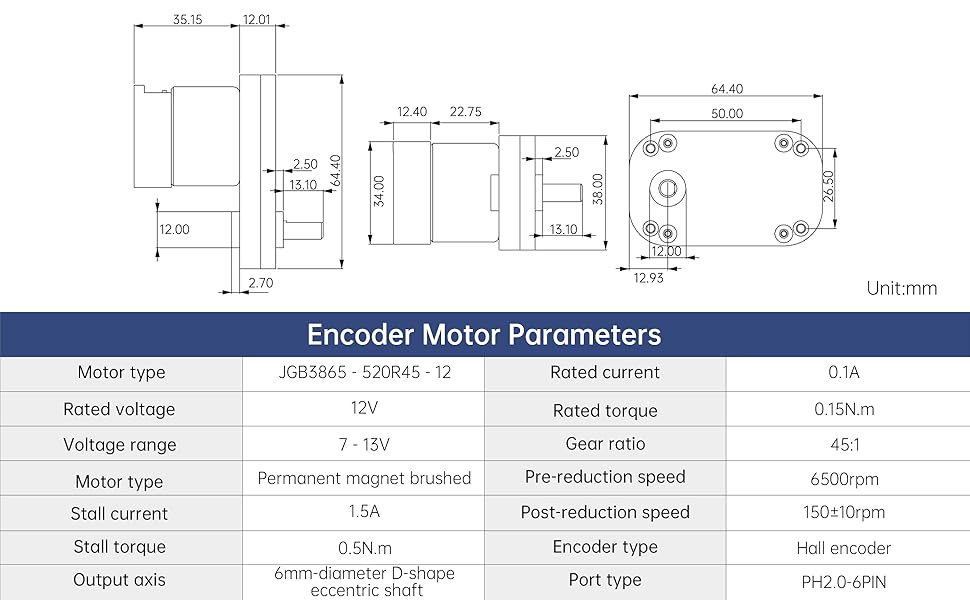

The chassis features a high performance DC geared motor with a precision encoder and a rated voltage of 12V, ensuring strong power, high precision, and anti-interference.

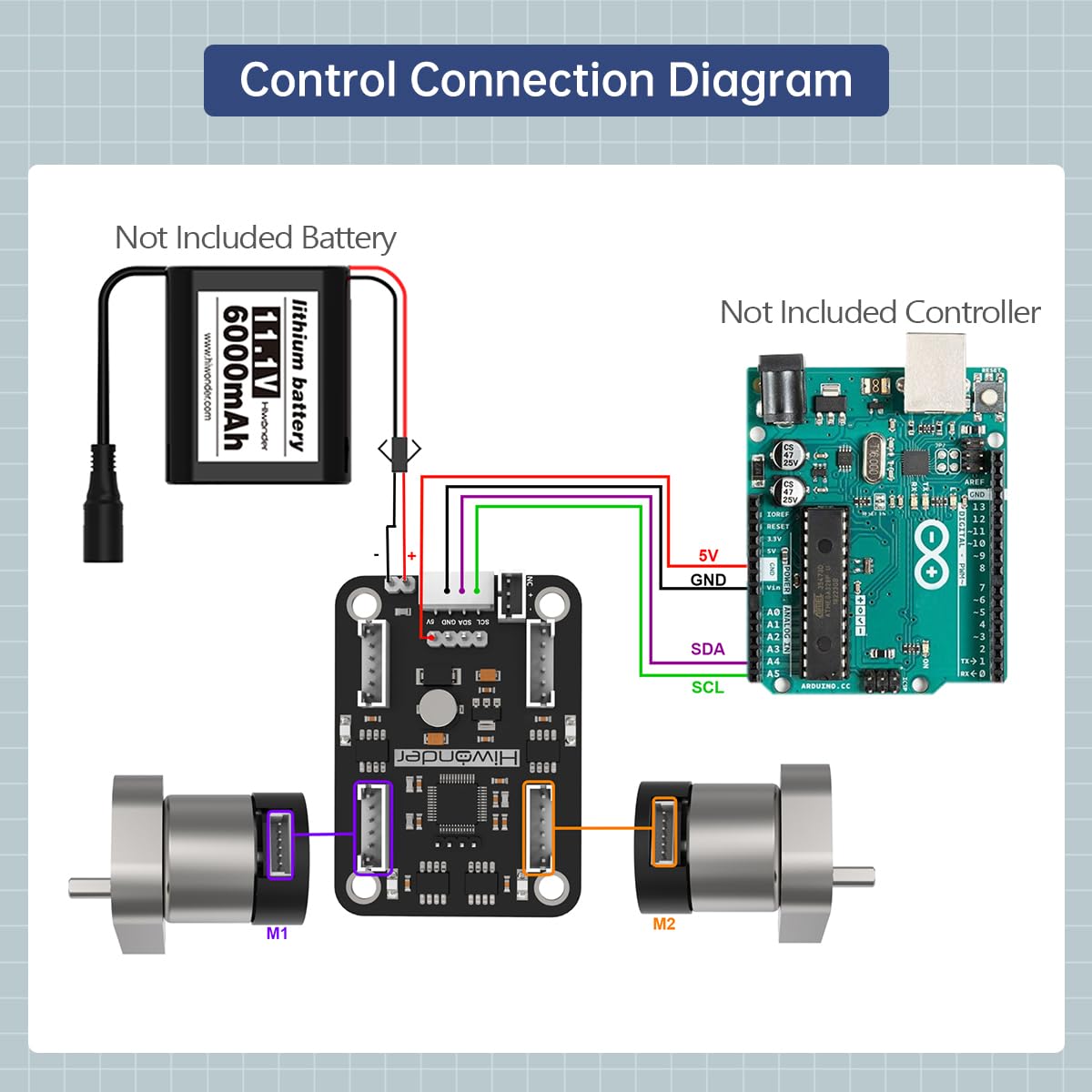

Controller board is not included.
The chassis incorporates high quality plastic particles and a dense, inflated tread enhances friction and allows smooth navigation even in complex terrain.

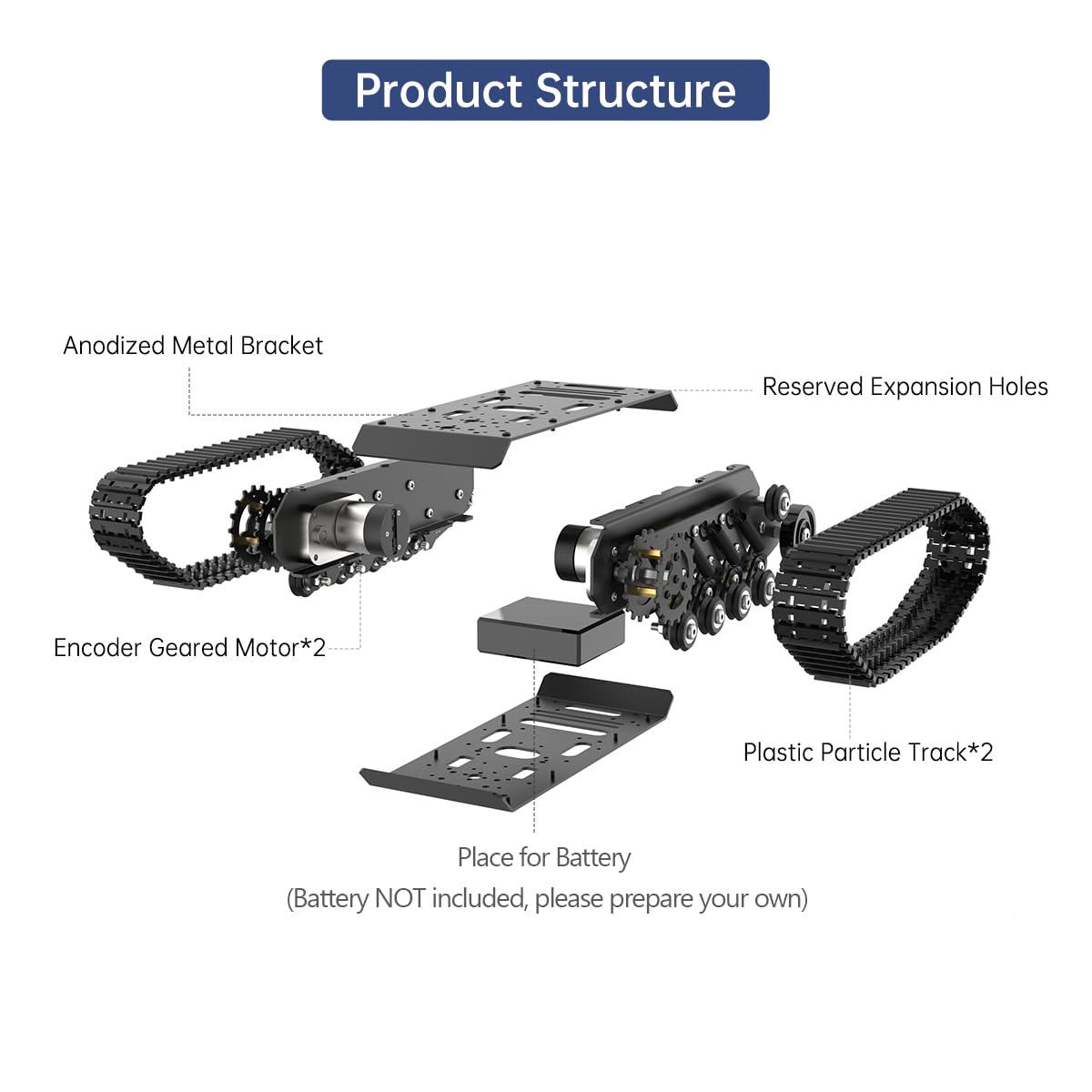

The body is made of aluminum alloy with anodized surface treatment, giving it a luxury appearance. The top layer can be easily removed for easy DIY development.
The chassis is equipped with a high performance DC geared motor, high quality plastic particle track, high modulus carbon steel tension spring, and heavy duty micro bearings, which demonstrates agile maneuverability in a variety of terrain.The chassis features a beautiful all-metal aluminum alloy construction with an anodized surface.The hanging shock absorbing truck chassis can extend electronic systems such as STM32 controllers for more creativity.
