Rasbee TCRT5000 Infrared Obstacle Avoidance Module Tracking Sensor IR Reflection Sensor Module Infrared Reflective Photoelectric Switch Trace Module Single Channel Line Track Parallel Import Product
TCRT5000 Infrared Reflection Sensor Obstacle Avoidance Module Trace Sensor Race Module

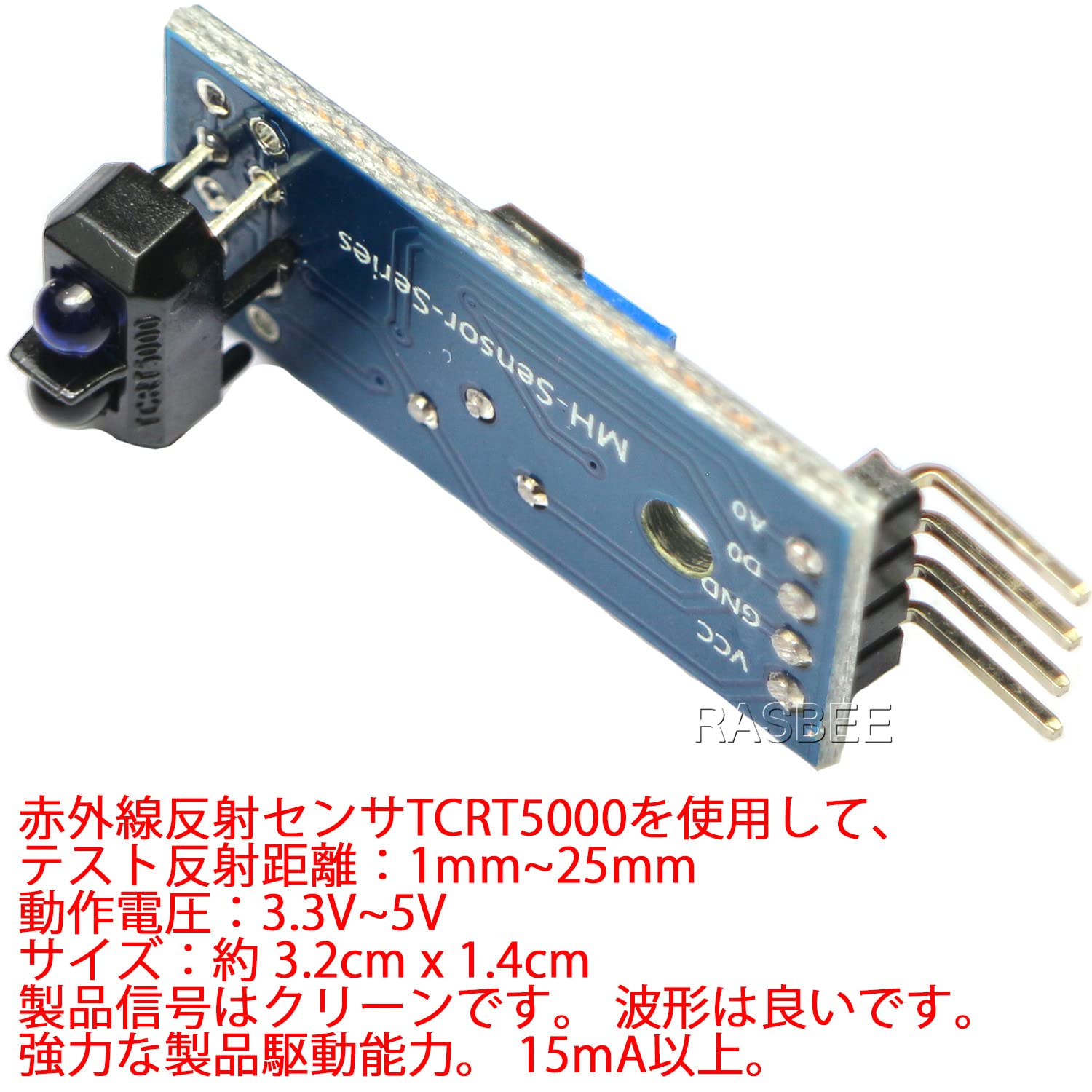

Using infrared reflection sensor TCRT5000,
Test reflection distance: 0.04 in (25 mm)
Cleans the comparator output and tells you strong, waveform for more than 15 mAh operating power.
Adjustable precision potentiometer to adjust sensitivity
Operating voltage of 3.3V to 5V
Output form: Digital switch output (0 and 1).
Fixed bolt hole, convenient installation
Use a wide voltage comparison
Test reflection distance: 0.04 in (25 mm)

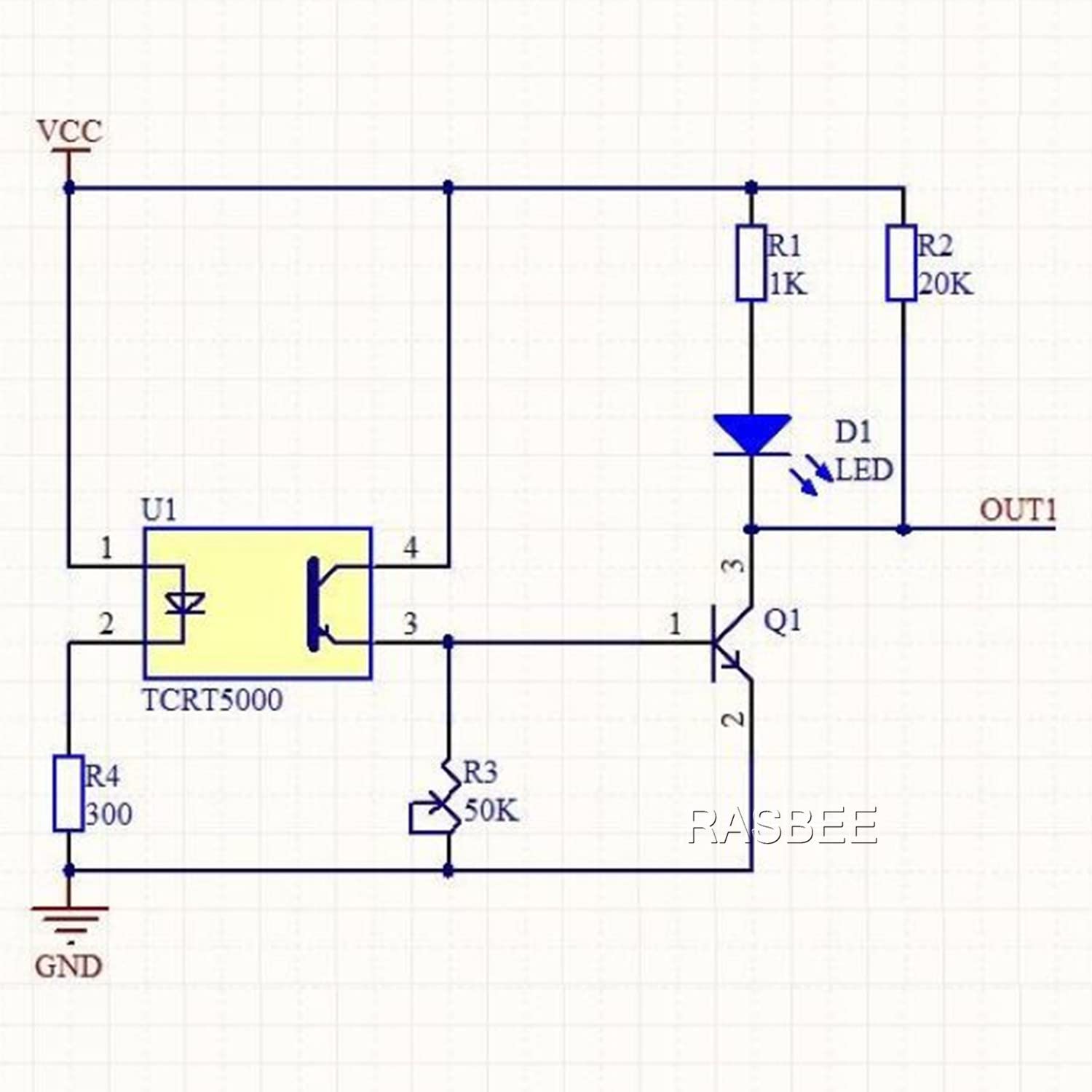

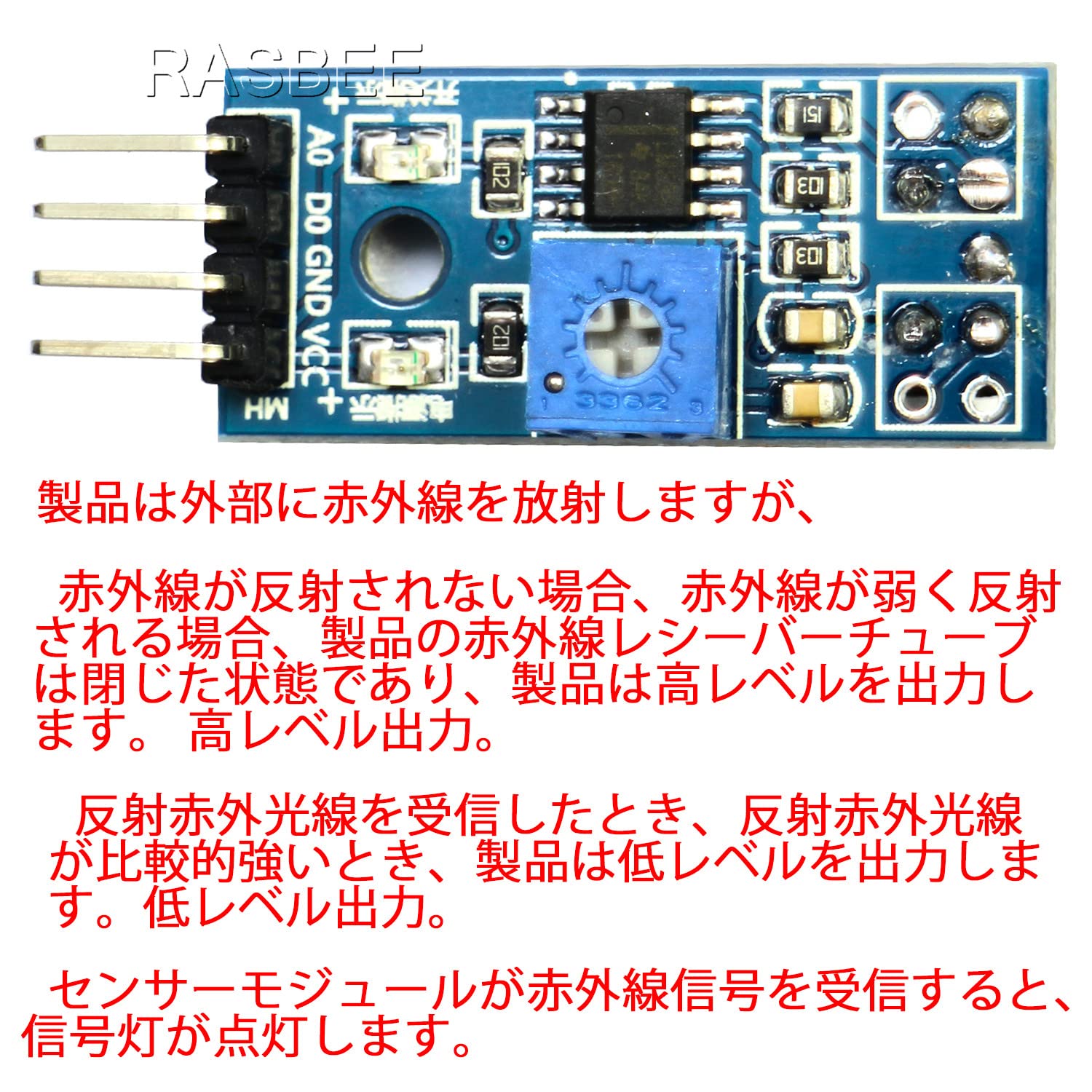

TCRT5000 sensor emits continuous infrared radiation diodes. Non-reflected or reflected but emitted when not strong enough, the photo transistor is shut down, the output module is high, and the diode remains off. Objects seem to be detected within the infrared detection range and when strength is large enough, the photo transistor saturated and the module output is low, and the diode is on.
1. Meter pulse data sampling
2. Detect Fax Shredder
3. Obstacle detection
4. Detection black and white lines.
