HANMATEK HO52S Digital Oscilloscope 50Mhz Bandwidth, 2 Channel 3 in 1 Oscilloscope/Multimeter/Signal Generator Mini Oscilloscope with 3.5" TFT Backlit Screen, Auto Calibration, Memory Function

Thương hiệu: HANMATEK

HANMATEK HO52S Digital Oscilloscope 50Mhz Bandwidth, 2 Channel 3 in 1 Oscilloscope/Multimeter/Signal Generator Mini Oscilloscope with 3.5" TFT Backlit Screen, Auto Calibration, Memory Function

Bán tại: Nhật

4.1

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

4,884,421đ

Style

HO52S

HO52

HO102

HO102S

Dự kiến giao hàng từ Nhật về Việt Nam ngày 07-12-2025 - 13-12-2025

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu HANMATEK là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm HANMATEK HO52S DIGITAL OSCILLOSCOPE 50MHZ BANDWIDTH, 2 CHANNEL 3 IN 1 OSCILLOSCOPE/MULTIMETER/SIGNAL GENERATOR MINI OSCILLOSCOPE WITH 3.5" TFT BACKLIT SCREEN, AUTO CALIBRATION, MEMORY FUNCTION là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Manufacturer	HANMATEK
Part number	HO52S
Item Weight	1.07 Kilograms
Product Dimensions	23 x 13 x 7 cm; 1.07 kg
Color	black\|blue
Style	HO52S
Power source type	Battery Operated
Batteries Included	No
Batteries Required?	No
Item Dimensions LxWxH	23 x 13 x 7 cm

Tính năng sản phẩm

Sản phẩm HANMATEK HO52S Digital Oscilloscope 50Mhz Bandwidth, 2 Channel 3 in 1 Oscilloscope/Multimeter/Signal Generator Mini Oscilloscope with 3.5" TFT Backlit Screen, Auto Calibration, Memory Function của thương hiệu HANMATEK với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

Main Features

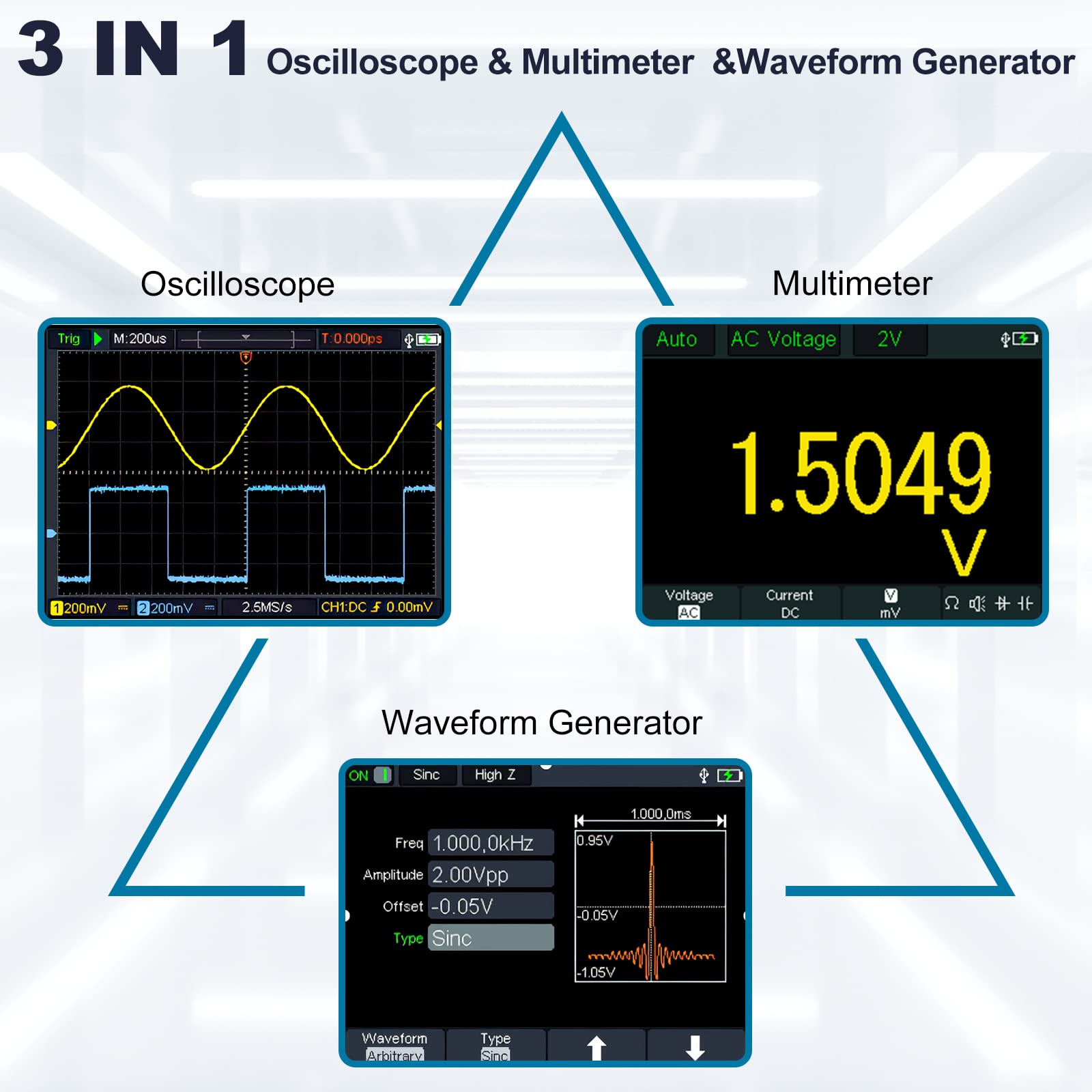

3 in1 oscilloscope/multimeter/signal generator50Mhz Dual Channel 3.5" HD Display 250Msa / s USB Rechargeable Battery

Package

1 x HO52S Digital Oscilloscope
1 x Tote Bag.
2 x Oscilloscope probe
1 x Adapter
1 x USB data cable.
1 x Multimeter Pen
1 * Description
1 x Calibration Pen

Double sampling mode

Use peak sampling to detect interference glitches and reduce the possibility of aliasing.

High refreshing, deep storage

Up to 10,000 wfms / s waveform refresh rate, 8K storage depth, easy to capture unusual events, low probability events

Storage function

4 setting groups, 4 reference waveforms, 4 images and 4 waveform groups in CSV format. The reference waveform can be displayed on the same screen as the measurement waveform, making it convenient for corrugated comparison. When connected to a computer using USB TYPE-C interface, the computer recognizes the oscilloscope as a USB flash drive, and can read the stored images or CSV waveform.It is useful for viewing and analyzing waveforms later or sharing waveform data.

Smart chip, faster charging

LCR adopts a rechargeable design, large capacity lithium battery and super standby. Convenient data recording analysis and supports computer host computers for remote control and measurement.

8 Languages

8 configurable languages: Japanese, English, Chinese, French, German, Spanish, Italian, Russian. How to set the language : long press the power button to turn it on → press the "System" button → press the F2 button to enter system setting→ press the F1 button to select the language (every time you press F1 to switch the language) → Press the return key (under the F4 button) to maintain the language settings.

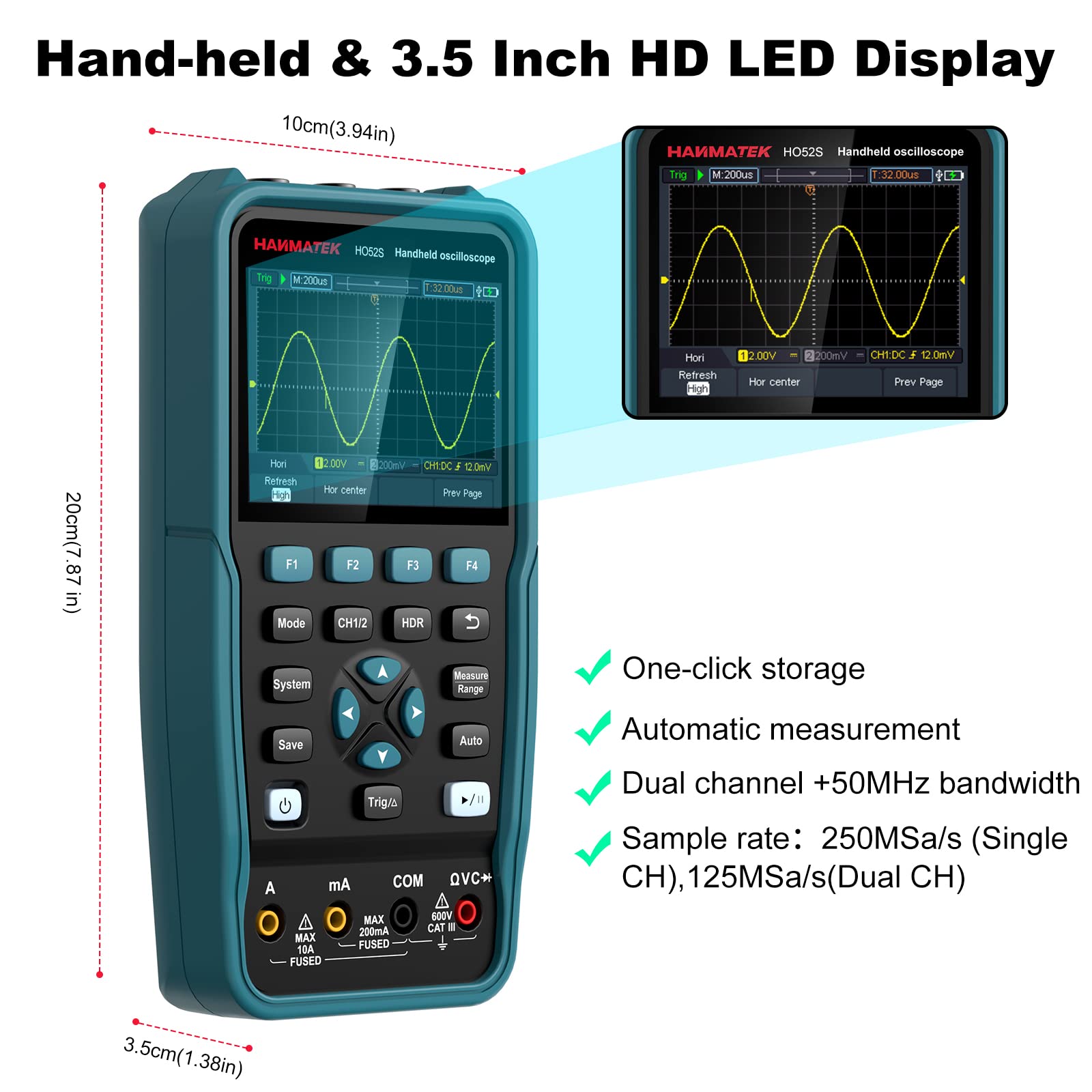

Handheld Oscilloscope

Small and lightweight for easy carrying. Can be used in hand

Low power consumption

Total power consumption is less than 3W and can be used continuously for about 6 hours.

Multimeter function

20000 readings, 41/2 digit true value. Supports measurements of voltage, current, resistance, capacitance, conductivity and diodes.

Signal Generator

The maximum waveform output power may reach 25Mhz It can output sine waves, square waves, saw waves, veining waves, and built-in special waves. Frequency Resolution: 0.1Hz 14-bit vertical resolution, 125MSa/S high sampling rate + 8K waveform length Maximum output amplitude is 5 Vpp.

	HO52S	HO52	HO102

Customer Reviews	731	731	731
Oscilloscope function	✓	✓	✓
Multimeter function	✓	✓	✓
Signal Generator Function	✓	x	x
Bandwidth	Dual channel, 50MHZ	Dual channel, 50MHZ	Dual Channel, 100MHZ

Mô tả

Thông tin chi tiết sản phẩm:

①Oscilloscope Mode: 1 The waveform refresh rate is 1000 wfms / s. 2. Dual channel, bandwidth up to 50MHZ, real-time sampling rate of 125MSa/s up to 8k record length. 3. Cursor measurement function 4.7 automatic measurement functions 5.XY function 6. Convenient one-key automatic setting function for testing and debugging
2. Multimeter mode: 4 1/2 digits of actual effective value, digital display: 20,000 readings. 1.Standard voltage, current, resistance, diode, conduction, capacitive test 2. Auto range function is convenient for testing and debugging. 3. Maximum input voltage is 750VAC and 1000VDC 4. Independent multimeter and oscilloscope input. 5. Read and hold function 6. Relative measurement function
3. Signal Generator: The maximum waveform output frequency can reach 25 Mhz. It can output sine waves, saw waves, square waves, veining waves, and built-in special waves. 1* HO52S 3-in-1 Handheld Digital Oscilloscope/Universal/Signal Generator, 1* Carrying Bag, 2* Oscilloscope Probe, 1* Adapter, 1* USB Cable, 1* Multimeter Pen, 1* Manual, 1* Calibration Pen, 1* CD (Note: Japanese version follows customs policies. No CD. Customers can download this product software from link https://bit.ly/3GCcmYn. )
4. The USB Type-C interface is not only compatible with mobile power supply, but also charging the adapter. Ultra low power consumption under 3W and can operate continuously for about 6 hours. Support computer connection. When connected to a computer, the oscilloscope is recognized as a USB flash drive and can read stored images and CSV waveforms which are convenient for future waveforms displaying, analyzing and sharing waveform data
5. Storage function: 4 sets of settings, 4 standard waveforms, 4 images and 4 sets of CSV format. The reference waveform and measurement waveform are displayed on the same screen, making it easier to compare waves. Self-calibration Up to 6 automatic measurements can be displayed on the screen simultaneously
