| Special feature | Versatile, transparent and multifunctional |

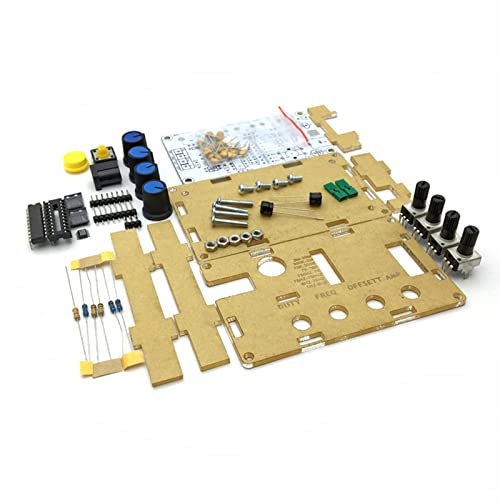

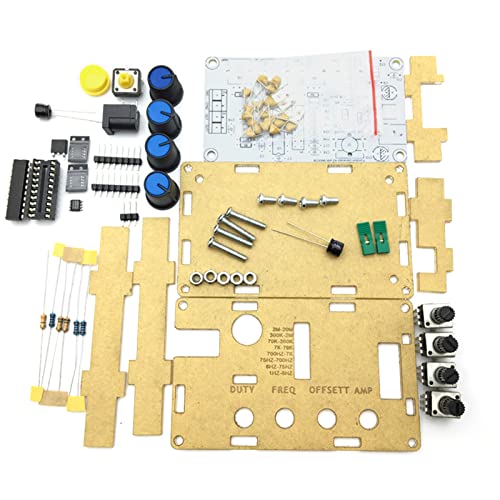

| Included components | Signal generator parts and circuit boards |
| Colour | Klar |
| Material | Acrylic |
| Model name | MAX038 |
| Engine type | Electronics |
| Ignition system type | Electronic |
| Total power outlets | 1 |
| Frequency | 20 MHz |
| Manufacturer | Risegun |
| Part Number | Risegunugsga4yepn |
| Item model number | Risegunugsga4yepn |
| Item Package Quantity | 1 |
| Special Features | Versatile, transparent and multifunctional |
| Batteries Included? | No |
| Batteries Required? | No |
| Item Weight | 90 g |
Product size:

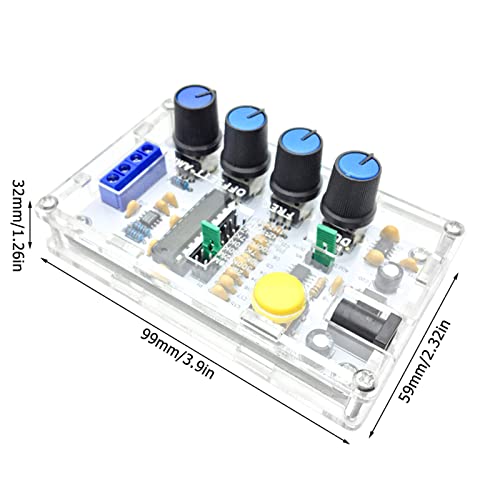

Item size: 99 x 59 x 32 mm/3.90 x 2.32 x 1.26 inchesPackage weight: 89gPackage size: 12 x 9 x 4 cm / 4.72 x 3.54 x 1.57 inches
Specifications:Material: PCB + acrylicFrequency adjustment range: 1Hz~20MHzAdjustment range for the working cycle: 15% to 85% Real sine wave with low loss: 0.75%. Linearity of the triangular wave output: 0.1%. Low impedance output buffer: 0.1ΩAdjustable DC offset: -5V~5VEAdjustable output amplitude: 0.1 V ~ 9.5 VPP (working voltage 9 V)
The circuit:
Operation amplifier works in dual power state (the dual power supply gain does not require a DC lock capacitor to ensure high and low frequency signals are not distorted).
Beautiful and practical:

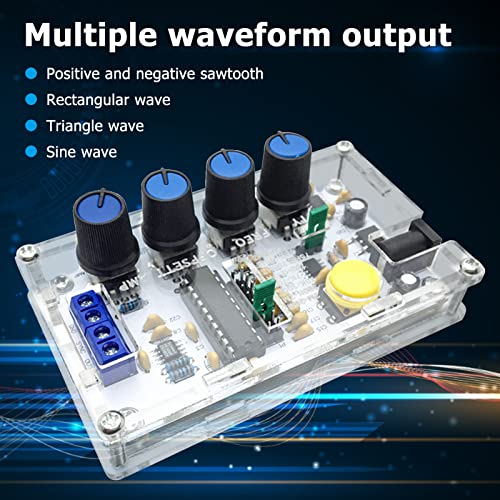

Switching the waveform output by push button, easy to use. Temperature drift of 200 ppm/°C. Adopts with clear acrylic shell, the signal generator is very beautiful and practical. It can output triangular waves, rectangular waves and sine waves as well as forward and reverse sawtooth waves.
